2 Gang LED Dimmer Switch 2 x 0-120W 2 Way Trailing Edge | Varilight V-Pro JQP252W
- Vendor
- Varilight
- SKU
- JQP252W
- Availability
- In stock
- Weight
- 0.15 kg
£46.15inc VAT £38.46exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

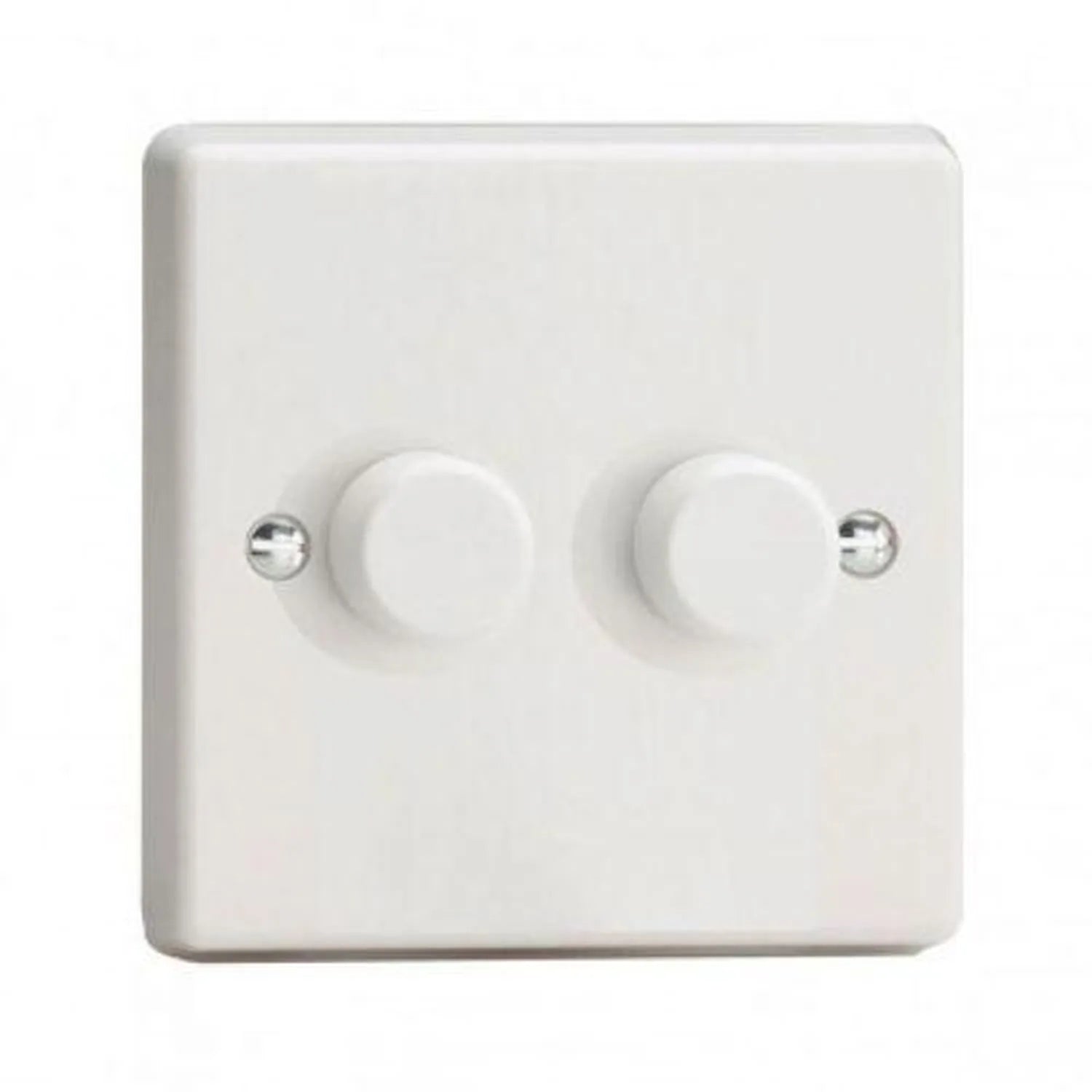

The Varilight V-Pro JQP252W is a 2 way, 2 gang LED dimmer switch with a white finish and two rotary knobs. Push a knob to switch that circuit on or off, then turn it to set the brightness. Each gang handles 0-120W of LED lighting.
A 2 gang LED dimmer switch with built-in protection
A microprocessor watches the load on each gang. If too many lights or transformers are connected, it dims the lights or switches them off until the load is corrected. There is no minimum load to meet.
Key features
- LED load: 0-120W per gang, with no maximum number of lamps.
- Dimming method: silent trailing edge as standard.
- Mode 2: a selectable simulated leading-edge mode for certain LEDs.
- Control: push on/off rotary knobs, 2 way switching.
- Supply: 230V 50Hz operating voltage.
- Protection: overload protection with no minimum load.
Installation details
The plate measures 85x85x47mm with an 11mm faceplate depth. Varilight recommends a 25mm back box, and the fixing centres are 60.3mm. This dimmer is for indoor use only.
Where it fits
Two separately dimmed LED circuits from one position. That makes it a practical choice for living rooms, kitchens and hallways where two sets of lights share a single switch point, and the 2 way rating lets it work alongside a switch elsewhere on the same circuit. Mode 2 is there for lamps that do not behave well on trailing edge.
Technical Specifications 16 rows Show
| Brand | Varilight |
| Model | JQP252W |
| Range | V-Pro |
| Maximum load rating | LED: 120W per gang (Halogen; 200W, Mixed Loads; 120W) |
| Operating voltage | 230V 50Hz |
| Dimensions | 85x85x47mm |
| Faceplate depth | 11mm |
| Recommended back box depth | 25mm |
| Fixing centres | 60.3mm |
| Terminal (live) | Diameter: 3.2mm; Capacity: 3 x 1.5mm² |
| Product weight | 160g |
| Knob colour | White Knob |
| Barcode | 5021575581027 |
| Depth from mounting face | 16.1mm |
| Safety standard | BS EN 60669-2-1 |
| Use | Indoor Use Only |
Manufacturer datasheet. Figures as published by the manufacturer.
