Varilight LED Dimmer Switch 2 Gang 2 Way 2 x 0-120W Premium White | V-Pro JDQP252S
- Vendor
- Varilight
- SKU
- JDQP252S
- Availability
- In stock
- Weight
- 0.15 kg
£39.89inc VAT £33.24exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

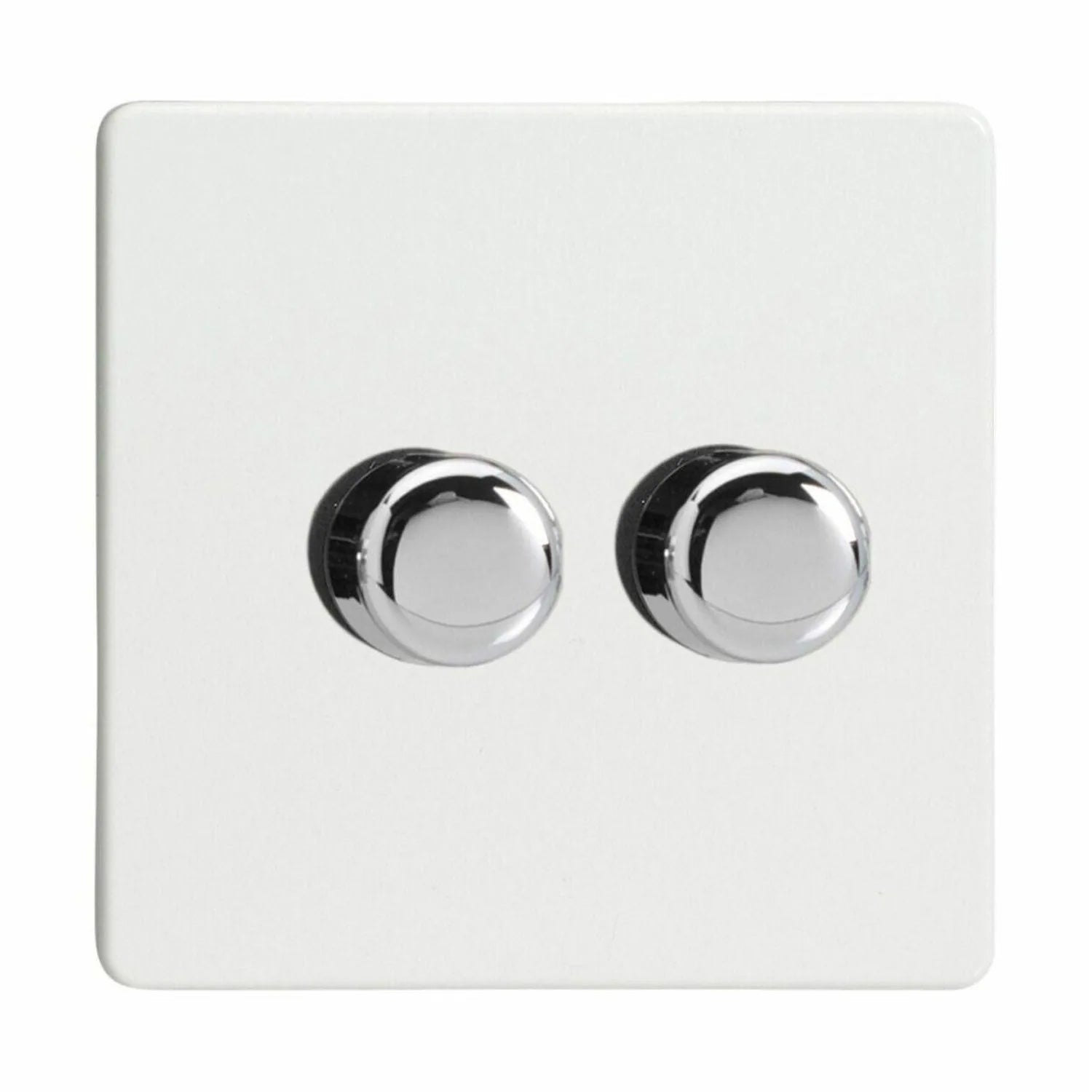

This Varilight dimmer switch controls two separate LED lighting circuits from one plate. It belongs to the V-Pro range and is a 2 gang, 2 way model with push on/off rotary control, a screwless Premium White plate and chrome knobs. Each gang handles 0-120W of LED load, up to 10 lamps.
Varilight dimmer switch features
- Configuration: 2 gang, 2 way
- Control: push on/off rotary
- LED load per gang: 0-120W (max. 10 lamps)
- Operating voltage: 220/250V
- Finish: screwless Premium White plate with chrome knobs
- Guarantee: 10 years from Varilight
V-Pro intelligent dimming
The V-Pro electronics give a soft start and intelligent overload protection. You can set the minimum brightness and choose between driving modes, which lets the dimmer be matched to the lamps on each circuit. That matters with LEDs. A setting that suits one lamp can flicker or cut out early with another, so the adjustment is there for tuning on site.
Fitting and back box
The switch measures 86x86x48mm, with a 4mm faceplate and 23.6mm depth from the mounting face. Varilight recommends a back box at least 35mm deep. Fixing centres are 60.3mm.
Loads to avoid
Do not use this dimmer with any of the following:
- Non-dimmable fluorescent bulbs and tubes
- Wire-wound or toroidal transformers
- TRIAC dimmable loads
- Electric motors
For homes and fit-outs where two LED circuits need independent dimming from a single position, with a clean screwless look and no visible fixing screws.
Technical Specifications 24 rows Show
| Brand | Varilight |
| Model | JDQP252S |
| Product category | V-Pro Dimmer |
| Description | 2-Gang 2-Way Push-On/Off Rotary LED Dimmer 2 x 0-120W (1-10 LEDs) |
| Gangs | 2-Gang |
| Ways | 2-Way |
| Control | Push-On/Off Rotary |
| Operating voltage | 220/250V |
| Power (LED load) | 2 x 0-120W (1-10 LEDs) |
| Maximum load | LED; 120W (Max. 10 lamps) |
| Dimming technology | V-Pro intelligent dimming technology |
| Protection | Soft start feature and intelligent overload protection |
| Settings | Adjustable minimum brightness setting and choice of driving modes |
| Not suitable for | Non-dimmable fluorescent bulbs and tubes, wire-wound or toroidal transformers, TRIAC dimmable loads or electric motors |
| Range | Screwless |
| Finish | Premium White |
| Knobs | Chrome |
| Dimensions | 86x86x48mm |
| Faceplate depth | 4mm |
| Depth from mounting face | 23.6mm |
| Recommended minimum back box depth | 35mm |
| Fixing centres | 60.3mm |
| Weight | 230g |
| Guarantee | 10 years |
Manufacturer datasheet. Figures as published by the manufacturer.
