2 Gang LED Dimmer Switch 2 x 0-120W Brushed Steel | Varilight V-Pro JSP252
- Vendor
- Varilight
- SKU
- JSP252
- Availability
- In stock
- Weight
- 0.15 kg
£45.10inc VAT £37.58exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

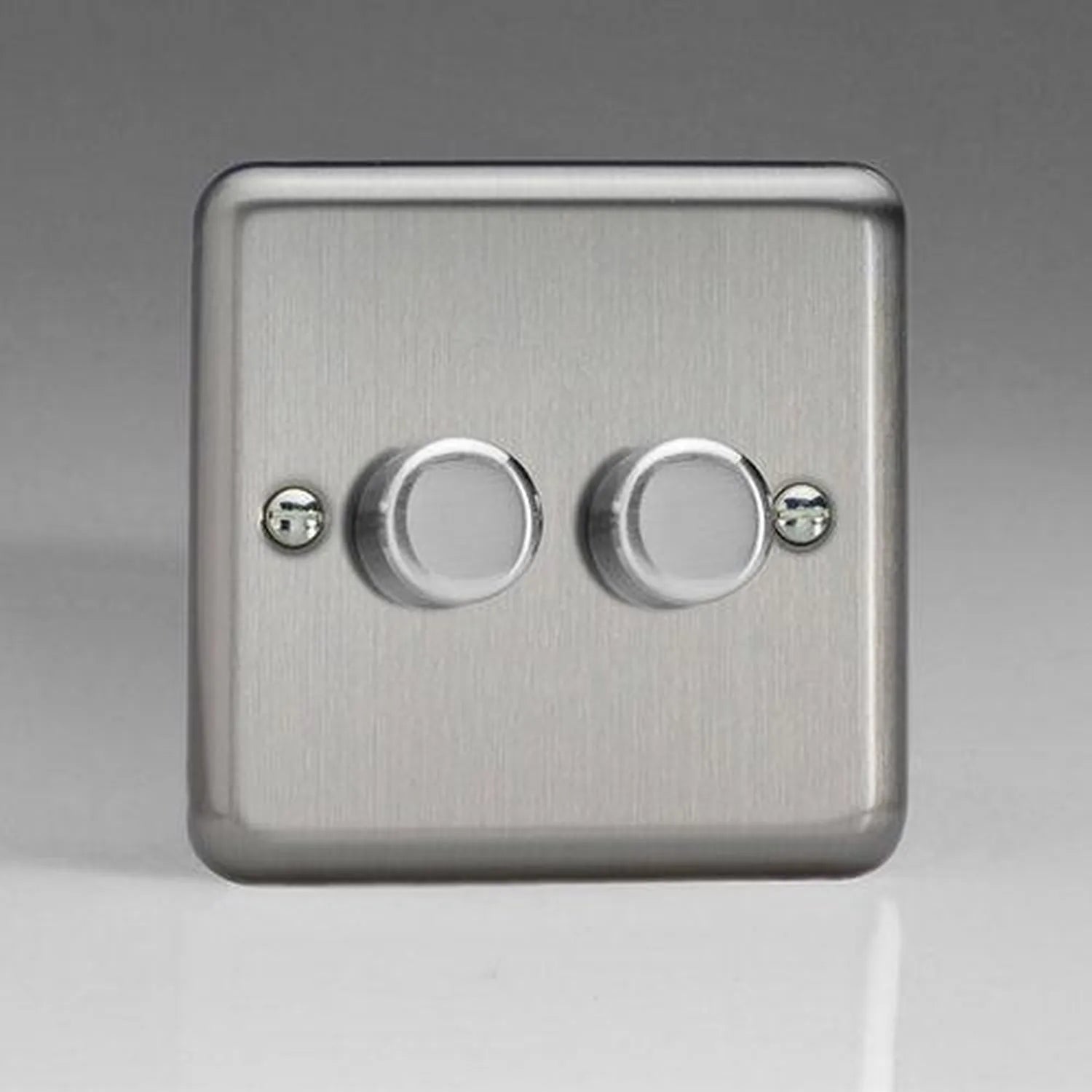

This Varilight V-Pro JSP252 is a 2 gang LED dimmer switch finished in brushed steel, rated 2 x 0-120W and suitable for 1 or 2 way circuits. Each knob works two ways. Push it to switch the light on or off, then turn it to set the level.
Why choose this 2 gang LED dimmer switch
V-Pro dimmers are programmable. You can set the minimum brightness in three steps, matching the dimmer to the lamps you have fitted and the room they light. A detailed data sheet is supplied in the box to walk you through it.
- Load per gang: 0-120W, up to a maximum of 10 LEDs
- LED dimming: works with trailing edge and leading edge LED loads
- Other lamp types: halogen, incandescent lights and dimmable transformers, with no minimum load
- Minimum brightness: adjustable in three steps
- Control: push on/off with rotary dimming on each gang
- Finish: brushed steel
Installation and wiring
The switch fits a 25mm deep wall box, so it can go into many existing installations without changing the back box.
Two way and three way circuits
In a 2-way circuit, pair it with a standard 2-way switch at the other location. Dimming is only possible from the Varilight unit itself, as it cannot dim from 2 locations. Need 3-way switching? Add an intermediate switch to the circuit.
Care
Wipe the metal faceplate with a microfibre cloth to keep the brushed steel clean.
What's in the box
- Varilight V-Pro JSP252 2 gang dimmer switch
- Detailed data sheet
Technical Specifications 13 rows Show
| Brand | Varilight |
| Model | JSP252 |
| Range | V-Pro Series |
| Description | 2 Gang, 1 or 2 Way Dimmer, 2 x 120W (up to 10 LEDs) |
| Load per gang | 0W-120W (maximum 10 LEDs) |
| Finish | Brushed Steel |
| Back box | Fits in a 25mm Deep Wall Box |
| Control | Push-on-off button and rotary dimming control |
| Dimming | Trailing-edge and leading-edge LED loads |
| Other loads | Halogen and incandescent lights and dimmable transformers, no minimum load |
| Minimum brightness | Adjustable, in three steps |
| 2-way switching | Works with a standard 2-way switch at the other location; cannot be dimmed from 2 locations |
| In the box | Detailed data sheet |
Manufacturer datasheet. Figures as published by the manufacturer.
