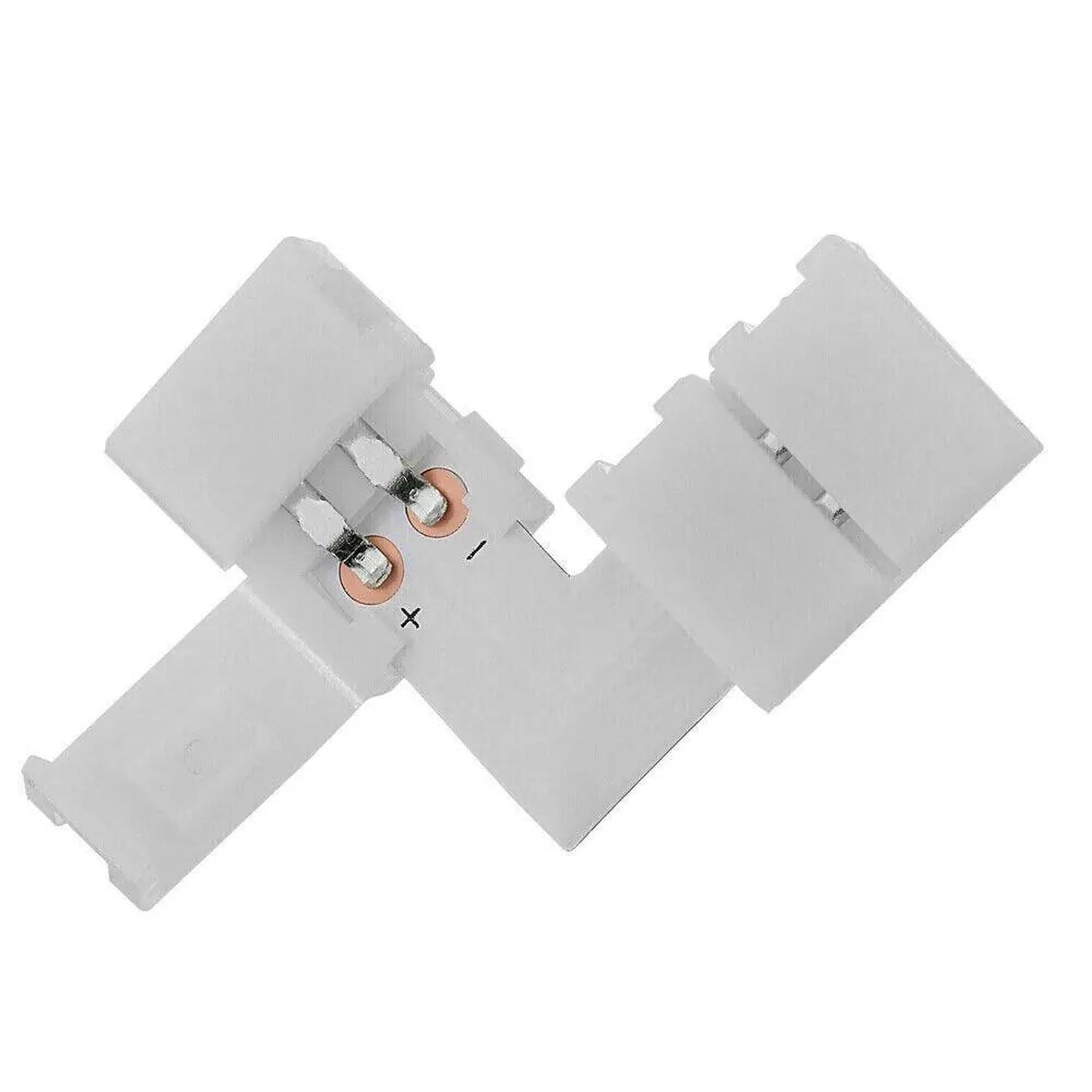

L-shaped LED strip connector with two copper pins and white housing, shown disconnected to display internal contact mechanism

LED Strip Corner Connector L Shape 2 Pin 8-10mm Single Colour | Ledison

£2.93
Skip to product information
L-shaped LED strip connector with two copper pins and white housing, shown disconnected to display internal contact mechanism

LED Strip Corner Connector L Shape 2 Pin 8-10mm Single Colour | Ledison

Vendor
Ledison
SKU
0790404943668
Availability
In stock
Weight
0.025 kg

£2.93inc VAT £2.44exc VAT

Delivery from £7.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

This L shape corner connector from Ledison joins two single colour LED strips at a right angle. No solder is needed, and no special tools either. It takes boards from 8mm to 10mm wide and uses a 2 pin contact, so it suits plain single colour tape rather than multi-channel strip.

LED strip corner connector details

  • Shape: L shape, right angle
  • Pins: 2 pin, for single colour LED strip
  • Board width: 8mm-10mm
  • Voltage: insulated for 12V, 24V and 48V, tested to maximum 100Vdc
  • Housing: insulated plastic casing
  • Waterproofing: non-waterproof

Where it fits

Running tape around the corner of a cabinet, shelf, cove or ceiling recess usually means cutting the strip and bridging the gap. This connector handles that turn. Each cut end slots into the connector, giving a clean 90 degree change of direction without wiring a joint by hand.

It works on 12V, 24V and 48V single colour strip, so one part covers the common supply voltages used on low voltage lighting runs. Check that your strip is between 8mm and 10mm wide and has two contact pads before ordering.

Before you fit it

The connector is not waterproof. Choose it for runs where the strip itself is non-waterproof, and confirm the board width and pin count match. A 2 pin connector will not carry the extra channels on tunable or RGB tape.

Technical Specifications 9 rows Show
TypeL shape connector, right angle
Pins2 pin
Board width8mm-10mm
LED stripSingle colour
Voltage12V, 24V and 48V
Tested tomaximum 100Vdc
Waterproofnon-waterproof
HousingPlastic casing, insulated
SolderingNo special tools or solder needed

Manufacturer datasheet. Figures as published by the manufacturer.
