Pallet of 36 JA Solar 465W Deep Blue 4.0 N-Type Solar Panels

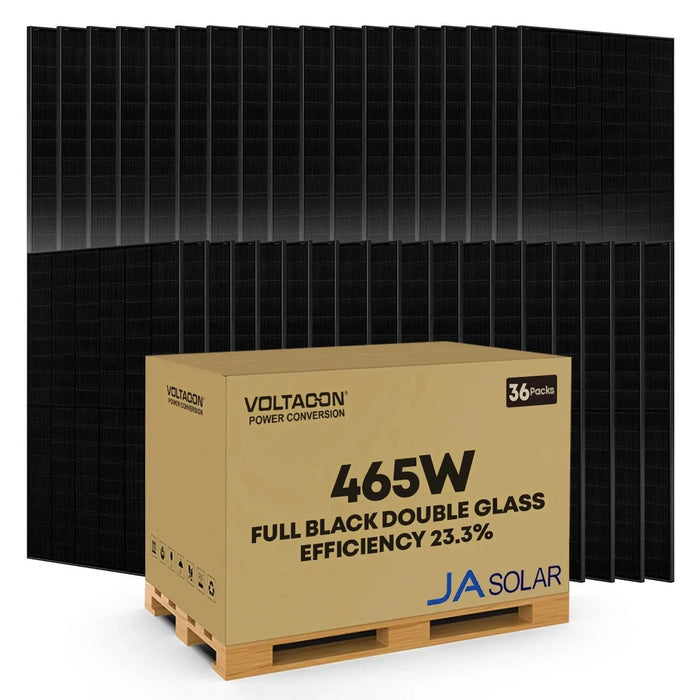

Factory-packed pallet of 36 JA Solar JAM54D41-465/LR Deep Blue 4.0 full black N-type monofacial double glass solar panels, giving a total pallet capacity of 16.74kW. Each panel is rated at 465W with 23.3% module efficiency and carries MCS certification BABT 8515 R37. Every panel on the pallet has an individual serial number printed for warranty tracking, making this a straightforward option for trade and project buyers ordering in bulk.

Key features of this monocrystalline solar pv panel

• Panel count, 36 panels per pallet, 16.74kW total capacity
• Power output, 465W rated output per panel, 23.3% module efficiency
• Construction, N-type monofacial bifacial-capable double glass build
• Power tolerance, 0 to +5W
• Load ratings, 5400 Pa snow load, 2400 Pa wind load
• System voltage, 1500V DC maximum
• Dimensions and weight, 1762 x 1134 x 30mm, 22kg per panel
• Connectors, Stäubli MC4-EVO2, 1200mm positive and negative cables per panel

Certifications and warranty

• MCS certified: BABT 8515 R37
• IEC 61215, IEC 61730, UL 61215, UL 61730, IEC 62941, ISO 9001, ISO 14001, ISO 45001
• 25-year product warranty and 30-year linear power output warranty

Applications

Suited to residential and commercial rooftop installations, ground-mounted arrays, and hybrid inverter or battery storage systems. The full pallet format suits installers and project buyers who need a consistent batch of monocrystalline silicon solar panels for larger jobs.

Installation notes

Delivered as a pallet only. String voltage under cold conditions needs to be checked against the inverter's maximum DC input, and the maximum series fuse rating is 30A per string. Fitting should be carried out by a qualified MCS-accredited solar installer.

What's in the box

• 36 x JA Solar JAM54D41-465/LR full black double glass panels
• Factory-fitted Stäubli MC4-EVO2 connectors and 1200mm cables per panel
• Serial numbers printed on the pallet for warranty reference
