JA Solar 465W Full Black Solar Panel Pallet of 10 | JAM54D41-465/LR
£882.00
Skip to product information
JA Solar 465W Full Black Solar Panel Pallet of 10 | JAM54D41-465/LR
- Vendor
- JA Solar
- SKU
- 606440-PCK10-JA
- Availability
- In stock
- Weight
- 270.0 kg
£882.00inc VAT £735.00exc VAT
Delivery from £185.00 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Secure checkout
Talk to our sales team
Product Description

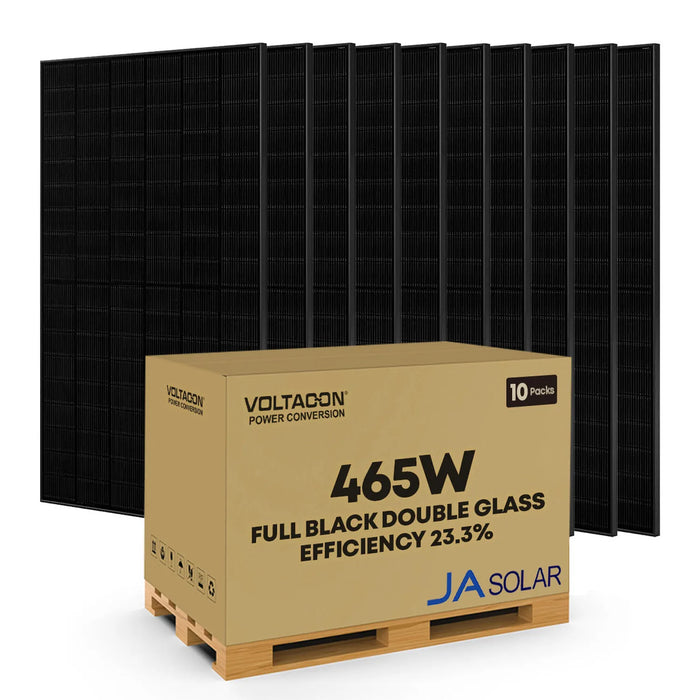

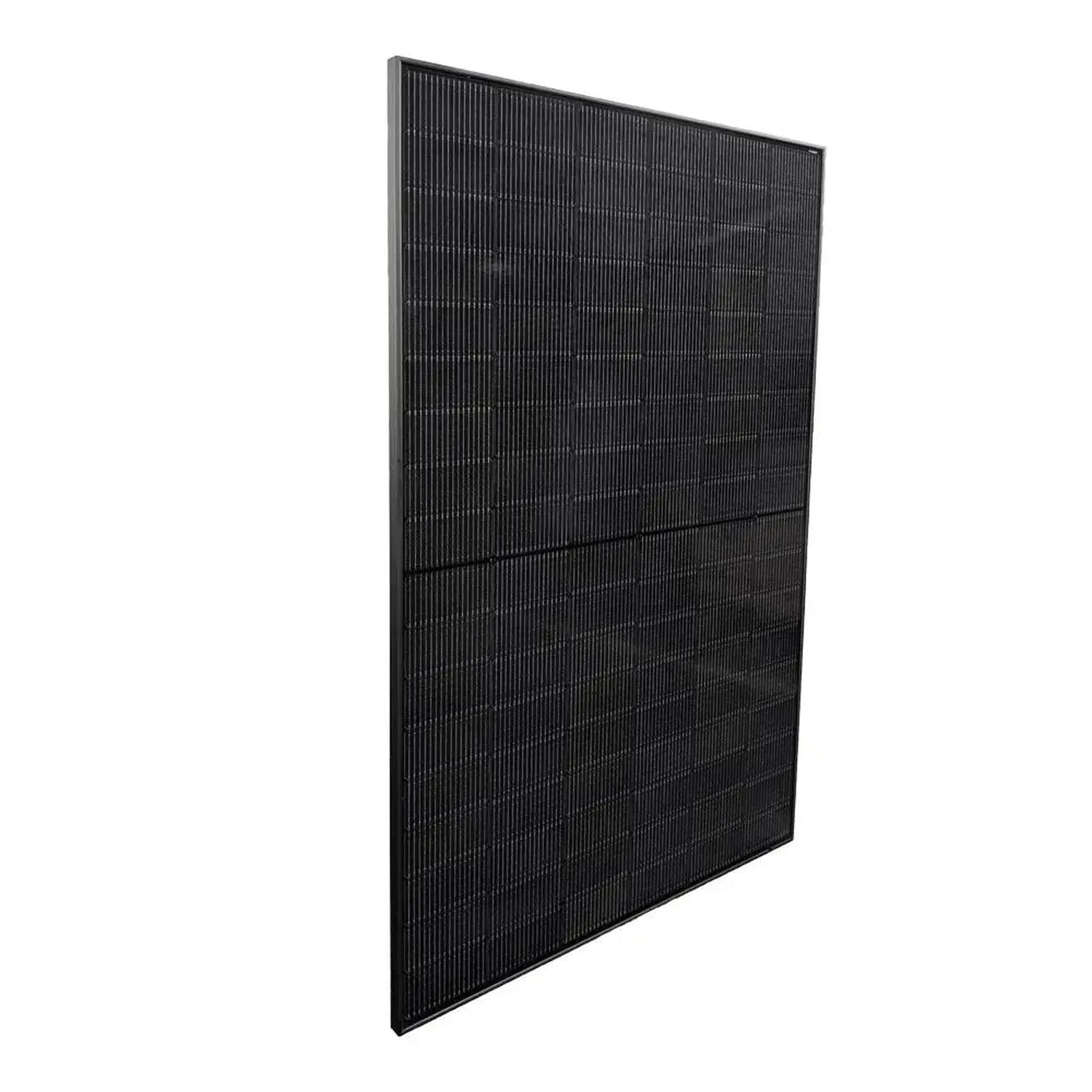

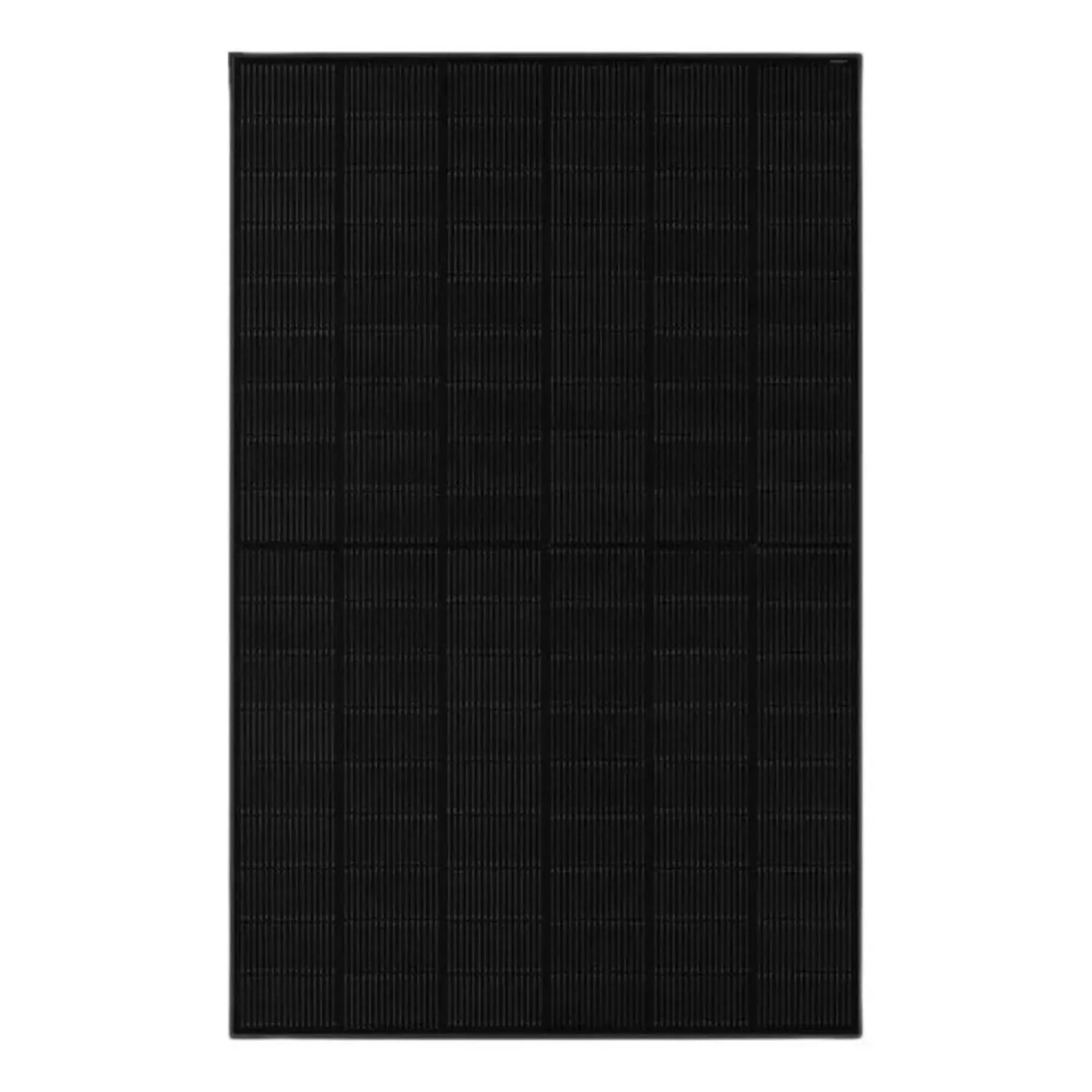

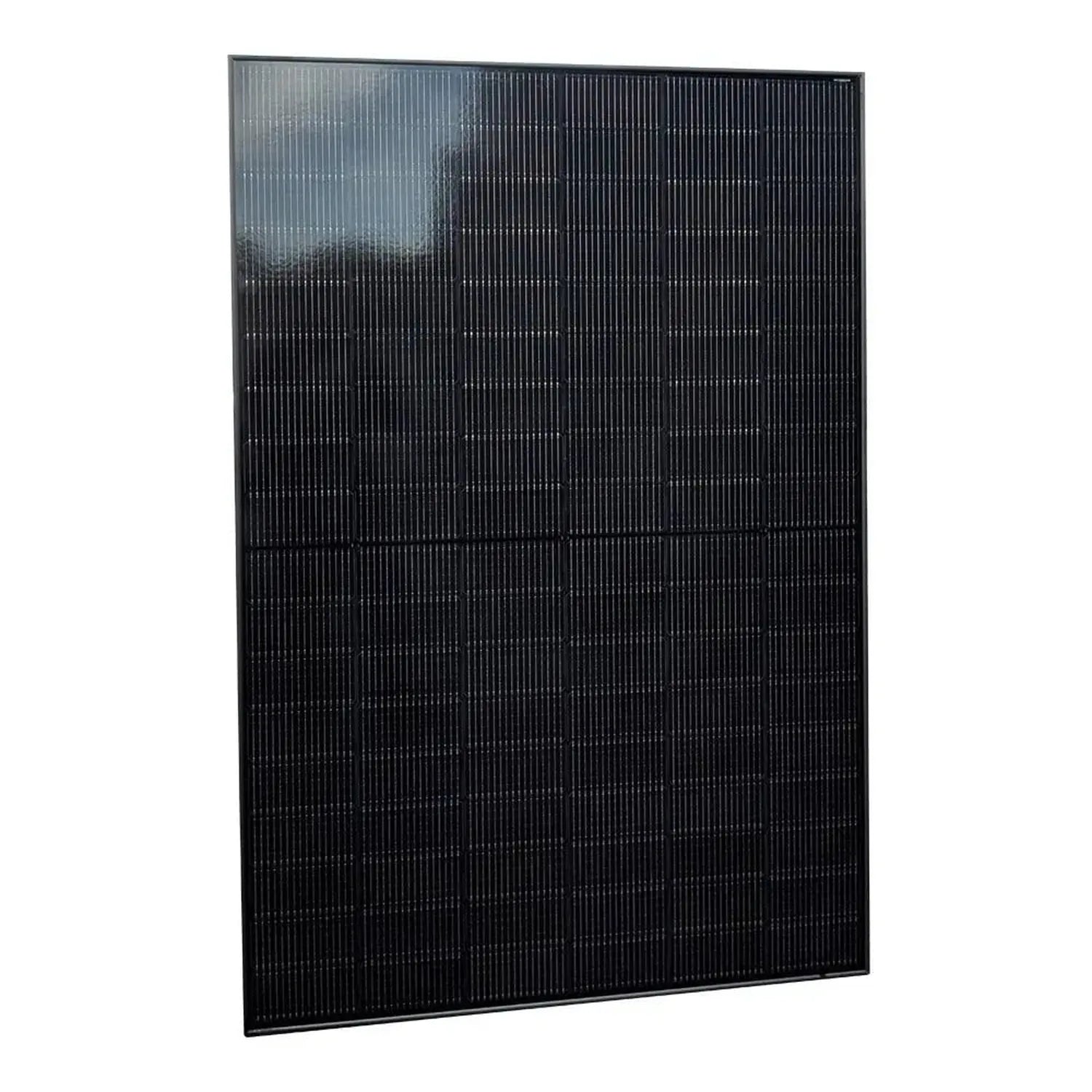

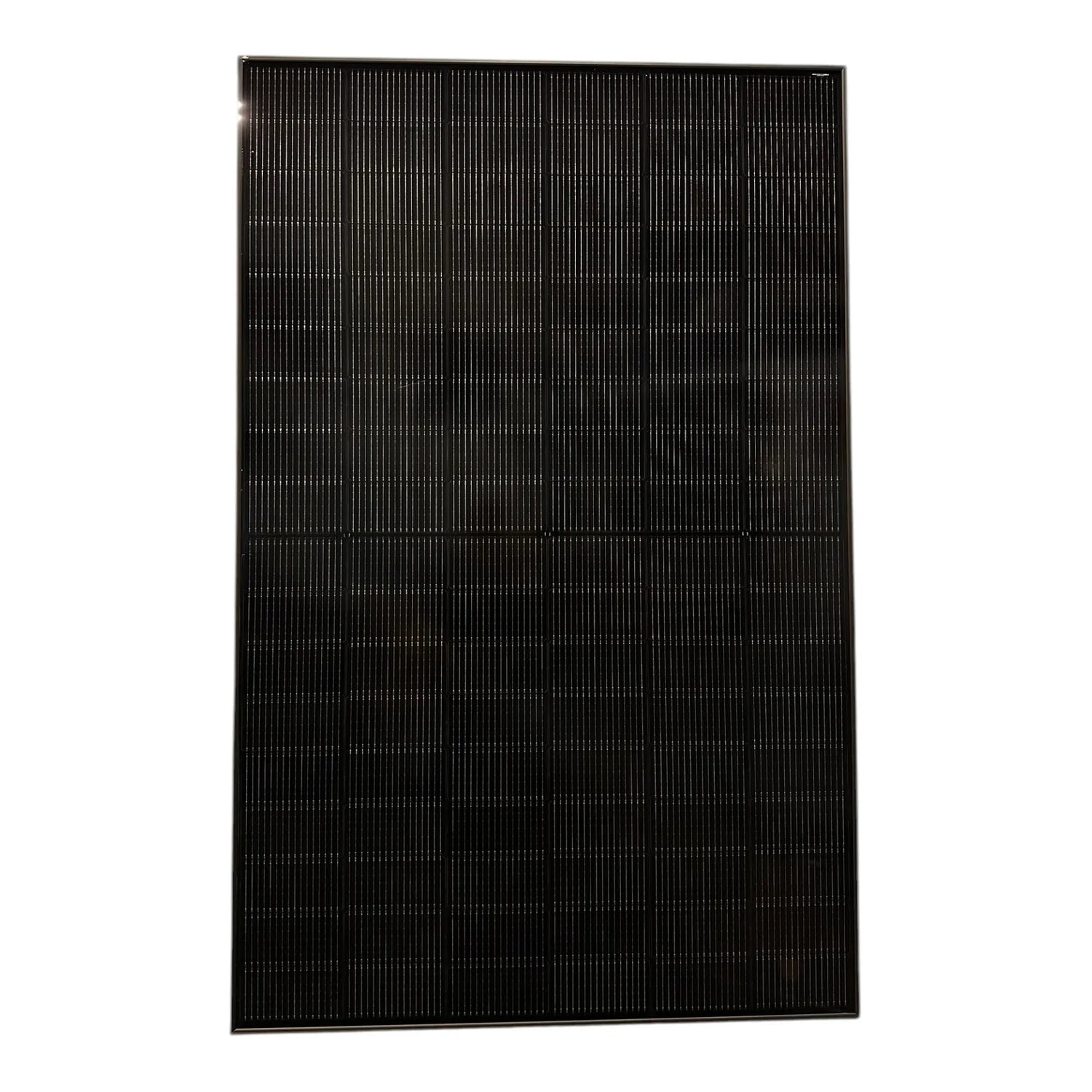

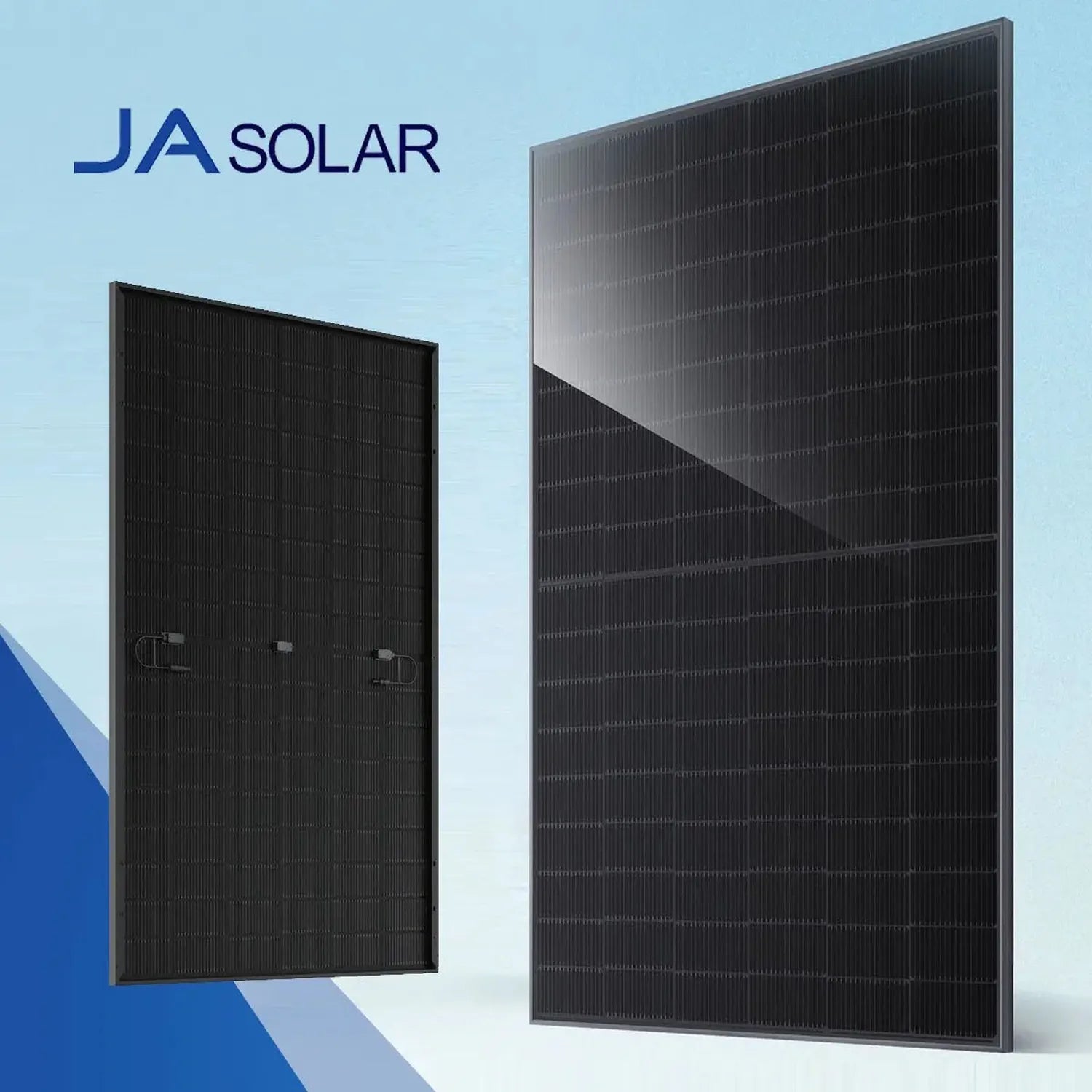

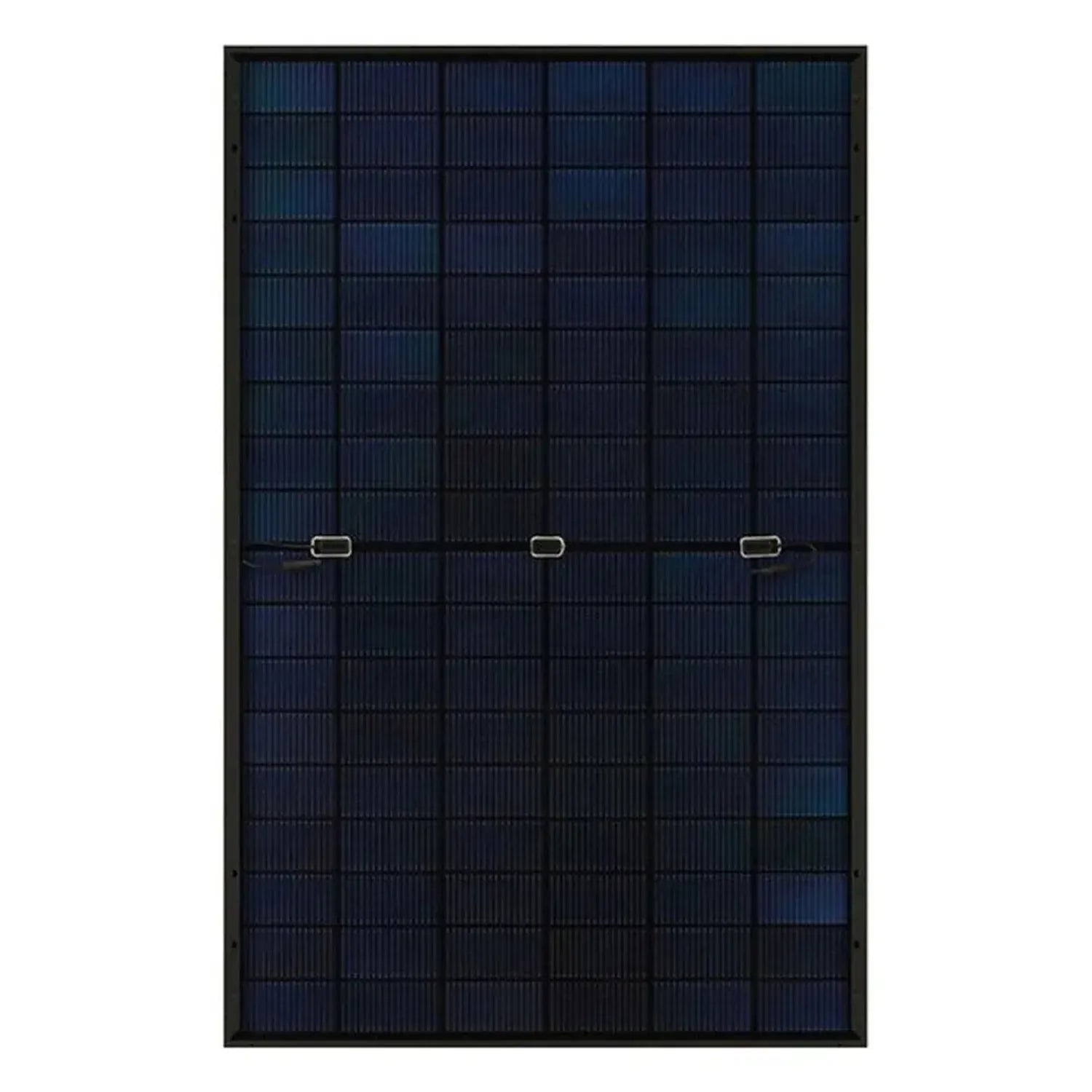

A pallet of 10 JA Solar JAM54D41-465/LR full black N-type dual glass solar panels, giving 4.65kW of installed capacity per pallet. Each panel is rated at 465W with 23.3% module efficiency and fitted with Stäubli MC4-EVO2 connectors on 1200mm cables.
Key features of these JA Solar black panels
- Output, 10 x 465W panels, 4.65kW total per pallet
- Efficiency, 23.3% module efficiency
- Cell technology, N-type monofacial cells
- Build, dual glass construction, full black frame, backsheet and cells
- Power tolerance, 0 to +3%
- Load rating, snow load 5400 Pa, wind load 2400 Pa
- System voltage, 1500V DC maximum
- Connectors, Stäubli MC4-EVO2 with 1200mm cables, factory fitted
- Warranty, 30-year linear power output warranty
Applications
Suited to residential and commercial rooftop PV systems, hybrid inverter and battery storage installations, ground-mounted arrays, off-grid systems, and trade or installer pallet purchases. This is a monofacial panel, not bifacial.
Dual glass construction
Two layers of tempered glass replace the front glass and plastic backsheet arrangement found on standard panels, reducing moisture ingress over time. JA Solar's Bycium N-type cells are rated at 1% first-year degradation and 0.4% per year thereafter over 30 years.
Installation notes
Installation should be carried out by a qualified MCS-accredited installer. String voltage under cold conditions needs to be checked against inverter maximum input voltage, and the maximum series fuse rating per string is 30A.
What's in the box
- 10 x JA Solar JAM54D41-465/LR 465W full black dual glass panels
- Factory-fitted Stäubli MC4-EVO2 connectors and 1200mm cables per panel

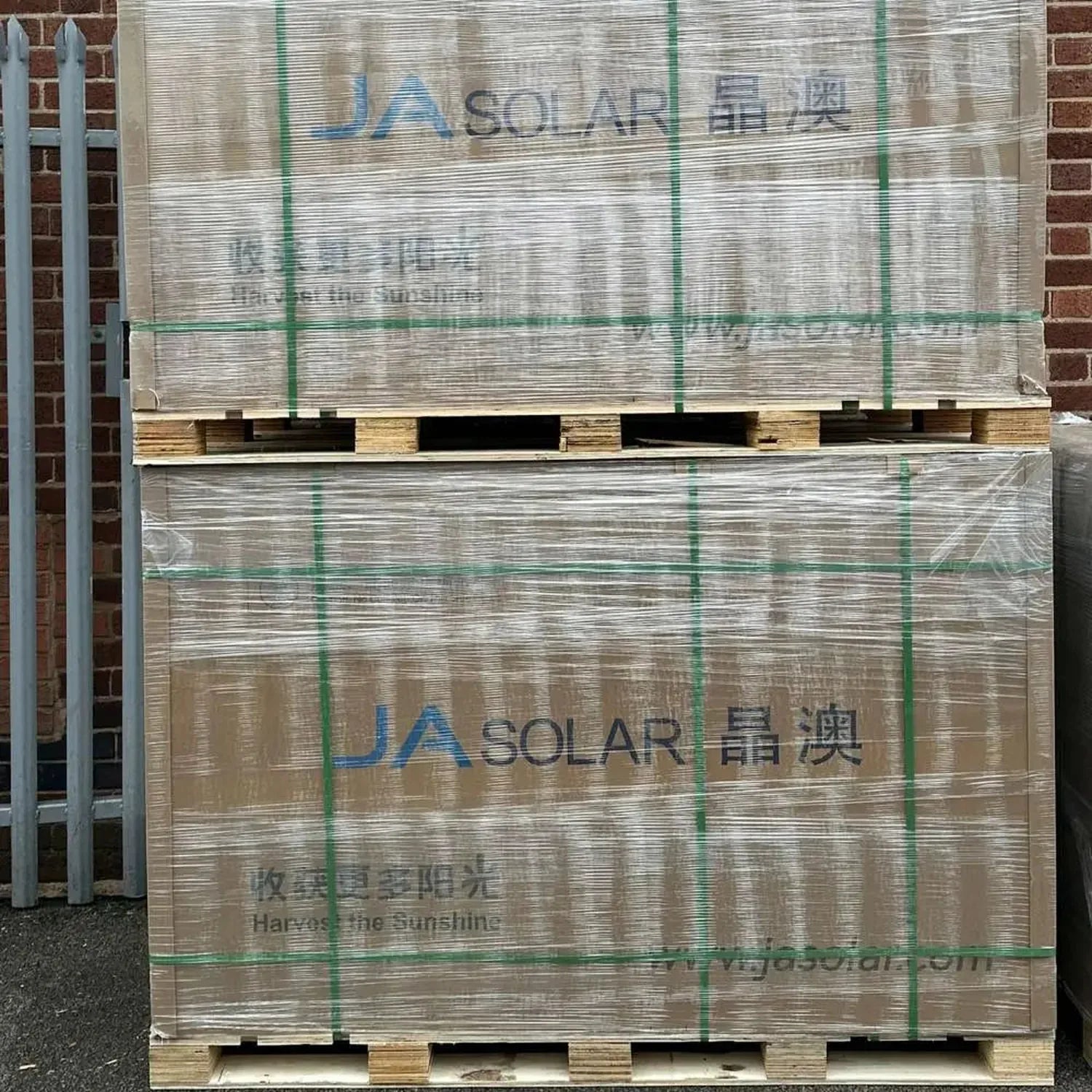

- Bespoke pallet packaging
- Traceable panel serial numbers for warranty support
Technical Specifications 29 rows Show
Technical Specifications, JA Solar JAM54D41-465/LR
| Parameter | Value |
| Manufacturer | JA Solar |
| Model | JAM54D41-465/LR |
| Panel type | Monofacial, double glass, all black |
| Cell technology | N-type monocrystalline |
| Maximum power (Pmax) | 465W |
| Module efficiency | 23.3% |
| Power tolerance | 0 to +5W |
| Open circuit voltage (Voc) | 40.70V |
| Maximum power voltage (Vmp) | 34.02V |
| Short circuit current (Isc) | 14.46A |
| Maximum power current (Imp) | 13.68A |
| Maximum system voltage | 1500V DC |
| Maximum series fuse rating | 30A |
| Cell configuration | 108 cells |
| Dimensions | 1762 x 1134 x 30mm |
| Weight | 22kg |
| Front glass | 1.6mm tempered |
| Rear glass | 1.6mm tempered |
| Junction box | IP68 |
| Connector | Stäubli MC4-EVO2 |
| Operating temperature | -40°C to +85°C |
| Temp. coefficient Pmax | -0.290% / °C |
| Temp. coefficient Voc | -0.250% / °C |
| Temp. coefficient Isc | 0.045% / °C |
| Product warranty | 25 years |
| Linear power warranty | 30 years |
| First year degradation | 1% |
| Annual degradation year 2 to 30 | 0.4% |
Manufacturer datasheet. Figures as published by the manufacturer.
