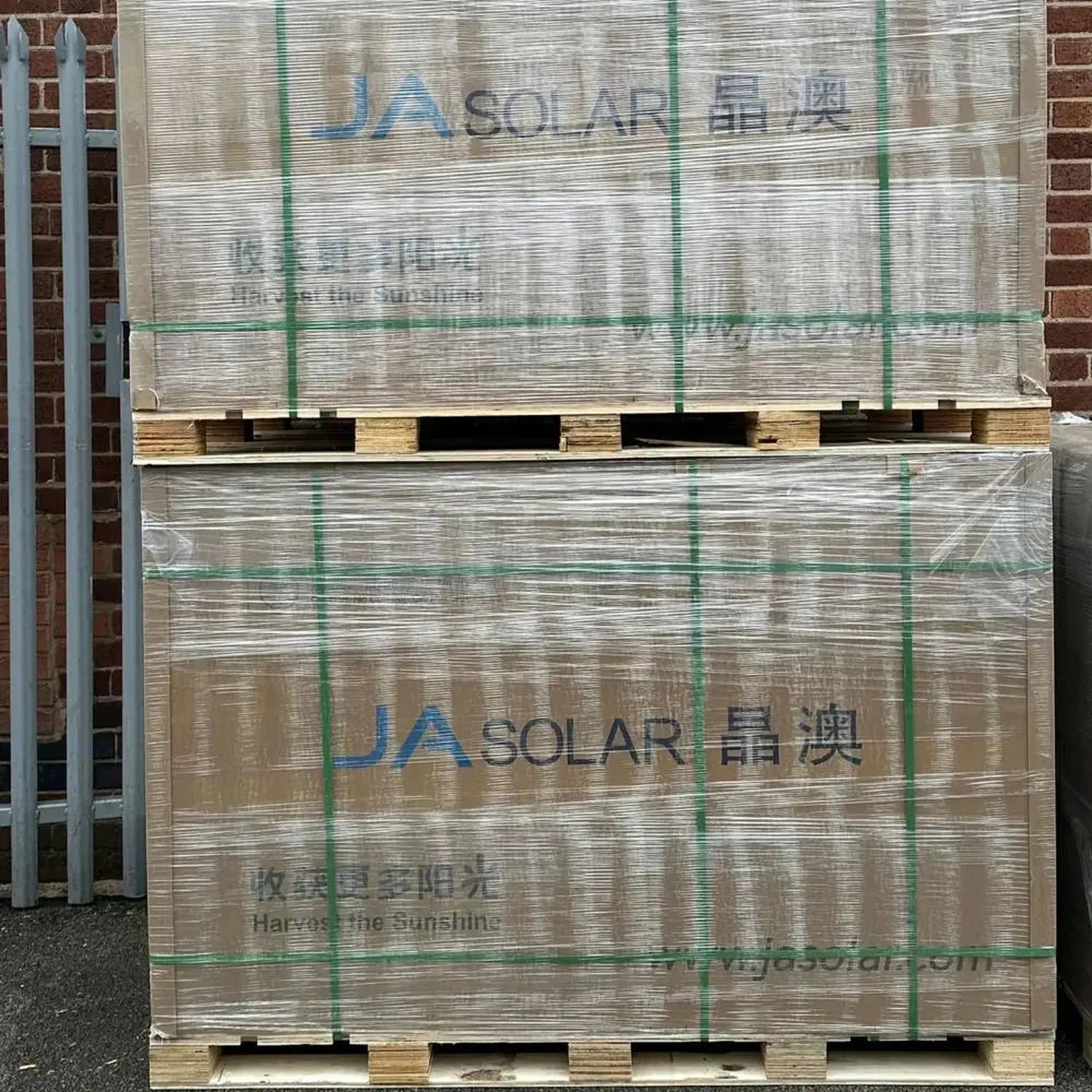

JA Solar 465W Full Black Panels Pack of 12 | JAM54D41-465/LR
£1,102.50
Skip to product information
JA Solar 465W Full Black Panels Pack of 12 | JAM54D41-465/LR
- Vendor
- JA Solar
- SKU
- 606440-PCK12-JA
- Availability
- In stock
- Weight
- 270.0 kg
£1,102.50inc VAT £918.75exc VAT
Secure checkout
Talk to our sales team
Product Description

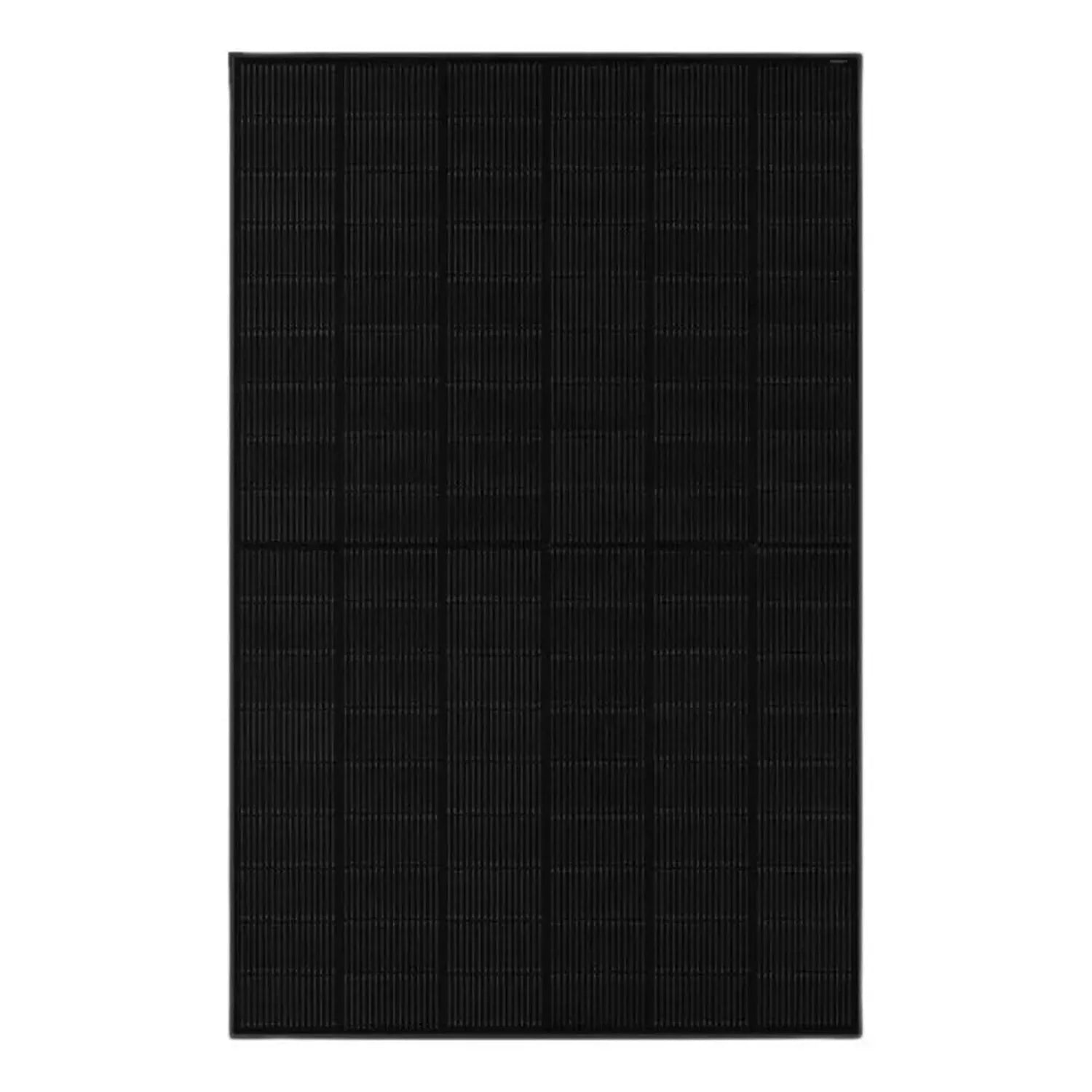

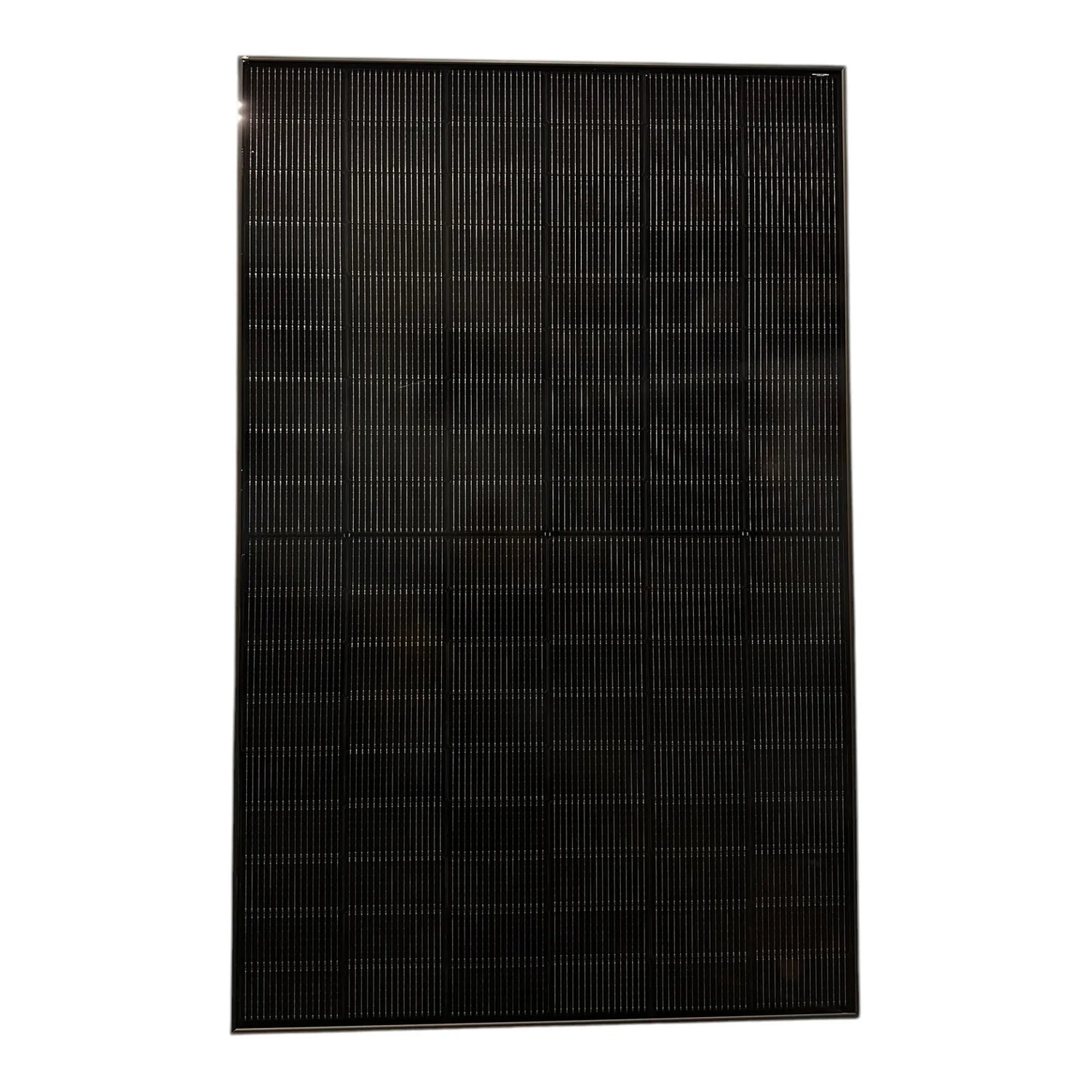

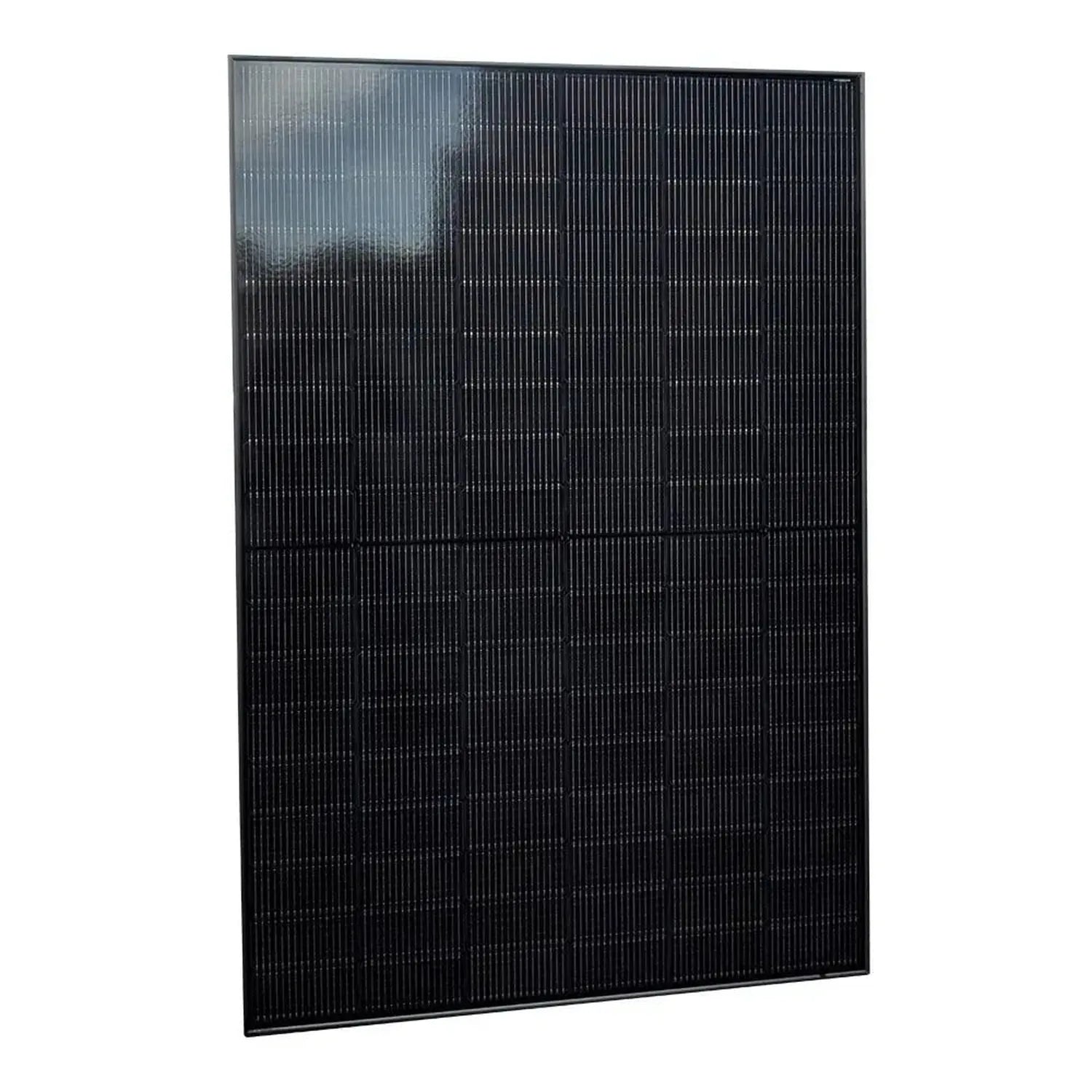

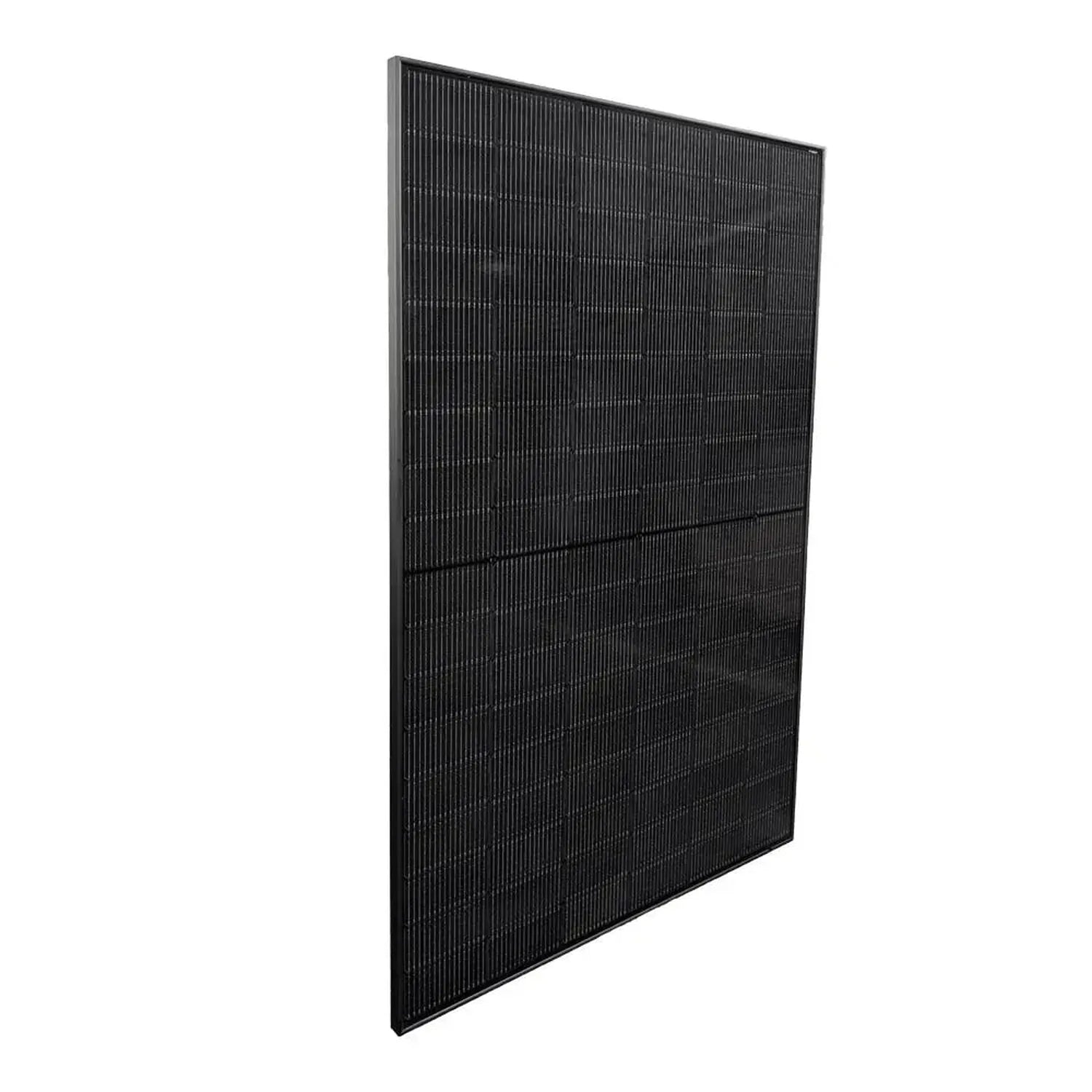

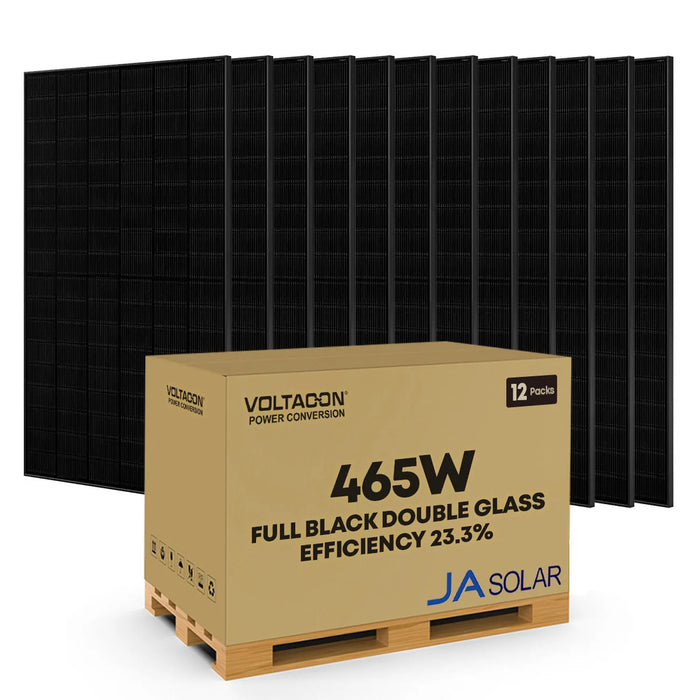

A trade pack of 12 JA Solar JAM54D41-465/LR full black N-type monofacial double glass solar panels, giving a total pack capacity of 5.58kW. Each panel is rated at 465W with a module efficiency of 23.3%, built on N-type Bycium cell technology and finished with an all-black aesthetic for visible roof areas.
Key features of these monocrystalline solar panels
- Pack size, 12 panels, 5.58kW total capacity
- Power output, 465W per panel at 23.3% module efficiency
- Cell technology, N-type monofacial (Bycium), double glass construction
- Power tolerance, 0 to +5W
- Mechanical loading, 5400 Pa snow load, 2400 Pa wind load
- Connectors, Stäubli MC4-EVO2, 1200mm positive and negative cables
Maximum system voltage is 1500V DC. Each panel measures 1762 x 1134 x 30mm and weighs 22kg. The panels are MCS certified under BABT 8515 R37, backed by a 25-year product warranty and a 30-year linear power output warranty.
Applications
Suited to residential and commercial rooftop installations, and to hybrid inverter or battery storage systems. The all-black finish is aimed at projects where panel appearance matters, and the trade pack quantity suits installer purchasing.
Installation notes
Installation must be carried out by a qualified MCS-accredited installer. String voltage in cold conditions needs to be checked against the inverter's maximum DC input, and the maximum series fuse rating is 30A per string.
Technical Specifications 29 rows Show
Technical specification
| Manufacturer | JA Solar |
| Model | JAM54D41-465/LR |
| Panel construction | Monofacial, double glass, all black |
| Cell type | N-type monocrystalline |
| Max power (Pmax) | 465W |
| Efficiency | 23.3% |
| Power tolerance | 0 to +5W |
| Open circuit voltage (Voc) | 40.70V |
| Voltage at max power (Vmp) | 34.02V |
| Short circuit current (Isc) | 14.46A |
| Current at max power (Imp) | 13.68A |
| Max system voltage | 1500V DC |
| Max series fuse rating | 30A |
| Cell count | 108 cells |
| Panel dimensions | 1762 x 1134 x 30mm |
| Panel weight | 22kg |
| Front glass | 1.6mm tempered glass |
| Rear glass | 1.6mm tempered glass |
| Junction box rating | IP68 rated |
| Output cable | 4mm², portrait installation 300mm / landscape installation 1200mm |
| Connector type | QC 4.10-35I or MC4-EVO2A |
| Operating temperature range | -40°C to +85°C |
| Pmax temperature coefficient | -0.290% / °C |
| Voc temperature coefficient | -0.250% / °C |
| Isc temperature coefficient | 0.045% / °C |
| Product warranty | 25 years |
| Linear power warranty | 30 years |
| First year degradation | 1% |
| Annual degradation (year 2 to 30) | 0.4% |
Manufacturer datasheet. Figures as published by the manufacturer.
