All LED Back-Lit Panels

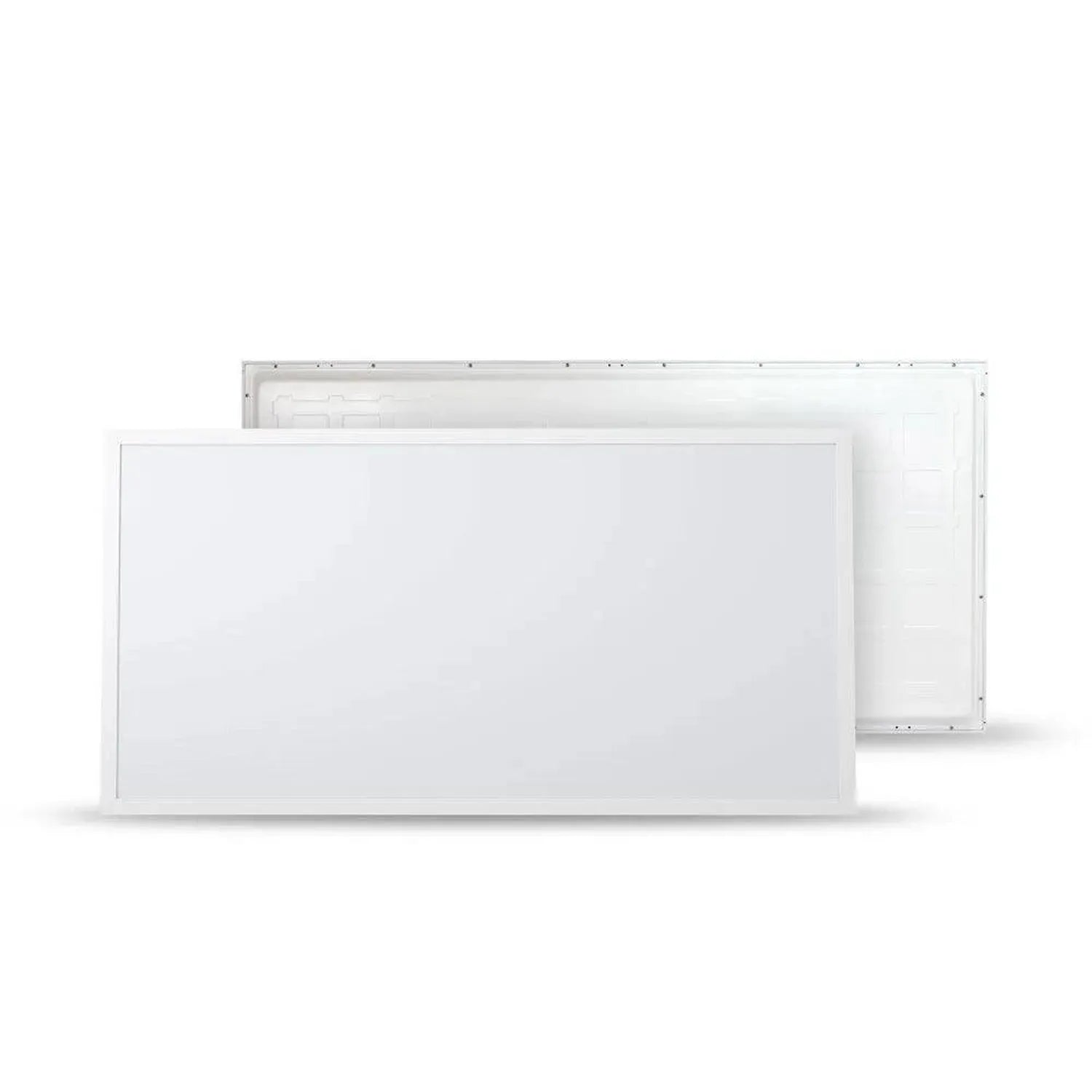

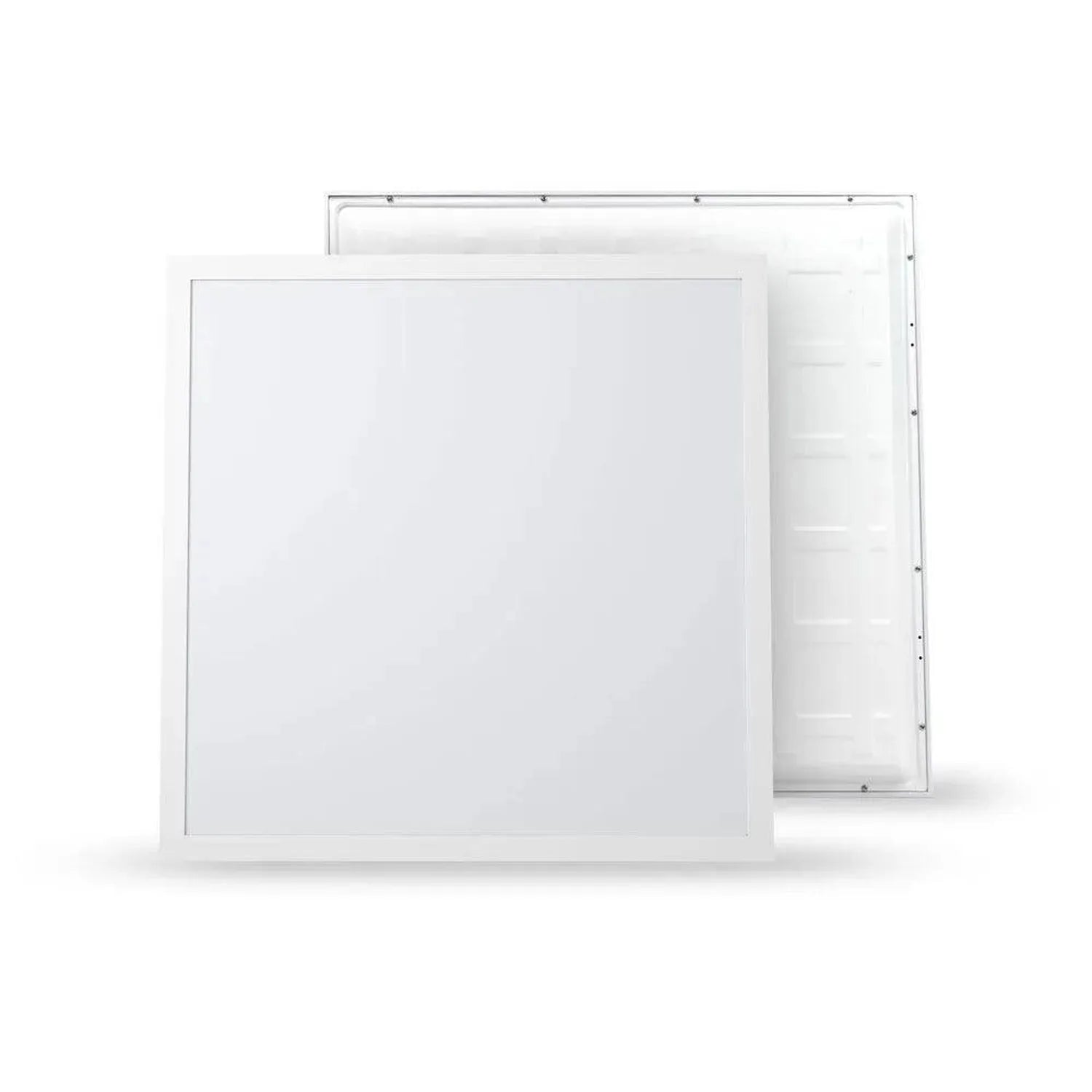

White square LED panel light shown front and back view, displaying frame and internal mounting structure.

1200x600 LED Panel 50W Backlit TP(a) Diffuser UGR<19 | Ledison Pyres

Non-Dimmable / No Emergency Pack / Recessed
Sale price  £58.75 Regular price £58.87
Skip to product information
White square LED panel light shown front and back view, displaying frame and internal mounting structure.

1200x600 LED Panel 50W Backlit TP(a) Diffuser UGR<19 | Ledison Pyres

Vendor
Ledison
SKU
102072
Availability
In stock
Weight
1.0 kg

Was£58.87£49.06Save £0.12Save £0.10

£58.75inc VAT £48.96exc VAT

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

The Ledison Pyres is a backlit 1200x600 LED panel drawing 50 watts at 120lm/W. Its polycarbonate diffuser carries a TP(a) rating, so once a flame source is removed, any flaming or afterglow stops within 5 seconds. That rating covers the diffuser only, not the whole fitting. Low glare comes from 180 degree lenses on the LED board, giving UGR<19 to EN12464-1.

1200x600 LED panel specification at a glance

  • Power: 50W at 120lm/W

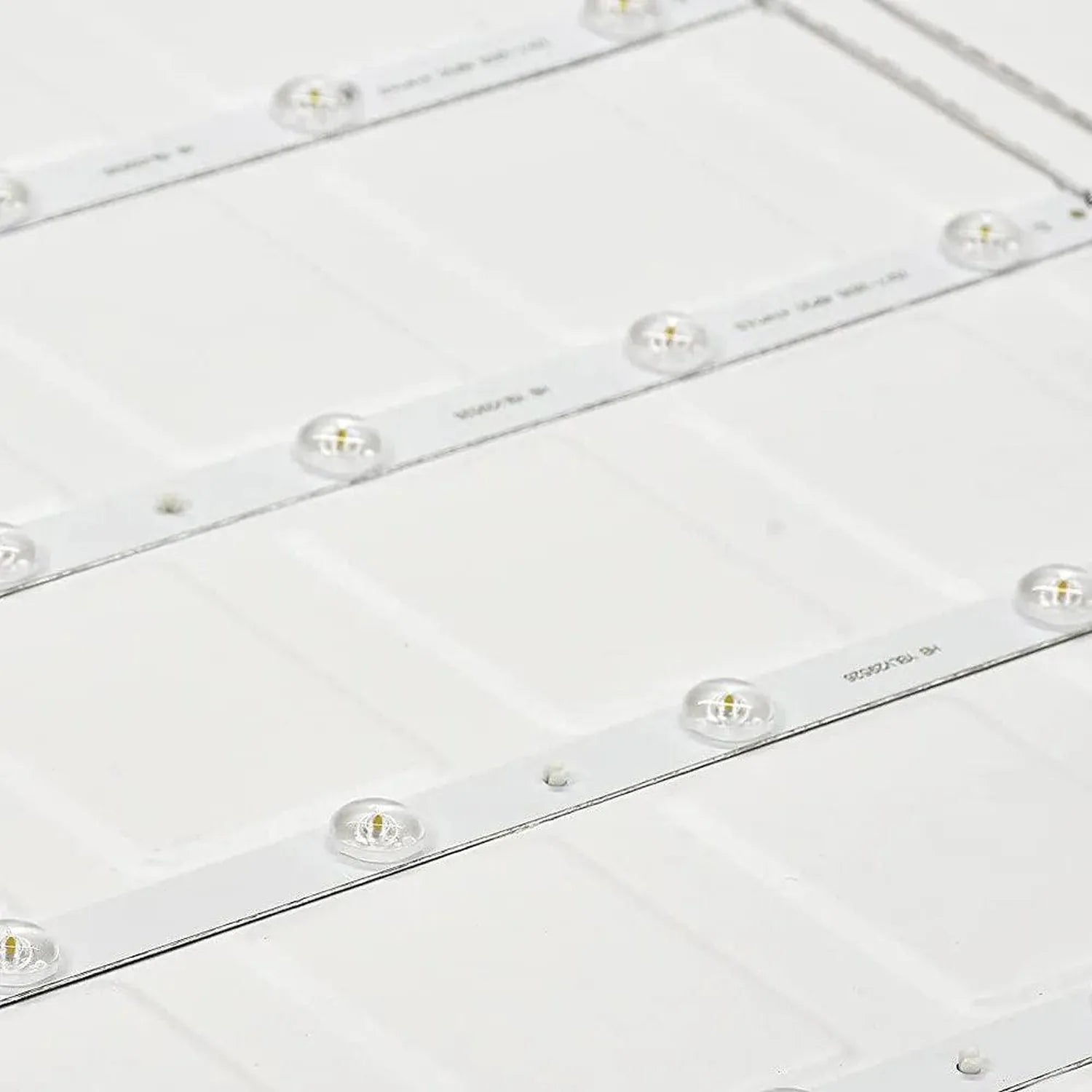

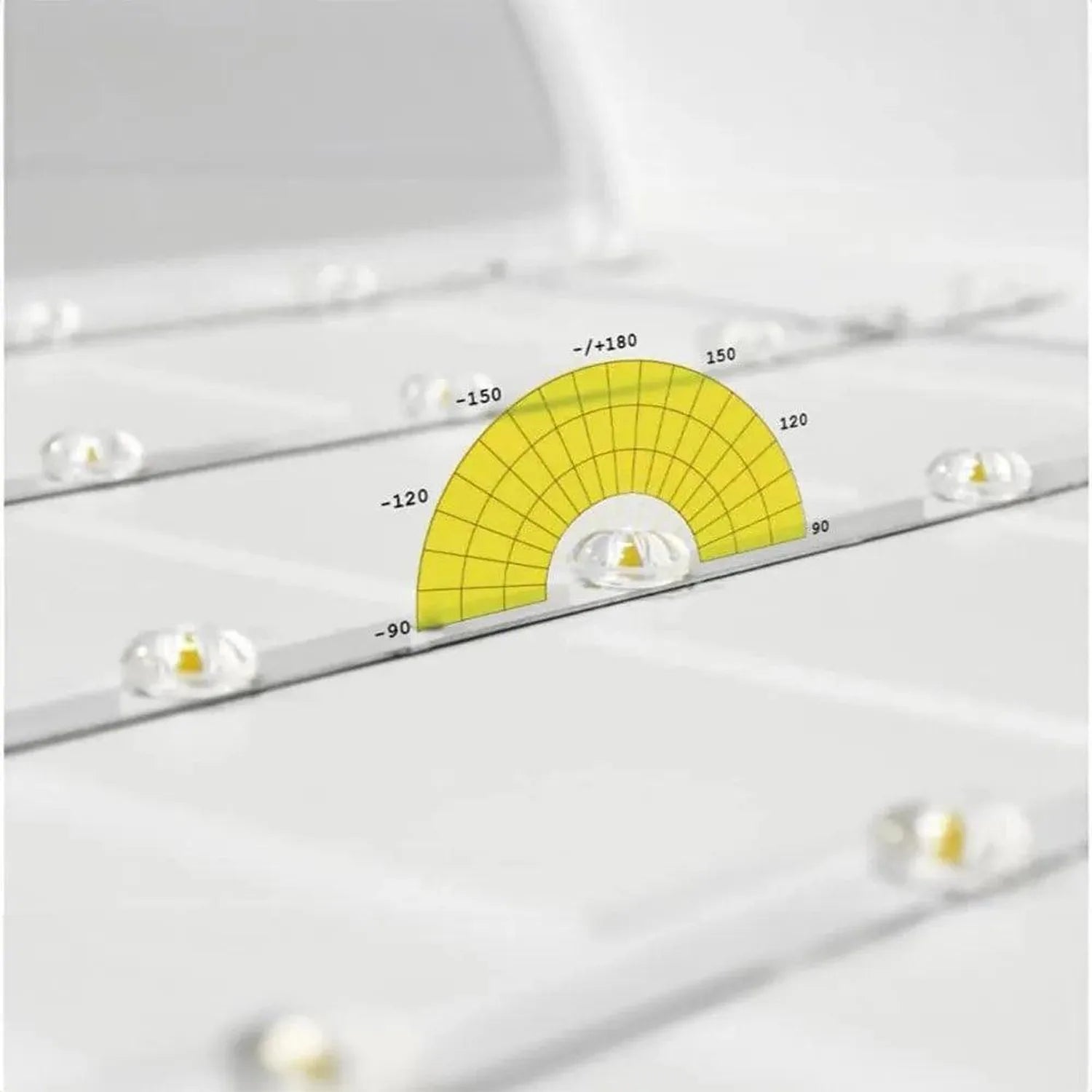

  • Glare: UGR<19 (EN12464-1), using 180 degree lenses on the LED board
  • Diffuser: TP(a) rated polycarbonate
  • Size: 1195x595 panel, 32mm thick
  • Protection: IP44
  • Wiring: cable strain relief fitted

Build your version

One panel, several configurations. Pick the control, emergency and mounting options that suit the job.

  • Dimming: non-dimmable, AC triac, 1-10V or DALI
  • Emergency: none, lithium emergency pack or DALI emergency, with a 3 hour duration
  • Mounting: recessed, surface mounted or suspended

Where it fits

Offices, shops, schools and homes are all suited to this panel. The low glare figure makes it a sensible choice above desks and screens. Where a ceiling grid is in place it can be recessed, and on solid ceilings the surface mounted or suspended versions give the same light without cutting in. The Tri-Colour setting lets you match the colour temperature to the space.

Compliance

The panel meets Building Regulations L2A and L2B. It is CE marked against the Low Voltage Directive 2014/35/EU and the EMC Directive 2014/30/EU, and test certificates are held on file.

Technical Specifications 19 rows Show
Product typeLED Backlit Panel
Size1200x600
Wattage50W
Efficiency120lm/w
Optics180° optical lenses
GlareUGR <19
DiffuserTP(a) rated PC diffuser (self-extinguishes within 5 seconds of flame removal)
Thickness32mm
IP ratingIP44
Building RegulationsL2A & L2B
CELow Voltage Directive 2014/35/EU, Electromagnetic Compatibility Directive 2014/30/EU
Dimensions1195x595

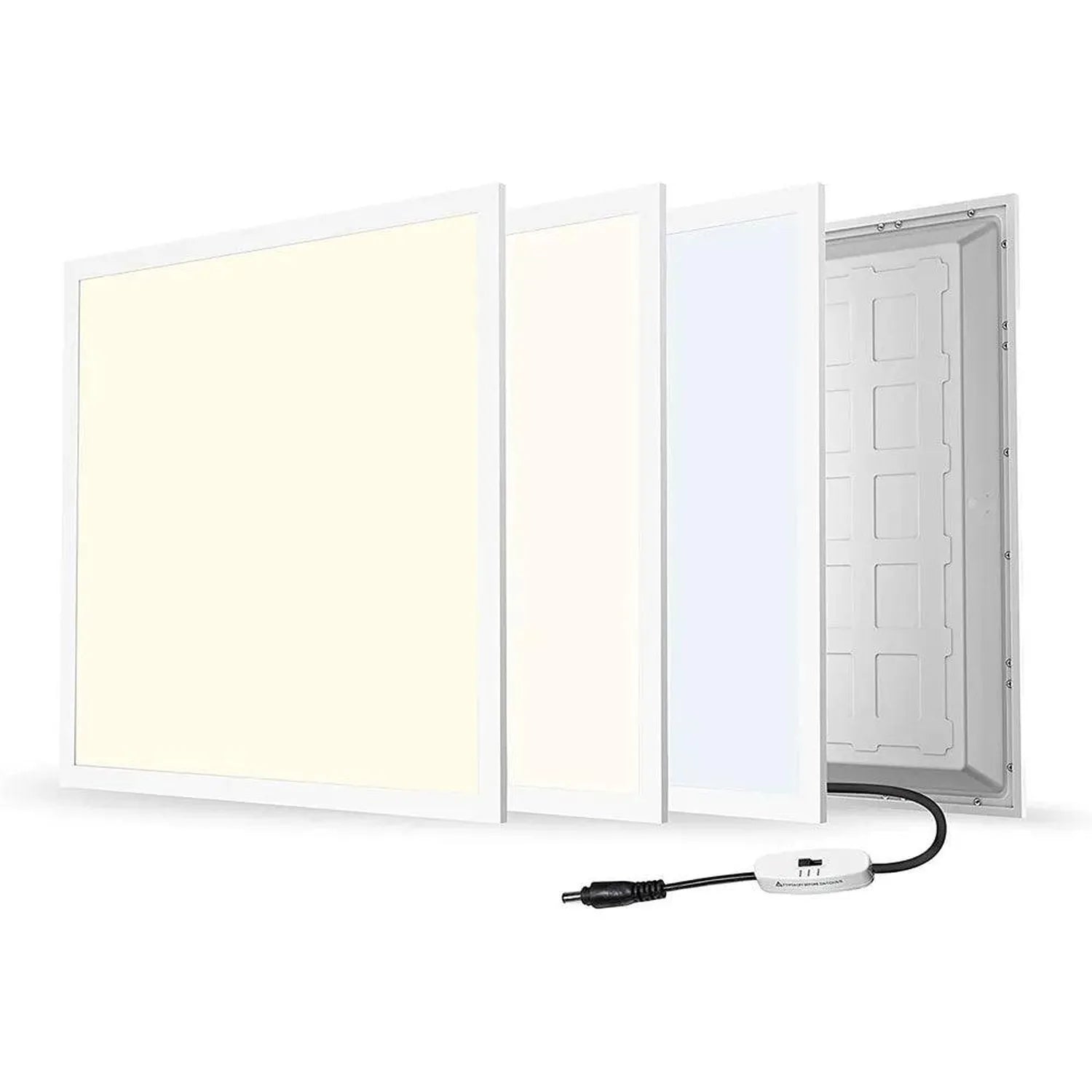

Colour temperatureTri-Colour
DimmingNon-Dimmable, AC Triac, 1-10V, DALI
Emergency optionsEmergency Pack - Lithium, DALI Emergency
Emergency duration3 hours
MountingRecessed In The Ceiling, Surface Mounted or Suspended
Glare standardEN12464-1
CableSecure Cable Strain Relief

Manufacturer datasheet. Figures as published by the manufacturer.
