600x600 LED Backlit Panel 30W TP(a) Diffuser UGR<19 | Ledison Pyres
- Vendor
- Ledison
- SKU
- 102070
- Availability
- In stock
- Weight
- 2.6 kg
£33.59inc VAT £27.99exc VAT
Delivery from £7.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

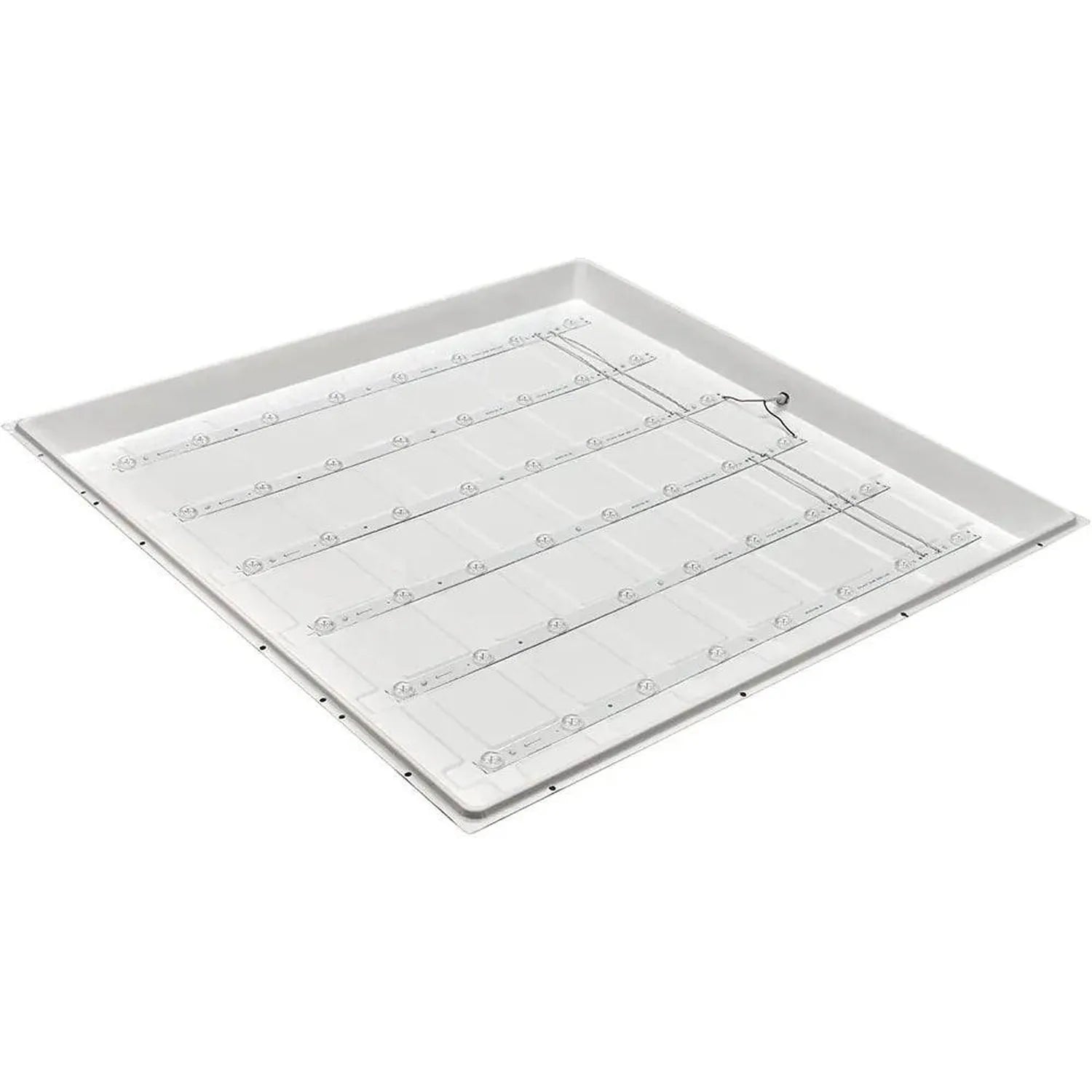

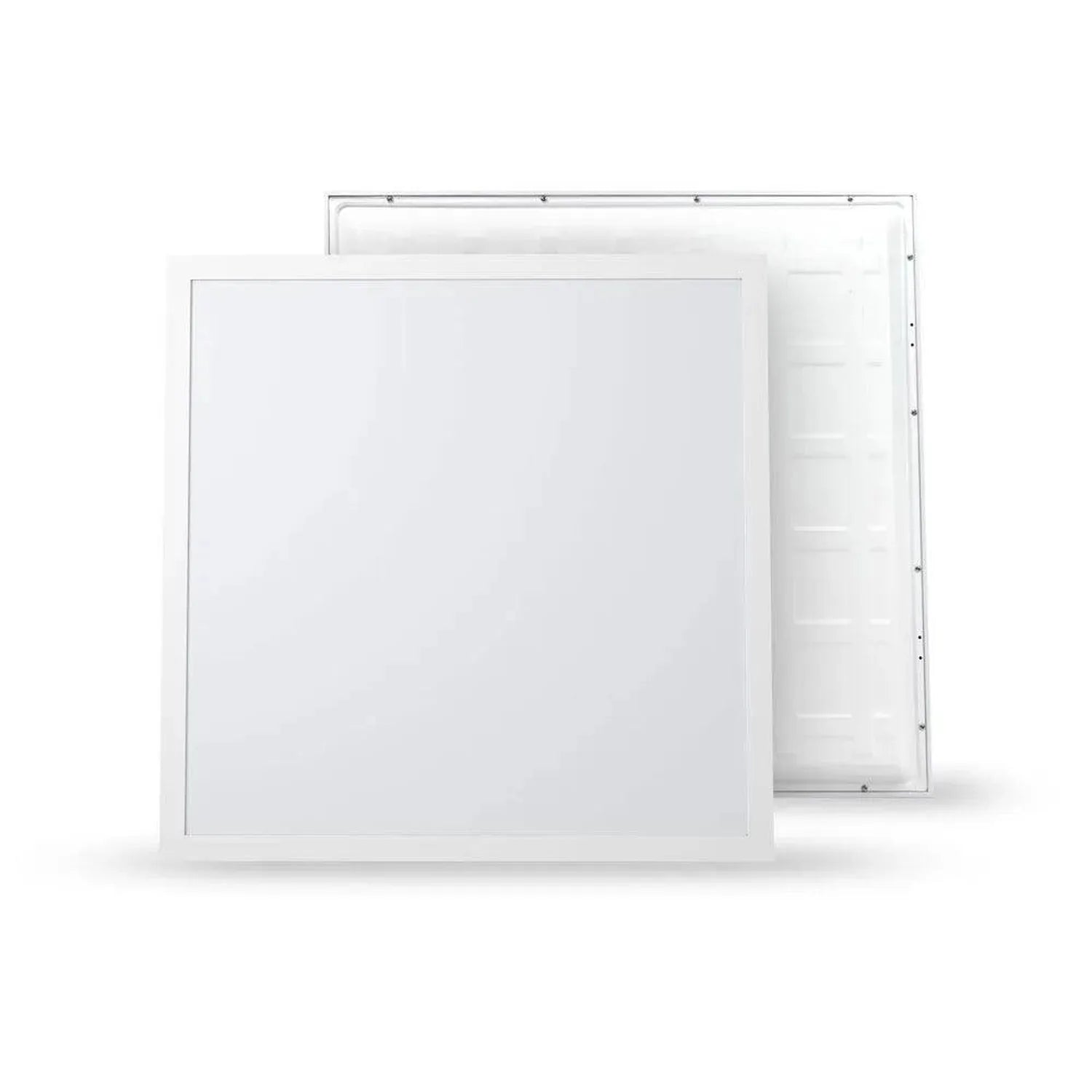

The Pyres is a backlit 600x600 LED panel from Ledison, drawing 30W at 120lm/W. A switch on the panel selects 3000K warm white, 4000K neutral white or 5700K cool white. Its polycarbonate diffuser is TP(a) rated: once the flame source is removed, any flaming or afterglow stops within 5 seconds. That rating covers the diffuser only, not the complete fitting.
Key features of these 600x600 LED panel lights
- Power: 30W at 120lm/W.

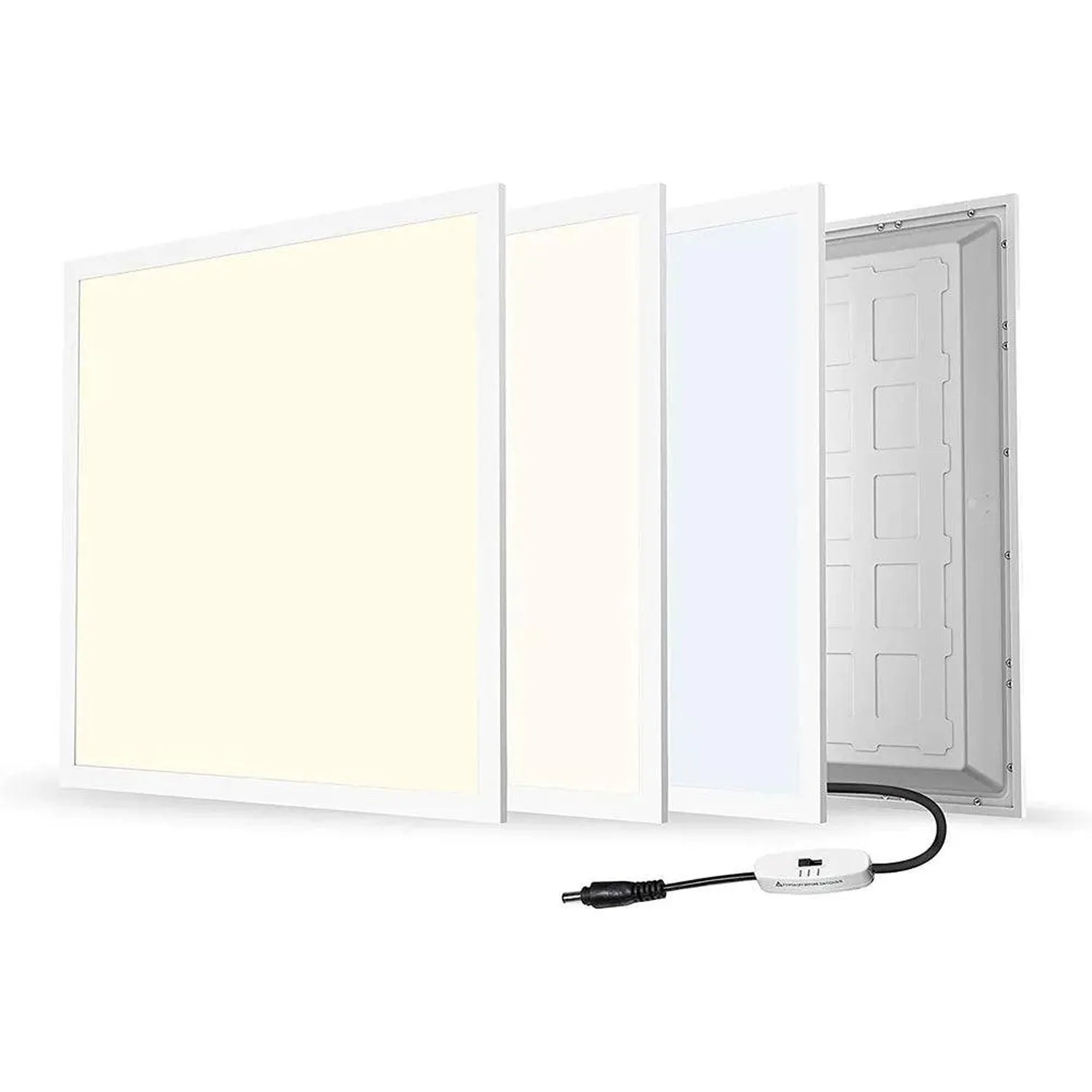

- Colour temperature: switchable between 3000K, 4000K and 5700K.

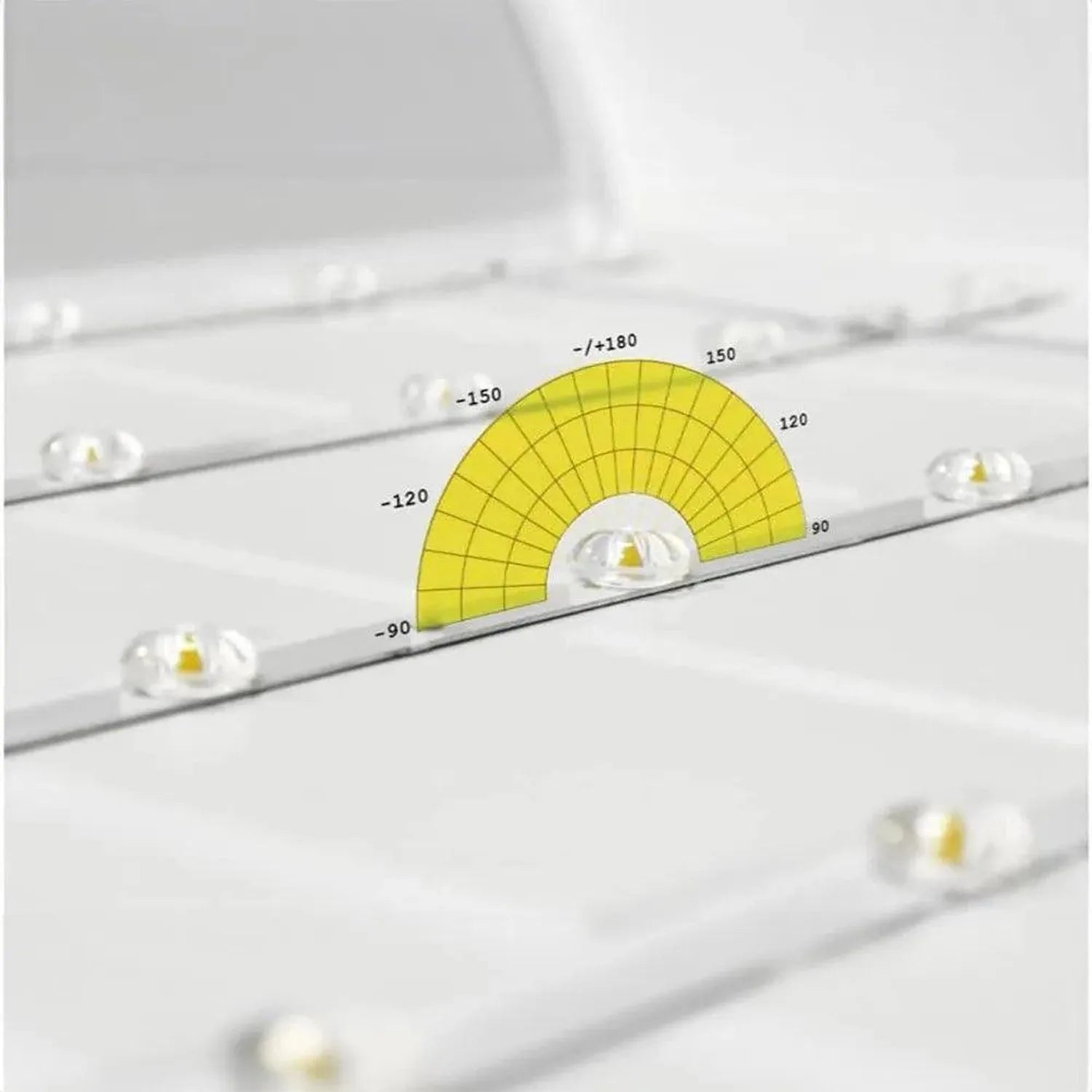

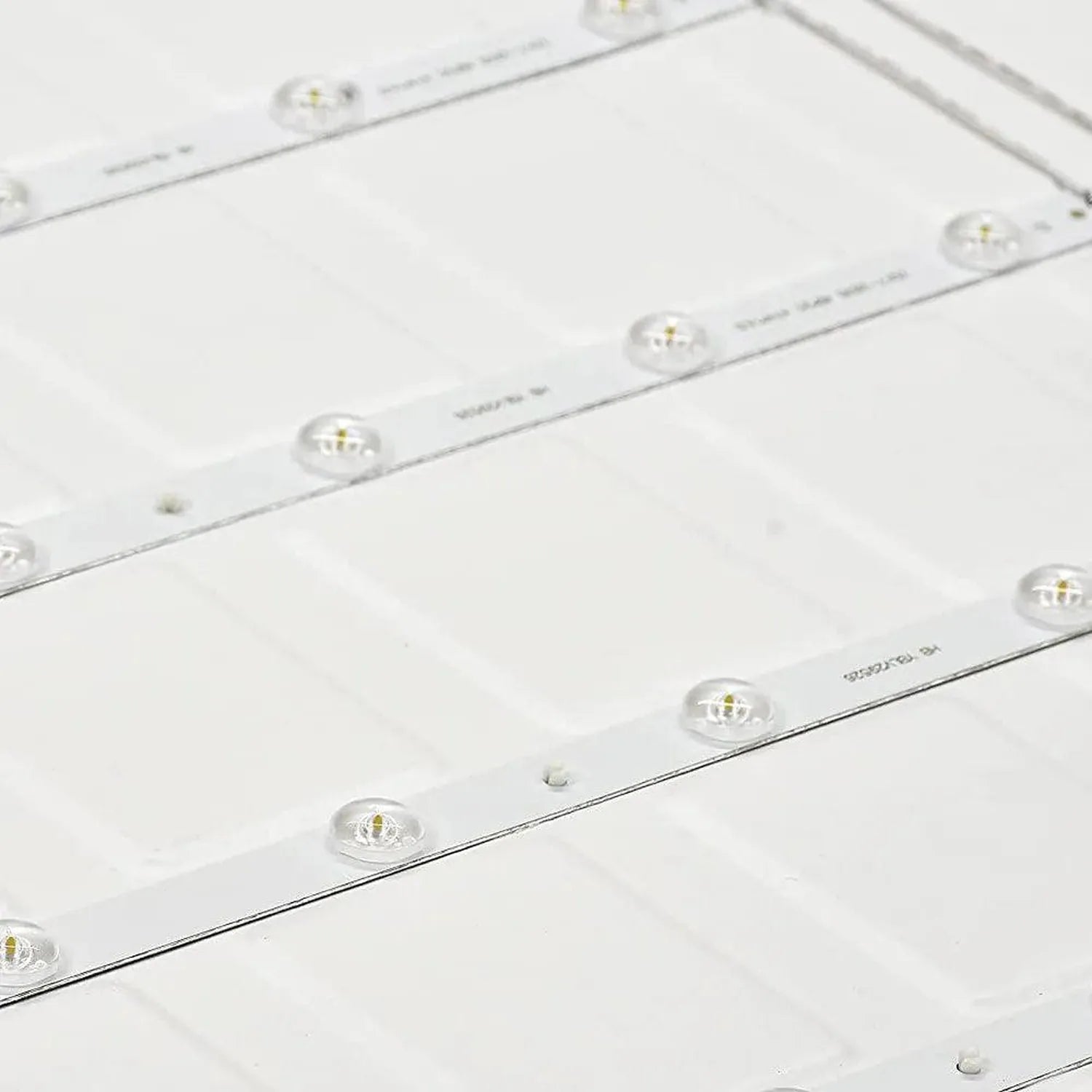

- Glare control: 180 degree lenses on the LED board give UGR<19 to EN12464-1.
- Diffuser: TP(a) rated polycarbonate.

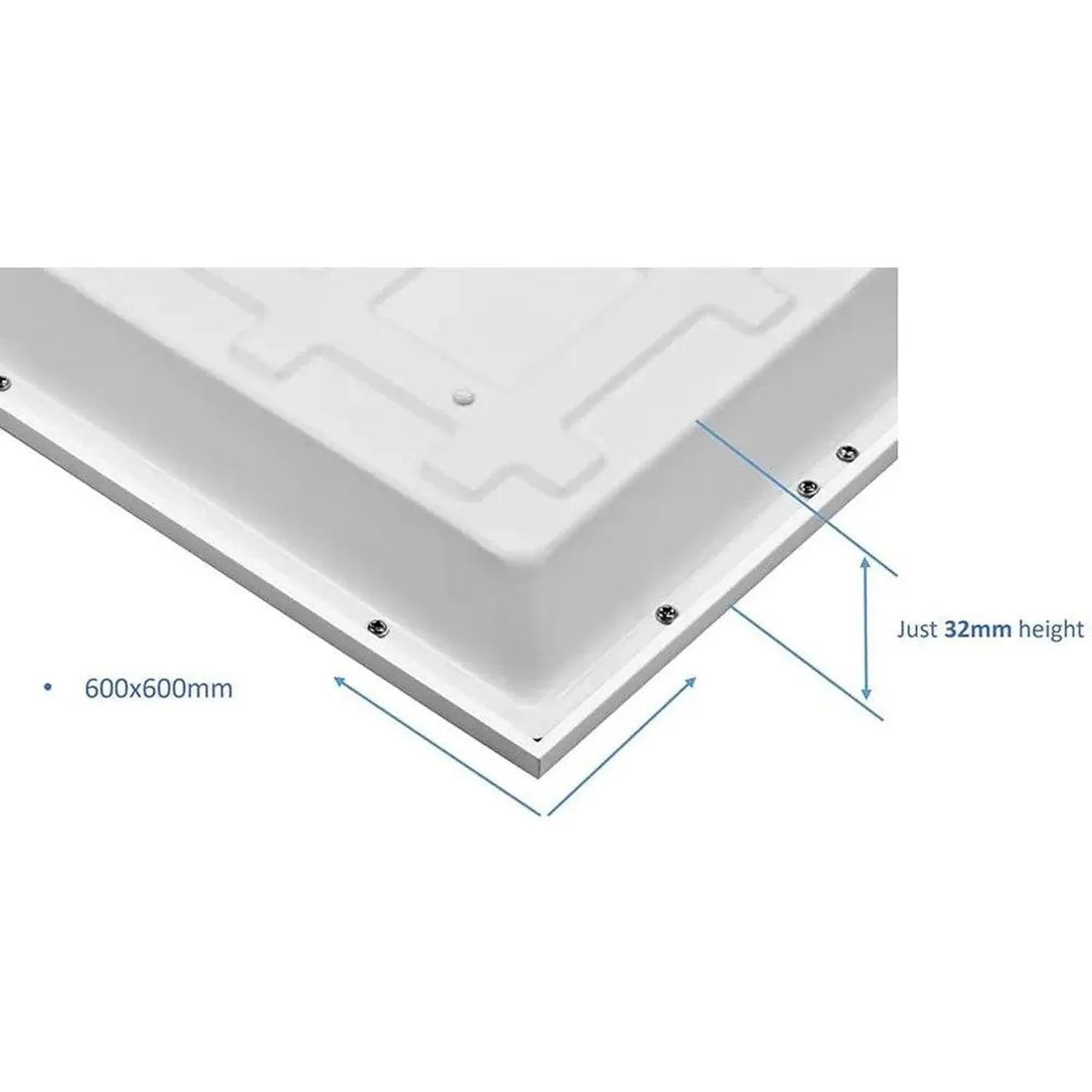

- Profile: 595x595 panel, 32mm thick.
- Protection: IP44, with cable strain relief.
Specify your version

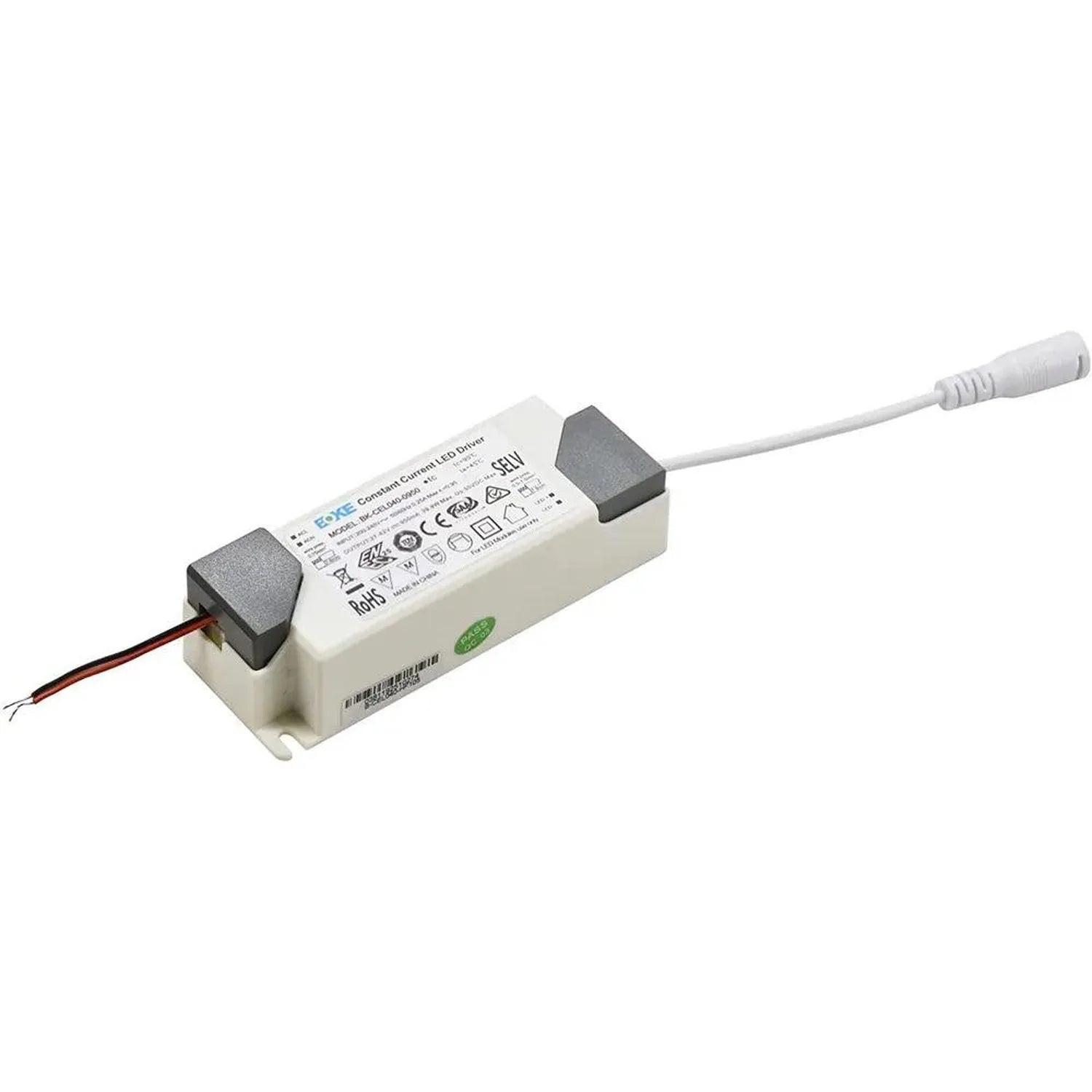

Four dimming choices are available: non-dimmable, AC triac, 1-10V or DALI. For emergency lighting, pick a lithium emergency pack or DALI emergency, both with a 3 hour duration, or leave it out altogether.
Mounting
Recess it into the ceiling or hang it. The suspension kit uses an adjustable metal rope that extends up to 120cm.
Where it fits
Offices, shops, schools and homes. The low glare figure suits rooms where people spend long hours at screens or desks, and the slim 32mm body sits easily in a ceiling void.
Compliance
- Building Regulations L2A and L2B.
- CE marked under the Low Voltage Directive 2014/35/EU and the EMC Directive 2014/30/EU, with test certificates on file.
Technical Specifications 20 rows Show
| Product type | LED Backlit Panel |
| Size | 600x600 |
| Wattage | 30W |
| Efficiency | 120lm/w |
| Colour temperature | 3000K, 4000K, 5700K |
| Optics | 180° optical lenses |
| Glare | UGR <19 |
| Diffuser | TP(a) rated PC diffuser (self-extinguishes within 5 seconds of flame removal) |
| Thickness | 32mm |
| IP rating | IP44 |
| Building Regulations | L2A & L2B |
| CE | Low Voltage Directive 2014/35/EU, Electromagnetic Compatibility Directive 2014/30/EU |
| Suspension | adjustable metallic rope (up to 120cm) |
| Dimensions | 595x595 |
| Dimming | Non-Dimmable, AC Triac, 1-10V, DALI |
| Emergency options | Emergency Pack - Lithium, DALI Emergency |
| Emergency duration | 3 hours |
| Mounting | Recessed In The Ceiling or Suspended |
| Glare standard | EN12464-1 |
| Cable | secure cable strain relief system |
Manufacturer datasheet. Figures as published by the manufacturer.
Datasheets & documents
More in LED Back-Lit Panels

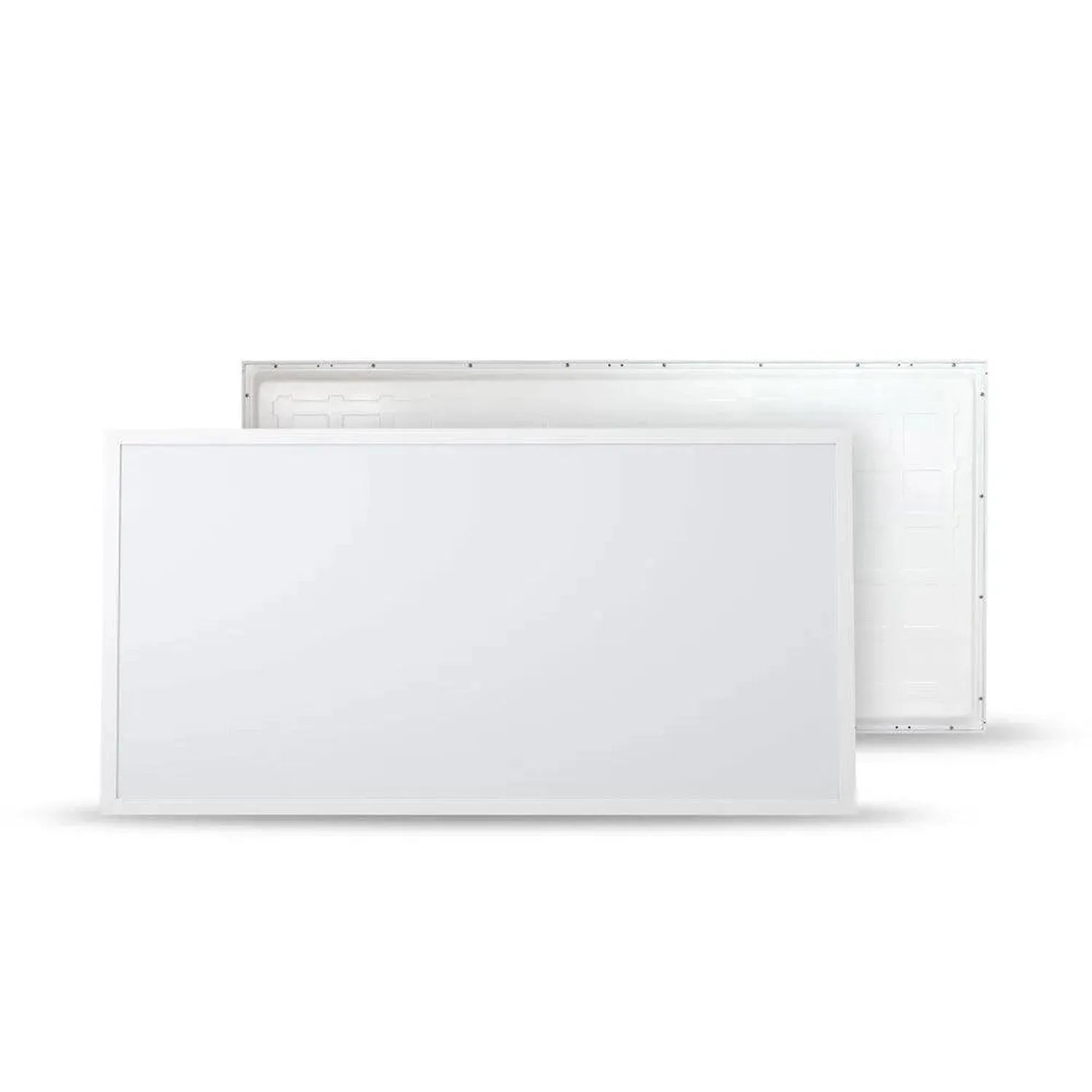

1200x300 LED Panel 30W Backlit TP(a) Diffuser UGR<19 IP44From£35.69inc VAT
