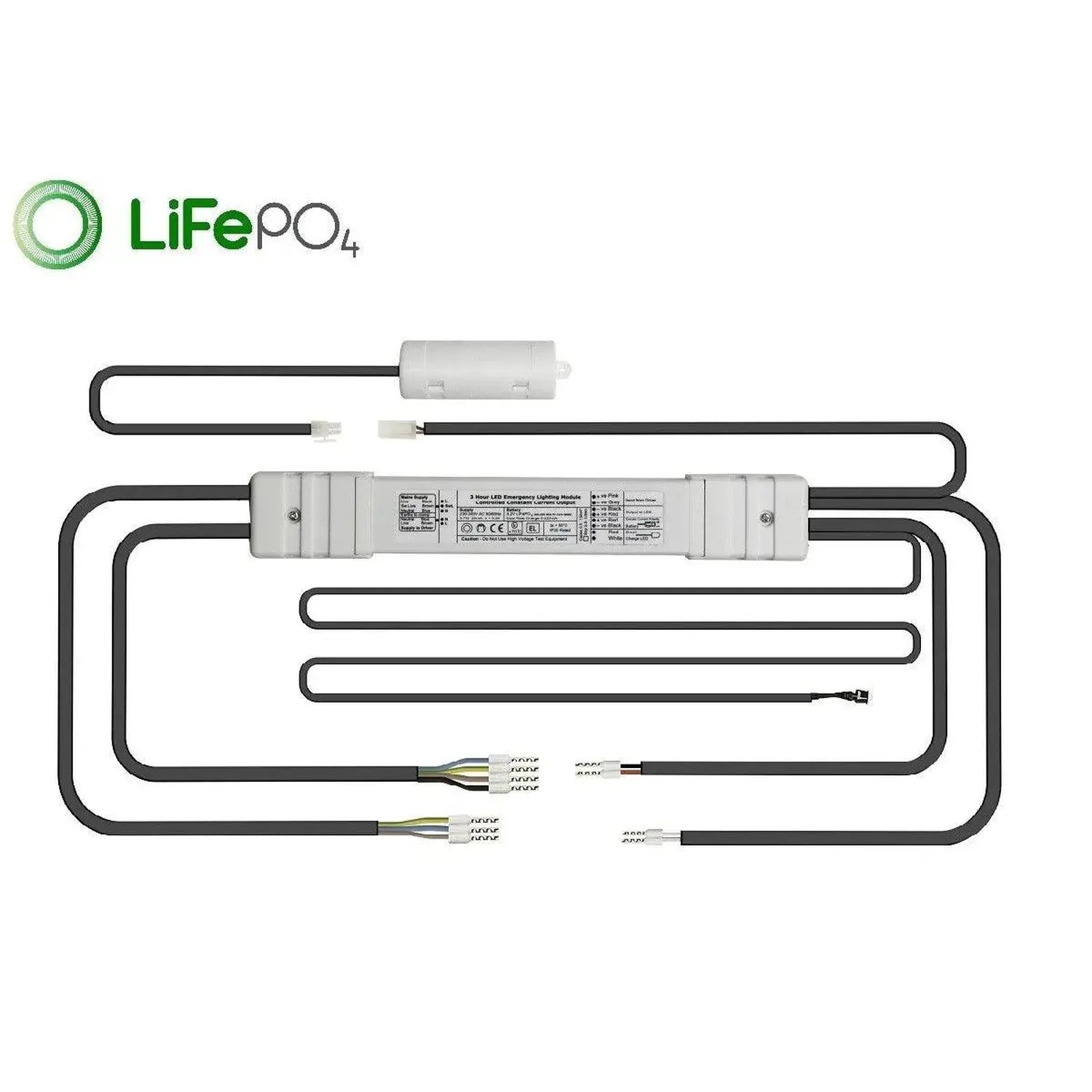

LiFePO4 LED emergency lighting conversion kit showing wiring diagram with battery module, power supply unit, and multiple LED

NLP/1 TP40 Remote LED Emergency Conversion Kit 3 Hour LiFePO4 | Liteplan

£55.64
Skip to product information
LiFePO4 LED emergency lighting conversion kit showing wiring diagram with battery module, power supply unit, and multiple LED

NLP/1 TP40 Remote LED Emergency Conversion Kit 3 Hour LiFePO4 | Liteplan

Vendor
Liteplan
SKU
002664
Availability
In stock
Weight
0.15 kg

£55.64inc VAT £46.37exc VAT

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

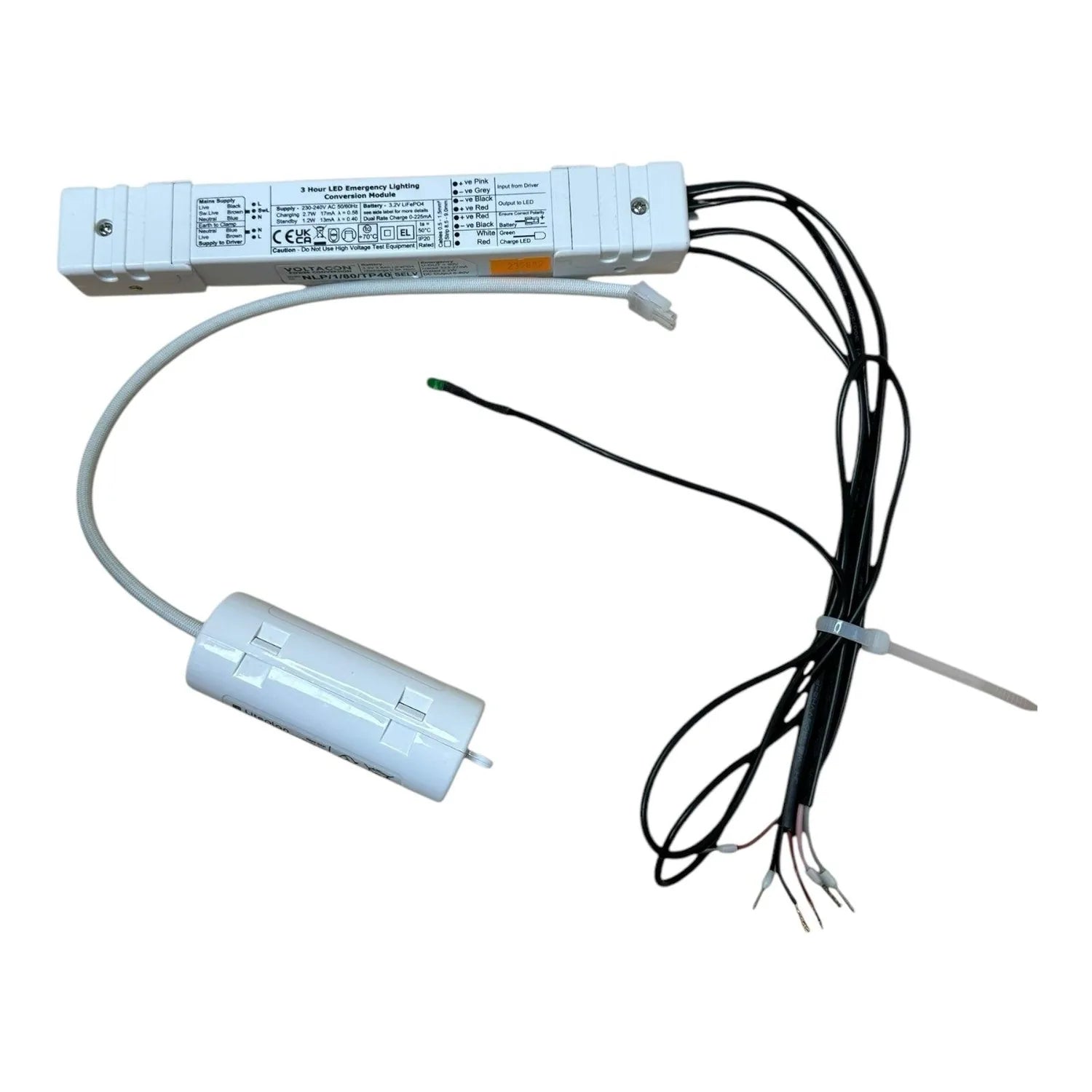

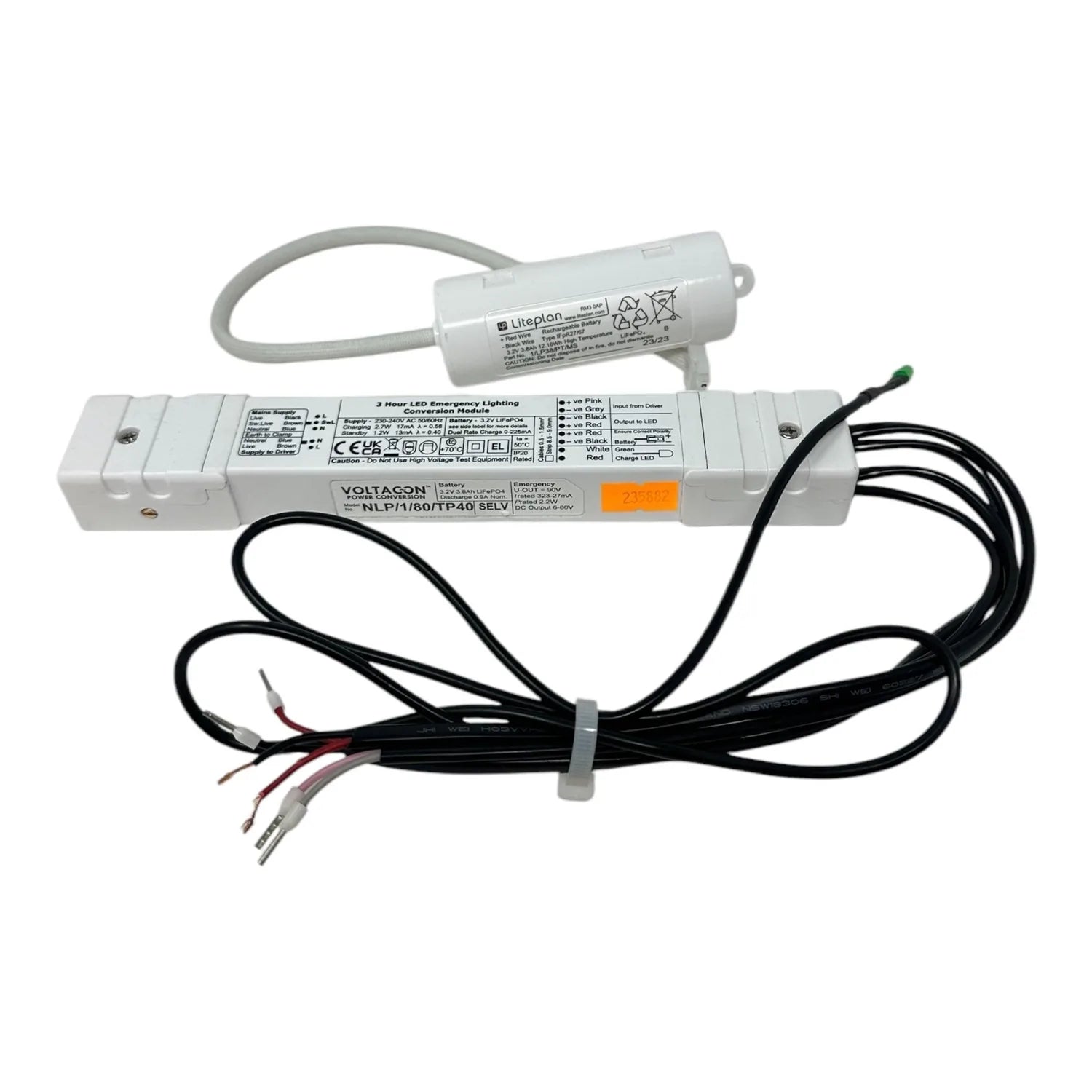

The Liteplan NLP/1 TP40 turns a standard LED fitting into an emergency light with a 3 hour duration. It is built for remote mounting and comes with strain relief cables. The kit works with a wide range of LED types and circuits, including LED panels, T8 tubes and downlights, and it adjusts the LED current to suit the battery and the connected load.

Liteplan emergency lighting conversion kit features

  • Emergency duration: 3 hours

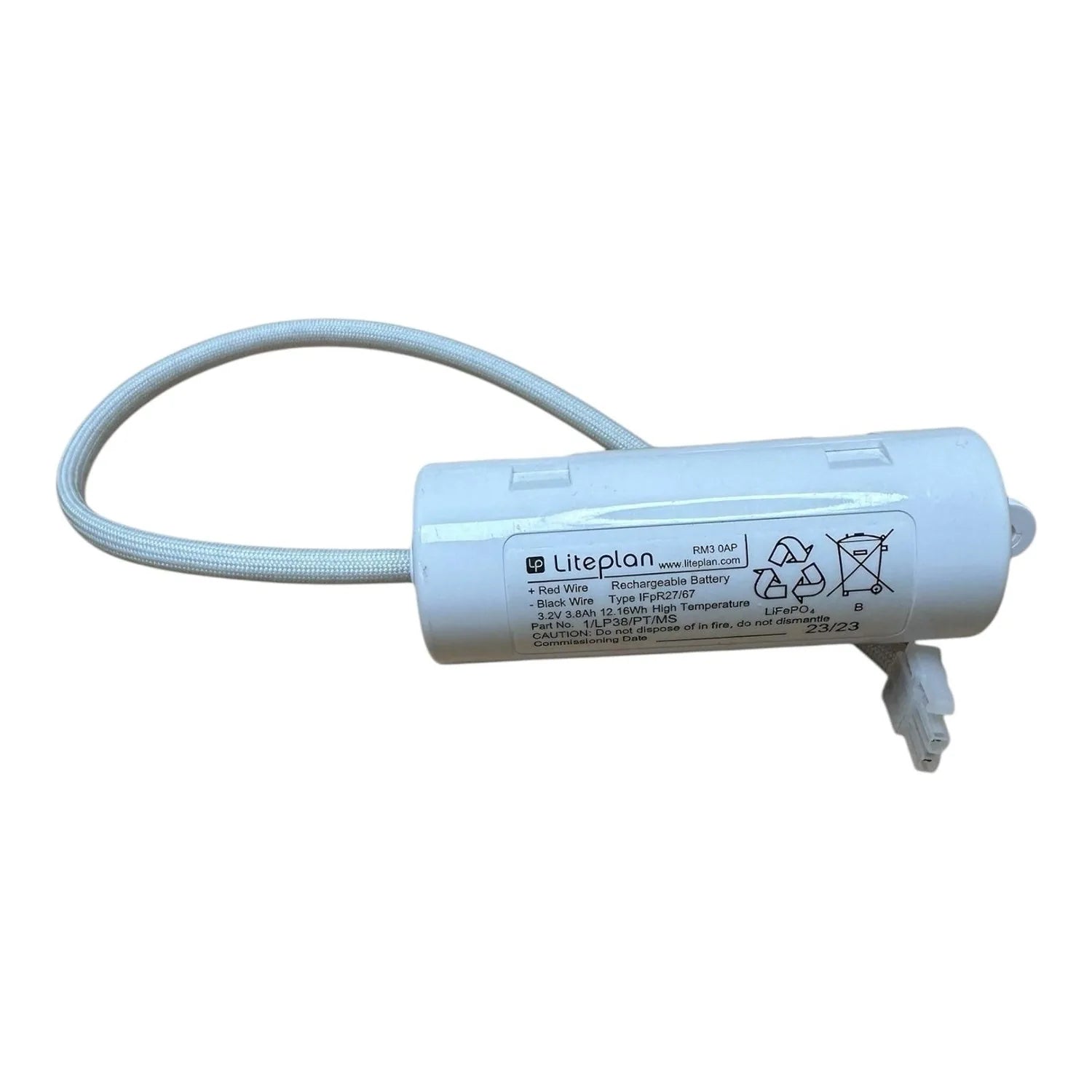

  • Battery: long life 3.2V 3.8Ah LiFePO4 pack
  • Operating modes: maintained or non-maintained, with a green LED status indicator
  • Protection: deep discharge protection and low power consumption
  • Certification: module third party tested and certified by TÜV
  • Ingress protection: IP20

Construction and power

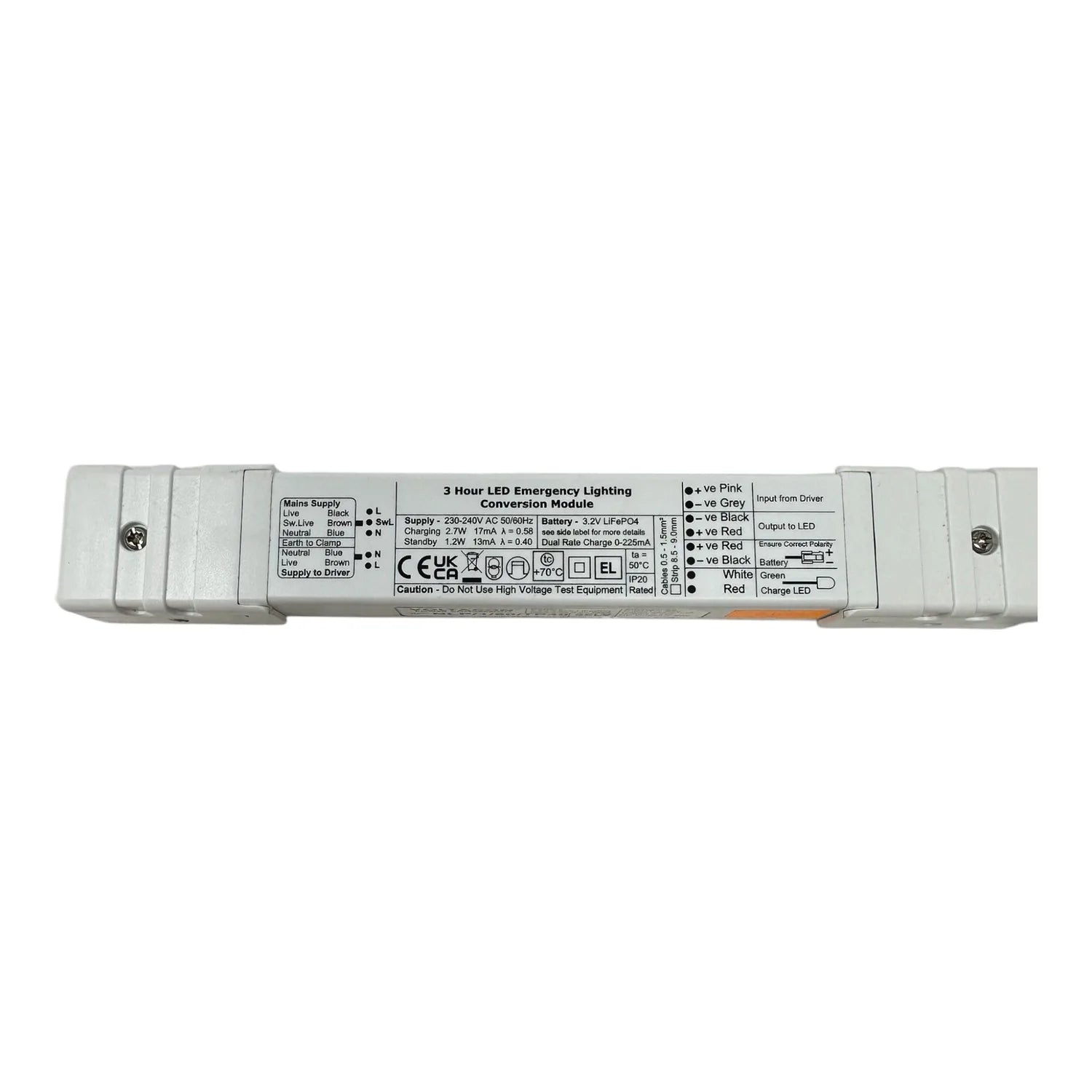

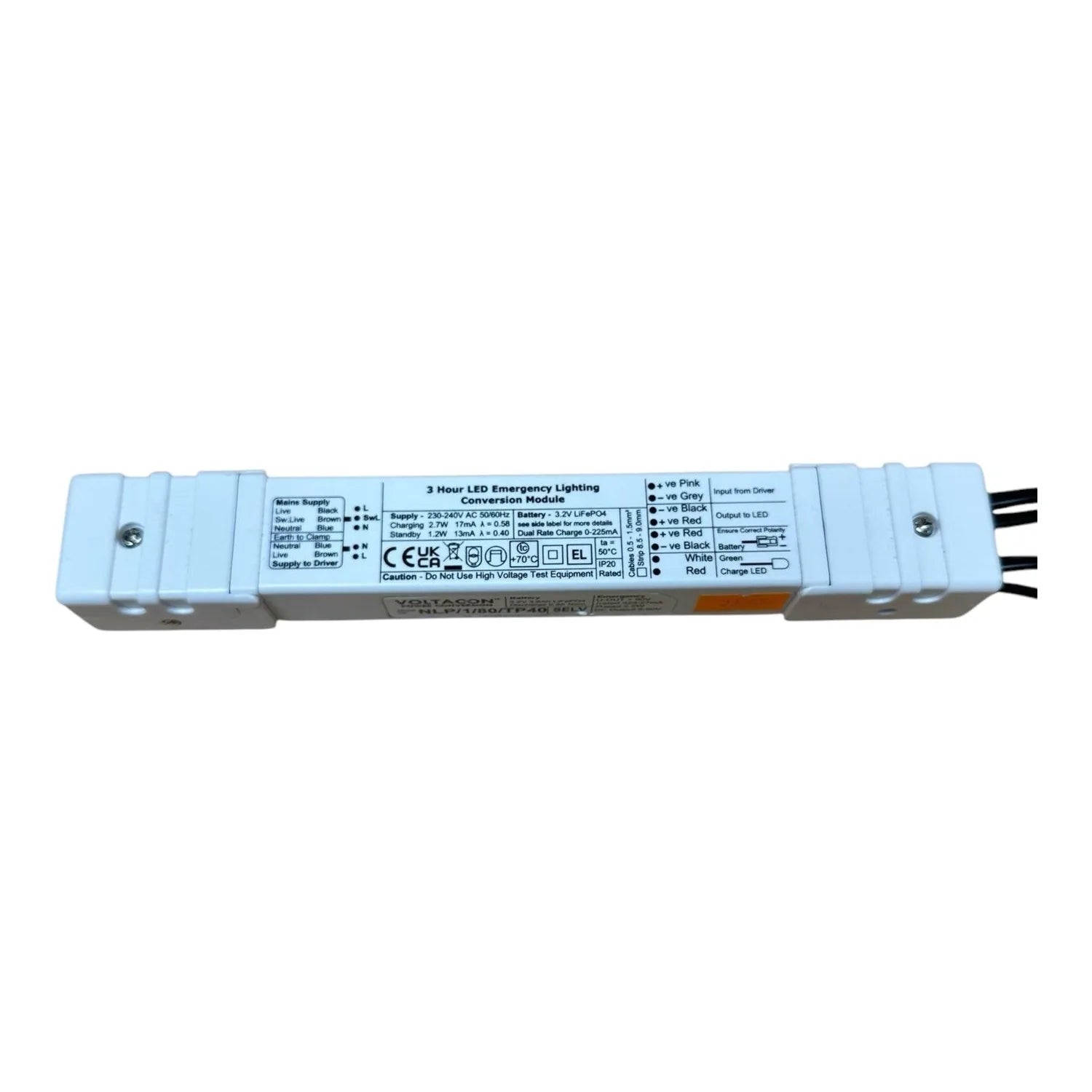

A galvanised enclosure holds the inverter, the battery and a fused power connector block. The kit runs from a 230-240V AC 50/60Hz mains supply. Recharging takes 24 hours.

Installation

Mounting is remote, using the supplied strain relief module. The kit suits apertures of 40mm or greater, so it can be fed into a fitting through a fairly small opening. Wiring connects via push wire terminals.

Sizes

  • Module: 231 x 33.6 x 22.5 (f/c 224mm)
  • Battery: 94 x 34.5

Where it fits

Use it to add emergency backup to existing LED lighting such as panels, T8 tube fittings and downlights. With an IP20 rating, it belongs in dry indoor locations. Installers fitting out offices, corridors or commercial spaces can convert the fittings already specified rather than swapping them for dedicated emergency luminaires. Check that the LED load sits within the voltage range and LED count listed in the specifications before fitting.

Technical Specifications 23 rows Show
BrandLiteplan
ModelNLP/1 TP40
OperationMaintained or non-maintained
Emergency duration3 hours
LED voltage range6-55V
No. of LEDs2-20 (in series)
LED current limit320mA
Battery current limit900mA
Mains supply230-240V AC 50/60Hz
Charge current225mA Nominal
Recharge period24 hours
Battery pack3.2V 3.8Ah LiFePO4
Battery discharge current900mA nominal
Max Ta and TcTa - 50 C - Tc - 70 C
Max battery Tc55 C
Ingress protectionIP20
Module size231 x 33.6 x 22.5, (f/c 224mm)
Battery dimensions94 x 34.5
Module weight0.21Kg
Battery weight0.13Kg
Aperture40mm or greater
TerminalPush wire 0.5mm - 1.5 mm
EnclosureGalvanised enclosure

Manufacturer datasheet. Figures as published by the manufacturer.
