Product Description

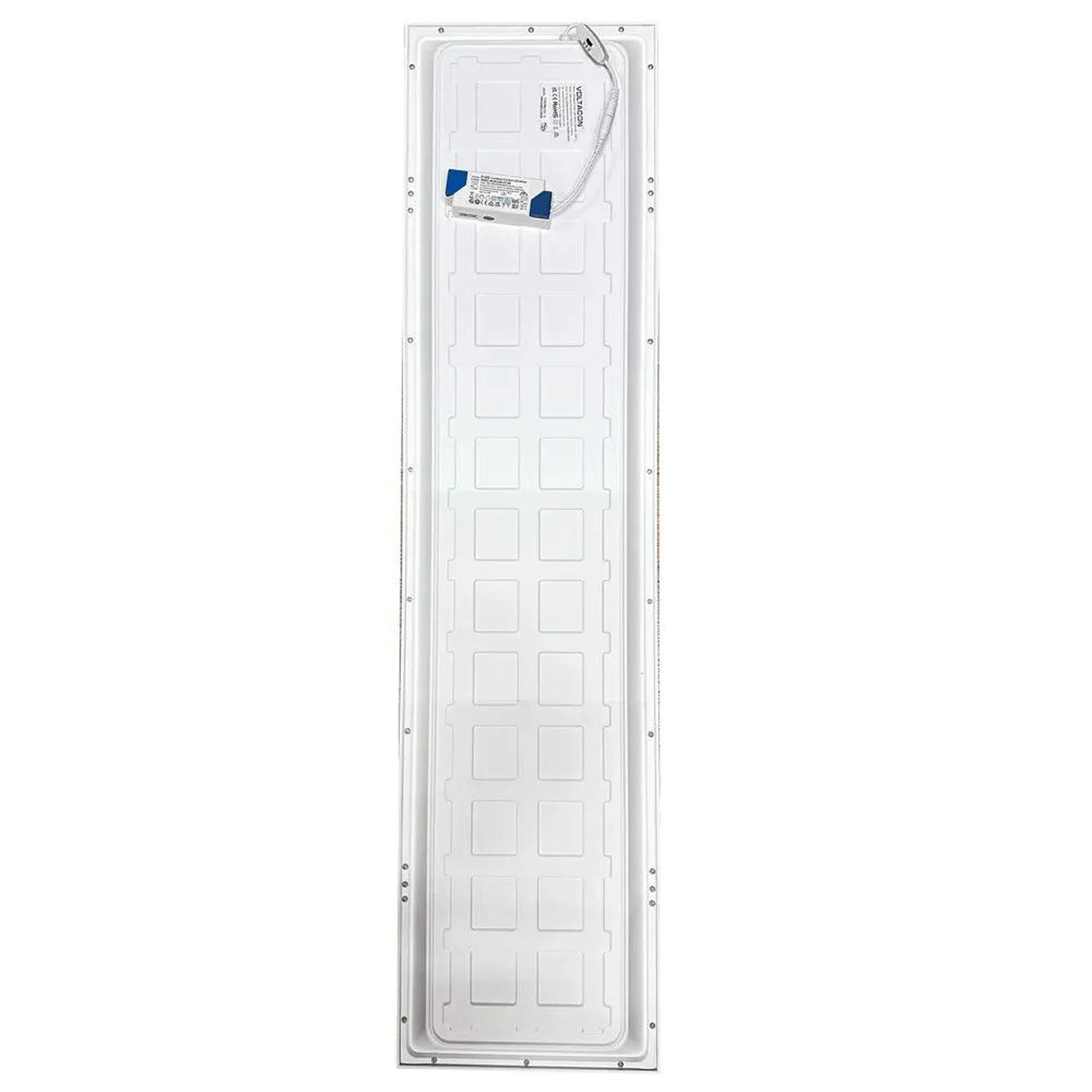

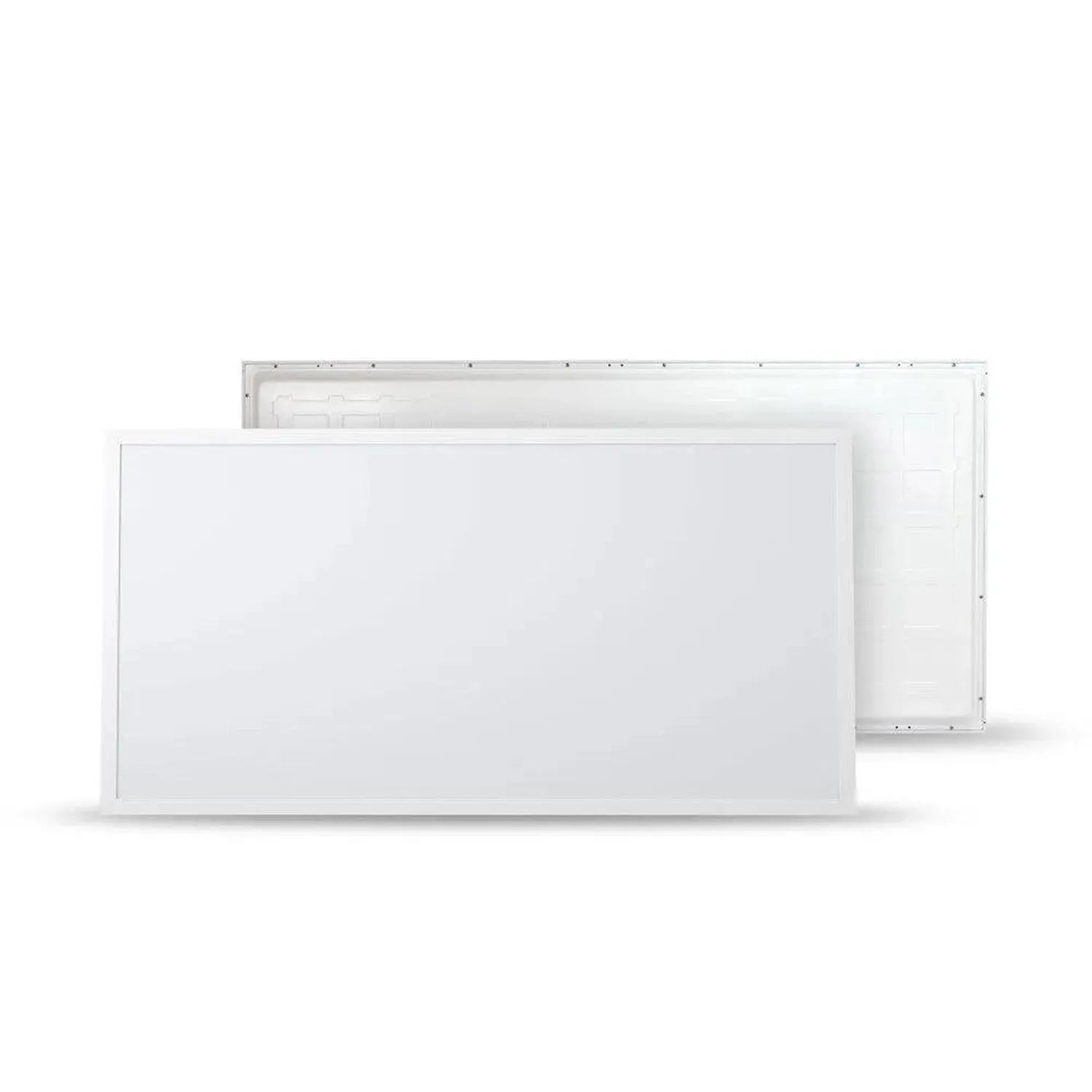

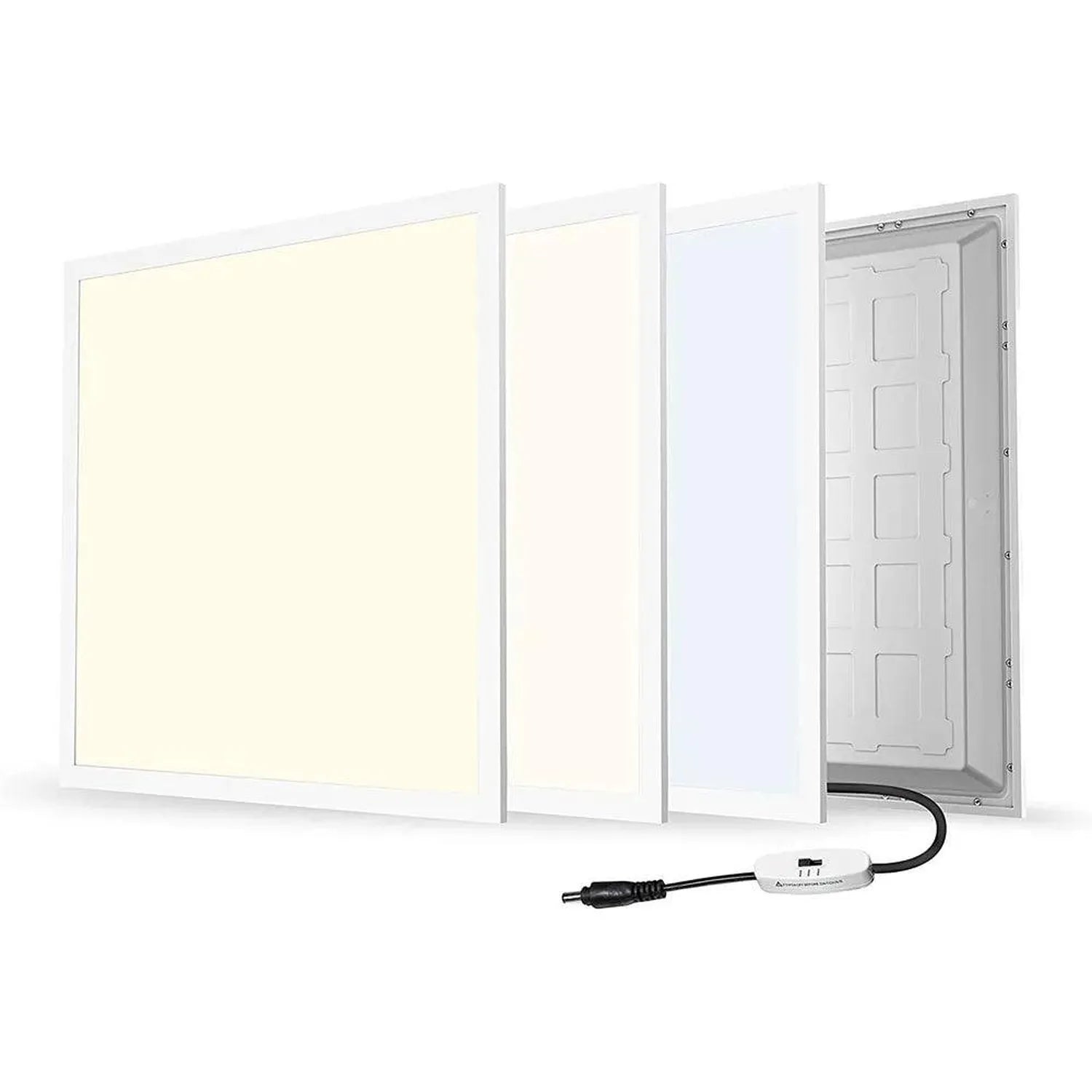

The Pyres is a 30W backlit 1200x300 LED panel for offices, shops, schools and homes. Its polycarbonate diffuser carries a TP(a) rating: once the flame source is taken away, any flaming or afterglow stops within 5 seconds. That rating covers the diffuser only, not the whole fitting. A switch on the panel selects 3000K warm white, 4000K neutral white or 5500K cool white, so one product covers three colour choices.
1200x300 LED panel features
- Power and efficacy: 30 watts at 120lm/W
- Colour temperature: switchable between 3000K, 4000K and 5500K

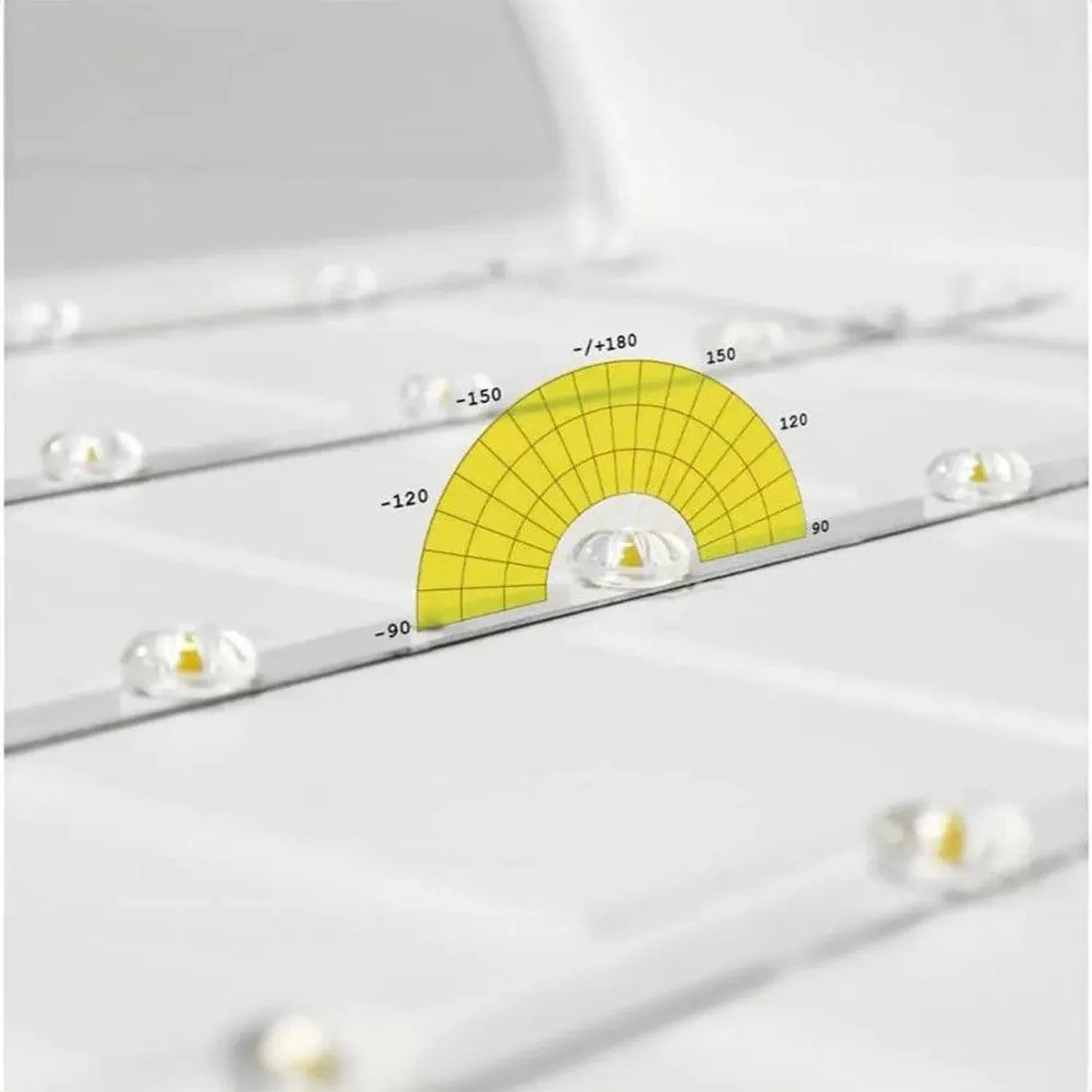

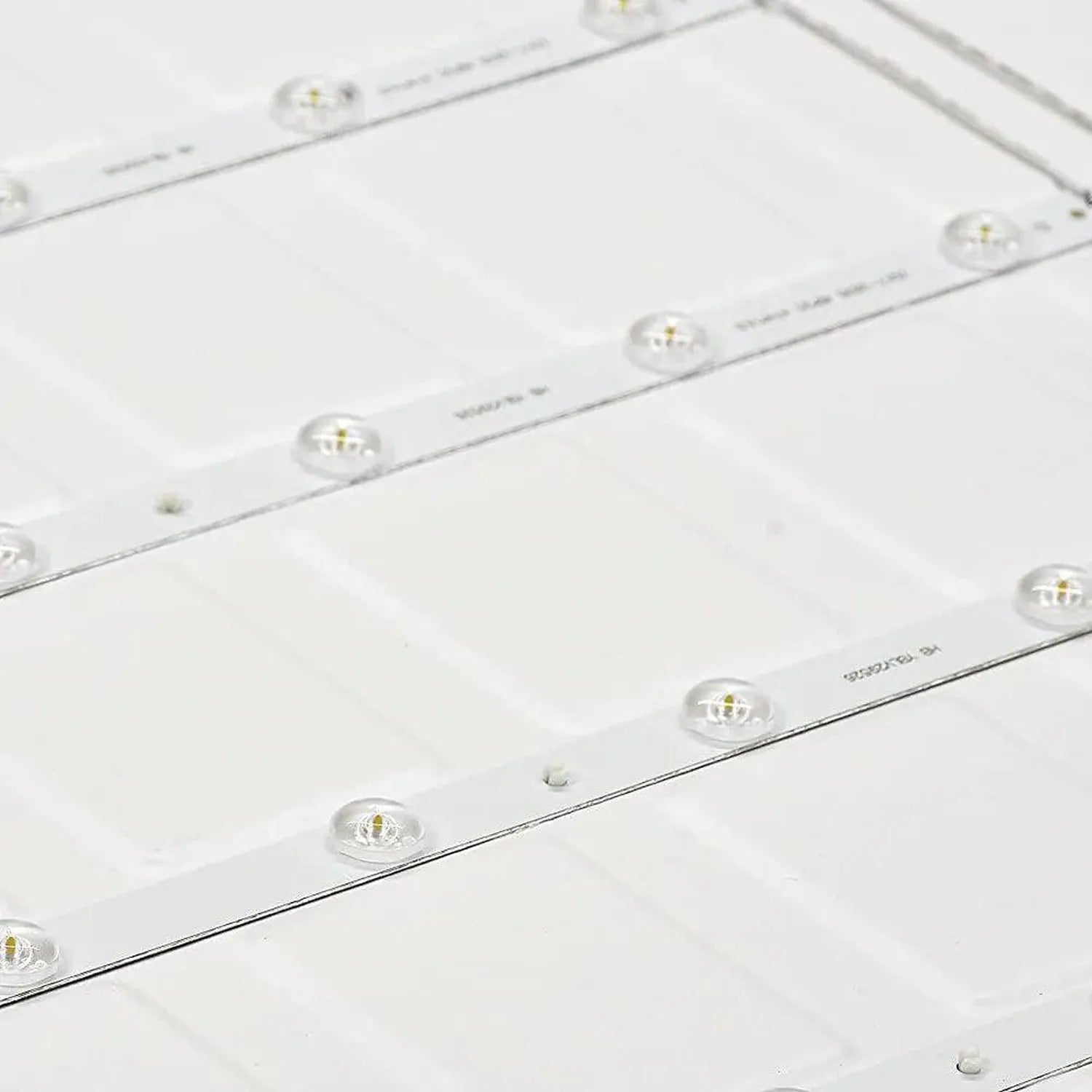

- Glare control: 180 degree lenses on the LED board give UGR<19 to EN12464-1
- Diffuser: TP(a) rated polycarbonate
- Profile: 1195x295 panel, 32mm thick, mild steel frame
- Ingress protection: IP44
Versions available
Pick the control and backup setup that suits the job. Dimming comes as non-dimmable, AC triac, 1-10V or DALI. For emergency lighting there is a lithium emergency pack or DALI emergency, both with a 3 hour duration, or the panel can be supplied without either. Two mounting styles are offered.
- Recessed into the ceiling
- Suspended
Where it fits
The low UGR figure makes this panel a sensible choice for workspaces and classrooms where people spend hours under the light. Being backlit, it sits just 32mm deep. The switchable colour temperature lets you match warm white in a home or reception area and cooler white in a shop or office, without stocking separate fittings.
Compliance
The panel meets Building Regulations L2A and L2B. It is CE marked to the Low Voltage Directive 2014/35/EU and the EMC Directive 2014/30/EU, with test certificates held on file.
Technical Specifications 19 rows Show
| Product type | LED Backlit Panel |
| Size | 1200x300 |
| Wattage | 30W |
| Efficiency | 120lm/w |
| Colour temperature | 3000K, 4000K, 5500K |
| Optics | 180° optical lenses |
| Glare | UGR <19 |
| Diffuser | TP(a) rated PC diffuser (self-extinguishes within 5 seconds of flame removal) |
| Thickness | 32mm |
| IP rating | IP44 |
| Building Regulations | L2A & L2B |
| CE | Low Voltage Directive 2014/35/EU, Electromagnetic Compatibility Directive 2014/30/EU |
| Frame | mild steel frame |
| Dimensions | 1195x295 |
| Dimming | Non-Dimmable, AC Triac, 1-10V, DALI |
| Emergency options | Emergency Pack - Lithium, DALI Emergency |
| Emergency duration | 3 hours |
| Mounting | Recessed In The Ceiling or Suspended |
| Glare standard | EN12464-1 |
Manufacturer datasheet. Figures as published by the manufacturer.
