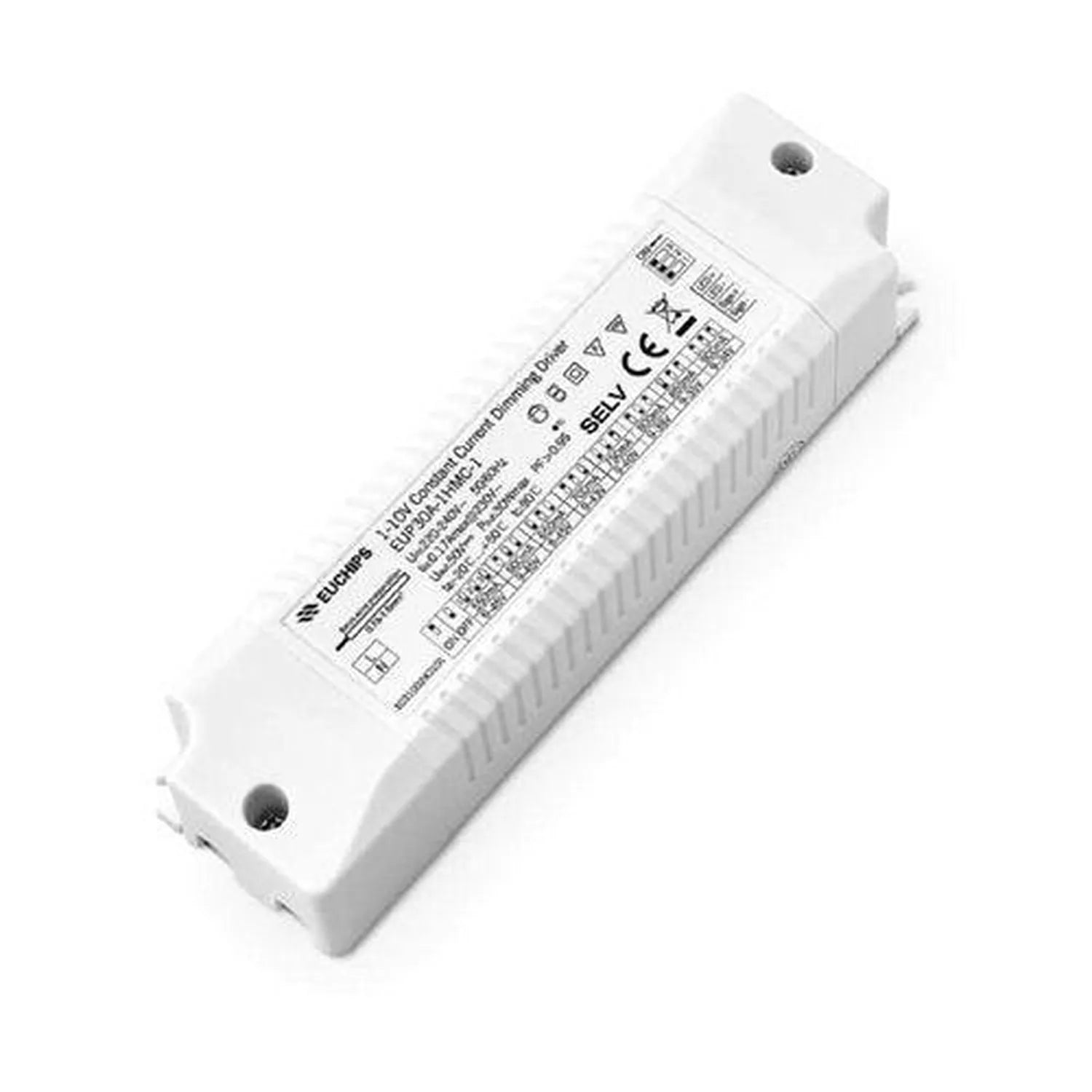

White LED driver with mounting holes, label showing 30W specifications and CE certification marks, angled product shot.

Euchips LED Driver 30W 1-10V Dimmable Constant Current 550-900mA | EUP30A-1HMC-1

£30.44
Skip to product information
White LED driver with mounting holes, label showing 30W specifications and CE certification marks, angled product shot.

Euchips LED Driver 30W 1-10V Dimmable Constant Current 550-900mA | EUP30A-1HMC-1

Vendor
Euchips
SKU
770059
Availability
In stock
Weight
0.15 kg

£30.44inc VAT £25.37exc VAT

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

The Euchips EUP30A-1HMC-1 is a 30W constant current LED driver for indoor lighting, including downlights, LED panels and LED T8 and T5 tubes. A DIP switch sets the output current anywhere from 550mA to 900mA, so one driver can be matched to a range of fittings. It dims too.

Euchips LED driver with 1-10V dimming

Dimming is controlled by a 1-10V active signal, PWM or adjustable resistance, and the light output changes smoothly without flicker. Leave the dimming input unconnected and the driver runs at 100% output, which means it can also serve as a standard non-dimming LED driver.

  • Output current: 550mA to 900mA, selected by DIP switch (default 550mA with all switches OFF)
  • Input: 220-240VAC, 50/60Hz
  • Efficiency: 87% at 230VAC full load
  • Power factor: built-in active PFC
  • No load output voltage: 50VDC

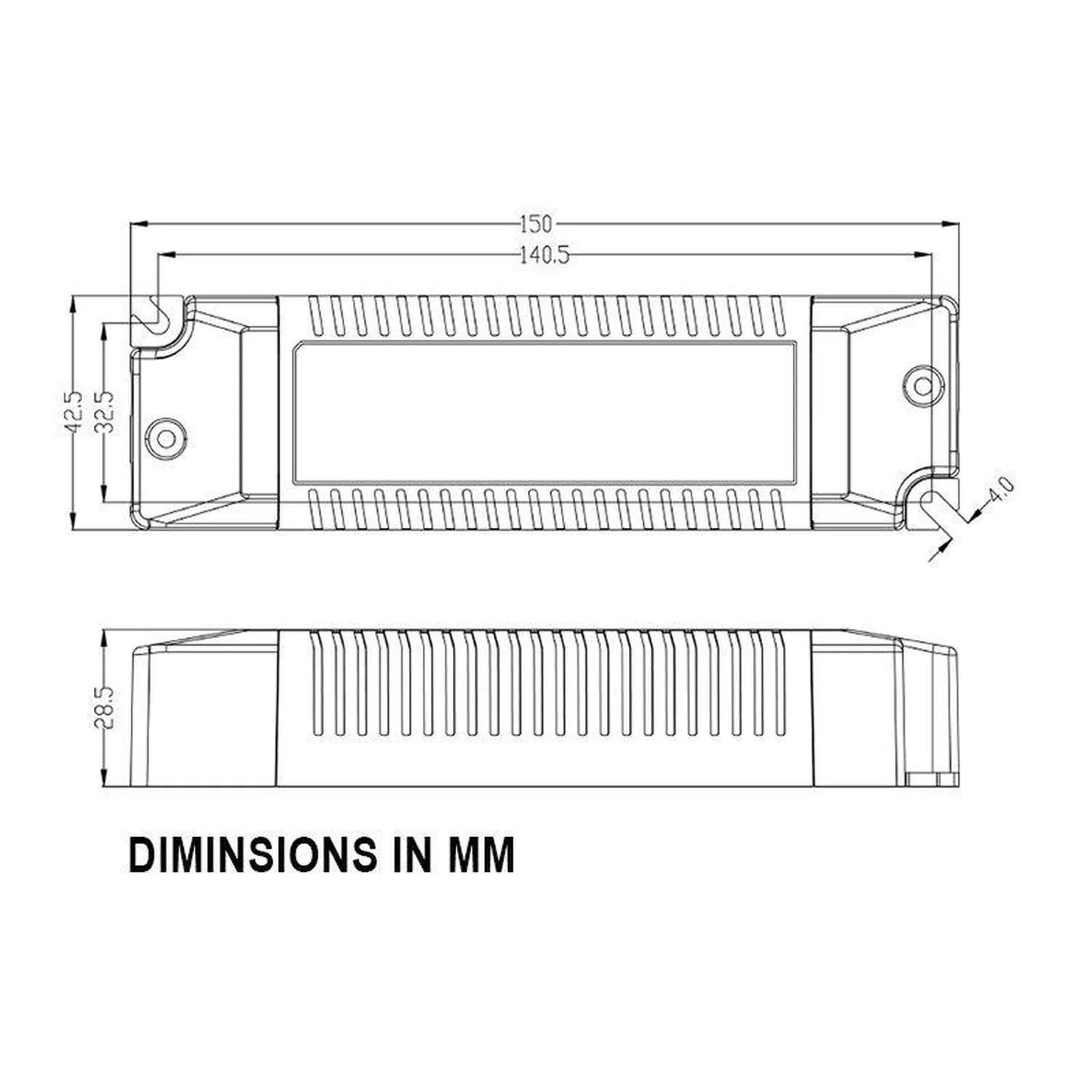

  • Size and weight: 150*43*29 mm, 155g

Protection

Short circuit, overload and over temperature protection are all built in. Each one recovers automatically once the fault is cleared, with no need to reset the driver by hand.

Installation notes

This driver is not waterproof. Where it has to go outdoors, fit it inside a waterproof enclosure. Wherever it is installed, choose a well-ventilated spot.

Choosing the current

Check the rated current of the LED load before wiring, then set the DIP switches to match. From the factory, with every switch in the OFF position, the driver delivers 550mA. Higher settings step up to a maximum of 900mA, giving installers a single single-channel unit that covers several common downlight and panel currents.

Technical Specifications 17 rows Show
BrandEuchips
ModelEUP30A-1HMC-1
Driver typeConstant current LED driver
Output current550mA 600mA 650mA 700mA 750mA 800mA 850mA 900mA
Current adjustmentDIP switch selectable
Dimming1-10V active signal , adjustable resistance, PWM
Input voltage220- 240VAC
Frequency50/60Hz
Efficiency87%@230VAC,full load
Current accuracy5%
No load output voltage50VDC
No-load power consumption0.5W
Channels1
Dimensions150*43*29 mmL*W*H
Gross weight155g
Working temperature-20~ 50
Relative humidity20~90% RH

Manufacturer datasheet. Figures as published by the manufacturer.
