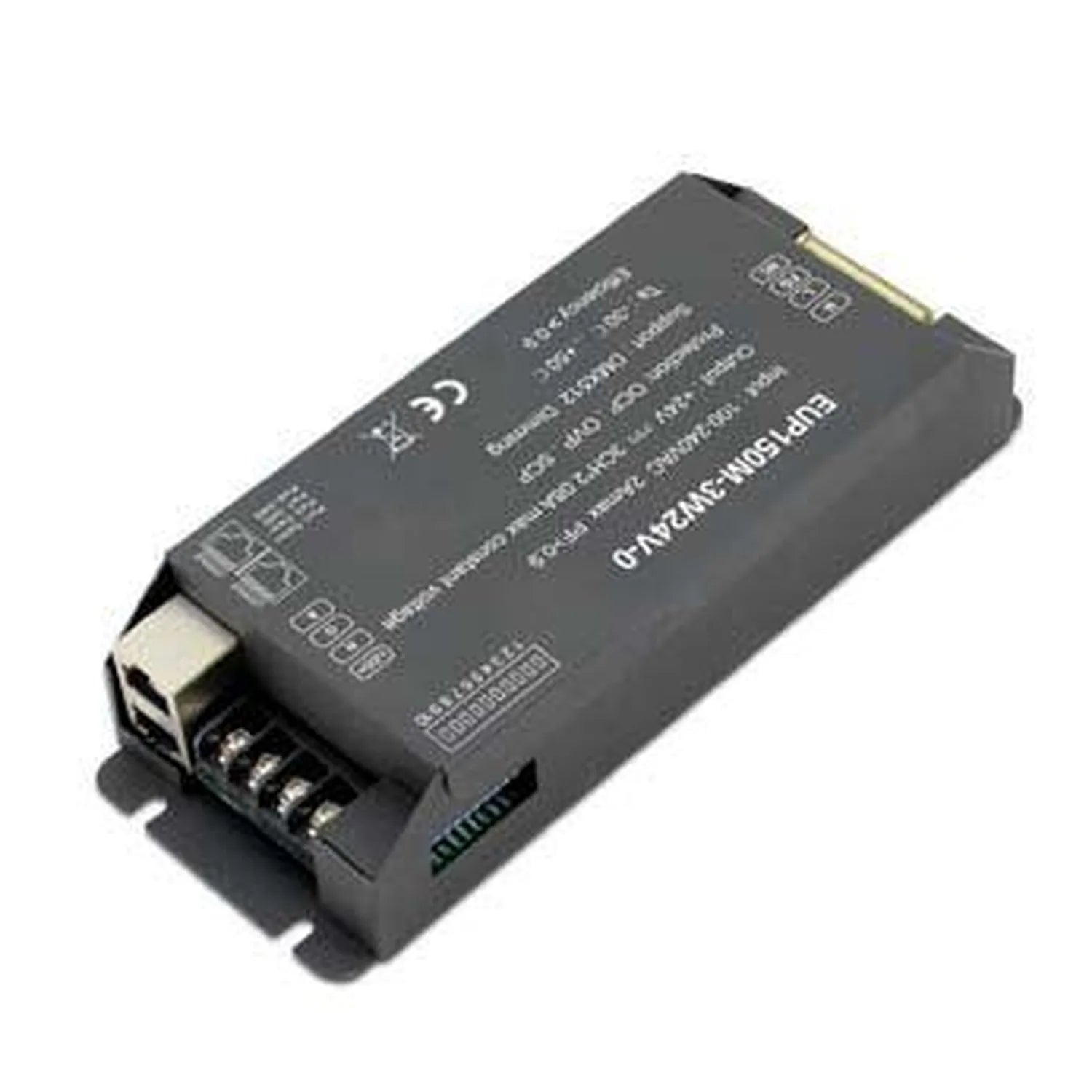

EUCHIPS 150W DMX dimmable LED driver, black rectangular power supply with terminal connectors and CE certification marking.

Euchips LED Driver 150W DMX512/RDM 3 Channel 24VDC | EUP150M-3W24V-0

£52.49
Skip to product information
EUCHIPS 150W DMX dimmable LED driver, black rectangular power supply with terminal connectors and CE certification marking.

Euchips LED Driver 150W DMX512/RDM 3 Channel 24VDC | EUP150M-3W24V-0

Vendor
Euchips
SKU
770028
Availability
In stock
Weight
0.15 kg

£52.49inc VAT £43.74exc VAT

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

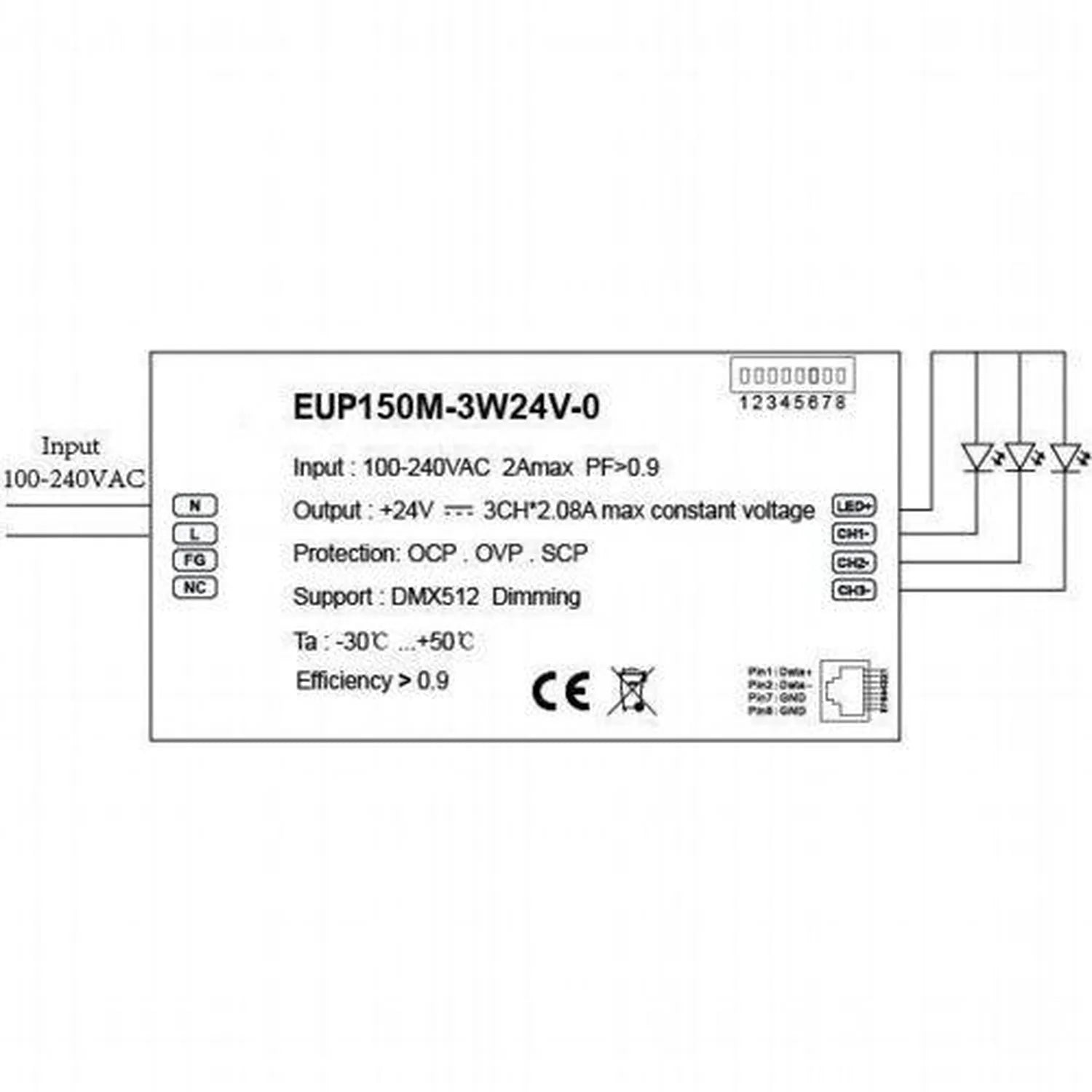

The Euchips EUP150M-3W24V-0 is a 150W constant voltage LED driver with three independent 24VDC output channels, each rated at 2.08A. It takes its dimming signal from a DMX512 or RDM controller and fades the connected LEDs across the full 0-100% range. LEDs can start from as low as 1%.

Euchips LED driver features

  • Output: three channels, 24VDC constant voltage, 2.08A per channel
  • Control protocol: DMX512/RDM
  • Dimming: 0-100%, with LED start at 1% possible and no flicker
  • Mains input: 100-240VAC, 50-60Hz
  • Efficiency and power factor: up to 90% efficiency, power factor >0.95 at 115VAC

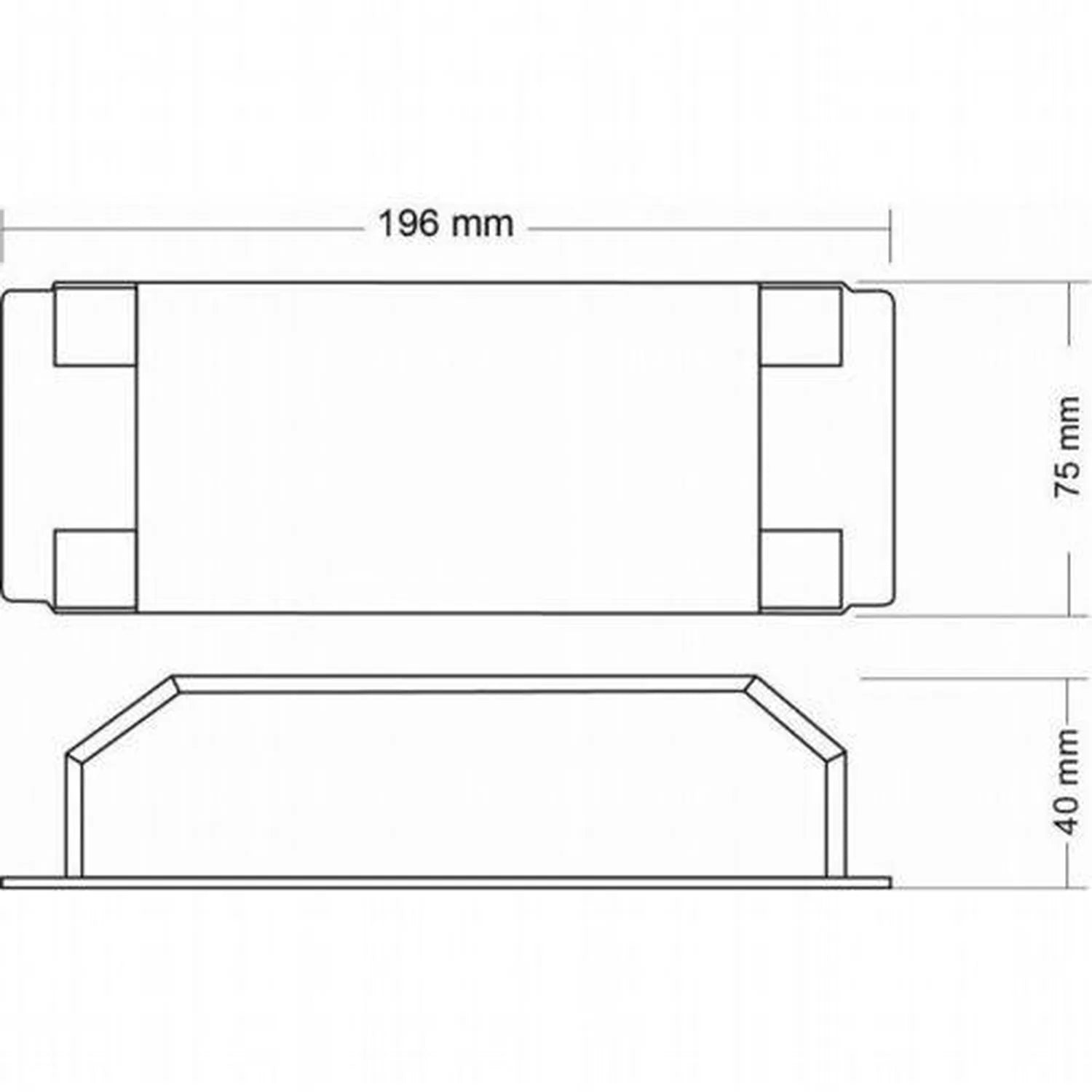

  • Size and weight: 196 x 75 x 40mm, 610g

Protection

The driver guards against output short circuit, over current and over voltage. Once the fault has been cleared, it recovers on its own. No manual reset is needed.

Where it fits

Three separate channels from one 150W unit make this driver a sensible choice for 24V constant voltage LED installations that need each circuit dimmed on its own, controlled from an existing DMX512 or RDM lighting desk or controller. RDM support lets the controller talk back to the driver as well as send it levels. The listed working temperature runs from -30℃ to 50℃.

Before you install

Check that the LED load is 24VDC constant voltage and that each channel draws no more than 2.08A. The driver accepts mains input anywhere from 100-240VAC, so it suits both UK and wider international supplies within that range.

Technical Specifications 17 rows Show
BrandEuchips
ModelEUP150M-3W24V-0
Power150W
OutputThree channels constant voltage output, 24VDC output
Output current2.08A per channel (3 channels)
ControlDMX512/RDM
Dimming range0-100%, LED start at 1% possible
Input voltage100-240VAC
Frequency50-60Hz
Efficiencyup to 90%
Power factor>0.95(115VAC)
ProtectionOutput short circuit protection, over current protection, Over voltage protection
Protection recoveryRecovers automatically after the fault is removed
Channels3
Dimensions196 x 75 x 40mm
Net weight610g
Working temperature-30℃ to 50℃

Manufacturer datasheet. Figures as published by the manufacturer.
