Victron EasySolar-II 48/6000/100-50 MPPT 250/100 GX | PMP482657010

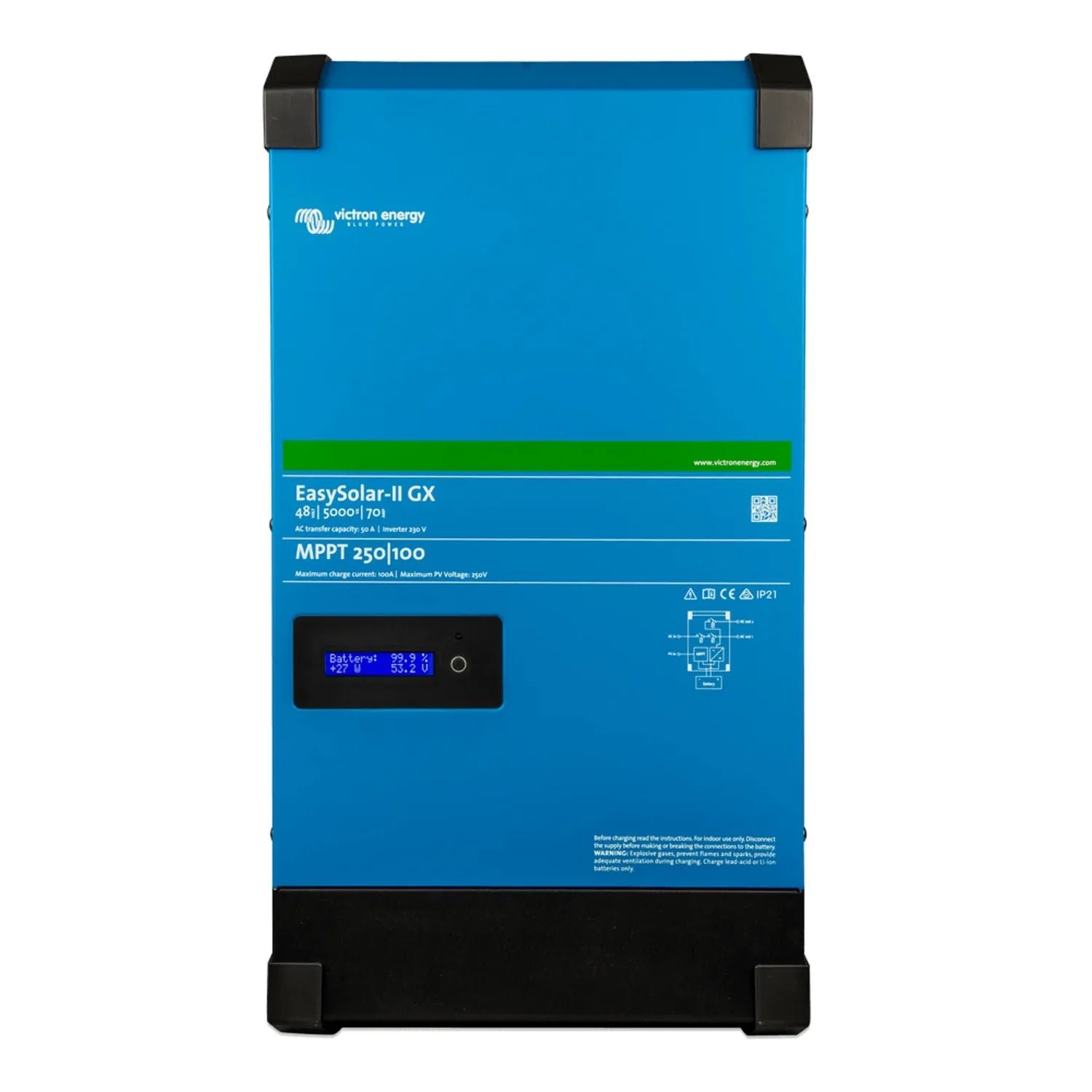

The EasySolar-II 48/6000/100-50 MPPT 250/100 GX is an all-in-one solar inverter charger from Victron Energy. It combines a 6.5 kVA inverter, a 100 A MPPT solar charge controller, a 50 A AC charger and the GX monitoring platform in a single wall-mounted unit. Built for off-grid and self-consumption installations, it suits larger residential and light commercial battery storage systems running on a 48 V battery bank.

Key features of the Victron EasySolar-II 48/6000/100-50 MPPT 250/100 GX

• Inverter output, 6,500 VA continuous at 230 V AC, single phase.
• MPPT solar charge controller, 100 A, with a maximum PV open-circuit voltage of 250 V and up to 5,800 W of solar input.
• AC battery charger, built-in 50 A charger for grid or generator charging of the 48 V battery bank.
• Integrated GX device, equivalent to a Color Control GX, giving onboard monitoring, VRM portal connectivity and system control with no extra hardware.
• Battery compatibility, works with lithium-ion (with appropriate BMS), AGM, gel and flooded lead-acid batteries at 48 V.
• PowerAssist, supplements grid or generator power during peak loads, so a limited AC source is not overloaded.

System integration

Because the inverter, MPPT controller, AC charger and GX device sit in one enclosure, there is no need to wire a separate CCGX or Cerbo GX. VRM remote monitoring works out of the box over Ethernet, or with an optional Wi-Fi dongle. The unit also supports generator auto-start via the GX interface and integrates with Venus OS and DVCC for managed lithium battery setups. A transfer switch handles changeover between grid, generator and inverter modes.

Configuration and charging

The 50 A AC charger has a configurable current limit, useful when charging from a generator with restricted output. PowerAssist lets the inverter add battery power on top of a limited AC input, so a smaller generator can carry a larger load without tripping. The MPPT controller tracks maximum power point continuously across the 250 V/100 A input range without derating.

Applications

Suited to off-grid residential systems needing a high-capacity all-in-one inverter charger with integrated monitoring, self-consumption setups on 48 V lithium or lead-acid battery banks, backup power where grid supply is unreliable, and light commercial off-grid installations where panel space matters.
