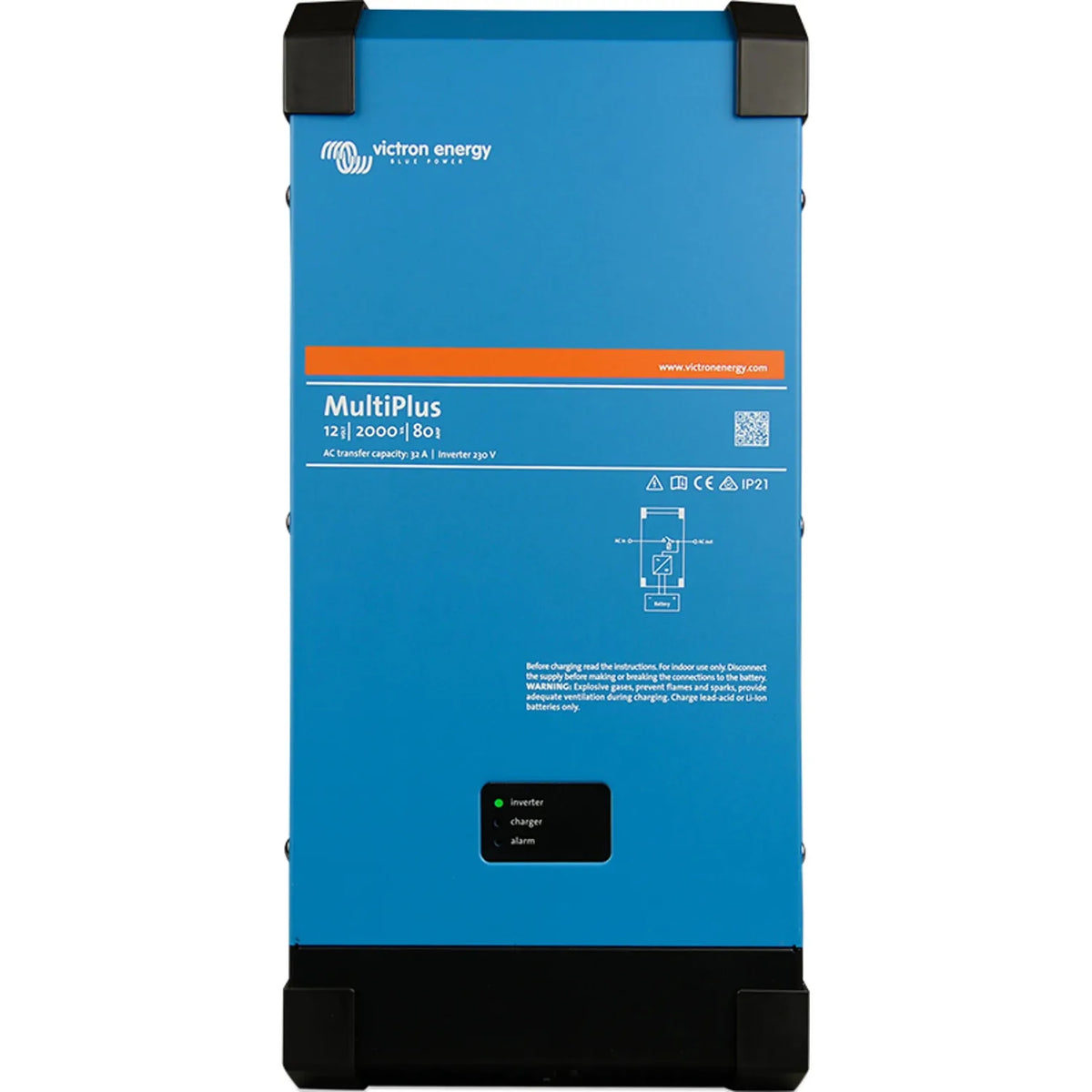

Victron MultiPlus 12/2000/100-32 Inverter Charger 230V | PMP122200010

The Victron MultiPlus 12/2000/100-32 combines a sine wave inverter, a multi-stage battery charger and an AC transfer switch in one unit for 12V battery systems with 230V AC output. It suits off-grid installations, marine and vehicle setups, and backup power systems that need reliable AC supply alongside efficient charging.

Key features of this inverter charger with battery charger

• Inverter output, 2000VA continuous at 230V AC from a 12V DC bank.
• Battery charger, 100A output with an adaptive charging algorithm.
• AC transfer switch, 32A rating, connects to shore power or generator with near-instant switchover.
• PowerAssist, draws battery power to supplement shore or generator supply when AC demand exceeds what is available.
• VE.Bus interface, supports system integration, parallel operation and three-phase configuration with additional units.
• Software and monitoring, works with Victron GX devices, VictronConnect and VEConfigure.

How it works

When AC input is present, the transfer switch connects loads directly to that source while the charger runs. If AC input is lost, the inverter takes over within milliseconds so connected loads stay powered. The adaptive charge algorithm adjusts its curve to battery condition, which helps in systems where charge time and battery state vary. PowerAssist lets a limited generator or shore supply handle loads that would otherwise trip the breaker, by drawing the shortfall from the battery.

Scalability

VE.Bus connectivity allows several MultiPlus units to be linked for higher inverter capacity, or configured for split-phase or three-phase output, all managed as one installation. Pairing with a Victron GX device, such as the Cerbo GX, adds monitoring, data logging and remote access through the VRM portal.

Applications

• Off-grid cabins and rural properties running on 12V battery banks with solar or generator charging.
• Marine installations needing 230V AC from a 12V house bank with shore power integration.
• Motorhomes and large campervans requiring mains-equivalent AC output and shore charging.
• Backup power for critical loads where fast transfer from mains to battery matters.
• Scalable off-grid systems using multiple paralleled MultiPlus units.

What's included

• Victron MultiPlus 12/2000/100-32 230V VE.Bus inverter charger unit.
• Documentation and quick-start guide.
