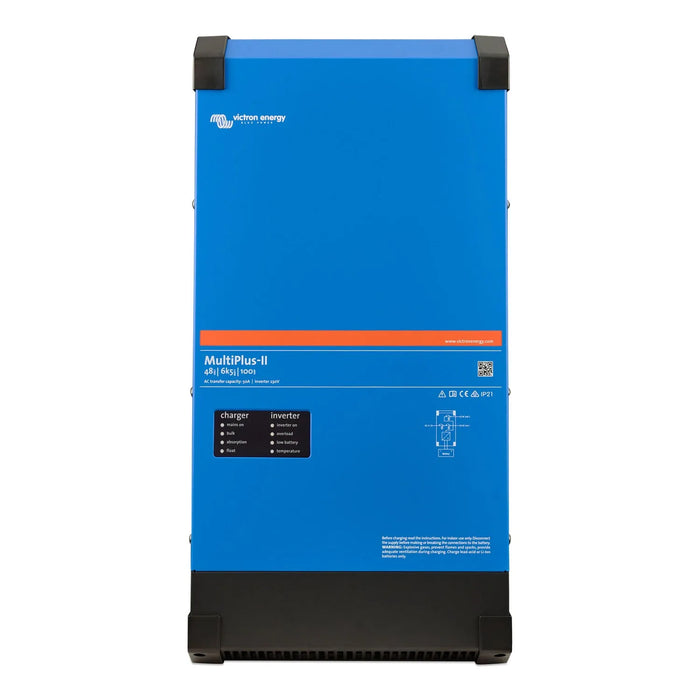

Victron MultiPlus-II 48/6k5/100-50 230V Inverter Charger | PMP482605012
- Vendor
- Victron Energy
- SKU
- PMP482605012
- Availability
- In stock
- Weight
- 31.64 kg
£841.04inc VAT £700.87exc VAT
Delivery from £35.00 to mainland UK Sent on a pallet, booked in with you first. Or collect free from Coventry.All delivery costs
Product Description
The Victron MultiPlus-II 48/6k5/100-50 230V pairs a 6.5kVA inverter (6,000W continuous at 25 °C, 11,000W peak) with a 100A battery charger in one unit, built to run from a 48V battery bank. It suits off-grid, hybrid and backup power setups where a household or small commercial site needs steady 230V AC and a charger that can put energy back into the batteries quickly.
Inverter with battery charger for 48V battery banks
- Inverter output, 6.5kVA rating, 6,000W continuous at 25 °C, 4,600W at 65 °C and 11,000W peak, at 230V AC.
- Battery charger, 100A multi-stage charging with an adaptive algorithm, matched to 48V systems.
- Transfer switch, 50A AC input rating for connecting a generator or grid supply, with typical transfer under 20ms.
- Parallel and three-phase capable, up to six units can be linked for larger single-phase, split-phase or three-phase systems.
- VE.Bus communication, connects to VictronConnect and Venus OS devices for monitoring and configuration.
- BMS and relay integration, programmable relay plus a two-signal BMS connection for battery management systems.
PowerAssist and PowerControl
PowerAssist draws extra current from the battery bank when a limited AC source, a small generator for instance, cannot cover the load on its own. That means the generator does not need to be sized for peak demand. PowerControl works the other way round, holding the charger current back so the AC input is never overloaded.
System integration
Because the unit speaks VE.Bus, it links directly into a Victron GX device such as a Cerbo GX or CCGX for full monitoring. Several MultiPlus-II units can be paralleled or wired for split- or three-phase output, so the same model works as a single residential inverter charger or as one building block in a larger installation.
Applications
- Off-grid homes and rural properties needing dependable 230V AC from a battery bank.
- Hybrid solar installations combining battery storage with grid or generator backup.
- Generator-backed sites where PowerAssist allows a smaller generator to be fitted.
- Three-phase or high-capacity systems built from multiple paralleled units.
- Marine and vehicle systems requiring a 48V inverter charger with 230V output.
Technical Specifications 27 rows Show
| Victron MultiPlus II 48/6k5/100-50 230V | PMP482605012 | |
|---|---|
| PowerControl & PowerAssist | Yes |
| Transfer switch | 50 A |
| Maximum AC input current | 50 A |
| Inverter | |
| DC input voltage range | 38 to 60 V |
| AC output | 230 VAC ± 2 %, 50 Hz ± 0.1 % |
| Continuous output power at 25 °C | 6 kW |
| Continuous output power at 40 °C | 5.7 kW |
| Continuous output power at 65 °C | 4.6 kW |
| Time limited power (cold start) | 6.5 kW for 4 h / 8 kW for 1 h |
| Max apparent feed in power | 6 kW |
| Peak power | 11 kW for 1 min |
| Maximum efficiency | 96 % |
| Zero load power | 28 W |
| Zero load power (AES mode) | 18 W |
| Charger | |
| AC input voltage range | 187 to 265 VAC, 45 to 65 Hz |
| Absorption charge voltage | 57.6 V |
| Float charge voltage | 55.2 V |
| Storage mode voltage | 52.8 V |
| Max battery charge current at 25 °C | 100 A |
| Max battery charge current at 40 °C | 95 A |
| Compatible battery chemistries | Lithium, Lead acid, Zinc bromine and more |
| General | |
| Auxiliary output | Yes (32 A) |
| External AC current sensor | Optional 50 A or 100 A |
| Operating temperature | -40 to +65 °C |
| Protection category | IP21 |
| Weight | 29 kg |
| Dimensions (H x W x D) | 644 x 320 x 150 mm |
Manufacturer datasheet. Figures as published by the manufacturer.
