27W Dimmable LED Driver 1-10V Constant Current 200-1050mA | Easeic LNA127AL
- Vendor
- Easeic
- SKU
- 632127
- Availability
- In stock
- Weight
- 0.15 kg
£27.25inc VAT £22.71exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

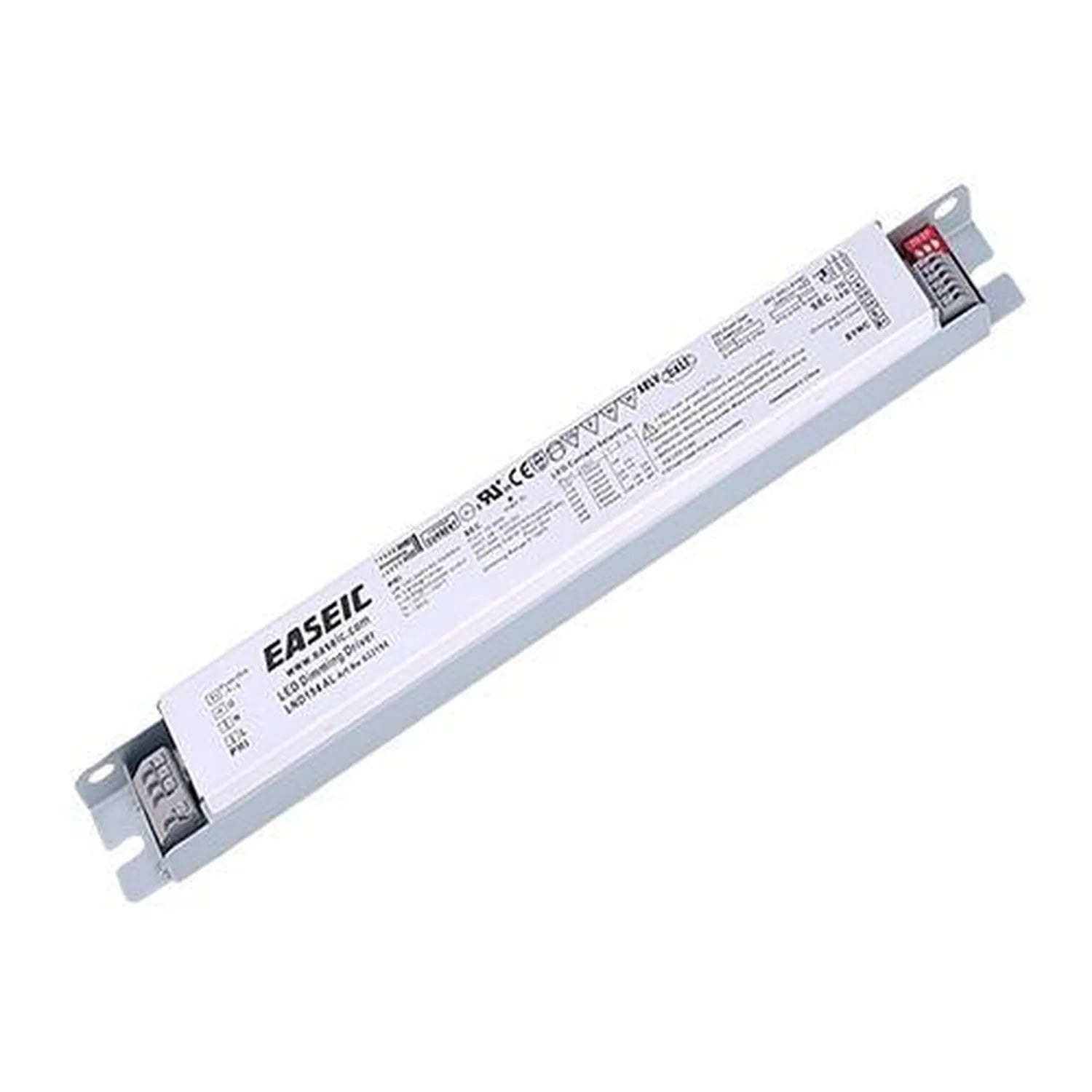

The Easeic LNA127AL is a 27W constant current LED driver with 0/1-10V dimming, built for LED panels, downlights, battens, linear fittings and architectural luminaires. Output current is adjustable from 200mA to 1050mA using DIP switches, so one driver can be matched to the LED array in front of it.
Dimmable LED driver with four control options
Dimming works from a 0/1-10V signal, PWM or resistance. PUSH-Dim lets you control it from a standard push-button switch instead. Dimming is analogue and flicker-free across 0-100%.
- Output power: up to 27W
- Output current: 200-1050mA, selected by DIP switch
- Output voltage: 3V-66V DC, with a maximum open circuit voltage of <77V
- Mains input: 100-277V AC, 50/60Hz
- Efficiency and power quality: up to 88%, power factor >0.95, THD <10%
- Protection: short circuit, over voltage, over current and open circuit
Where it fits
The slim 280 x 30 x 26mm housing goes inside compact fittings, and push terminals make the wiring quick. Typical jobs include LED panels and recessed luminaires, linear fittings and battens, and lighting in commercial offices, retail and hospitality spaces. It also suits OEM luminaire manufacturing.
Before you install
The driver leaves the factory set to 200mA. Set the current you need before connecting the LEDs.
Full 27W output is only available from 450mA upwards. At 200mA the maximum is 13W, and the DIP switch table in the datasheet shows the limit at each setting.
Push-dim wiring
Keep the total length of push-dim cables under 20m. Use a self-reset push button without an indicator light only, linked between Push-dim and L(AC).
Technical Specifications 30 rows Show
| Brand | Easeic |
| Model | LNA127AL |
| Type | LED 1-10 Dimmable Driver |
| Output power | Up to 27W |
| Output current | 200mA - 1050mA Adjustable |
| Factory default current | 200mA |
| Output voltage | 3V - 66V DC |
| Maximum open circuit voltage | <77V |
| Input voltage | 100 - 277V AC |
| Frequency | 50 / 60Hz |
| Input current | 0.36A@100VAC 0.31A@120VAC 0.16A@230VAC |
| Maximum input power | 31W |
| Inrush current | Cold start 39A at 230VAC |
| Leakage current | <0.5mA/230VAC |
| Dimming type | 0/1-10V / PWM / Resistance / PUSH-Dim |
| Dimming range | 0 - 100% |
| Efficiency | Up to 88% |
| Power factor | >0.95 |
| THD | <10% |
| Protection features | Short Circuit, Over Voltage, Over Current, Open Circuit |
| Operating temperature | -20°C to +50°C |
| Maximum case temperature | 75°C for life, 85°C for UL safety |
| Dimensions | 280 x 30 x 26 mm |
| Environmental rating | UL Damp and Dry |
| Weight | 0.23Kg |
| Audible noise | <24dB Class A |
| Approvals | UL8750, UL1310, CSA-C22.2 No.250.0-08, ENEC EN61347-1, EN61347-2-13 |
| Wiring | 16-24 AWG solid copper wire rated >=300V/85C |
| Order code | 632127 |
| Warranty | 5 Years |
Manufacturer datasheet. Figures as published by the manufacturer.
