12V DC Jack Plug and Socket 5.5 x 2.1mm Screw Terminal | Ledison
- Vendor
- Ledison
- SKU
- 001592+001591
- Availability
- In stock
- Weight
- 0.025 kg
£1.14inc VAT £0.95exc VAT
Delivery from £7.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

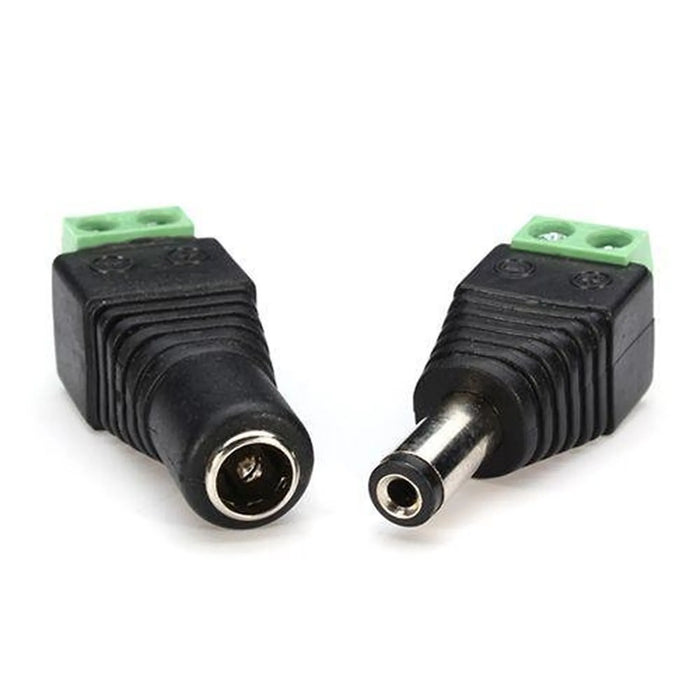

This Ledison pair gives you a male and a female 5.5mm x 2.1mm DC connector, each fitted with small screw terminals. Strip the ends of a twin (figure 8) cable, clamp them into the posts, then plug the two halves together. You don't need crimping or special tools. A small screwdriver does the job.
12V DC jack plug and socket: key features
- Connector pair: one male and one female DC connector
- Plug size: 5.5mm x 2.1mm (5.5mm external, 2.1mm internal diameter)
- Power range: 12V-36V DC
- Termination: screw terminals for twin (figure 8) cable
- Construction: high-conductivity metal contacts in a plastic body
- Model: C-PS-2.1-MADAP
Where to use it
The most common job is carrying DC power from a power supply to a 12V or 24V LED strip. Because the connection is screwed rather than soldered, you can make up a lead to the length you need on site and take it apart later if the layout changes.
It also suits any device with a standard 2.1mm DC input. CCTV cameras are a typical example. On those installs the female socket can sit on the supply side and the male plug on the device side, or the other way round, depending on how your cabling is run.
Sizes
The male connector measures 38*13*11mm and the female connector 38.4*14.8*11.5mm, so both are small enough to tuck behind a fitting or inside a cable run.
In the box
- Male connector
- Female connector
Technical Specifications 11 rows Show
| Type | DC power plug jack, male and female |
| Plug size | 5.5mm x 2.1mm |
| Power range | 12V-36V DC |
| Connection | Screw terminals |
| Internal diameter | 2.1mm |
| External diameter | 5.5mm |
| Male connector size | 38*13*11mm |
| Female connector size | 38.4*14.8*11.5mm |
| Cable | Twin cable (figure 8) |
| Material | High-conductivity metal with a robust, plastic outer construction |
| Model | C-PS-2.1-MADAP |
Manufacturer datasheet. Figures as published by the manufacturer.
