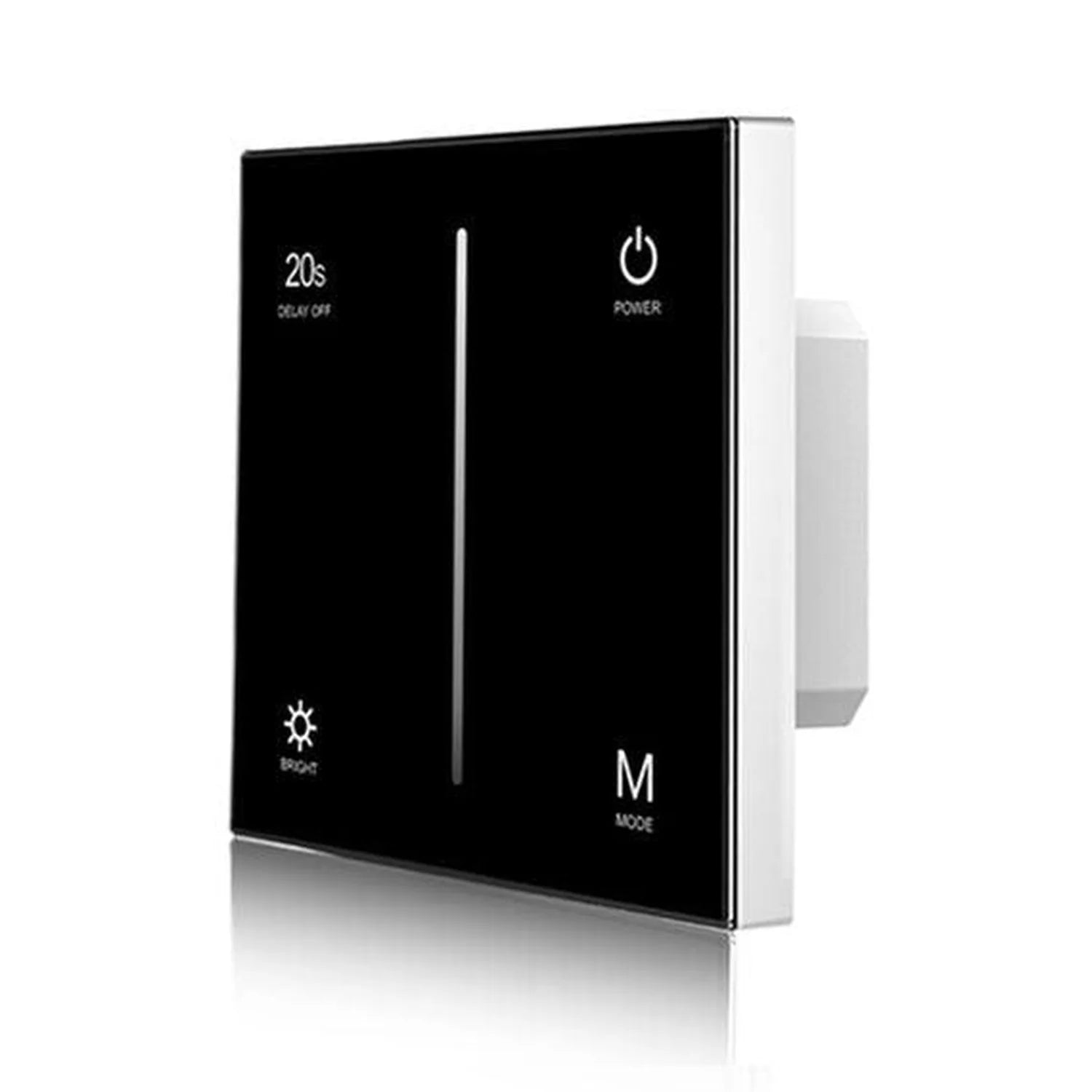

Black glass LED touch dimmer switch with white trim, showing controls for brightness, delay off, power, and mode settings.

Tempered Glass Light Switch LED Touch Dimmer Black | Ledison S1-T

£31.49
Skip to product information
Black glass LED touch dimmer switch with white trim, showing controls for brightness, delay off, power, and mode settings.

Tempered Glass Light Switch LED Touch Dimmer Black | Ledison S1-T

Vendor
Ledison
SKU
201001
Availability
In stock
Weight
0.15 kg

£31.49inc VAT £26.24exc VAT

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

This black tempered glass light switch has an AC Triac LED dimmer built into the panel. Run a finger along the centre to set the brightness anywhere from 0 to 100%, across 256 levels. The panel is backlit. You can find it in the dark without fumbling along the wall.

Tempered glass light switch features

  • Supply: AC100-240V input and output
  • Output current: max 1.2A
  • Output power: max 288W at 240V (120W at the bottom of the AC100-240V input range)
  • Dimming: 256 levels, 0-100%, leading or trailing edge selected by DIP switch
  • Remote control: works with compatible Skydance RF 2.4GHz remotes from up to 30 metres
  • Delay off: turns the light off after 20s

Compatible lighting

The dimmer handles dimmable LED lamps, Triac dimmable LED drivers, halogen and incandescent lights. Because the DIP switch gives you a choice of leading edge or trailing edge dimming, one switch covers a mix of installations. It is rated IP20 and comes with a 5-year warranty.

Installation

The S1-T fits standard European 86-size back boxes. It measures 86mm x 86mm, with an 11.5mm front panel and a 35mm back part.

Before you power up

  • Set the DIP switch before the power is switched on.
  • Work out the maximum number of lamps or drivers from their input power or input current, not their output power.
Technical Specifications 25 rows Show
ModelS1-T Black
Product typeTouch glass panel AC phase-cut dimmer, 1 channel output
Panel finishBlack Tempered Glass
Input voltageAC100-240V
Output voltageAC100-240V
Output currentMax 1.2A
Output powerMax 288W at 240V (120W at the bottom of the AC100-240V input range)
Dimming methodTouch Slide + RF 2.4GHz
Dimming levels256 Levels
Dimming range0-100%
RF control distanceUp to 30m
Dimming typeLeading Edge / Trailing Edge Selectable
Compatible loadsDimmable LED, Halogen, Incandescent
IP ratingIP20
Operating temperature-30°C to +55°C
Maximum case temperature+85°C
Dimensions (datasheet drawing)86mm x 86mm, 11.5mm front panel, 35mm back part
CertificationsCE, EMC, LVD
Warranty5 Years
Back boxEuropean style 86 size
Delay offTurn off light after 20s
Remote controlSkydance's 2.4G dimming remote control (optional)
EMC standardEN 55015:2013, EN 61547:2009, EN 61000-3-2:2014, EN 61000-3-3:2013
Safety standardEN 61347-2-11:2002, EN 61347-1:2015, EN 62493:2015
Barcode0790404941831

Manufacturer datasheet. Figures as published by the manufacturer.

Datasheets & documents

  • 5 stars: 1 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
a
anthony r.
Dimmer switch bought to replace my old switch.

I am very pleased with the look of my new LED glass dimmer switch. I have not had it fitted yet so cannot comment on the operation of it yet.
