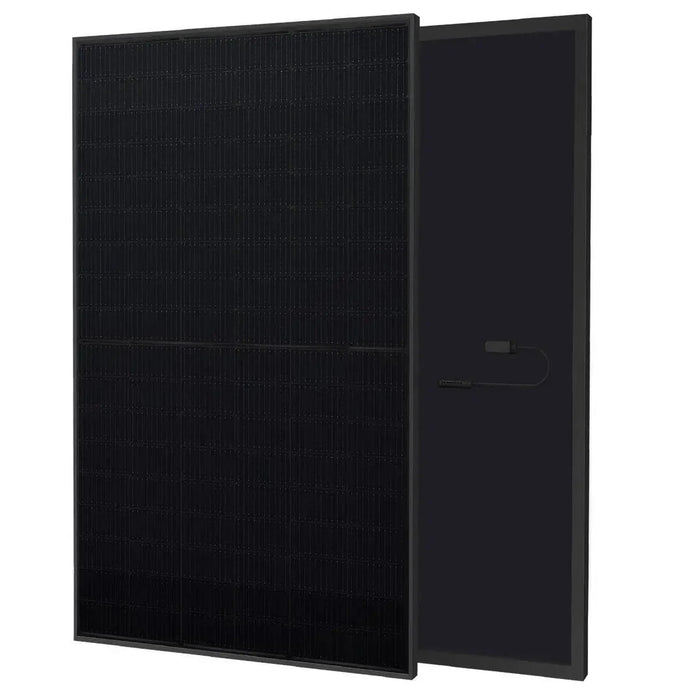

455W N-Type Solar Panel Full Black | ET Solar
- Vendor
- ET Solar
- SKU
- ET-NR748TBH440GB
- Availability
- Pre-order
- Weight
- 21.0 kg
Not in stock right now. We will confirm the lead time before dispatch.
£93.45inc VAT £77.88exc VAT
Delivery from £20.00 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

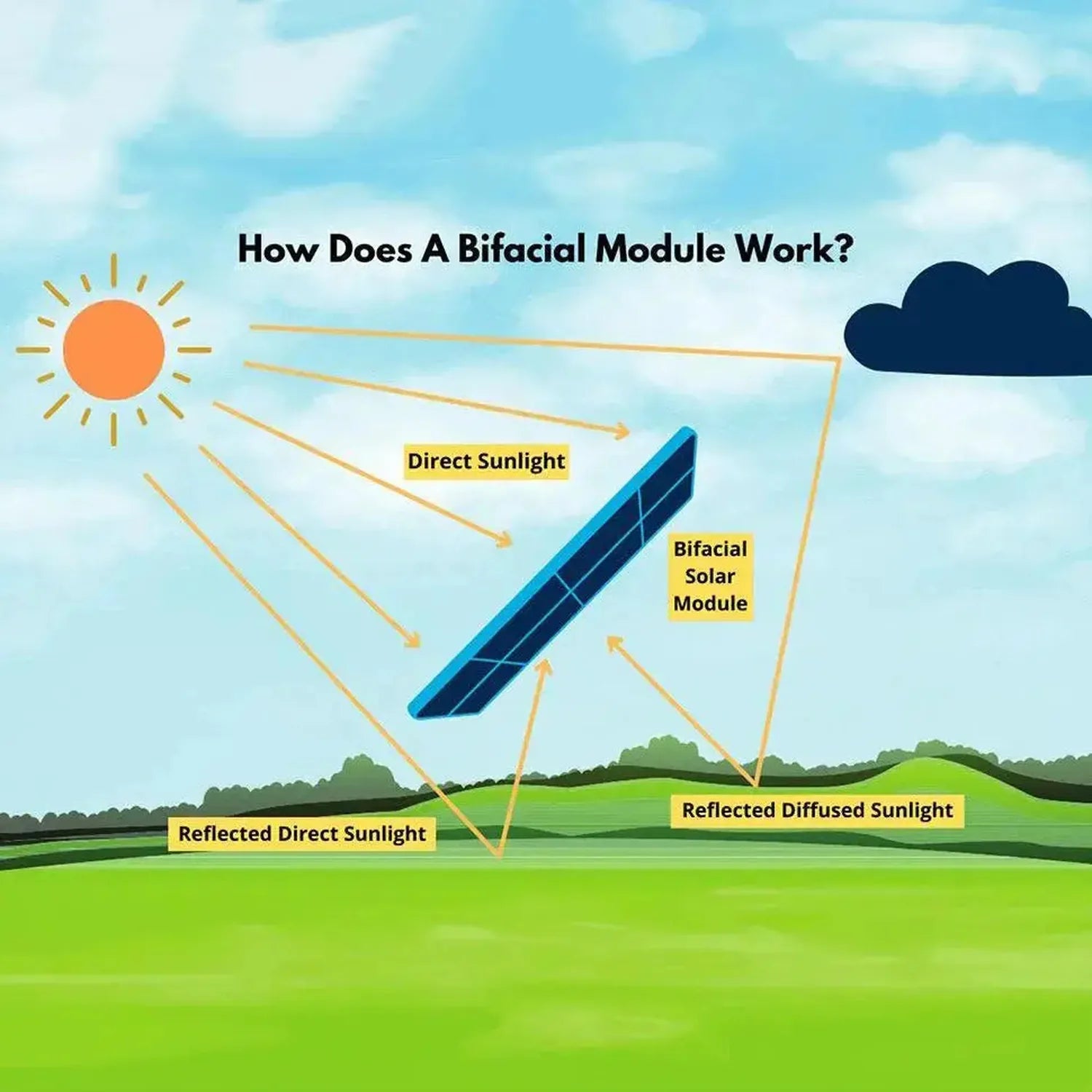

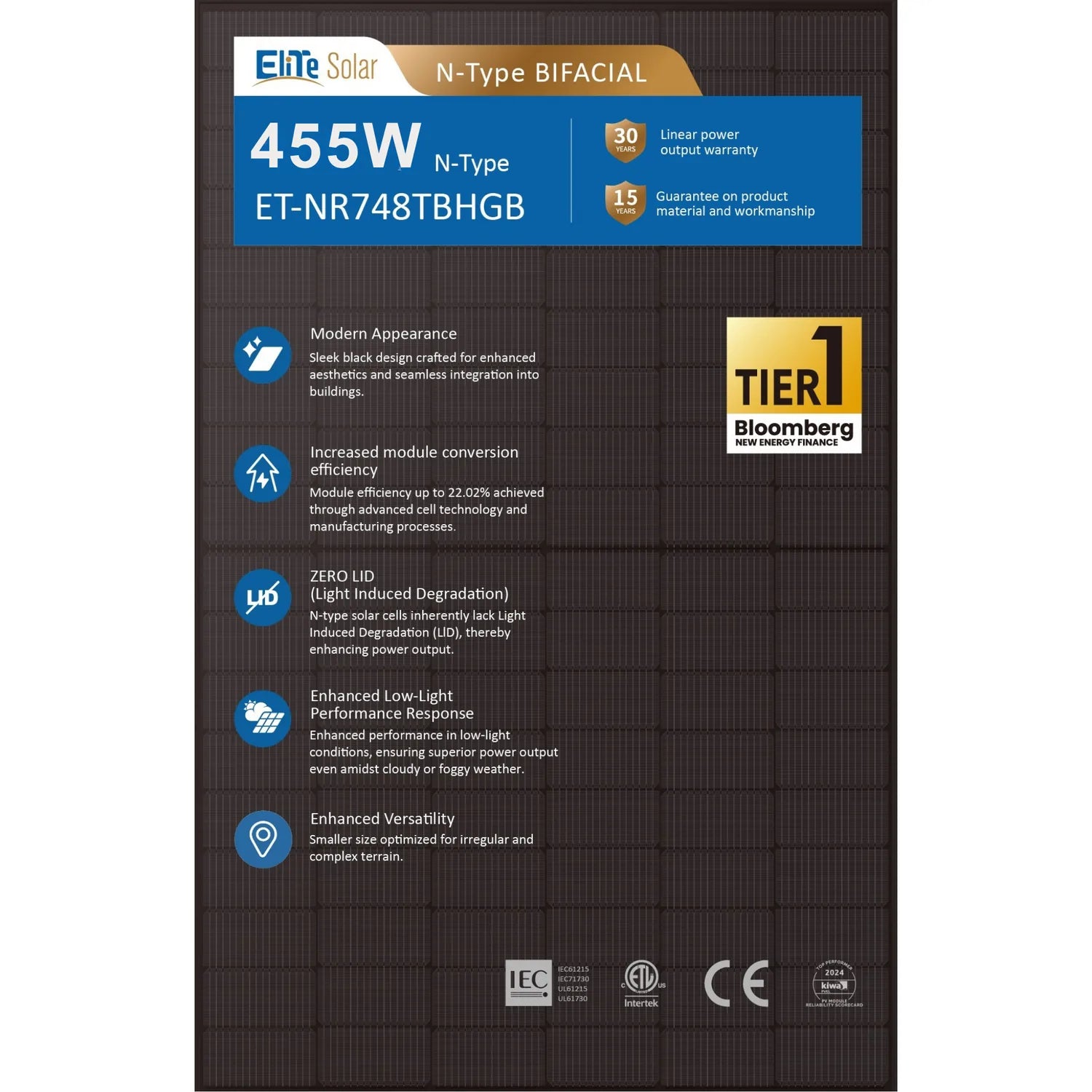

The 455W is a full black N-type half-cut solar panel from ET-Solar, a Tier-1 Bloomberg-listed manufacturer. Dual glass lamination replaces the conventional plastic backsheet, improving resistance to moisture, UV and mechanical stress over time. The bifacial design captures reflected light from the rear surface, adding up to 100W additional output in favourable conditions. Panel dimensions are 1722 x 1134mm.
Product code: ET-NR48TBH455GB.
A solar panel built for durability
- Rated output - 455W from the front side.
- Cell technology - N-type half-cut cells.
- Finish - full black frame, cells and rear surface.
- Construction - dual glass lamination in place of a plastic backsheet.
- Degradation - below 0.4% annual power loss, with 89% nominal power retained after 25 years.
Applications
Suited to residential rooftops where a full black finish is wanted, and to ground mounted arrays where bifacial rear gain adds value. Also used in commercial and agricultural installations, and in long life projects where dual glass construction matters. Vertical mounting facing the equator is supported.
Certification and warranty

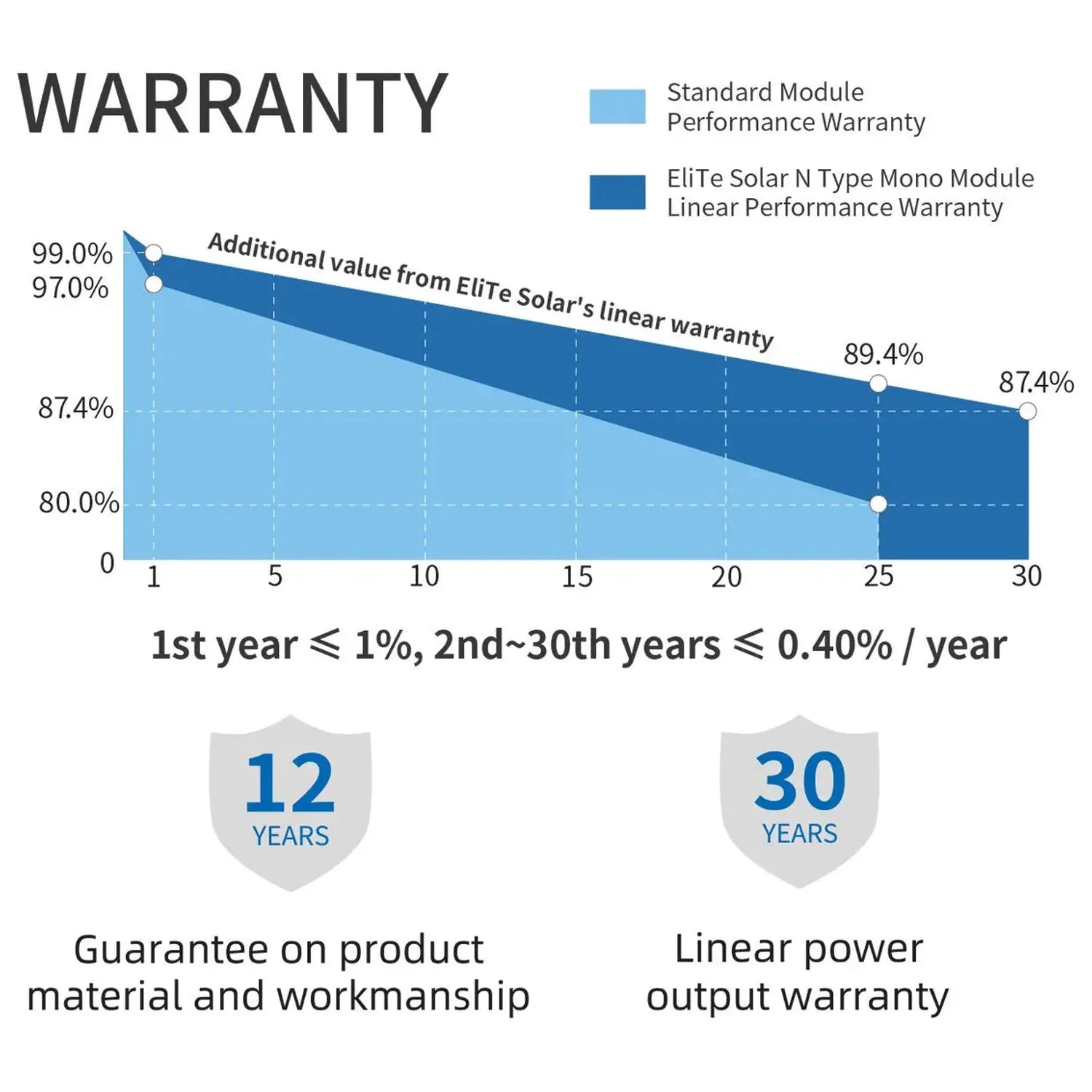

Certified to IEC and UL standards. Covered by a 12-year product warranty and a 30-year linear power output warranty.
Installation notes
Fit by a qualified MCS-accredited solar installer. String voltage under cold conditions must be checked against the inverter's maximum DC input. Bifacial rear gain is highest over reflective surfaces such as light membrane roofs, concrete and gravel ground mounts.
Technical Specifications 20 rows Show
455W N Type - Monocrystalline Photovoltaic Panel
ELECTRICAL CHARACTERISTICS AT STANDARD TEST CONDITIONS
| Maximum power Pmax | 455Watt |
| Power Tolerance | 0- + 5Watt |
| Module Efficiency | 23.3% |
| Maximum Power Current | 13.30A |
| Maximum Power Voltage | 32.33V |
| Short Circuit Current Isc | 14.25A |
| Open Circuit Voltage Voc | 38.72V |
ELECTRICAL CHARACTERISTICS WITH 21% REAR SIDE POWER GAIN
| Maximum Power | 540Watt |
| Maximum Power Current Imp | 16.43A |
| Maximum Power Voltage Vmp | 31.96V |
| Short Circuit Current Isc | 17.42A |
| Open Circuit Voltage Voc | 38.46V |
MECHANICAL CHARACTERISTICS
| Cell Type | Mono N-Type, 182x91mm, 108 (6x18) Half Cut Cells |
| Glass | 2mm+2mm, High Transmission, Low Iron, Tempered Glass |
| Frame | Anodized aluminium alloy |
| Junction box | IP68 Rated, with Bypass diodes |
| Dimensions | 1772 x 1134 x 30mm |
| Output cable | 4mm² |
| Weight | 24kg |
| Installation Hole Location | See drawing in downloads |
Temperature Coefficient of Voc: -0.25%/C
Temperature Coefficient of Isc: +0.046%/C
Temperature Coefficient of Pmax: -0.30%C
Nominal Operating Cell Temperature: 45 deg C
Maximum Series Fuse Rating: 30A
Maximum System Voltage: 1500VDC
Manufacturer datasheet. Figures as published by the manufacturer.
More in Mono-Crystalline

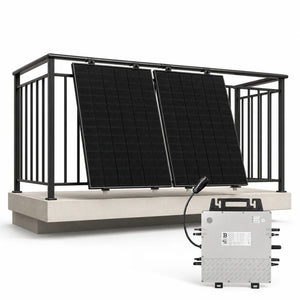

800W Plug In Solar Panel Kit with Micro Inverter£462.00inc VAT
£385.00exc VAT
JA Solar 450W All Black N-Type Bifacial Solar Panel£91.35inc VAT
£76.13exc VAT
JA Solar 465W All Black N-Type Monocrystalline Solar Panel£93.45inc VAT
£77.88exc VAT
800W Plug-In Solar Kit with Micro Inverter£399.00inc VAT
£332.50exc VAT

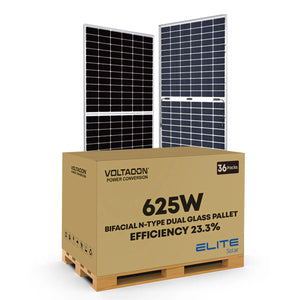

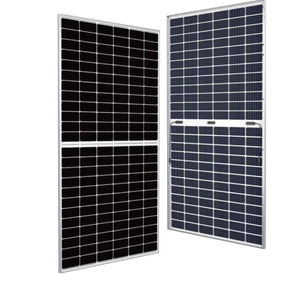

625W Bifacial N-Type Solar Panel Dual Glass£628.95inc VAT
