Name: 625W Bifacial Solar Panel N-Type Dual Glass 23.1%
Brand: ET Solar
SKU: 003028
Price: 110.25 GBP
Availability: InStock

All Mono-Crystalline

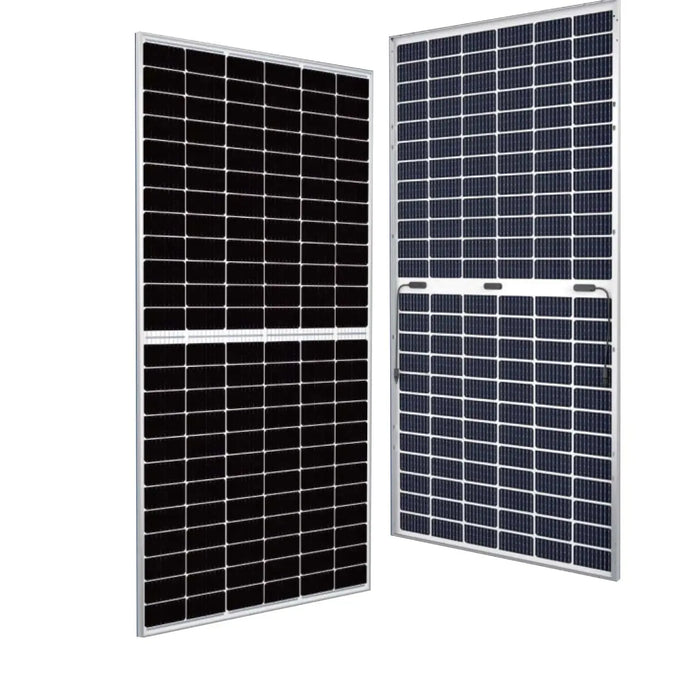

Two tall rectangular solar panels displayed at an angle, showing black photovoltaic cells in a grid pattern separated by whit

625W Bifacial Solar Panel N-Type Dual Glass 23.1% | ET Solar

Vendor: ET Solar
SKU: 003028
Availability: In stock
Weight: 33.0 kg

£110.25inc VAT £91.88exc VAT

Delivery from £39.00 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout

Talk to our sales team

Product Description

The ET-NR66TBH625GL is a 625W N-Type bifacial dual glass solar panel from ET Solar, rated at 23.1% module efficiency with a 30-year linear power output warranty. It suits commercial, agricultural and ground-mounted arrays where high output and long service life both matter, pairing N-Type cell technology with a dual-glass build for demanding sites.

Key features of this 625W bifacial solar panel

Peak power: 625W at STC.
Cell technology: N-Type mono-crystalline, bifacial.
Module efficiency: 23.1%.
Glass construction: 2.0mm front and rear glass in place of a back-sheet.
Bifacial gain: 5% to 25% depending on installation conditions.
Junction box: IP68 with 3 bypass diodes.

Applications

Used on commercial rooftops, ground-mounted utility and agricultural arrays, warehouse and industrial roofs, flat roofs with reflective surfaces, and larger residential projects.

N-Type bifacial performance

Generating from both faces, the panel can add 5% to 25% extra output over an equivalent monofacial module in suitable conditions such as ground mounts, light-coloured roofs or reflective flat-roof surfaces. The dual glass layers replace the usual back-sheet, adding resistance to environmental stress alongside a low degradation rate from the second year onward.

Installation notes

Fit by a qualified MCS-accredited installer only. Maximum system voltage is 1500VDC and the maximum series fuse rating is 30A. Mounting structure design, cable sizing and earthing must follow IET Wiring Regulations and ET Solar's installation instructions.

Technical Specifications 46 rows Show

Elite Solar 625W N-Type Bifacial Dual Glass Solar Panel Specifications

Electrical Specifications - 625W Model

Specification	STC	NOCT
Module Type	ET-NR66TBH625GL	ET-NR66TBH625GL
Maximum Power - Pmax	625W	473W
Open Circuit Voltage - Voc	49.30V	46.93V
Short Circuit Current - Isc	16.12A	13.02A
Maximum Power Voltage - Vmp	40.99V	38.43V
Maximum Power Current - Imp	15.25A	12.32A
Module Efficiency	23.1%	-

Electrical Ratings and Temperature Coefficients

Specification	Value
Power Tolerance	0 to +3%
Pmax Temperature Coefficient	-0.30%/°C
Voc Temperature Coefficient	-0.22%/°C
Isc Temperature Coefficient	+0.042%/°C
Fire Performance	Type 29 UL
STC Conditions	AM1.5, 1000W/m², 25°C
NOCT Conditions	AM1.5, 800W/m², 20°C, 1m/s
Test Uncertainty for Pmax	±3%

Mechanical Specifications

Specification	Value
External Dimensions	2382 x 1134 x 30mm / 93.78 x 44.65 x 1.18 inch
Weight	33kg / 72.75lbs
Solar Cells	N-Type mono-crystalline, 132 cells
Front Glass / Back Glass	2.0mm / 2.0mm, 0.08 inch
Frame	Anodized aluminium alloy
Junction Box	IP68, 3 diodes
Cable Length Including Connector	4.0mm², 12AWG, portrait 200mm positive / 400mm negative, or customised
Connector	CD2 / MC4 compatible
Power Bifaciality	80% ±10%

Application Conditions

Specification	Value
Maximum System Voltage	1500VDC
Maximum Series Fuse Rating	30A
Operating Temperature	-40°C to +85°C
Nominal Operating Cell Temperature	45 ±2°C
Maximum Mechanical Load	5400Pa / 2400Pa

Warranty and Performance

Warranty / Performance Item	Value
Product Material and Workmanship Warranty	12 years
Linear Power Output Warranty	30 years
First Year Degradation	≤1%
Annual Degradation From Year 2 to Year 30	≤0.40% per year

Technology Features

Feature	Description
SMBB Technology	Uses advanced technology to improve light trapping and current collection, helping to enhance module power output and reliability.
PID Resistance	Designed for excellent anti-PID performance through optimised mass production processes and material control.
Increased Power Output	Module power can increase approximately 5% to 25% from bifacial gain, depending on installation conditions.

Manufacturer Rear Side Power Gain Reference

The data sheet rear side power gain table is printed for ET-NR66TBH620L. It is included below as a manufacturer reference only.

Power Gain	10%	15%	20%	25%
Maximum Power - Pmax	682W	713W	744W	755W
Open Circuit Voltage - Voc	49.10V	49.10V	49.10V	49.10V
Short Circuit Current - Isc	17.84A	18.66A	19.47A	20.28A
Maximum Power Voltage - Vmp	40.82V	40.82V	40.82V	40.82V
Maximum Power Current - Imp	16.71A	17.47A	18.23A	18.99A

Packaging Information

Specification	Value
Container	40ft HQ
Pieces Per Pallet	36 panels
Packing Size	2400 x 1130 x 1264mm / 94.49 x 44.49 x 49.76 inch
Packing Weight	1231kg / 2713.89lbs
Pieces Per Container
