24V Plug-In Power Supply for LED Strip UK Plug Class II | Ledison
- Vendor
- Ledison
- SKU
- 614000
- Availability
- In stock
- Weight
- 0.15 kg
£10.13inc VAT £8.44exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

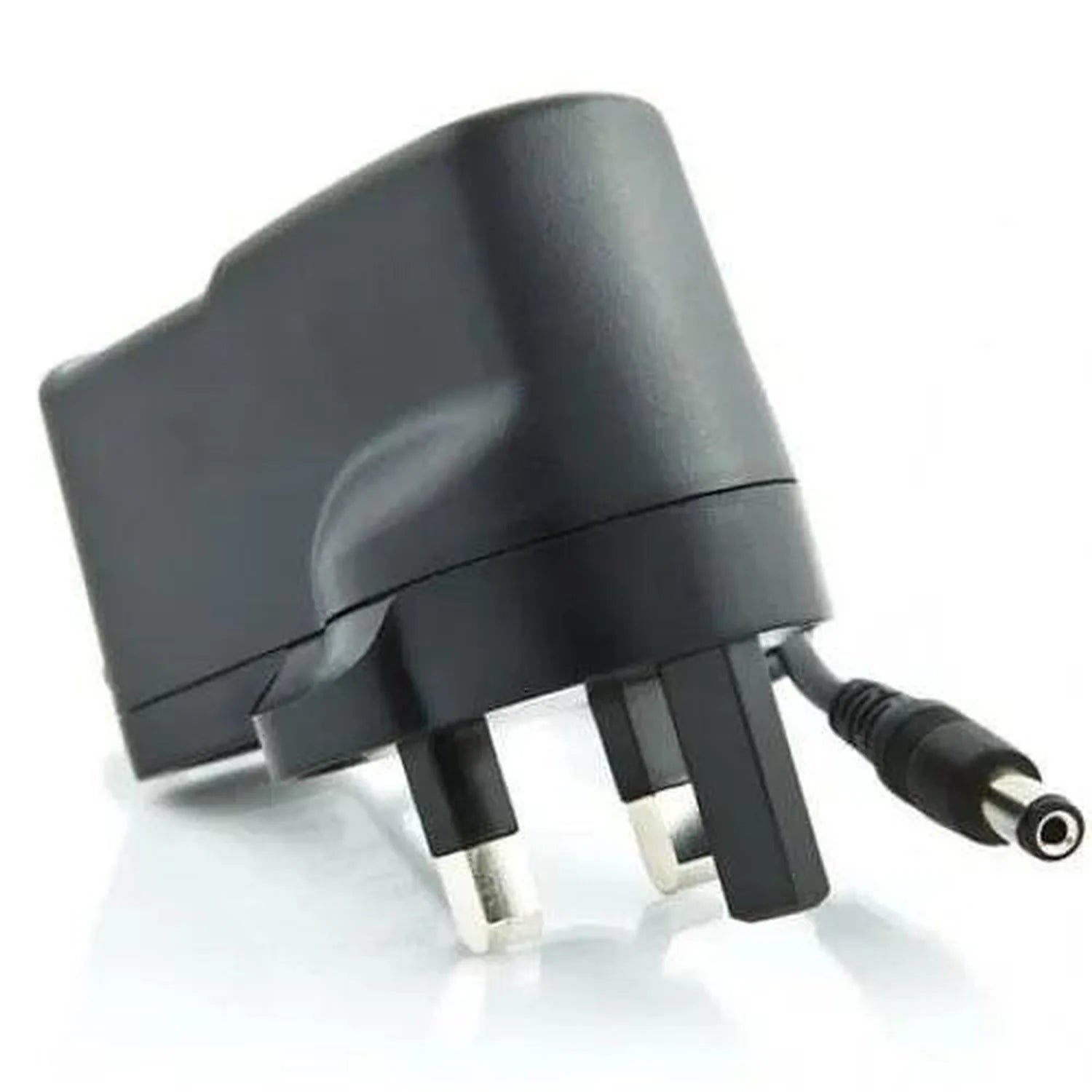

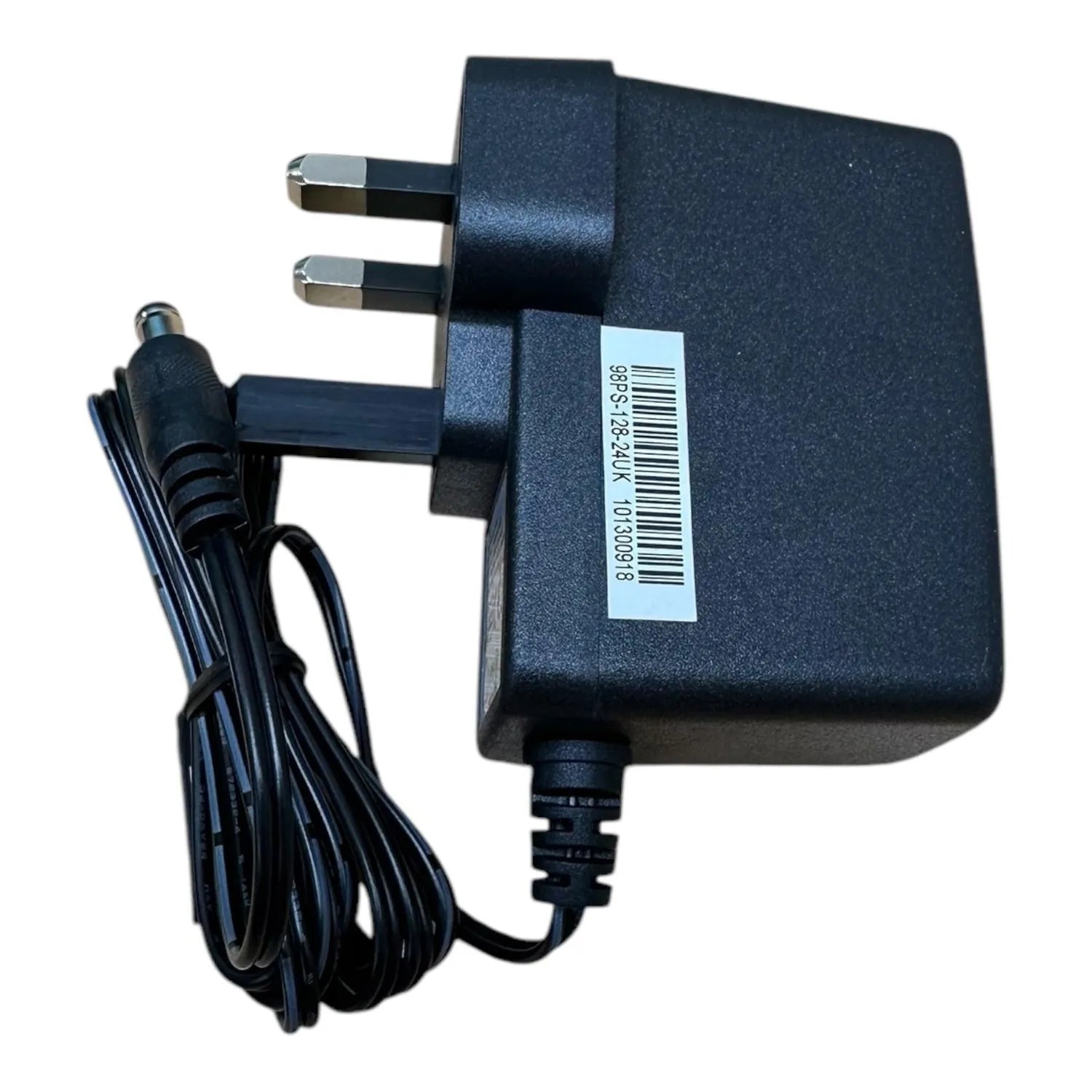

This slim 24V plug-in power supply runs 24V LED strips and lights straight from a standard wall socket. It delivers a constant voltage 24V DC output, arrives with a UK plug fitted, and is certified for safe use in the home. It is a non-dimmable unit.
24V plug-in power supply features
- Output: 24V DC, constant voltage
- Input: universal AC, 90~264VAC
- Efficiency: 85%
- No-load draw: 0.5W at 230VAC
- Safety class: Class II, no earth pin, fully isolated
- Control: non-dimmable
Where it fits
The adaptor plugs directly into the wall, so there is no separate driver box to hide and no hard wiring to arrange. That makes it a tidy choice for LED strip under kitchen cabinets, behind a television, along shelving or anywhere a 24V strip or light needs feeding from a nearby socket. Simple.
Because the output is constant voltage, it suits 24V strip and fittings built to run from a fixed 24V supply. Check that your strip or light is rated at 24V before connecting it.
Dimming and safety
This supply does not support dimming. If your installation needs a dimmable output, choose a different driver. The Class II design means there is no earth pin, and the adaptor is fully isolated between the mains side and the 24V output. With a maximum case temperature of 70°C, it is worth leaving the unit with some free air around it rather than boxing it in tightly.
Electrical details
Rated input is 100 - 240VAC across a 47 Hz ~ 63 Hz frequency range, with the wider operating window running from 90~264VAC. Efficiency is listed at 85%, and with nothing connected the adaptor draws 0.5W at 230VAC.
Technical Specifications 13 rows Show
| Type | Plug-in power supply |
| Output voltage | 24V |
| Output type | Constant Voltage Design (C .V mode) |
| Input voltage | 90~264VAC |
| Efficiency | 85% |
| No load consumption | 0.5W at 230VAC |
| Dimmable | non-dimmable |
| Plug | UK Plug |
| Max. case temperature | 70°C |
| Rated input voltage | 100 - 240VAC |
| Frequency range | 47 Hz ~ 63 Hz |
| Class | Class II power design without earth pin |
| Mounting | Fully isolated wall-mounted adaptor |
Manufacturer datasheet. Figures as published by the manufacturer.
Datasheets & documents
