24V LED Driver 12W 500mA Constant Voltage Class II | Glacial GP-CVP012N-24V-T02
- Vendor
- Glacial
- SKU
- 999011
- Availability
- Sold out
- Weight
- 0.15 kg
£14.06inc VAT £11.72exc VAT
Sorry, this one is sold out
Tell us you want it and we will find out when it is back, or point you at the closest thing we have in stock.
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

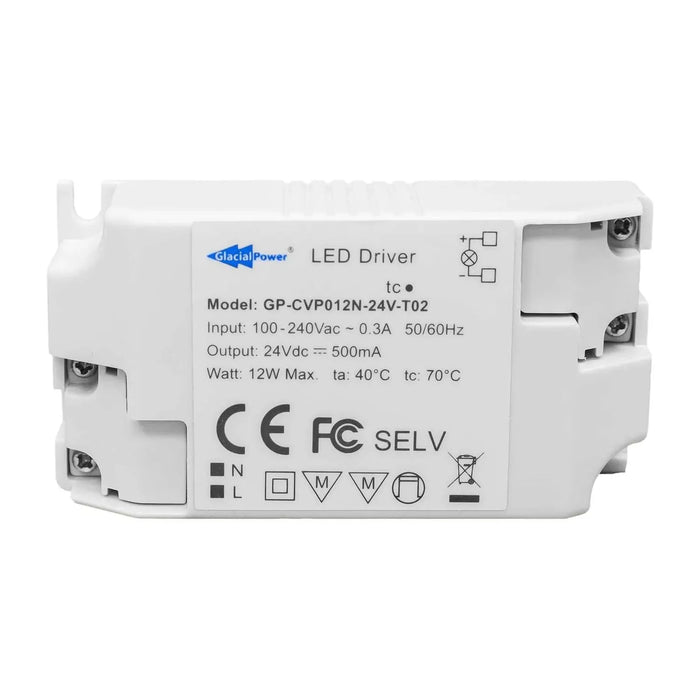

This Glacial 24V LED driver is a compact constant voltage power supply rated at 12W. It is built for short runs of 24V LED strip, cabinet and display lighting, and low voltage LED bulbs. Output is 24V DC at 0-500mA, and screw terminals on both the input and output keep the wiring simple.
24V LED driver key features
- Output: 24V DC, 0-500mA, 12W
- Input: universal AC, 90-264VAC
- Insulation: Class II, fully isolated plastic case, so no earth connection is needed
- Protection: over current and short circuit, with automatic recovery
- Standby draw: no-load consumption under 0.5W at 230VAC
- Size and weight: 86 x 45 x 26mm, 74g
Where it fits
Small loads. That is what this unit is for. It suits under cabinet, display and shelf lighting, along with 24V LED strip lights and low voltage LED bulbs that run on 24V DC. Pair it with a 6W to 7.2W strip and the 12W rating gives useful headroom.
Installation notes
- Connect only 24V LED products and do not exceed 12W in total
- Leave room for ventilation and keep the driver away from excessive heat or moisture
- Installation should be carried out by a qualified person to current wiring regulations
The input terminals accept 0.75-1.5mm² cable, while the output side takes 0.5-1.5mm². Safety and EMC standards are listed in the full specification below.
Technical Specifications 24 rows Show
| Brand | Glacial |
| Model | GP-CVP012N-24V-T02 |
| Output voltage | 24V DC |
| Rated output current | 0-500mA |
| Rated power | 12W |
| Voltage tolerance | ±5% |
| Ripple and noise | 240mVp-p max. |
| Efficiency | 83% minimum at 230VAC full load |
| Input voltage range | 90-264VAC |
| Rated input voltage | 100-240VAC |
| Frequency range | 47-63Hz |
| AC current | 0.3A at 115VAC / 0.15A at 230VAC |
| No load consumption | <0.5W at 230VAC |
| Protection | Over current protection and short circuit protection |
| Operating temperature | -10°C to 40°C full load |
| Operating humidity | 20% to 90% RH non-condensing |
| Storage temperature | -20°C to +80°C |
| Connection | Input and output 2P screw terminal blocks |
| Input wire range | 0.75-1.5mm² |
| Output wire range | 0.5-1.5mm² |
| Dimensions | 86 x 45 x 26mm |
| Weight | 74g |
| Safety standards | EN61347-1, EN61347-2-13 |
| EMC standards | EN55015, EN61000-4-2/3/4/5/6/11, EN61547 |
Manufacturer datasheet. Figures as published by the manufacturer.
