All LED Strip Drivers 12V & 24V

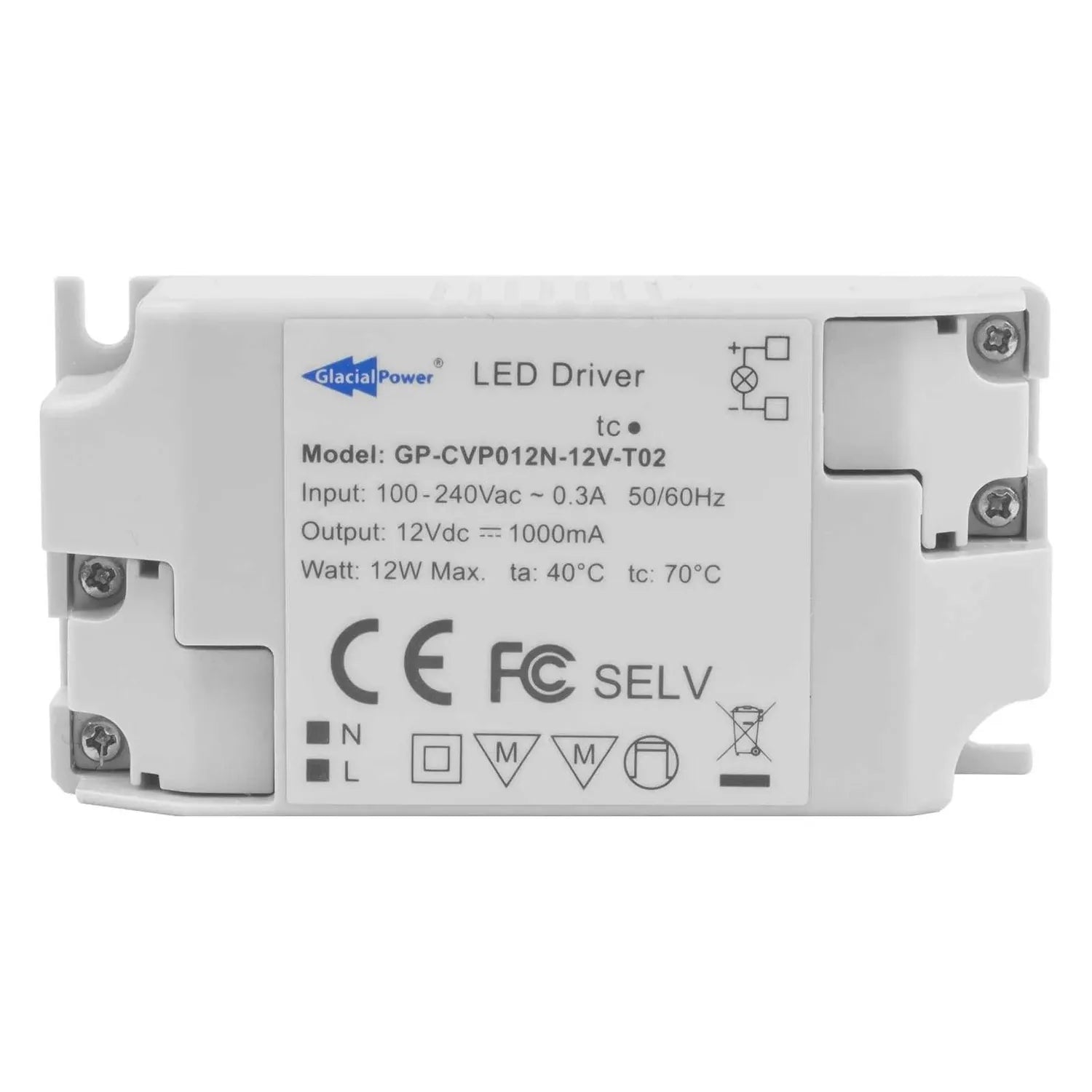

Glacial Power LED Driver Model GP-CVP012N-12V-T02 showing specifications label with screw terminals and safety certifications

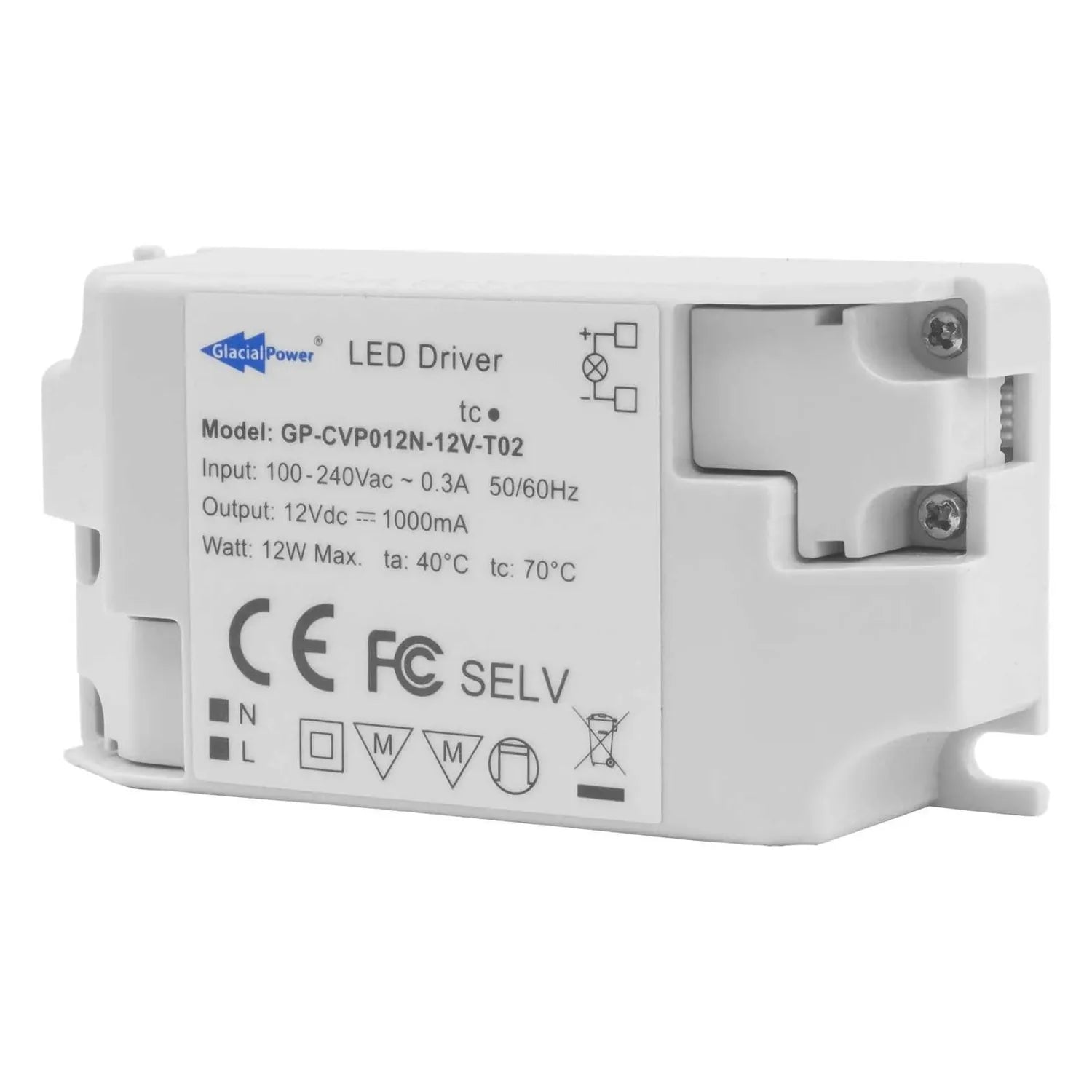

12V LED Driver 12W Constant Voltage Screw Terminal | Glacial GP-CVP012N-12V-T02

£12.86
Skip to product information
Glacial Power LED Driver Model GP-CVP012N-12V-T02 showing specifications label with screw terminals and safety certifications

12V LED Driver 12W Constant Voltage Screw Terminal | Glacial GP-CVP012N-12V-T02

Vendor
Glacial
SKU
999021
Availability
Sold out
Weight
0.15 kg

£12.86inc VAT £10.72exc VAT

Sorry, this one is sold out

Tell us you want it and we will find out when it is back, or point you at the closest thing we have in stock.

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

The Glacial GP-CVP012N-12V-T02 is a compact 12V LED driver for short lengths of LED strip and low voltage LED bulbs. It is a constant voltage power supply delivering 12V DC at up to 12W, with an output current of 0-1000mA.

Why choose this 12V LED driver

Wiring is done on screw terminals at both input and output, so there are no special connectors to source or crimp. The fully isolated plastic case is a Class II design without an earth pin. No earth connection is needed.

  • Output: 12V DC, 0-1000mA, 12W maximum
  • Mains input: universal 90-264VAC
  • Safety class: Class II, fully isolated plastic case
  • Protection: over current and short circuit, with auto-recovery
  • Standby draw: 0.5W no-load consumption at 230VAC
  • Size: 86 x 45 x 26mm, 67g

Applications

This driver suits small 12V lighting jobs: a short strip under a kitchen cabinet, a shelf light, or a run of low voltage LED bulbs. Because the output is constant voltage (CV mode), it is intended for 12V strip and lamps rather than constant current LED modules.

Sizing the load

Keep the connected load within the 12W rating. If your LED strip draws between 6W and 7.2W, this 12W unit gives useful headroom.

Standards and build

The driver is listed to EN61347-1 and EN61347-2-13, with a minimum efficiency of 81% at 230 VAC full load. Its rated MTBF is 200K hours min. Full electrical and physical data is in the specification table.

Technical Specifications 21 rows Show
BrandGlacial
ModelGP-CVP012N-12V-T02
Output voltage12V
Rated current0-1000mA
Rated max. power12W
Ripple and noise (max.)180 mVp-p
Efficiency (min.)81% at 230 VAC full load
Rated input voltage100 - 240VAC
Input voltage range90-264 VAC
Frequency range47 Hz ~ 63 Hz
No load consumption0.5W at 230VAC
ProtectionProtections : OCP/ SCP
Operating temperature‐10°C ~ 40°C full load
Connection2P screw terminal block
Output typeConstant Voltage Design (CV mode)
ClassClass II Power Design without Earth Pin
CaseFully isolated plastic case
Safety standardsEN61347-1,EN61347-2-13
MTBF200K hours min.
Dimensions86 * 45 * 26 mm (L*W*H)
Weight67g/pcs

Manufacturer datasheet. Figures as published by the manufacturer.
