12V LED Driver 200W Constant Voltage IP67 | Glacial GP-CVM200P-12V
- Vendor
- Glacial
- SKU
- 999004
- Availability
- In stock
- Weight
- 1.024 kg
£57.74inc VAT £48.12exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description
The Glacial GP-CVM200P-12V is a constant voltage power supply built to run 12V LED strip lighting and moving signs. It delivers 12V DC at up to 16.7A, giving 200W of output. The aluminium case is potted with heat-conducting silicone and sealed to IP67, so dust, oil, humidity and vibration are not a problem.
12V LED driver features
- Output: 12V DC, 0~16.7A, 200W constant voltage
- Input: universal AC, 90 ~ 264VAC, with active PFC
- Efficiency: 92.5%, with 0.5W no-load consumption at 230VAC
- Protection: over voltage, over current, short circuit and over temperature
- Housing: IP67 fully insulated metal case, cooled by free air convection with no fan
- Size and weight: 230 x 80.3 x 33.5 mm, 840g
Where it fits
Use it to power 12V LED strip runs and moving sign installations. Because the electronics are potted and sealed, the unit suits dusty, damp or high-vibration locations where an open-frame supply would struggle. There is no fan to clog or wear out. It operates from -30°C to +50°C.
Before you install
This is a constant voltage driver. Pair it with 12V strip lighting and keep the total connected load within the 200W rating. Check the full specification table for input current, inrush and the relevant safety and EMC standards before wiring it into a circuit.
Technical Specifications 34 rows Show
| Brand | Glacial |
| Model | GP-CVM200P-12V |
| Output voltage | 12V |
| Rated current | 0~16.7A |
| Rated power | 200W |
| Mode | Constant Voltage Operation |
| Efficiency | 92.5% |
| Setup time (max) | 0.5s / 230VAC, 1s / 115VAC, at full load. |
| Rated input voltage | 100 ~ 240VAC |
| Input voltage range | 90 ~ 264VAC |
| Frequency | 47 Hz ~ 63 Hz |
| AC current (max) | 6A at 115VAC / 3A at 230VAC |
| Power factor | >0.98 at 115VAC / >0.94 at 230VAC at full load. PF0.9 at 70% load |
| Total harmonic distortion | THD < 20% at 230VAC, full load. |
| Inrush current (max) | Cold Start 120A at 230VAC |
| Leakage current | <1mA / 240VAC |
| Protections | OVP / OCP / SCP / OTP |
| No-load consumption | 0.5W at 230VAC |
| IP rating | IP67 |
| Cooling | Free Air Convection (Metal Housing) |
| Operating temperature | -30C ~50C (Refer to output load derating curve) |
| Operating humidity | 20% ~ 90% RH non-condensing. |
| Storage temperature | -40 ~ +80C |
| Storage humidity | 10% ~ 90% RH |
| Vibration | 10~500 Hz, 2G 10 min./1 cycle, period for 60 min. each along X, Y, Z axes. |
| Safety standards | EN61347-1,EN61347-2-13 ,independent,IP67 Approved. |
| Withstand voltage | I/P-O/P: 3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
| Isolation resistance | I/P-O/P,I/P-FG,O/P-FG:100M ohms / 500VDC at 25C |
| EMI conduction and radiation | Compliance to EN55015,FCC part 15 |
| Harmonic current | Compliance to EN61000-3-2 Class C(75% load),EN61000-3-3 |
| EMS immunity | Compliance to EN61000-4-2,3,4,5,6,8,11;EN61547,criteria B |
| MTBF | 120K hours min. MIL-HDBK-217F(25C) |
| Dimensions (L x W x H) | 230 x 80.3 x 33.5 mm |
| Weight | 840g/pcs |
Manufacturer datasheet. Figures as published by the manufacturer.
Datasheets & documents
More in LED Strip Drivers 12V & 24V

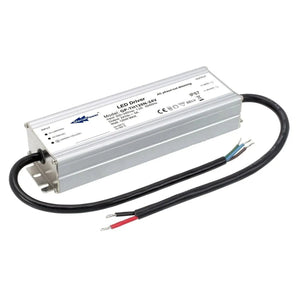

24V Dimmable LED Driver 120W Triac IP67£55.60inc VAT
£46.33exc VAT
24V Dimmable LED Power Supply 600W IP67£175.34inc VAT
£146.12exc VAT

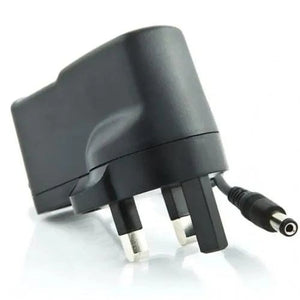

12V 2A Power Supply for LED Strip Plug-In UK Plug Non-Dimmable£10.49inc VAT
£8.74exc VAT
24V LED Driver 36W 1.5A Constant Voltage Class II£22.04inc VAT
£18.37exc VAT
24V Power Supply 48W LED Strip Constant Voltage£29.39inc VAT
£24.49exc VAT

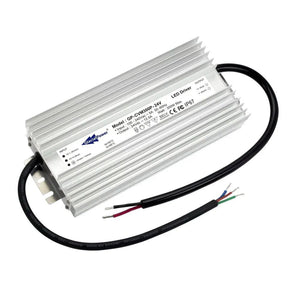

24V LED Driver 300W Constant Voltage IP67£69.29inc VAT
