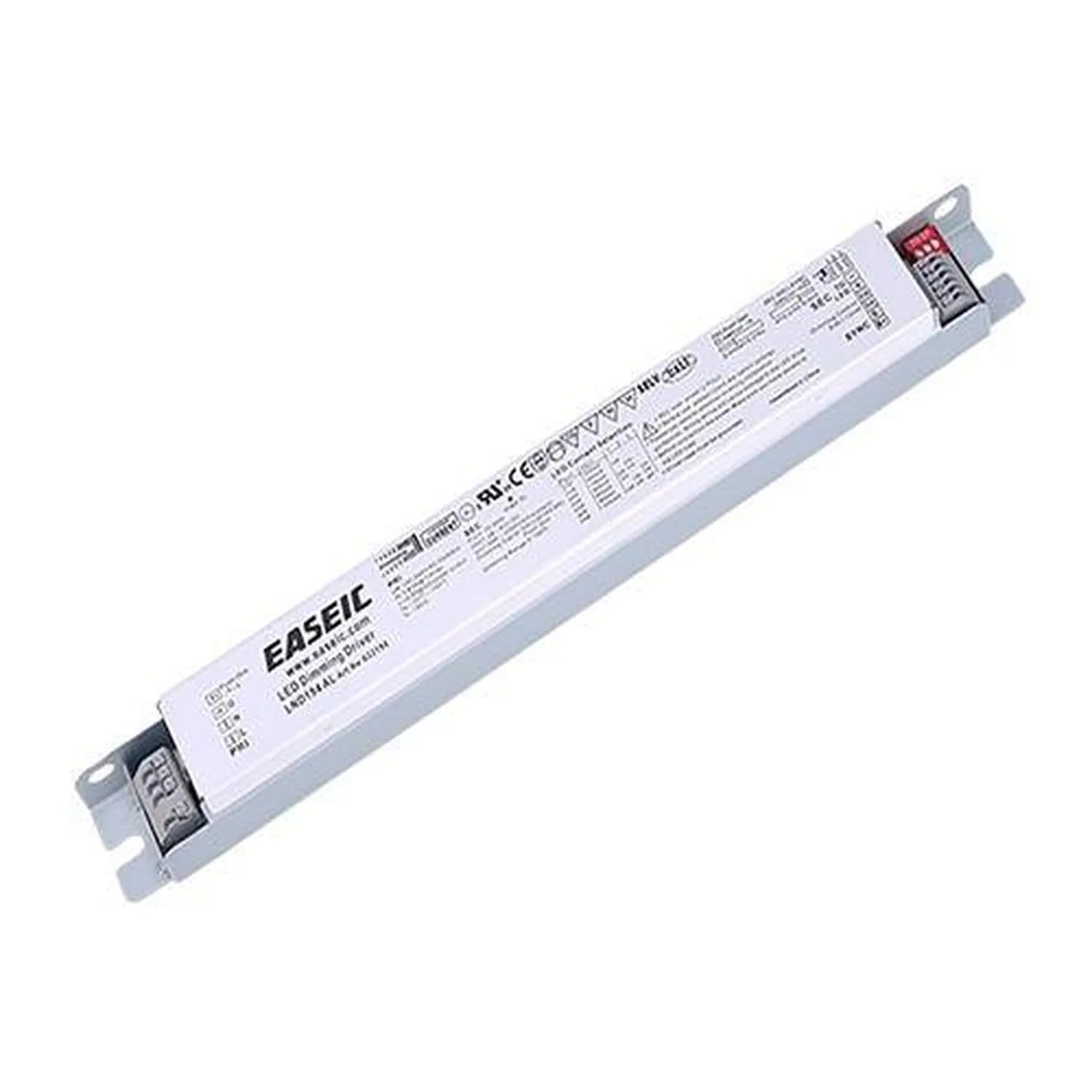

Easeic LED driver unit with white casing, terminal connectors at each end, and specifications label visible on top surface.

18W Dimmable LED Driver 1-10V Constant Current 200-1050mA | Easeic LNA118AL

£24.10
Skip to product information
Easeic LED driver unit with white casing, terminal connectors at each end, and specifications label visible on top surface.

18W Dimmable LED Driver 1-10V Constant Current 200-1050mA | Easeic LNA118AL

Vendor
Easeic
SKU
632118
Availability
In stock
Weight
0.15 kg

£24.10inc VAT £20.08exc VAT

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

The Easeic LNA118AL is an 18W dimmable LED driver with a constant current output you set yourself. A bank of DIP switches selects anywhere from 200mA to 1050mA, so a single driver can be matched to the LED array in a panel, downlight, batten, linear fitting or architectural luminaire. Output voltage runs from 3V to 66V DC.

Dimmable LED driver with four control options

Dimming works from a 0/1-10V signal, PWM or resistance. There is also PUSH-Dim, which lets a standard push-button switch control the light level. The range is 0-100%, and the analogue dimming is flicker-free.

  • Output power: up to 18W
  • Output current: 200-1050mA, selected by DIP switch
  • Input: 100-277V AC, 50/60Hz
  • Efficiency: up to 88%, with a power factor above 0.90 and THD below 10%
  • Open circuit voltage: maximum below 77V
  • Protection: short circuit, over voltage, over current and open circuit

Fitting and installation

At 280 x 30 x 26mm the housing is slim enough to sit inside compact fittings. Wiring goes into push terminals. The driver carries a UL Damp and Dry environmental rating, has an operating temperature of -20°C to +50°C, and comes with a 5 year warranty.

Where it is used

Typical jobs include LED panels and recessed luminaires, linear fittings and battens, and lighting for commercial offices, retail units and hospitality venues. It also suits OEM luminaire manufacturing. Because the current is adjustable on site, one stocked part can cover several different fittings.

Technical Specifications 20 rows Show
BrandEaseic
ModelLNA118AL
TypeLED 1-10 Dimmable Driver
Output powerUp to 18W
Output current200mA - 1050mA Adjustable
Output voltage3V - 66V DC
Maximum open circuit voltage<77V
Input voltage100 - 277V AC
Frequency50 / 60Hz
Dimming type0/1-10V / PWM / Resistance / PUSH-Dim
Dimming range0 - 100%
EfficiencyUp to 88%
Power factor>0.90
THD<10%
Protection featuresShort Circuit, Over Voltage, Over Current, Open Circuit
Operating temperature-20°C to +50°C
Dimensions280 x 30 x 26 mm
TerminalsPush terminals
Environmental ratingUL Damp and Dry
Warranty5 Years

Manufacturer datasheet. Figures as published by the manufacturer.
