Osram Dimmer Switch DIM MCU 1-10V Rotary Push On/Off | Up to 50 Drivers
- Vendor
- Osram
- SKU
- 201023
- Availability
- In stock
- Weight
- 0.15 kg
£50.35inc VAT £41.96exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

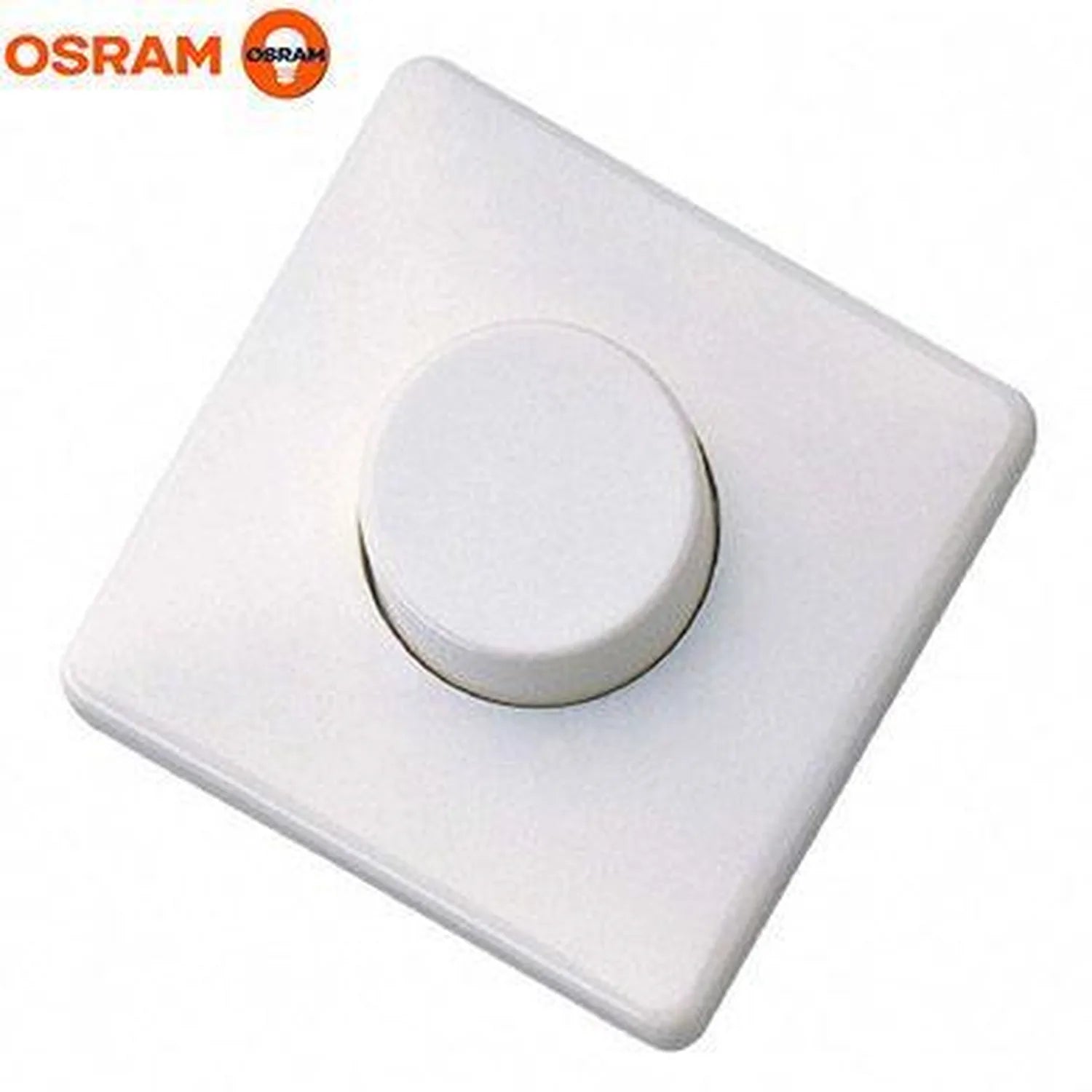

The Osram DIM MCU is a manual control unit for LED lighting that runs on 1-10V dimmable drivers. You turn the knob to set the light level. Pushing it switches the mains power on and off, so one white plate on the wall covers both jobs. A single control output sends the 1-10V signal to as many as 50 dimmable drivers.
Osram dimmer switch features
- Control output: 1-10V, max. 40 mA
- Driver capacity: dims up to 50 dimmable ECGs. Do not go over the maximum number of ECGs.
- Switching contact: max. 6 A resistive load capacity (10 single-lamp ECGs or 5 two-lamp ECGs)
- Supply: 230 V, 50-60 Hz
- Protection: protection class II, IP20
- Ambient temperature: 0 to 50 C
Where it fits
Use it with dimmable LED panels, LED tubes, downlights and high bays, provided their drivers accept a 1-10V control signal. The IP20 rating and the 0 to 50 C ambient range in the datasheet are the limits to work within.
Installation notes
The unit sits in a flush device box. Its flush-mounted part measures 54 x 33 mm and the mounting plate is 71 x 71 mm.
- Wire with a 4-core cable: live, neutral, control signal + and control signal -
- Run the 1-10V signal to the LED drivers on the red and black cables
- Maximum cable cross-section is 1.5 sqmm
- Never connect an external voltage to the control line, and especially not 230 V mains
Fitting must be carried out by a qualified electrician.
Technical Specifications 22 rows Show
| Brand | Osram |
| Model | DIM MCU |
| Product type | Electronic potentiometer (manual control unit) |
| Dim interface | 1-10 V |
| Control output load capacity | max. 40 mA |
| Number of control outputs | 1 |
| Load contact | max. 6 A resistive load capacity (10 single-lamp ECGs or 5 two-lamp ECGs) |
| Nominal voltage | 230 V |
| Operating frequency | 50-60 Hz |
| Permissible line cross-section | max. 1.5 sqmm |
| Protection class | II |
| Type of protection | IP20 |
| Ambient temperature range | 0 +50 C |
| Type of installation | Integrated in flush device box |
| Flush-mounted part | 54 x 33 mm |
| Mounting plate | 71 x 71 mm |
| Product colour | White |
| EAN | 4050300347424 |
| Controls | Up to 50 dimmable electronic control gears |
| Switch | Push on/off, turns off the mains voltage |
| Wiring | 4-core cable: live, neutral, control +, control - |
| Overall size | Length: 80 mm, Height: 40 mm, Width: 80 mm |
Manufacturer datasheet. Figures as published by the manufacturer.
