Liteplan 3W LED Emergency Spot Light
Ref: S-ALP/1/LED/43FL/W£45.90
Price inc VAT
| Bulk Savings £££ | ||
|---|---|---|
| # Items | Our Price | Savings |
| 6 Items | £44.52 | Save 3% |
| 12 Items | £43.15 | Save 6% |
| 24 Items | £42.23 | Save 8% |
LED Emergency Spot Light 3Watt
A non maintained emergency light.

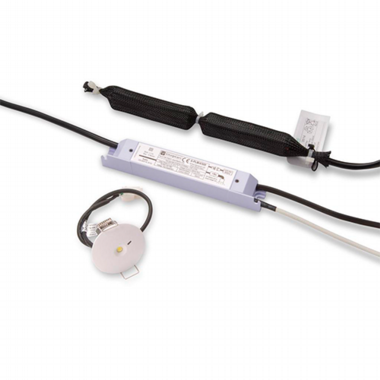

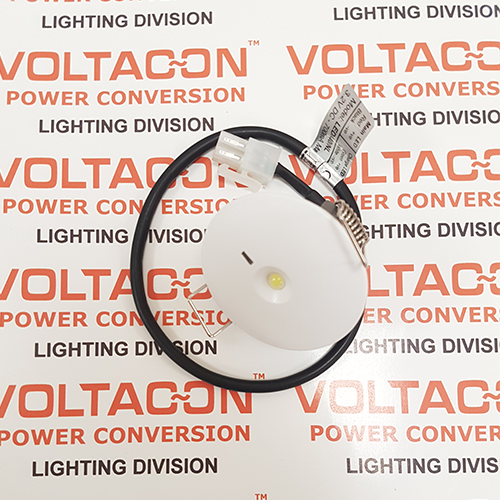

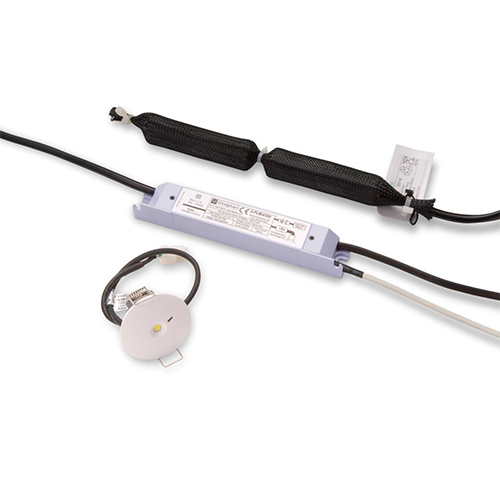

The Liteplan S-PLM/4/500 spot light operates in non-maintained mode. The dimensions are only 165mmx26.5mmx21.5mm. This small and compact ememrgency light can be used as standard alone unit in any type of ceiling. The cut out (installation hole) should be only 40mm.
The key electrical features of the pack are a 500mA constant current led driver with 4V dc output that powers up a single LED Spot light. There is also a 4.8V Ni-Cd (Nickel Cadmium) battery with 2Ah capacity.
The emergency module is safely connected to the LED and batery with irreversible socket, the connection is made only in one way, that elliminates any risk of wrong wiring
The Output power is 3W in emergency mode (700mA) at 110 deg beam angle. The integrated LED indicator is bi-colour, green for healthy charging status and read when it is in self test mode.
How to install guide is available on our website, please click on the link below
|
Supply Voltage: |
230-240 Volts AC 50/60Hz |
Lumen Ouput |
161 |
|
Power Rating |
1.8W - 11 mA |
Output Voltage |
5 Volts |
|
Insulation between supply & battery |
Double Reinforced |
Tc Max |
70°C Module / 55°C Battery |
|
Emergency Duration |
3 Hours |
Output Amps |
500 mA |
|
Battery Type |
4.8V 2Ah Nickel Cadmium |
Ceiling Cut Out |
43mm |
|
Charge Current |
100mA +/- 25mA |
Minimum Void |
110mm |
| Recharge time | 24 hours |
Dimensions |
165mm x 26.5mm x 21.5mm (FC = 157mm) |
|
Ballast Lumen Output |
100% |
Battery |
252mm x ⌀ 23mm |
|
Output Voltage in Emergency |
4 Volts MAX |
Weight |
Module 90g/Battery 205g |
|
Battery Discharge current |
550mA |
Warranty |
5 Years |
