All LED Emergency Lighting

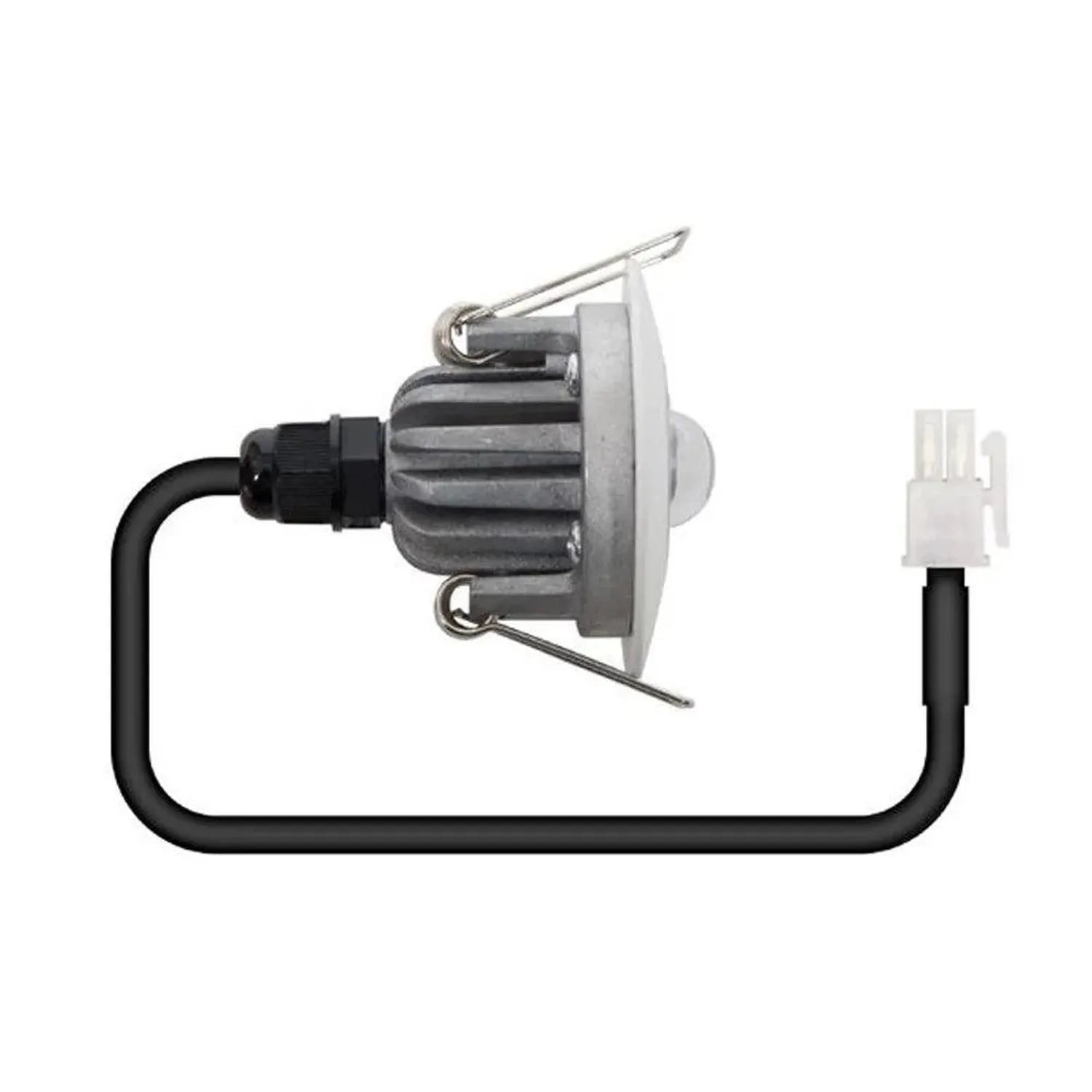

Emergency recessed spotlight with black power cord and white connector, shown disconnected from fixture with mounting hardwar

Emergency Recessed Spot Light 186lm 6500K | Liteplan S-HLP/1/43/FL

Non Maintained 186 Lumen
£43.00
Skip to product information
Emergency recessed spotlight with black power cord and white connector, shown disconnected from fixture with mounting hardwar
Emergency Recessed Spot Light 186lm 6500K | Liteplan S-HLP/1/43/FL

Emergency Recessed Spot Light 186lm 6500K | Liteplan S-HLP/1/43/FL

Vendor
Liteplan
SKU
S-HLP/1/LED/43/FL/W
Availability
In stock
Weight
0.15 kg

£43.00inc VAT £35.83exc VAT

Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

The S-HLP/1/43/FL is a non-maintained emergency recessed spot light with an illuminated dual-colour halo effect, built for ceiling recess installations through a 43mm aperture. It delivers 186 lumens at its 550mA output and runs for 3 hours on emergency power once mains supply fails.

Key features of this emergency spot light

  • Rated power, 3 Watt

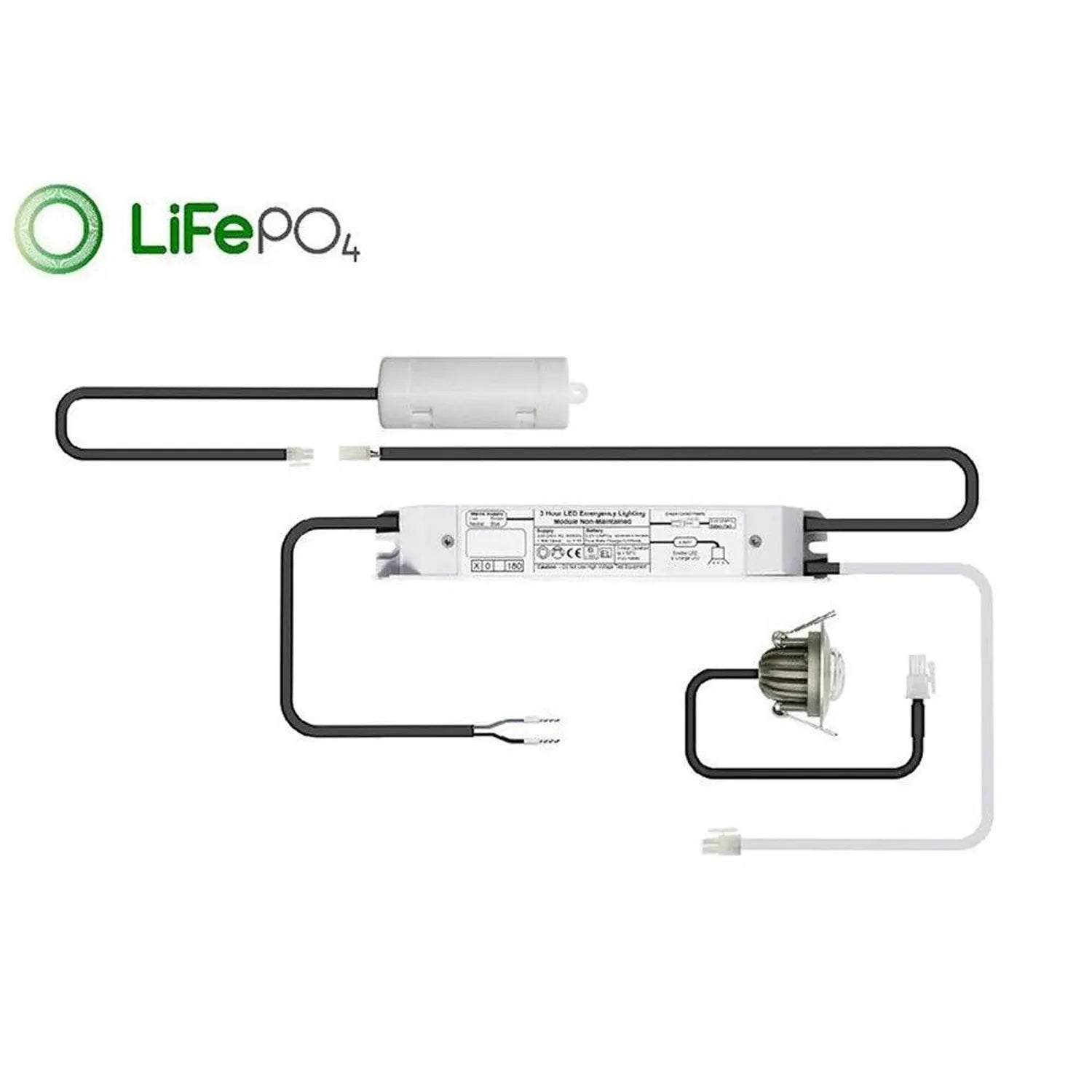

  • Battery, 3.2V 3.6Ah LiFePO4 pack in a moulded housing
  • LED emitter, Samsung LH315B with flood lens to illuminate points of emphasis
  • Colour temperature, 6500K
  • Beam angle, 110°
  • Bezel finish, white to RAL9016

Applications

Designed for ceiling recess applications where a discreet emergency fitting is needed alongside a visible point-of-emphasis indicator. The circular halo signals fitting status, useful in corridors, stairwells and escape routes where staff or occupants need a quick visual check.

Wiring and connection

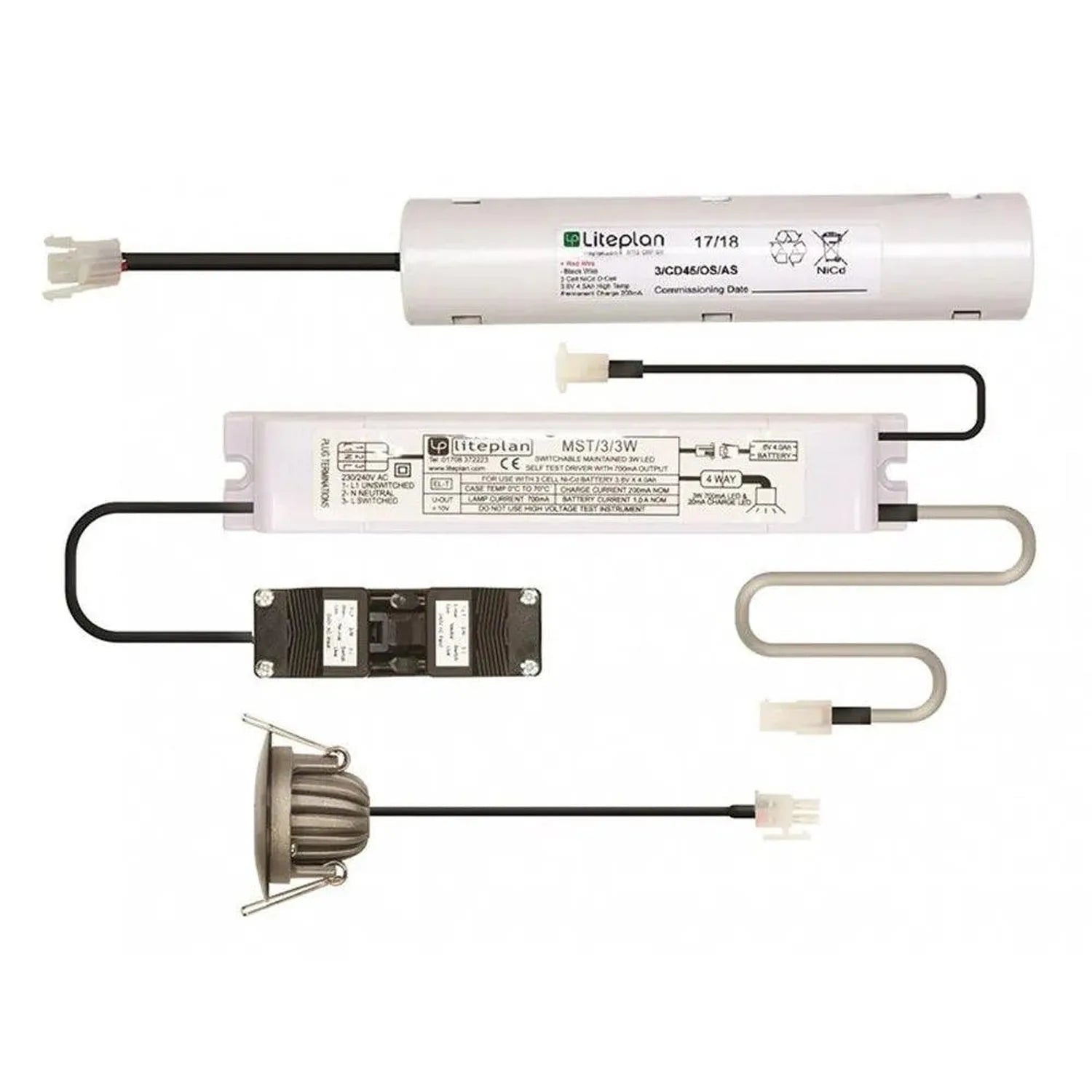

The non-maintained emergency driver is supplied with strain relief cables and interconnecting leads, wired in series connection via the C4201 plug, simplifying installation across multiple fittings on the same circuit.

Output at different currents

Lumen output scales with drive current: 118 delivered lumens at 350mA, 186 delivered lumens at 550mA, and 237 delivered lumens at 700mA, giving installers flexibility depending on driver configuration.

Technical Specifications 14 rows Show
ParameterValue
Fitting typeEmergency Spot
Rated power3 Watt
Input voltage4V DC Max
Max forward current700mA
IP ratingIP20
LED chipSamsung LH315B
DimensionsØ 50mm x 45mm (min void 50mm from bezel)
Beam angle110°
Weight57gr
Lumen output at 350mA118 Delivered Lumen
Wiring methodSeries Connection via C4201 Plug
Lumen output at 550mA186 Delivered Lumen
Lumen output at 700mA237 Delivered Lumen
Colour temperature6500K

Manufacturer datasheet. Figures as published by the manufacturer.

Datasheets & documents
