LED Emergency Spotlight Corridor Optic 3W IP54 | Liteplan S-HLP/1/LED/43/CO/W
- Vendor
- Liteplan
- SKU
- LED/43/CO
- Availability
- In stock
- Weight
- 0.15 kg
£43.00inc VAT £35.83exc VAT
Delivery from £3.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Secure checkout
Talk to our sales team
Product Description

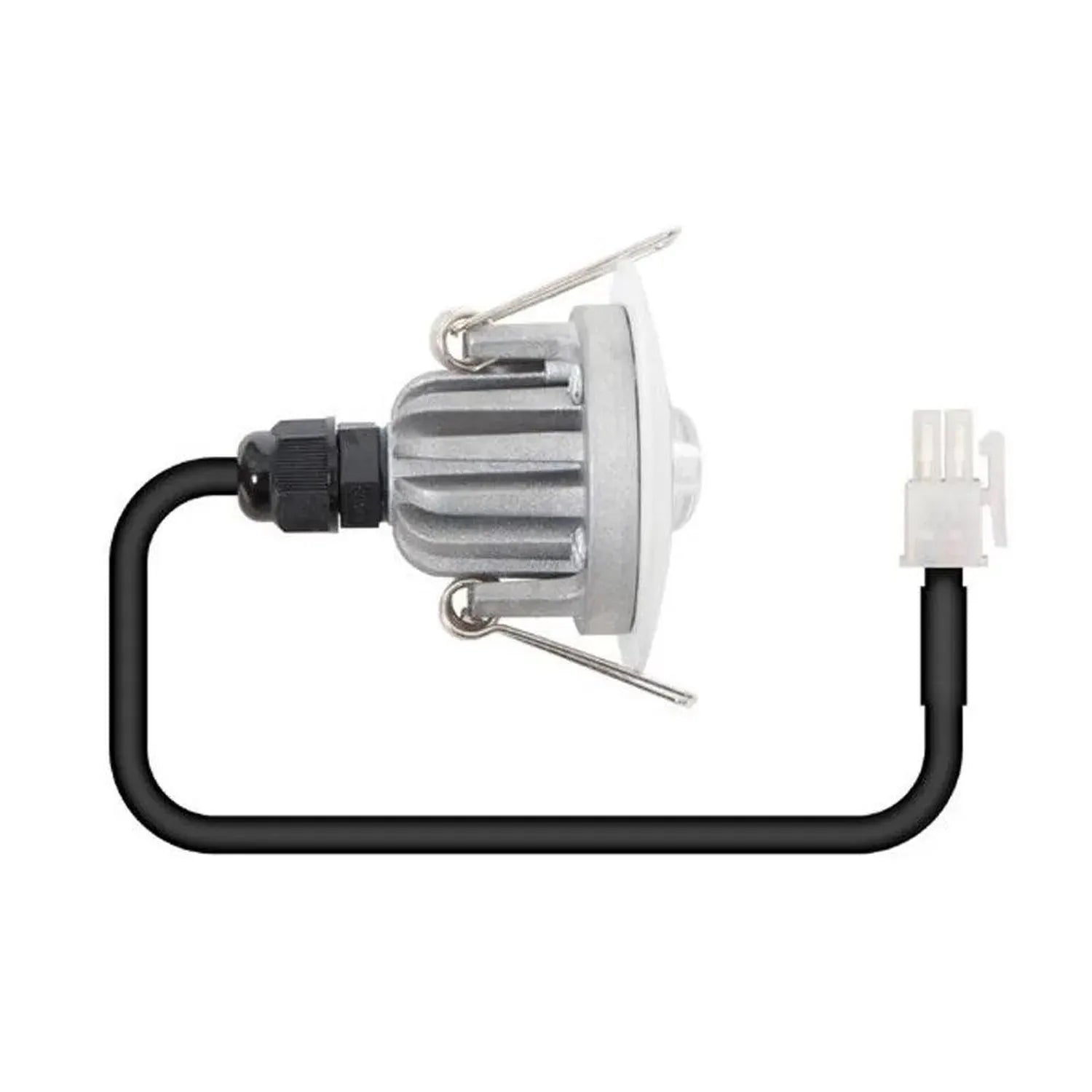

The Liteplan S-HLP/1/LED/43/CO/W is a non-maintained emergency spotlight fitted with an elliptical corridor lens, built for spacing along corridors where a wide, even throw of light is needed. It delivers 232 delivered lumens from a 550mA output, backed by a 3.2V 3.6Ah LiFePO4 battery pack housed in a moulded casing for 3 hours of emergency operation.
Emergency lighting led with corridor optics

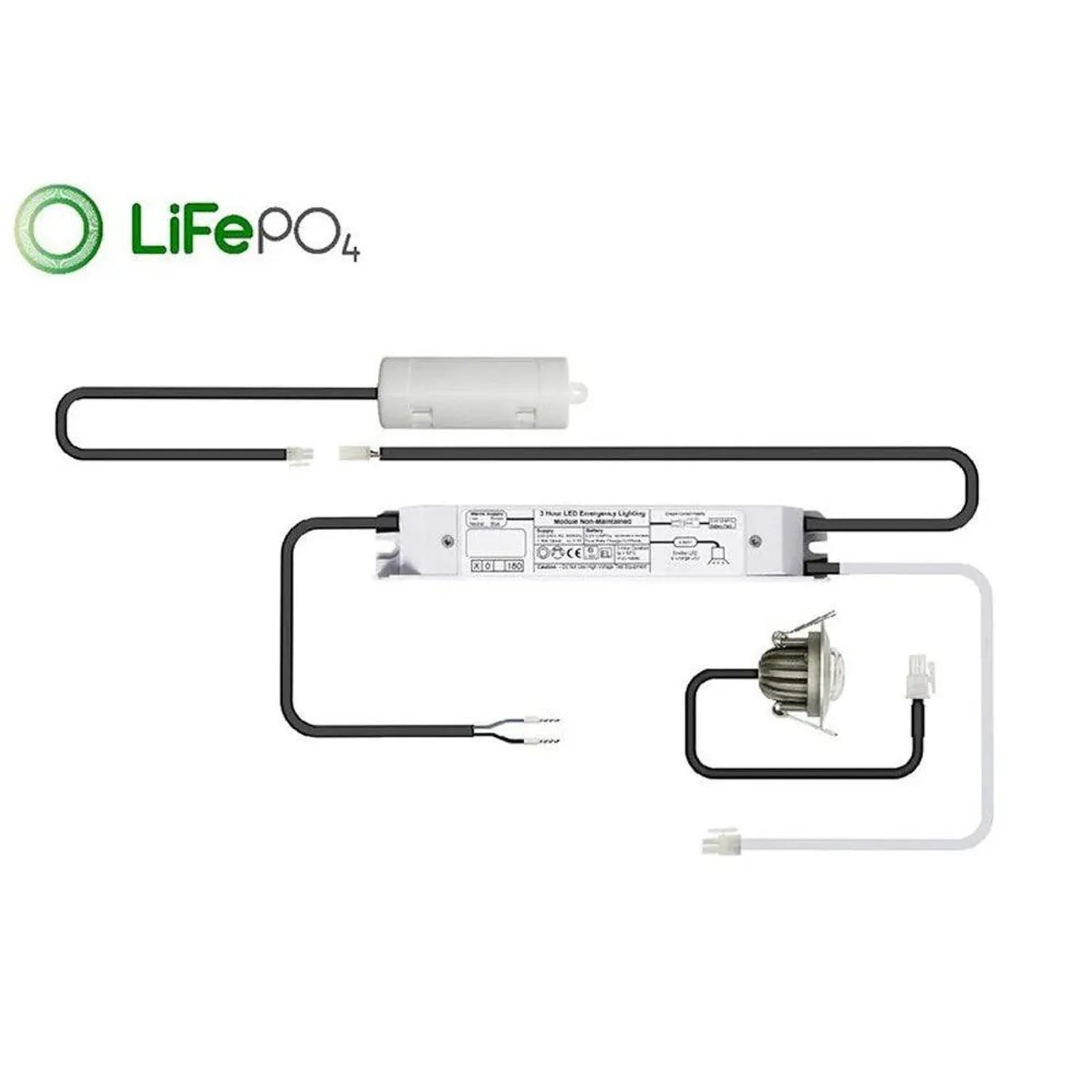

- Battery, 3.2V 3.6Ah LiFePO4 pack in a moulded housing
- Emergency duration, 3 hour non-maintained operation
- Output, 550mA drive current, 232 delivered lumens
- Optic, LED/43 emitter with elliptical corridor lens
- Indicator, circular halo indicator
- Bezel, white, finished to RAL9016
Installation
Interconnecting cables and strain relief are supplied, so the module wires directly into a corridor circuit without extra terminal work. The elliptical corridor lens spreads light along the run of a corridor rather than in a tight circle, which helps with fitting spacing along the ceiling line.
Product code
Ordered as S-HLP/1/LED/43/CO/W, SKU LED/43/CO.
Technical Specifications 9 rows Show
| Fitting: | ||
| Wattage (rated): | 3 Watt | |
| Input Voltage: | 4V DC Max | |
| Maximum Forward Current | 700mA | |
| Ingress Protection | IP54 (not including control gear) | |
| Light source: | Samsung LH315B | |
| Dimensions | Ø 50mm x 45mm (min void 40mm from bezel) | |
| Beam Angle | 125 ° X 50 ° | |
| Weight | 0.057Kg | |
| Output at 350mA | 152 Delivered Lumen |
Manufacturer datasheet. Figures as published by the manufacturer. More in LED Emergency Lighting LED Emergency Bulkhead Light 3W IP42 100lm£24.81inc VAT
