LED Emergency Spot Light 3 Hour Lithium Battery Self-Test | Ledison Halo
- Vendor
- Ledison
- SKU
- 001725
- Availability
- In stock
- Weight
- 0.15 kg
£55.64inc VAT £46.37exc VAT
Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

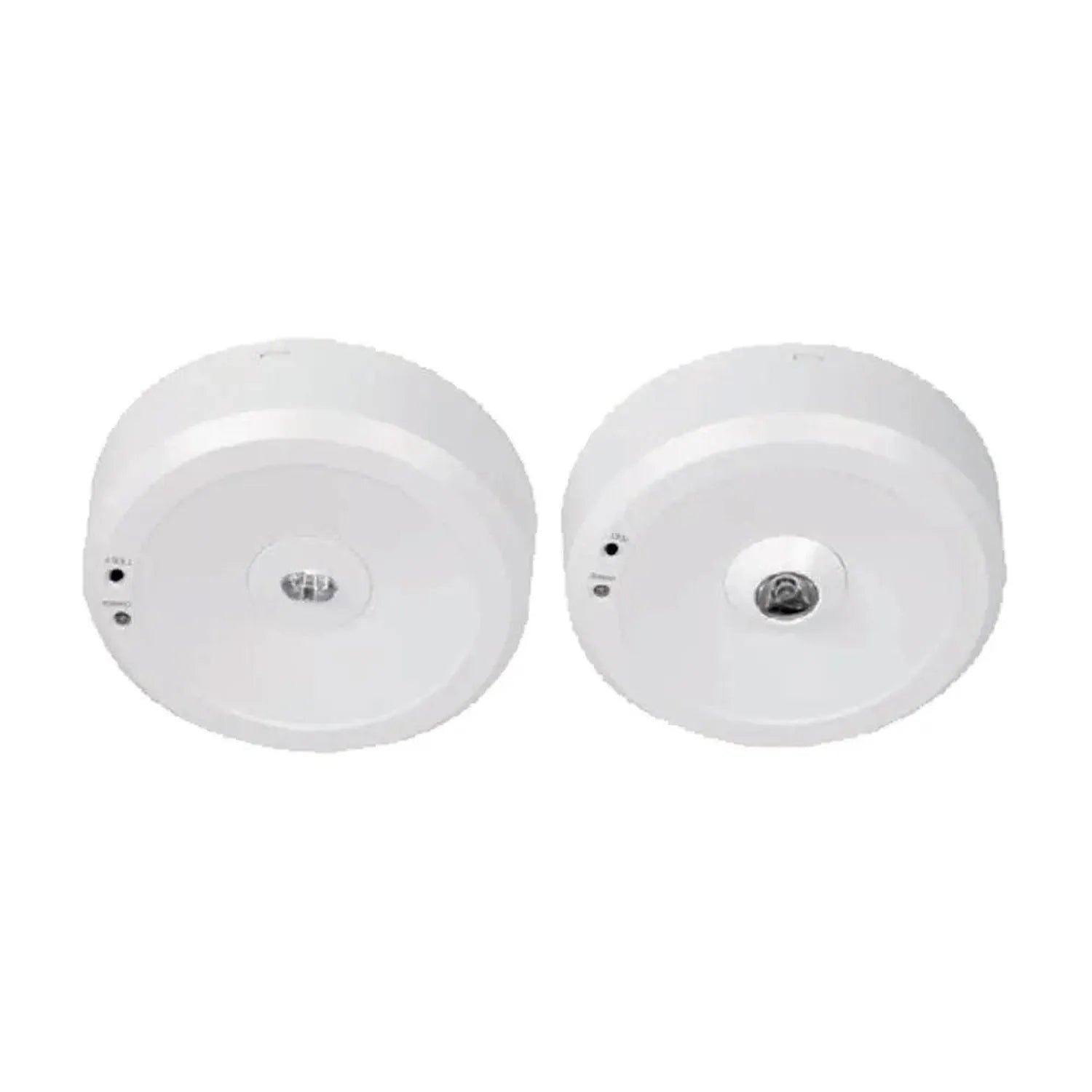

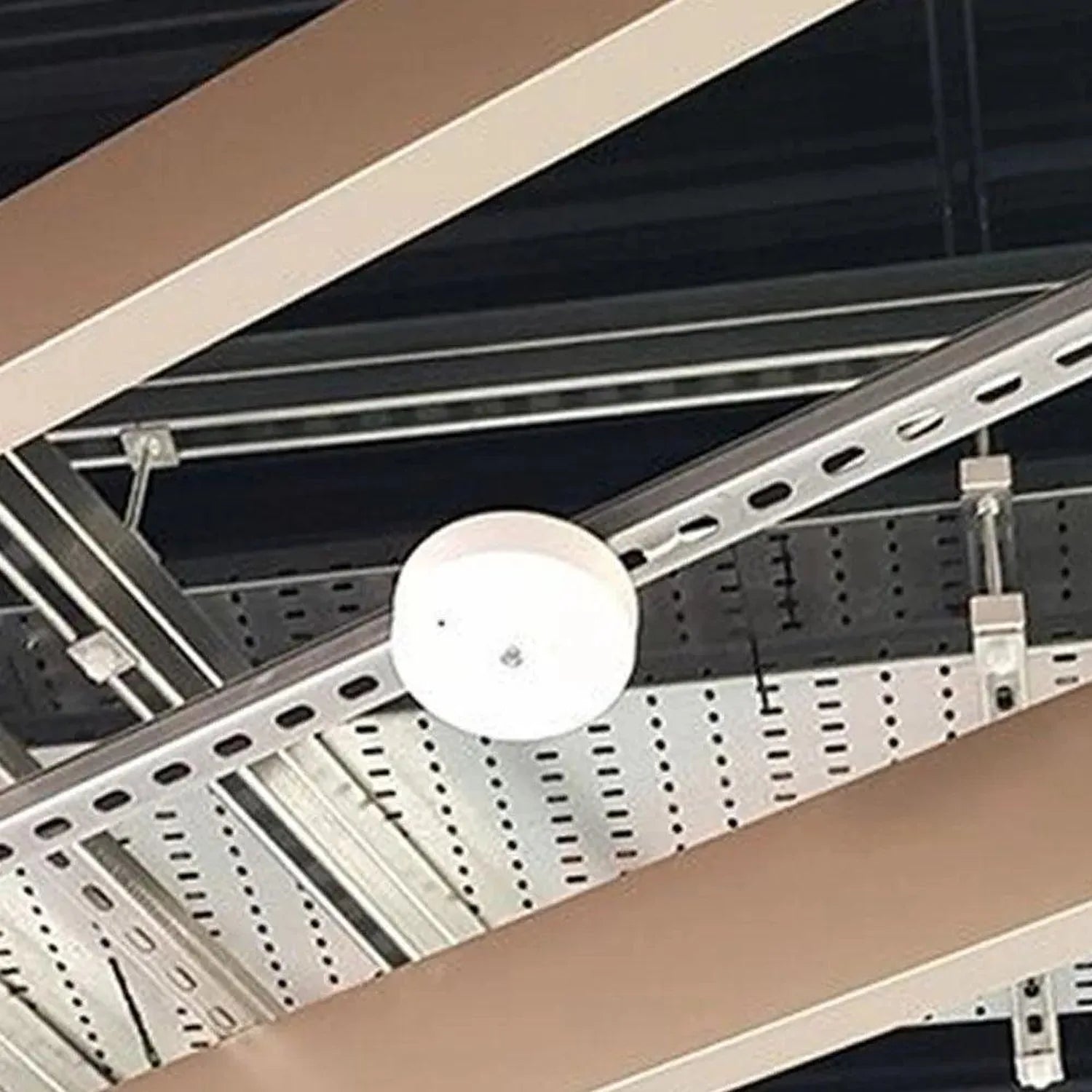

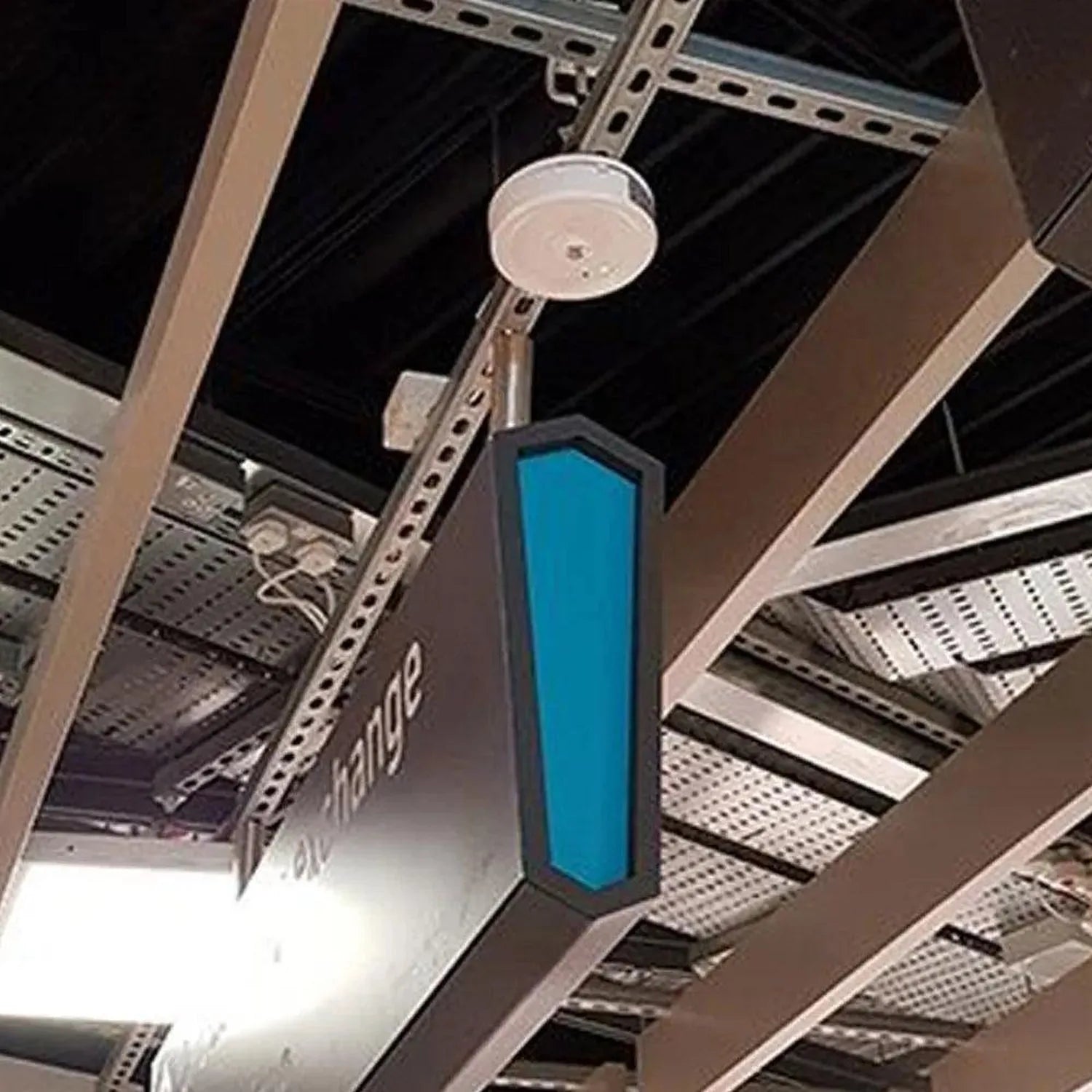

The Halo is a slim, round emergency spot light with one built-in LED and an integral lithium battery. If the mains supply drops out, it keeps running for 3 hours. It can be fixed to any flat surface, including a plasterboard ceiling, a wall, a cable tray or a wire basket, or recessed into the ceiling for a flush finish.
Emergency spot light features
- Backup duration: 3 hours of emergency lighting when the mains fails.
- Battery: lithium, 3.7V 2200mAh, with a 24 hour charge time.
- Light colour: 5700K cool white.
- Testing: automatic self-test plus a momentary manual test button.
- Protection: overcurrent and voltage protection, with a battery failure warning.
- Rating and approval: IP20 for indoor use only, TUV/CE certified.
Where it fits
This fitting is intended for corridors and escape routes inside buildings. Because it is rated IP20, it should not be installed outdoors or anywhere exposed to moisture. The self-test function checks the unit on its own, so routine inspection is less of a chore for the site manager. A failing battery triggers a warning.
Mounting options

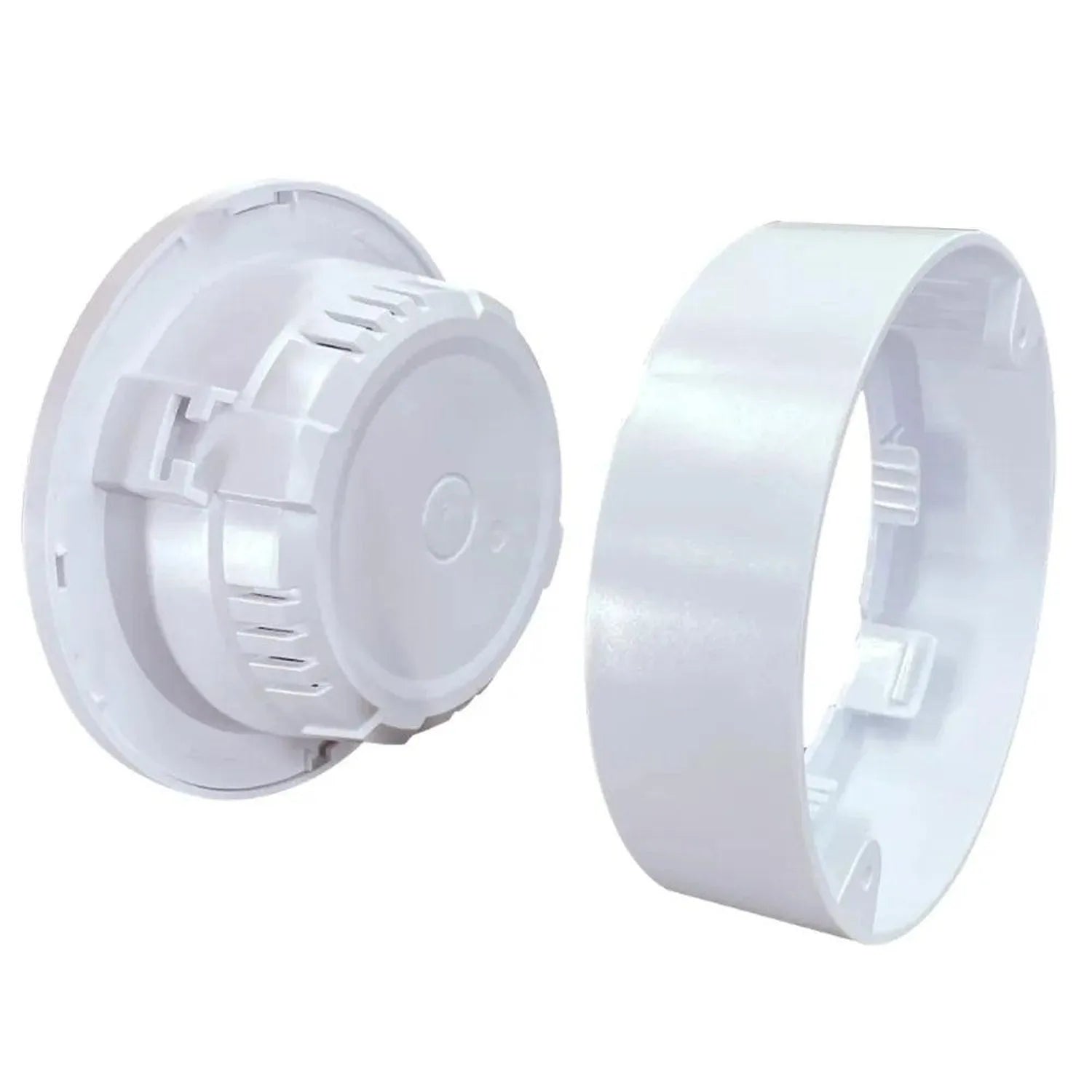

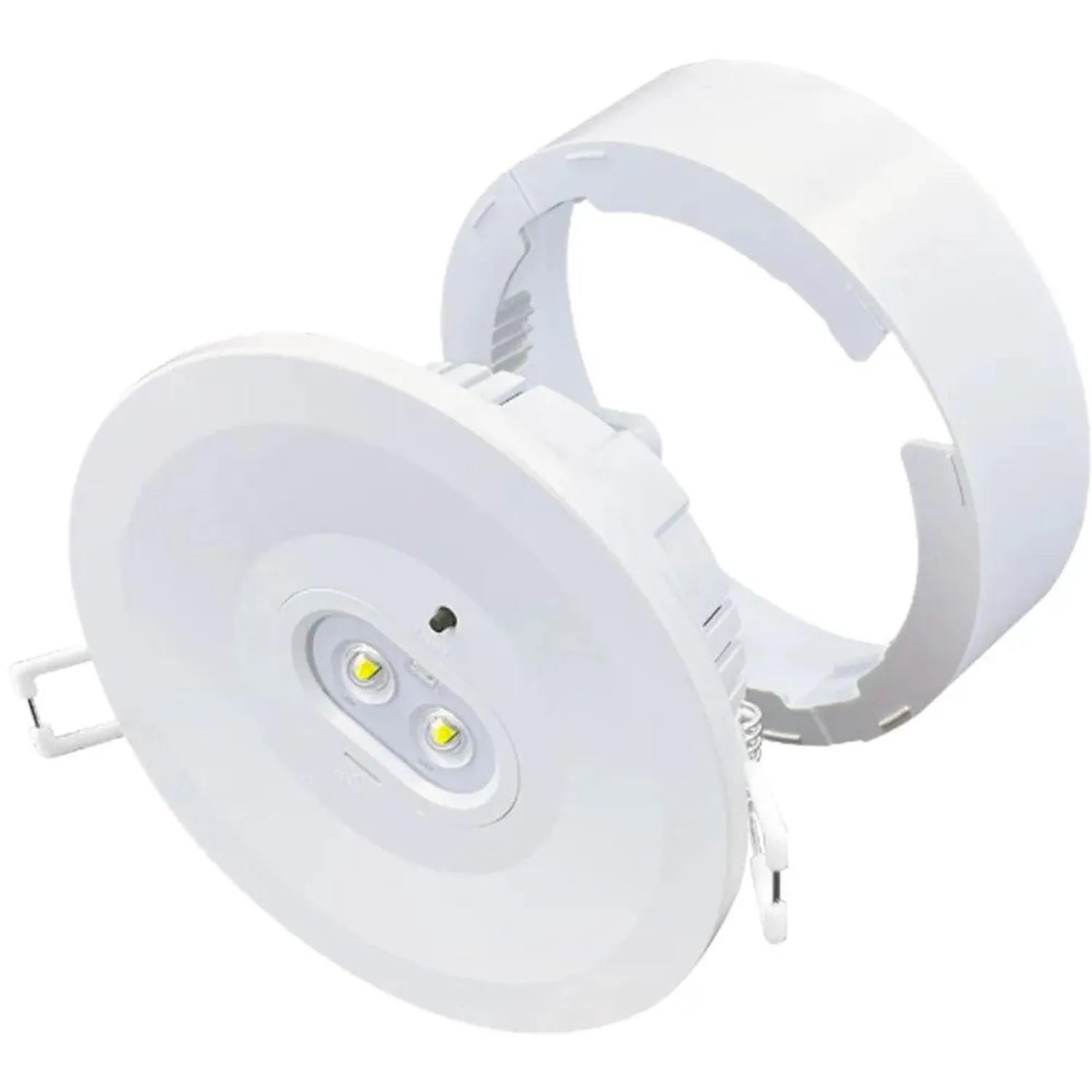

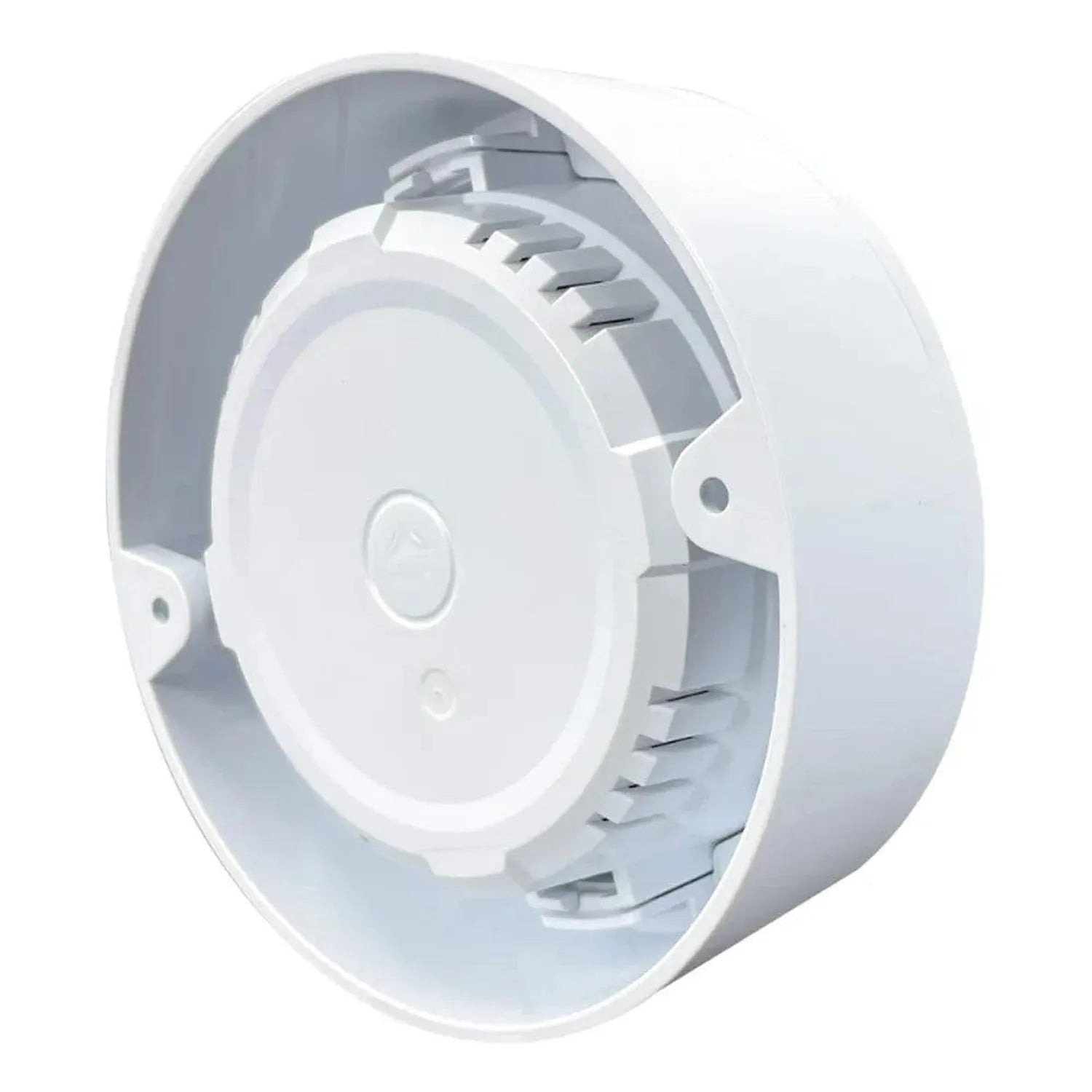

Two installation methods are supported. Surface mounting suits ceilings, walls and cable containment such as trays and baskets. For a cleaner look, the recessed version is supplied with a 140mm mounting disc that sits into the ceiling.
Construction
The body is moulded polycarbonate. Light passes through an acrylic lens. It runs from a 220-240VAC supply and draws 35mA, using a single SMD3535 LED as its light source.

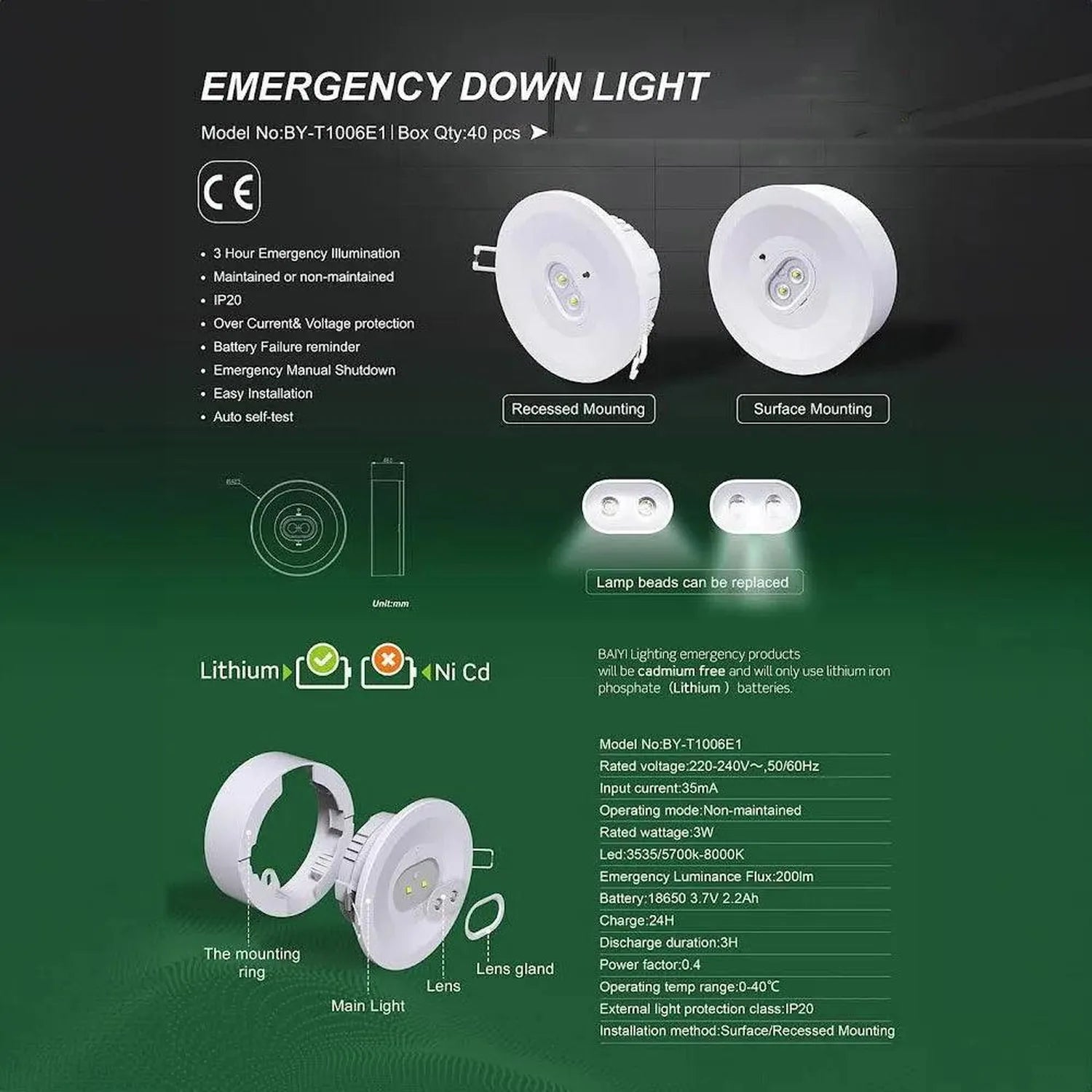

Technical Specifications 19 rows Show
| Rated input voltage | 220-240VAC |
| Input current | 35mA |
| Colour temperature | 5700K Cool White |
| LED type | SMD3535 |
| Battery type | 18650 3.7V, 2.2Ah |
| Charge time | 24H |
| Discharge duration | 3 hours |
| Power factor | 0.4 |
| Operating temperature | 0-40oC |
| IP rating | IP20 |
| Body | Moulded polycarbonate |
| Lens | Acrylic |
| Installation | Recessed or on any flat surface. |
| Test | Momentary manual test button, auto self-test |
| Protection | Overcurrent and voltage protection, battery failure warning |
| Recessed mounting disc | 140mm |
| Certification | TUV/CE |
| Power consumption | 1.7W charging, 0.26W charged |
| Emergency output | 224 lm |
Manufacturer datasheet. Figures as published by the manufacturer.
