Ledison Round Down Lighter Panel 12WattLedison Round Down Lighter Panel 12Watt

LED ROUND PANEL LIGHT 12W RECESSED DOWNLIGHT

Ref: GL-DL06

£28.90

Price inc VAT

Omikron Recessed LED Panel 4 inches, with Dimmable Options and Three Colour Temperatures.

Amount
Bulk Savings £££
# Items Our Price Savings
6 Items £28.03 Save 3%
12 Items £27.17 Save 6%
24 Items £26.59 Save 8%
Description
Specification
Downloads
Description

LED ROUND RECESSED LIGHT 12W. ULTRA SLIM ALUMINIUM HOUSING.

DESIGN YOUR BRIGHT ENVIRONMENT THE WAY YOU WANT TO

The 12Watt Round Panel is a compact yet powerful lighting choice. Meticulously manufactured to ensure your comfort, highly customizable to suit your needs. High quality doesn't have to come at the cost of your preferences. Choose from the 3 colour options (Cool White, Natural White, Warm White) and pair it with dimming functionality if you would like to. We offer you a personalized product for a unique experience.

Cut Out Hole: 160mm. Outer Diameter: 170mm

CUT COSTS WITHOUT MAKING COMPROMISES

We know you only want what's best for you and your business, that's why we only offer high standards products. Cost is also an important factor, so we make sure to maintain affordable prices with fast return on investment. Let us help you build a pleasant work or home environment, while also maintaining the costs to a minimum.

A LARGE SPECTRE OF APPLICATIONS

You can find our Round Panels in offices, residential areas, or even airports. Your creativity it's what will define your environment, we only provide you the tools to make sure your vision becomes reality.

FEATURES

  • Elegant structure, designed to dissipate heat
  • Slim and low profile design
  • LED Power Consumption: 12W
  • Low heat output
  • Passed IEC 60598-1(2008 )、IEC 60695-2-11 850°C glow wire test (optional )
  • Dimmable version also available

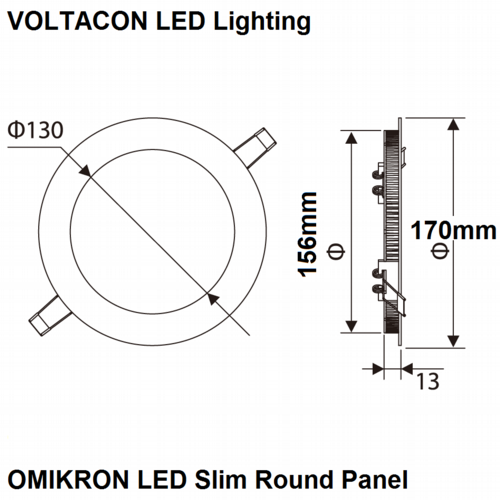

DIMENSIONS

We have an illustratation with detailed dimesions in mm, it is critical to know the cut-hole size before you start the installation.



Specification

Technical Specifications 12W LED Panel (rOUND)

Type GL-DL06-WW  GL-DL06-NW  GL-DL06-CW
Energy Used                                              12W
Rated Life                                        50,000 Hours
Input Voltage                                       100-240V AC
Power Factor (PF)                          0.95 @120V AC, 0.94@240V AC
CCT(color)           3000K         4000K         5700K
Luminous Flux          1020lm        1080lm         1200lm
Luminous Efficacy           85lm/W         90lm/W        100lm/W
CRI (Typ.)              80             80           80
Beam Angle                                        120°
Dimension                                   170 x 12mm
IP Rating                                       IP20
Operation Temperature                                -20°C ~ +40°C
Net. Weight                               450g (with driver)
Package                                  20 PCS / Carton




Dimensions

Downloads

Technical Manual

Emergency pack in galvanized enclosure

Remote emergency pack VOL-EL125

Remote emergency pack for LED panels, tubes and arrays

Download

OMIKRON Slim Round LED Panel Lights

User's Manual DL04-DL06-DL08-DL10 Dimmable-Non Dimmable

Download

LED Panel Light Omikron

Wiring Instructions & Dimensions Omikron LED Panel Recessed Light

Download

*
