All LED Round Panels

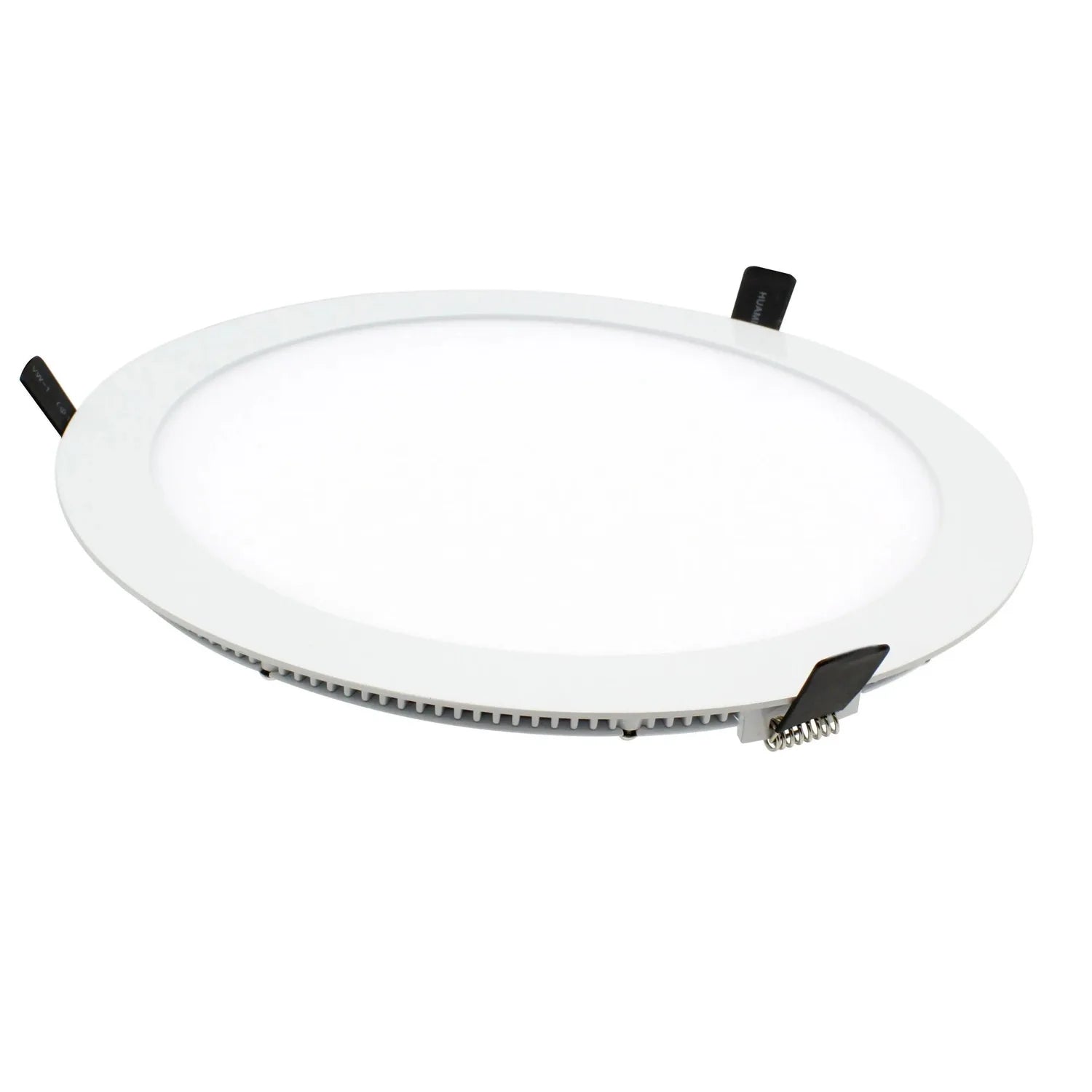

White round recessed LED panel light with black mounting clips and electrical connector visible on the underside.

22W LED Panel Light Round Recessed 285mm Cut-Out 3000K or 4000K | Ledison

Warm White 3000K / Non-Dimmable
£32.54
Skip to product information
White round recessed LED panel light with black mounting clips and electrical connector visible on the underside.

22W LED Panel Light Round Recessed 285mm Cut-Out 3000K or 4000K | Ledison

Vendor
Ledison
SKU
133109
Availability
In stock
Weight
0.235 kg

£32.54inc VAT £27.12exc VAT

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

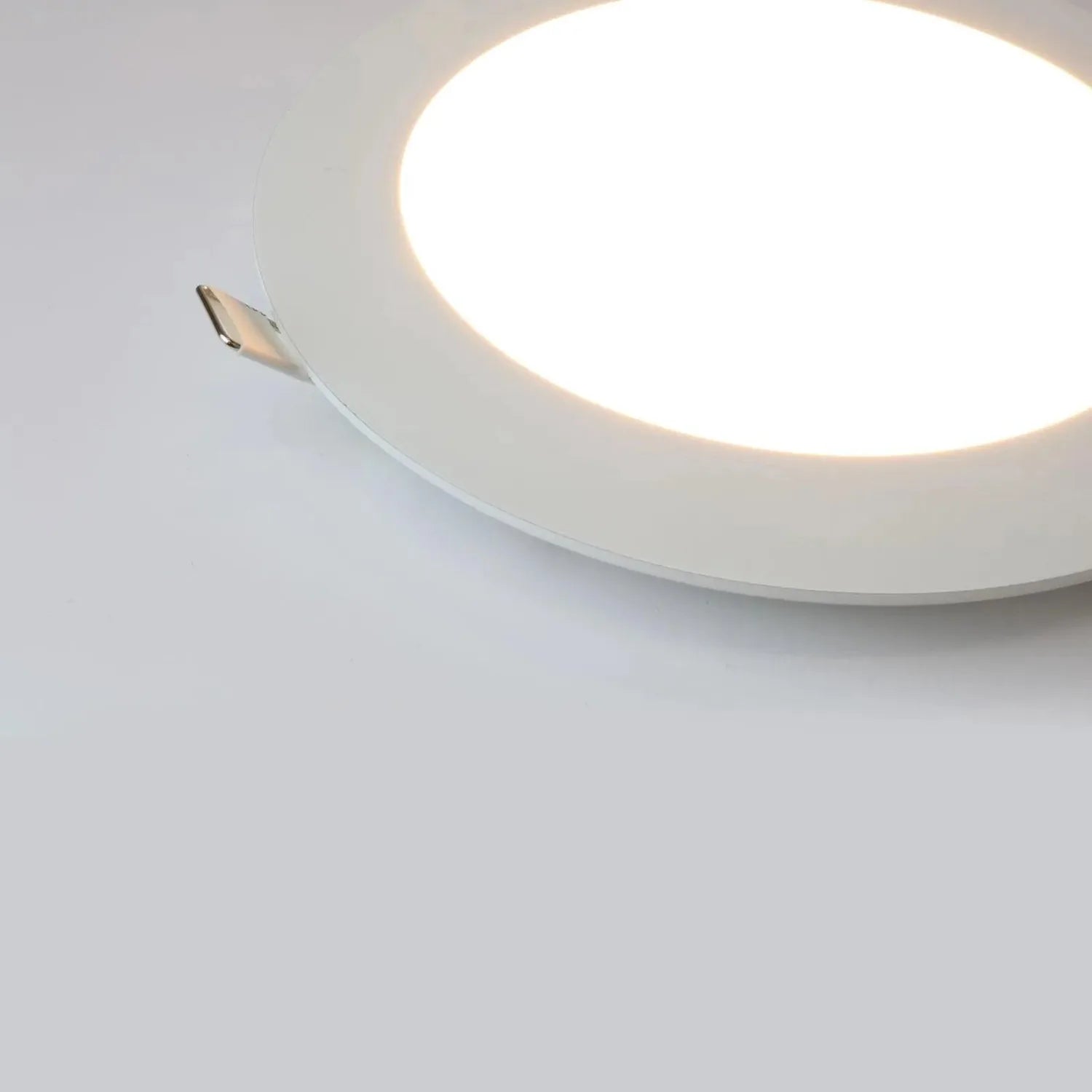

This Ledison round panel is a 22W recessed downlight for ceilings that need more light, in offices, homes, hallways, reception areas and shops. It sits just 12mm deep, with an outer diameter of 300mm. Measure your ceiling hole before ordering. The panel needs a 285mm cut-out.

22W LED panel light features

  • Power: 22W
  • Colour temperature: warm white 3000K or natural white 4000K
  • Dimming options: non-dimmable, AC triac, DALI or 1-10V
  • Size: 285mm cut-out, 300mm outer diameter, 12mm deep
  • Rating: IP20, with a rated life of 50,000 hours
  • Testing: passed IEC 60598-1 and the IEC 60695-2-11 850°C glow wire test

Choosing your version

Two choices decide which panel you need. The first is colour: 3000K gives a warm white, while 4000K gives a natural white. The second is control. Pick the non-dimmable version for a simple switched circuit, or choose AC triac, DALI or 1-10V to match the dimming system already on site.

Where to fit it

The panel is rated IP20, so it belongs in dry indoor ceilings. Offices, shops, reception areas, hallways and rooms at home all suit it. Heat output is low, and the 12mm profile is slim.

It runs on 100-240V AC and spreads light over a 120° beam angle. The 4014SMD LED chips give a typical CRI of 80. With the driver, the fitting weighs 1kg.

Warranty

Ledison covers this panel with a 5-year warranty.

Technical Specifications 15 rows Show
ModelLDN-DL10DA
Power22W
Colour temperature3000K, 4000K
LED chips4014SMD
CRI (typical)80
Voltage100-240V AC
Power factor0.95 @120V AC, 0.94@240V AC
Beam angle120°
Cut-out285mm
DimensionsФ 300 x 12mm
IP ratingIP20
Operation temperature-20°C ~ +40°C

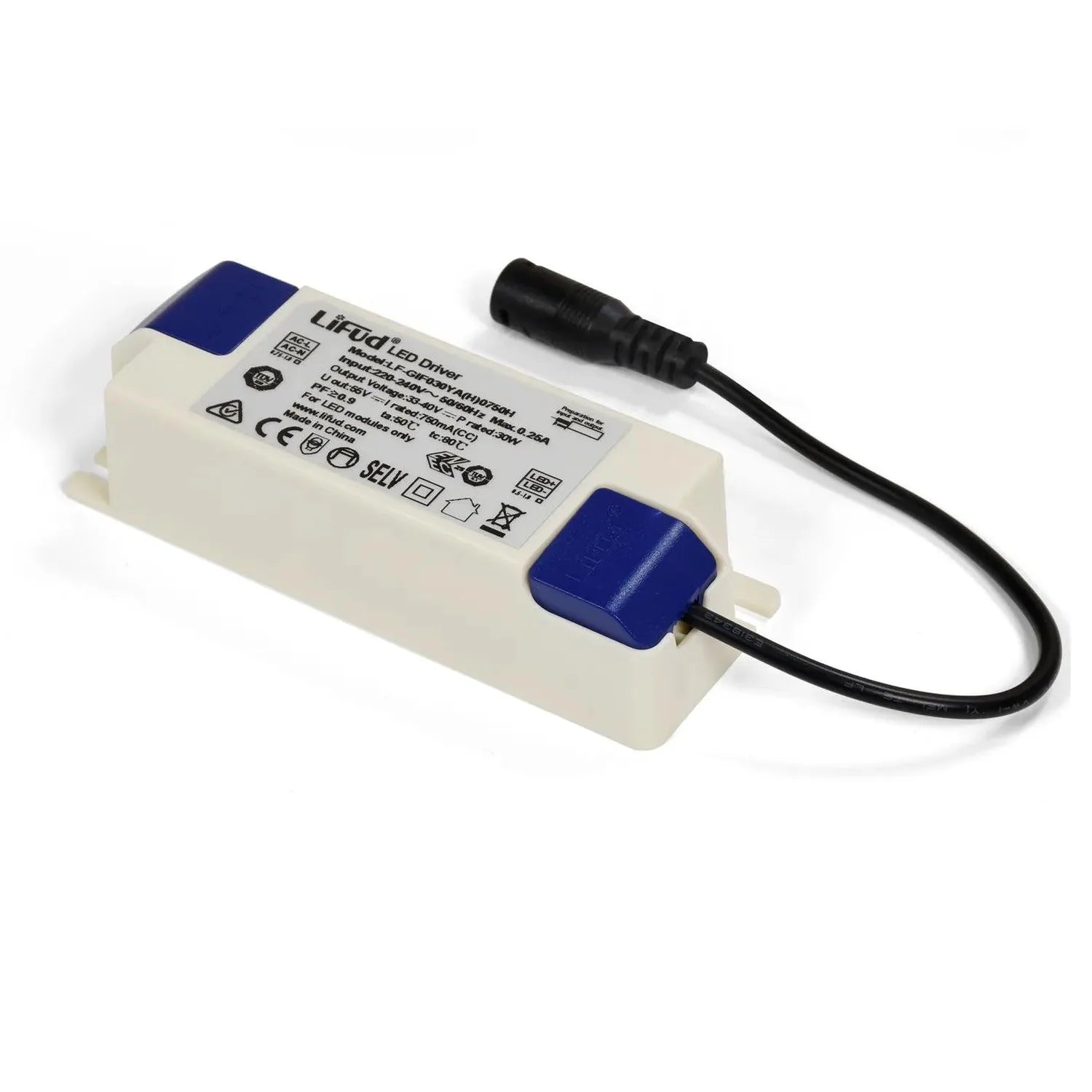

Weight1kg (with driver)
Lifetime50,000 Hours
Warranty5-year warranty

Manufacturer datasheet. Figures as published by the manufacturer.
