All LED Round Panels

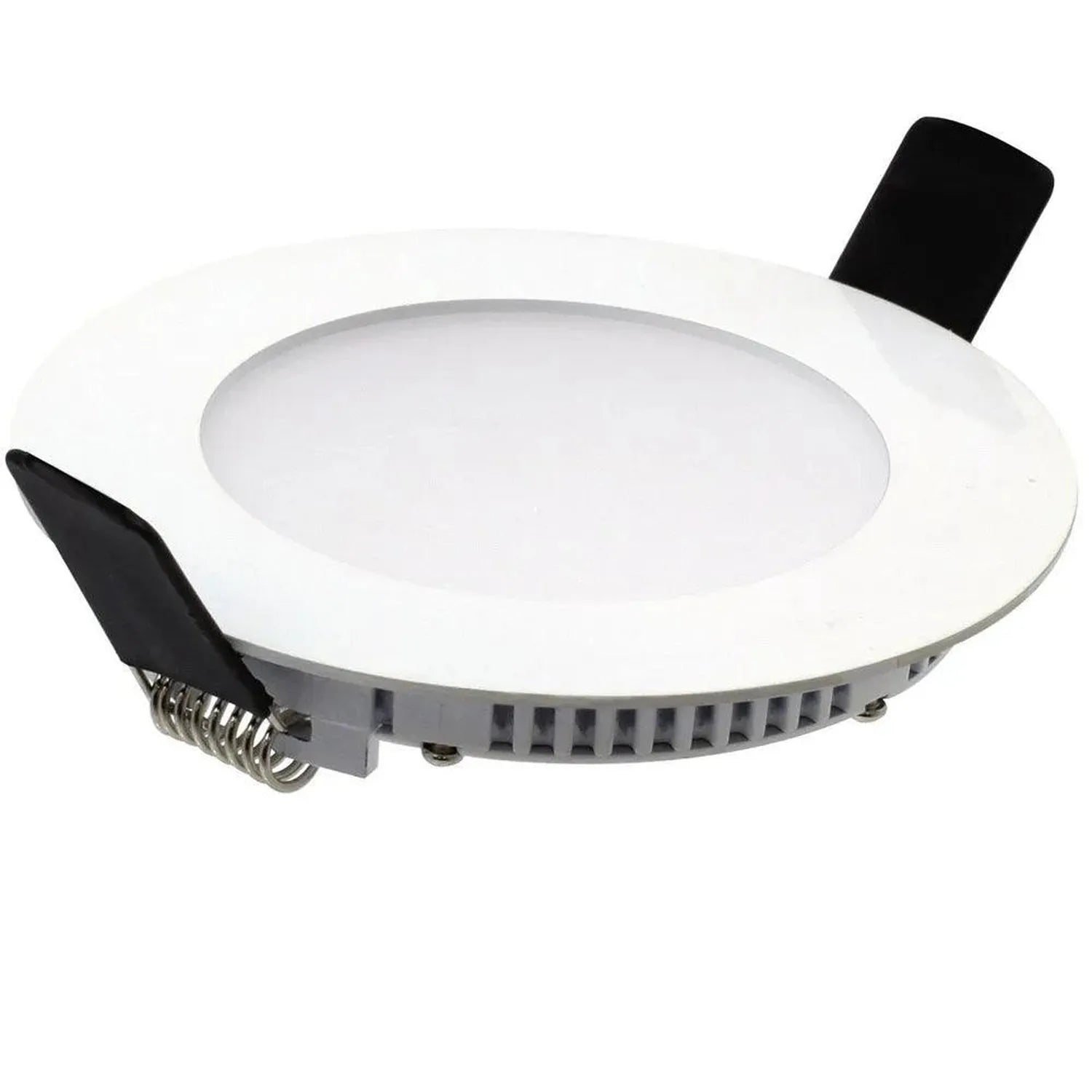

Round white LED recessed downlight with black connector terminal and spring clip visible on underside, isolated product shot.

8W LED Downlight Round Panel 107mm Cut-Out IP40 3000K or 4000K | Ledison

Warm White 3000K / Non-Dimmable
£14.69
Skip to product information
Round white LED recessed downlight with black connector terminal and spring clip visible on underside, isolated product shot.

8W LED Downlight Round Panel 107mm Cut-Out IP40 3000K or 4000K | Ledison

Vendor
Ledison
SKU
133100
Availability
In stock
Weight
0.235 kg

£14.69inc VAT £12.24exc VAT

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

This 8W LED downlight is a slim round panel made for small ceiling openings. It fits a 107mm cut-out, has a 120mm outer diameter and is only 12mm deep. Fit it as a downlight or spotlight in a hallway, kitchen, bedroom, office, reception area or shop.

8W LED downlight options

Two choices need making before you order. Pick the colour temperature: warm white 3000K or natural white 4000K. Then pick the dimming version: non-dimmable, AC triac, DALI or 1-10V.

Key features

  • Power: 8 watts.
  • Light output: 680lm in warm white, 720lm in natural white.

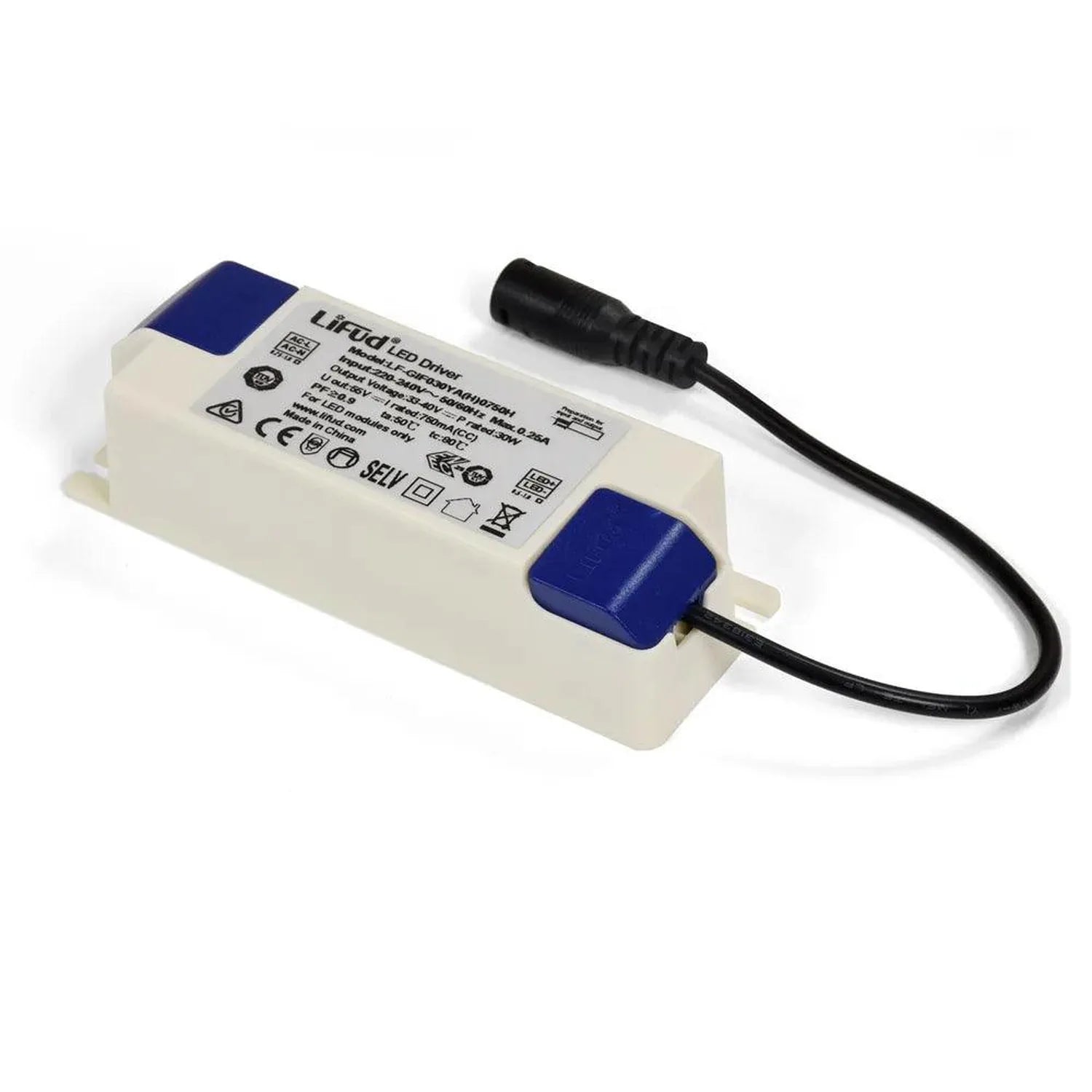

  • Driver: flicker-free, with efficiency up to 91%.

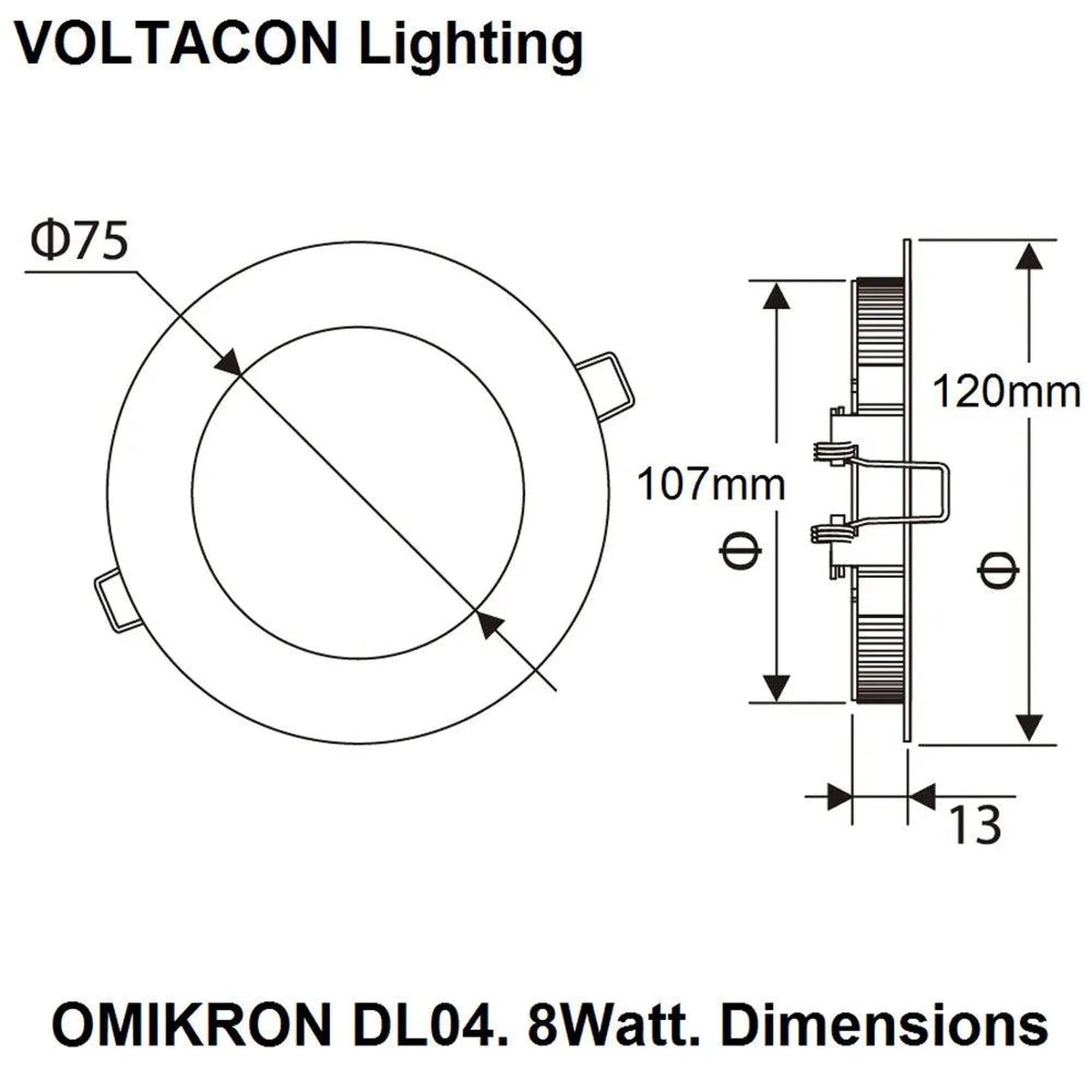

  • Size: 107mm cut-out, 120mm outer diameter, 12mm deep.
  • Rating: IP40, for indoor use.
  • Lifetime: up to 50,000 hours.

Testing and compliance

The panel has passed IEC 60598-1 and the IEC 60695-2-11 850°C glow wire test.

Before you fit it

Measure the hole. This panel is built for a 107mm cut-out, so an opening of a different size will need cutting or making good before installation. The 12mm depth suits ceilings with little void space above, and the 120mm diameter trim covers the edge of the opening.

Where it works

With an IP40 rating, this is an indoor fitting. Hallways, kitchens, bedrooms, offices, reception areas and shops are all listed uses. Warm white 3000K gives a softer tone for living spaces. Natural white 4000K is the cooler option for work areas and retail.

Technical Specifications 17 rows Show
ModelGL-DL04
Power8W
Colour temperature3000K, 4000K
LED chips4014SMD
Luminous flux680lm (3000K), 720lm (4000K)
Luminous efficacy85lm/W (3000K), 90lm/W (4000K)
CRI (typical)80
Voltage100-240V AC
Power factor0.95 @120V AC, 0.94@240V AC
Beam angle120°
Cut-out107mm
Dimensions120 x 12mm
IP ratingIP40
Operation temperature-20°C ~ +40°C
Weight235g (with driver)
Lifetime50,000 Hours
EAN0610877897124 (Warm White), 0610877897131 (Natural White)

Manufacturer datasheet. Figures as published by the manufacturer.
