All LED Round Panels

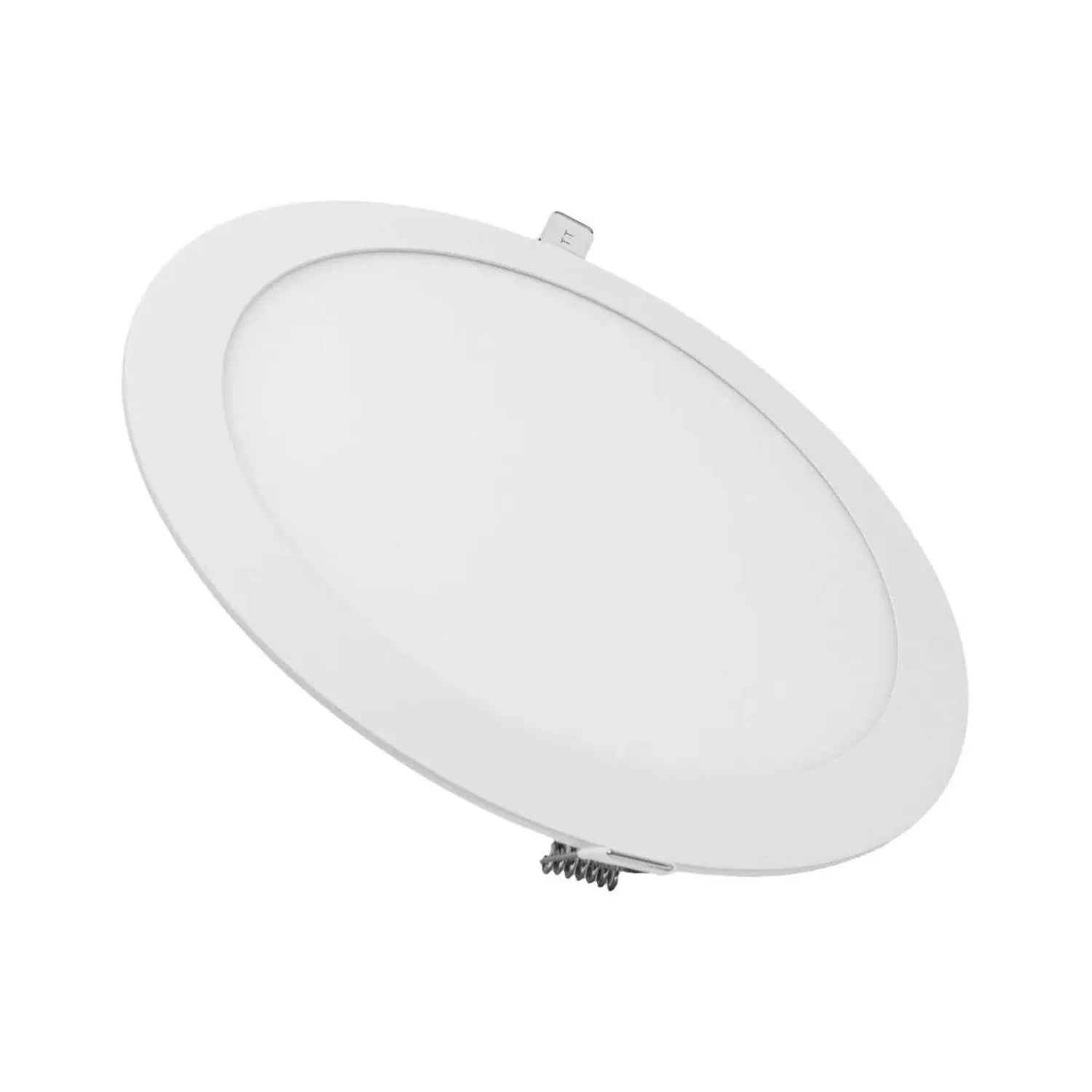

White round recessed LED panel light with mounting bracket, shown at an angle against a white background.

LED Round Panel Light 17W 225mm Cut-Out 3000K or 4000K | Ledison

Warm White / Non-Dimmable
£30.44
Skip to product information
White round recessed LED panel light with mounting bracket, shown at an angle against a white background.

LED Round Panel Light 17W 225mm Cut-Out 3000K or 4000K | Ledison

Vendor
Ledison
SKU
133106
Availability
In stock
Weight
0.235 kg

£30.44inc VAT £25.37exc VAT

Delivery from £4.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

This Ledison LED round panel light draws 17W and sits flush in the ceiling as a recessed downlight. It is a slim fitting for homes, offices, corridors, reception areas and shops, and works for a fresh install or a straight swap for an older light.

Measure the hole first. The panel needs a 225mm cut-out, and its outer diameter is 240mm.

LED round panel light options

Two choices set the version you order. Pick warm white 3000K for a softer tone, or natural white 4000K for a crisper light. The dimming choice depends on the control system already on site: non-dimmable, AC triac, DALI or 1-10V.

Key features

  • Power: 17W
  • Ceiling hole: 225mm cut-out, 240mm outer diameter
  • Colour temperature: warm white 3000K or natural white 4000K
  • Dimming versions: non-dimmable, AC triac, DALI or 1-10V
  • Rated life: up to 50,000 hours
  • Testing: passed IEC 60598-1 and the IEC 60695-2-11 850°C glow wire test

Where it fits

The low heat output and slim 240x21mm body make it a sensible choice for recessed ceiling work in domestic and commercial spaces alike. Corridors and reception areas suit the natural white version. Homes often go for warm white.

Installers replacing existing downlights should check the old cut-out against the 225mm requirement before ordering. If the hole matches, the job is simple. If it does not, the ceiling will need adjusting.

Choosing a dimming type

Match the version to the controls. Triac suits standard AC dimmers, while DALI and 1-10V are for building lighting control systems. Choose non-dimmable where the circuit runs from a plain switch.

Technical Specifications 9 rows Show
FittingLED round panel
Power17W
Colour temperatureWarm White 3000K, Natural White 4000K
LED chips4014SMD
Cut-out225mm
Outer diameter240mm
Dimensions240x21mm
Lifetime50,000 Hours
IP ratingIP20

Manufacturer datasheet. Figures as published by the manufacturer.
