Ledison edge lit panel 40Watt SMD 2835Ledison edge lit panel 40Watt SMD 2835Edge Lit LED Panel 40W with mounting kit

LED PANEL WITH PHILIPS LED DRIVER 40W 600x600

Ref: LDN-PNL0606-40W

£42.50

Price inc VAT

LED Panel Light, With Dimmable Options, Suspended, Recessed Or Surface Mount.

Amount
Bulk Savings £££
# Items Our Price Savings
6 Items £41.23 Save 3%
12 Items £39.95 Save 6%
24 Items £39.10 Save 8%
Description
Specification
Downloads
Description

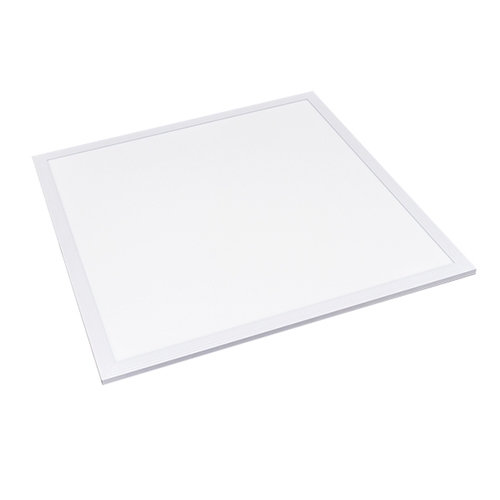

LED PANEL LIGHT 40WATT. PERFECT FIT FOR 600X600MM CEILING TILES.

THE HIGHEST QUALITY OF ELECTRICAL AND MECHANICAL COMPONENT

PRODUCT DESCRIPTION

The VOLTALED edge-lit panel LED light is suitable 600x600mm ceiling tiles, that makes it ideal for commercial applications in need of a white-frame, slim and ultra bright lighting solution, such as offices, factories,supermarkets even schools and universities. Our led chips emit high quality light which is more friendly to the human eyes.

Replaces T8/T5 4x18W Fluorescent Tube.

ONE PRODUCT WITH THREE DIFFERENT MOUNTING ACCESSORIES

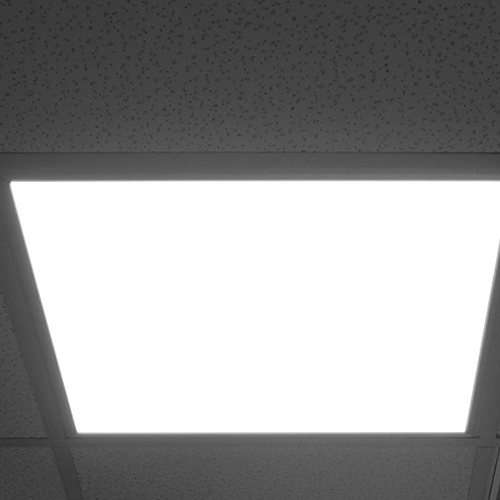

The actual dimensions of the LED panel is 595x595mm to match the standard t-bar suspended ceilings with dimensions 600x600mm. If you have a concrete, wooden or plasterboard ceiling, there are still two more mounting options.

a. Surface Mount Alumimium Frame - White Finish

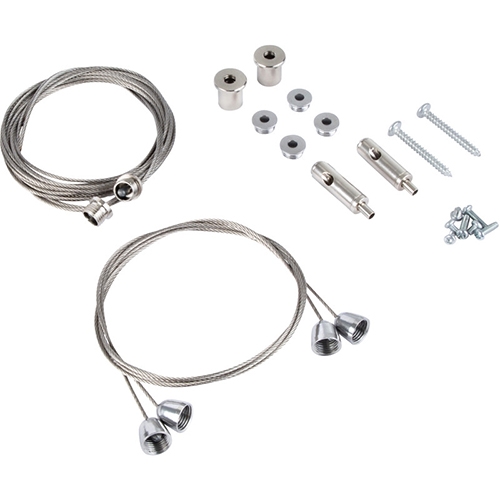

b. Suspension Metallic Ropes. The height is adjustable with maximum suspension length 1.2meters.

MORE SAVINGS FROM CERTIFIED LED DRIVER AND LED CHIPS

These panels are fed by a TUV, UL certified driver which is connected directly to the mains voltage (100-240VAC). The unit uses standard mains input voltage and consumes 40Watts whilst still producing 4400 lumens with UGR<19 (unified glare rating) and evenly distributed light. This is equivalent to a 200W incandescent or 120w fluorescent. As a result the LED Panel achieves incredibly energy efficient generating saving on both your energy bill and helping you to reduce your carbon footprint.

Our LED Panels are IP40 rated, you can rest assured that the aluminium housing and it’s valuable contents will remain protected from dust and condensation.

Photometric data and UGR reports are available online. Please follow the link here

FIRE RATED DIFFUSER

Voltaled panels use Tpa rated diffusers, which is fire resistant material that meets the building regulation and British Standards for Emergency lighting contruction. The Tpa diffuser will not drip plastic below in the event of a fire.

FACTS FOR OUR PRODUCTS:

  • Pay for itself within 9 months
  • It will last for 25 years
  • It will save you up 70% from your electricity bill
  • It will eliminate the cost of relamping and the maintenance cost.

PRODUCT FEATURES

  • Ultra-slim, only 10mm

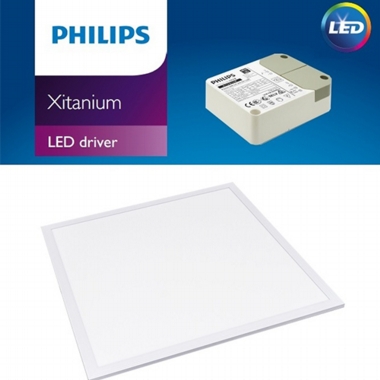

  • Quality LED chips and high specification LED Philips Xitanium drivers
  • Low glare and even (shadow free) light distribution (UGR<19)
  • Low heat output. High-grade aluminium frame for better heat dissipation
  • Dimmable version is available for 1-10V, AC triac and DALI Dimming
  • An emergency conversion pack for LED panels will add 3-hour autonomy in case of power failure.
Specification

LED Panel Recessed Light | Electrical Specifications | 40Watt

 What replaces: T8/T5 fluorescent tubes (4x18w) in recessed lighting

Type LDN-PNL0606-WW110      LDN-PNL0606-NW110    LDN-PNL0606-CW110
Energy Used                                             40W
Rated Life                                      50,000 Hours
Input Voltage                                       100-240V AC
Power Factor (PF)                         0.95 @120V AC, 0.94@240V AC
CCT(color)           3000K               4000K              5700K
Luminous Flux           3500lm               3800lm             4000lm
LM Factor      80% after 50,000 hours
CRI (Typ.)              80>             80>            80>
Beam Angle                                           120°
Dimension                                 595 x 595 x 11mm
IP Rating                                          IP20
Operation Temperature                                   -20°C ~ +40°C
Net. Weight                                  3.6kgs (with driver)
Package                                     4 PCS / Carton
Mounting Kit Suspension Cables for ceiling / Mounting Brackets for concrete ceiling/wall



Downloads

Technical Manual

LED Panel Light Installation Guide

Wiring & Installation Procedure for Ceiling Panels

Download

Emergency pack in galvanized enclosure

Remote emergency pack VOL-EL125

Remote emergency pack for LED panels, tubes and arrays

Download

Emergency Pack - LED Panels

Emergency Pack - LED Panels

Ledison Emergency pack with Ni-CD battery

Download

Suspension Cables Installation

Suspension Cables Installation

Step by step guide on installing suspension cables for LED Panels

Download

*
