1200x600 LED Panel Light 60W UGR<19 TP(a) Rated Diffuser | Ledison
- Vendor
- Ledison
- SKU
- 102058
- Availability
- In stock
- Weight
- 1.562 kg
£73.45inc VAT £61.21exc VAT
Delivery from £7.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs
Product Description

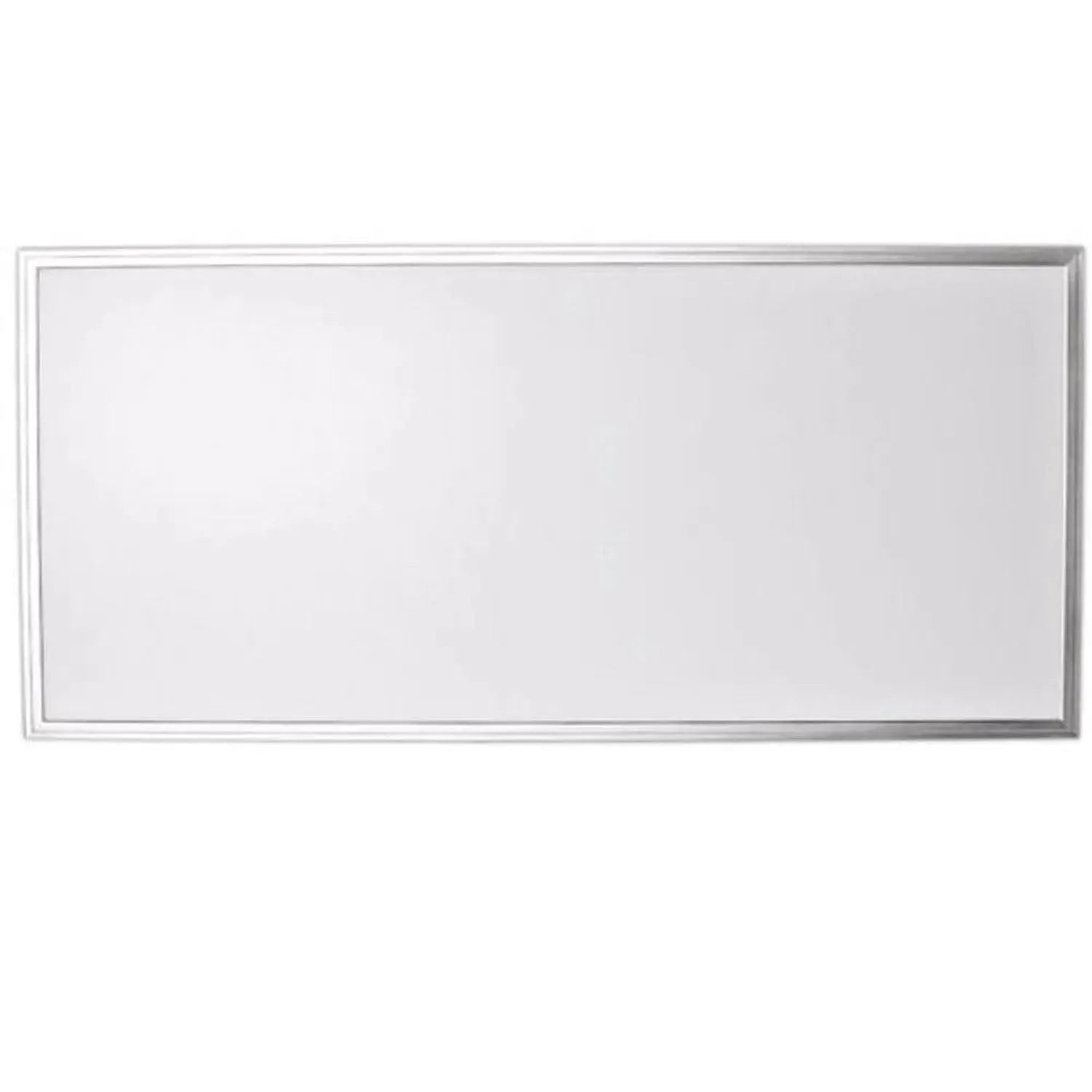

This edge-lit 1200x600 LED panel light draws 60W and is made for suspended ceilings in offices, factories, supermarkets, schools and universities. It takes the place of 4x36w T8 or T5 fluorescent tubes. Glare is held to UGR<19, so the light falls evenly across desks and aisles.
1200x600 LED panel light key features
- Power: 60 watts, with a 100-240V AC input.
- Glare rating: UGR<19 for low glare and even light.
- Diffuser: TP(a) rated, so it will not drip plastic in a fire.
- Size: 1195x595mm and 13mm thick.
- Protection: IP20, for indoor use only.
- Rated life: 50,000 hours, keeping 80% of its light output after 50,000 hours.
Options to choose from
The panel comes in several builds. Pick the one that suits the room and the control system already in place.
- Colour temperature: warm, natural or cool white.
- Dimming: non-dimmable, AC triac, 1-10V or DALI.

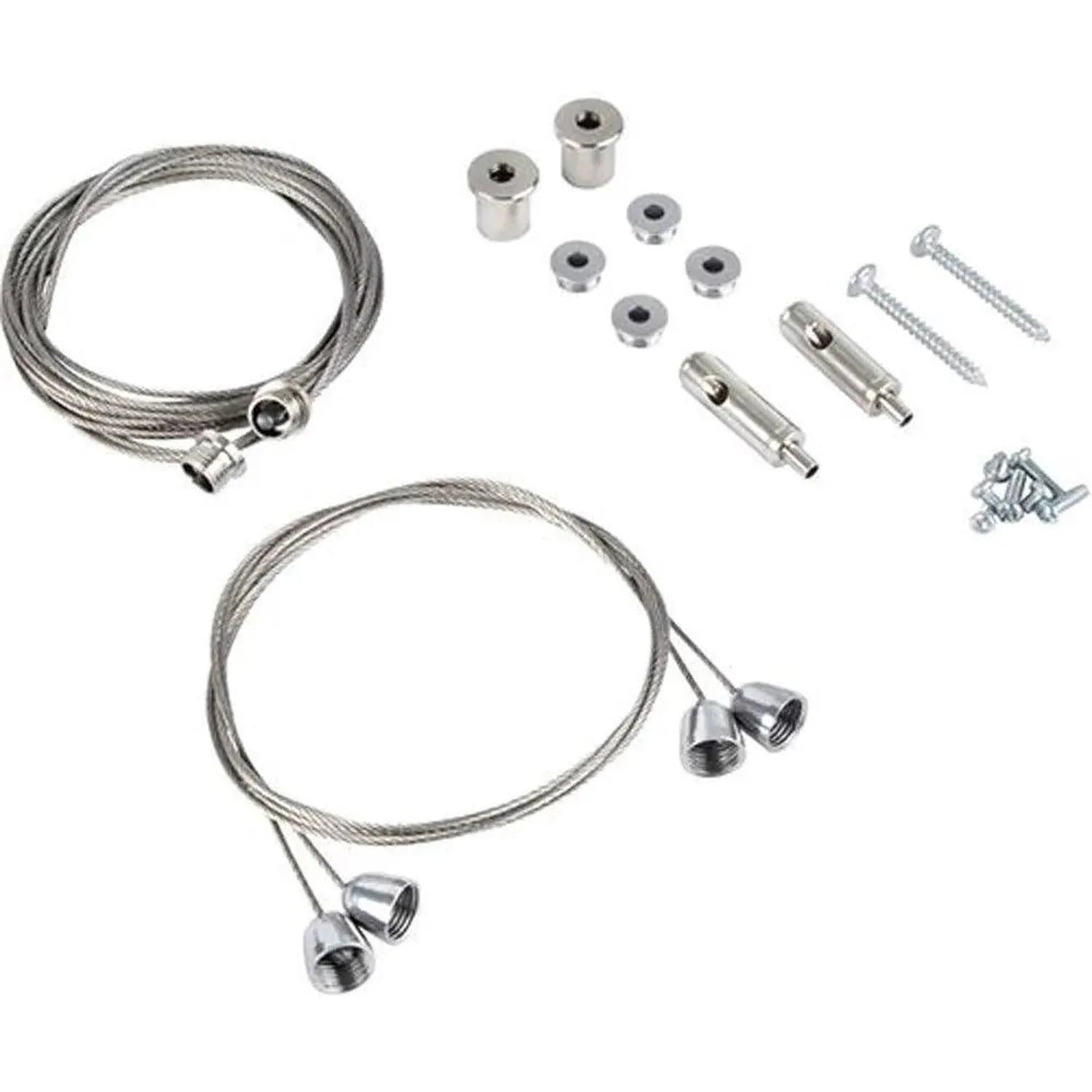

- Mounting: recessed in the ceiling, a white aluminium surface frame, or suspension cable.
Where it fits
Most installers will drop it straight into a suspended ceiling grid. Where there is no grid, the white aluminium surface-mount frame fixes it to a solid ceiling, and the suspension cables hang it below higher or open ceilings. Offices, classrooms, retail floors and factory spaces are the typical settings.
Emergency lighting
An emergency conversion pack is available for this panel. That suits escape routes and areas where lighting has to stay on during a power cut.
Technical Specifications 16 rows Show
| Fitting | LED panel |
| Power | 60W |
| Colour temperature | 3000K, 4000K, 5700K |
| Luminous flux | 5900lm (3000K), 6300lm (4000K), 6600lm (5700K) |
| Colour rendering index | 80> |
| Voltage | 100-240V AC |
| Power factor | 0.95 @120V AC, 0.94@240V AC |
| Beam angle | 120° |
| Glare | UGR<19 |
| Dimensions | 1195x595mm |
| Thickness | 13mm |
| IP rating | IP20 |
| Operation temperature | -20°C ~ +40°C |

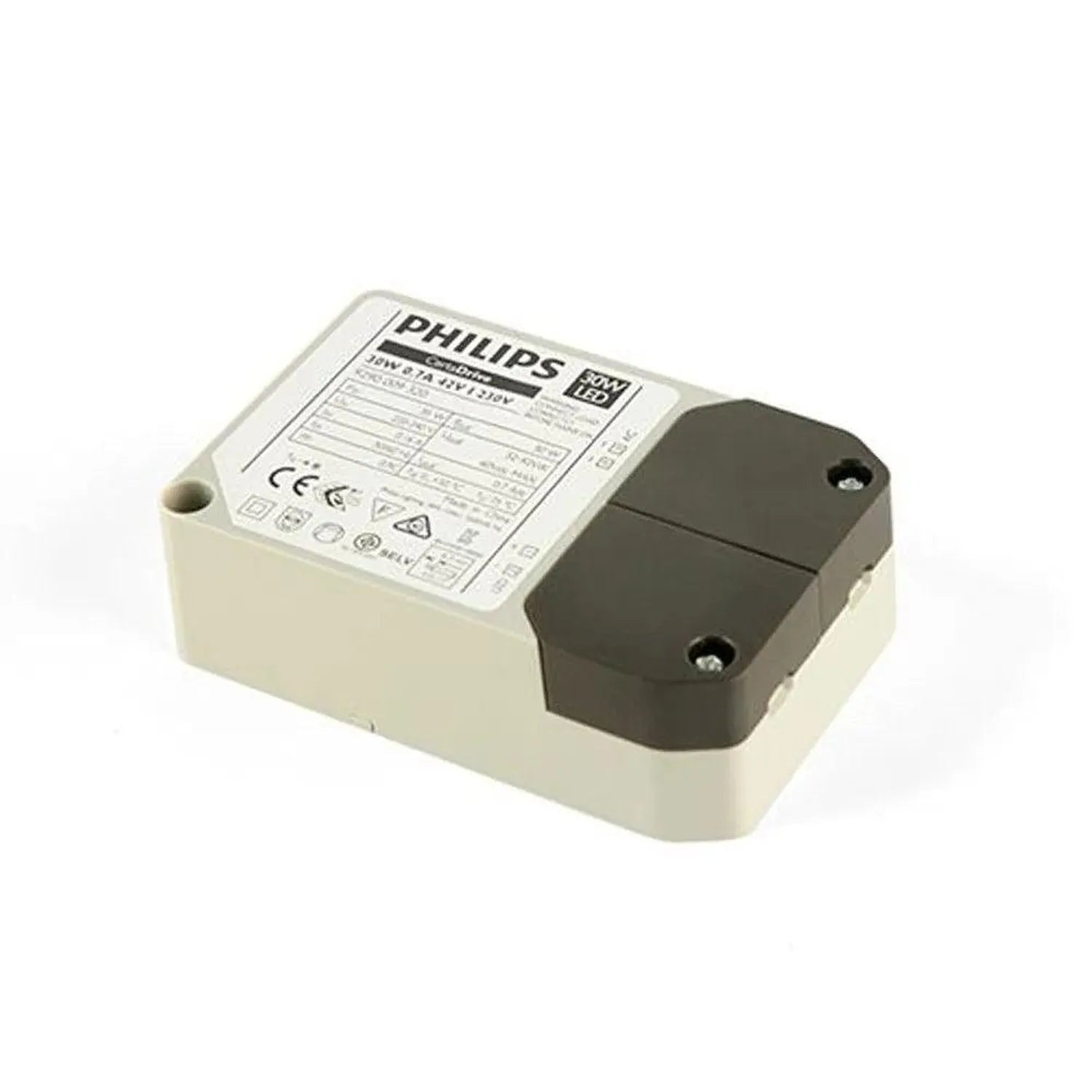

| Weight | 8kgs (with driver) |
| Lifetime | 50,000 Hours |
| LM factor | 80% after 50,000 hours |
Manufacturer datasheet. Figures as published by the manufacturer.
