LED Panel Light 600x600mm 40W 4400lm | Voltaled

The Voltaled edge-lit LED panel light fits standard 600x600mm ceiling tiles, giving a slim white-framed fitting for offices, factories, supermarkets, schools and universities. It replaces a T8/T5 4x18W fluorescent tube and runs on 40W while producing 4400 lumens.

Key features of this led panel light

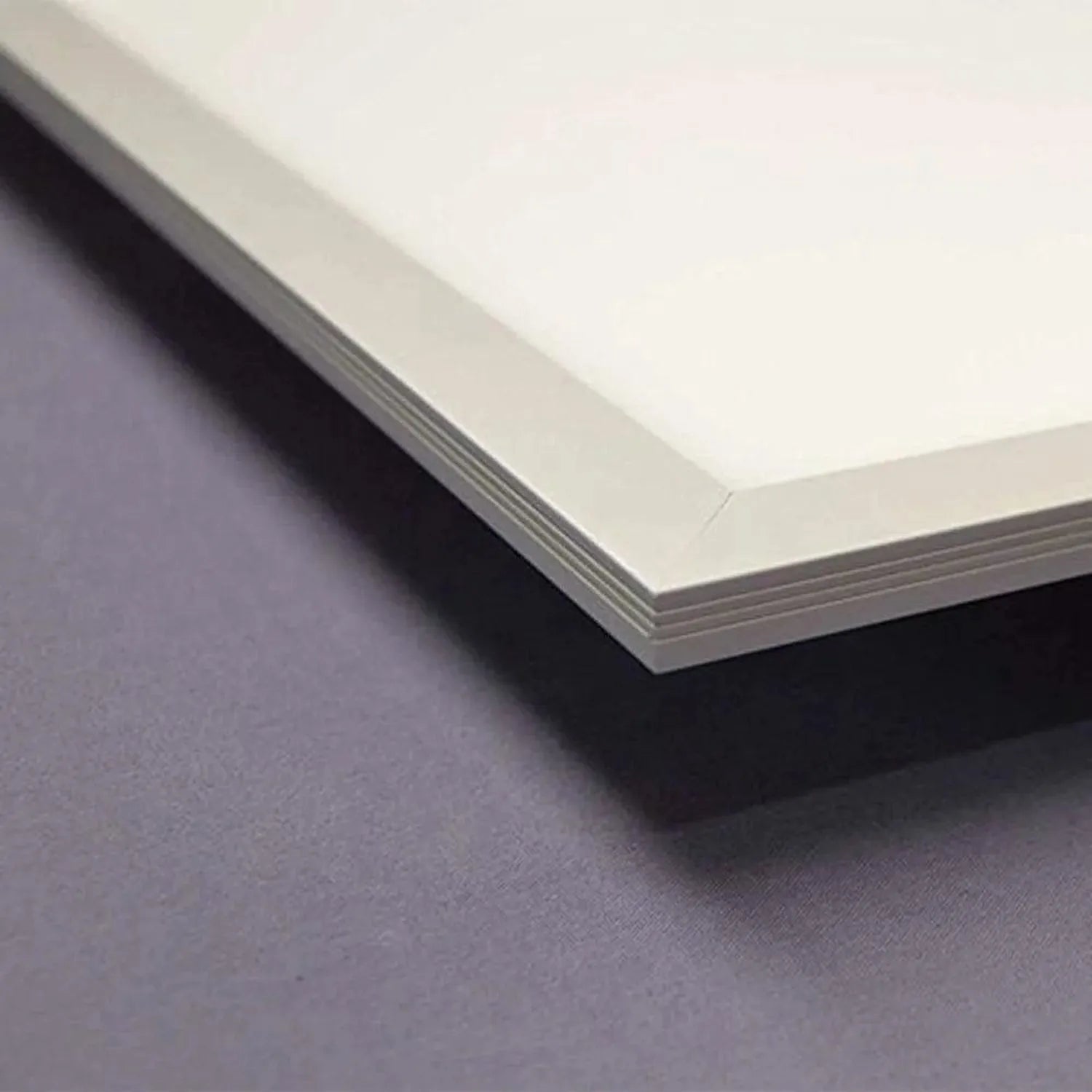

• Slim profile, 10mm thick panel
• Actual size, 595x595mm to suit 600x600mm t-bar suspended ceilings
• Low glare, UGR<19 with even light distribution

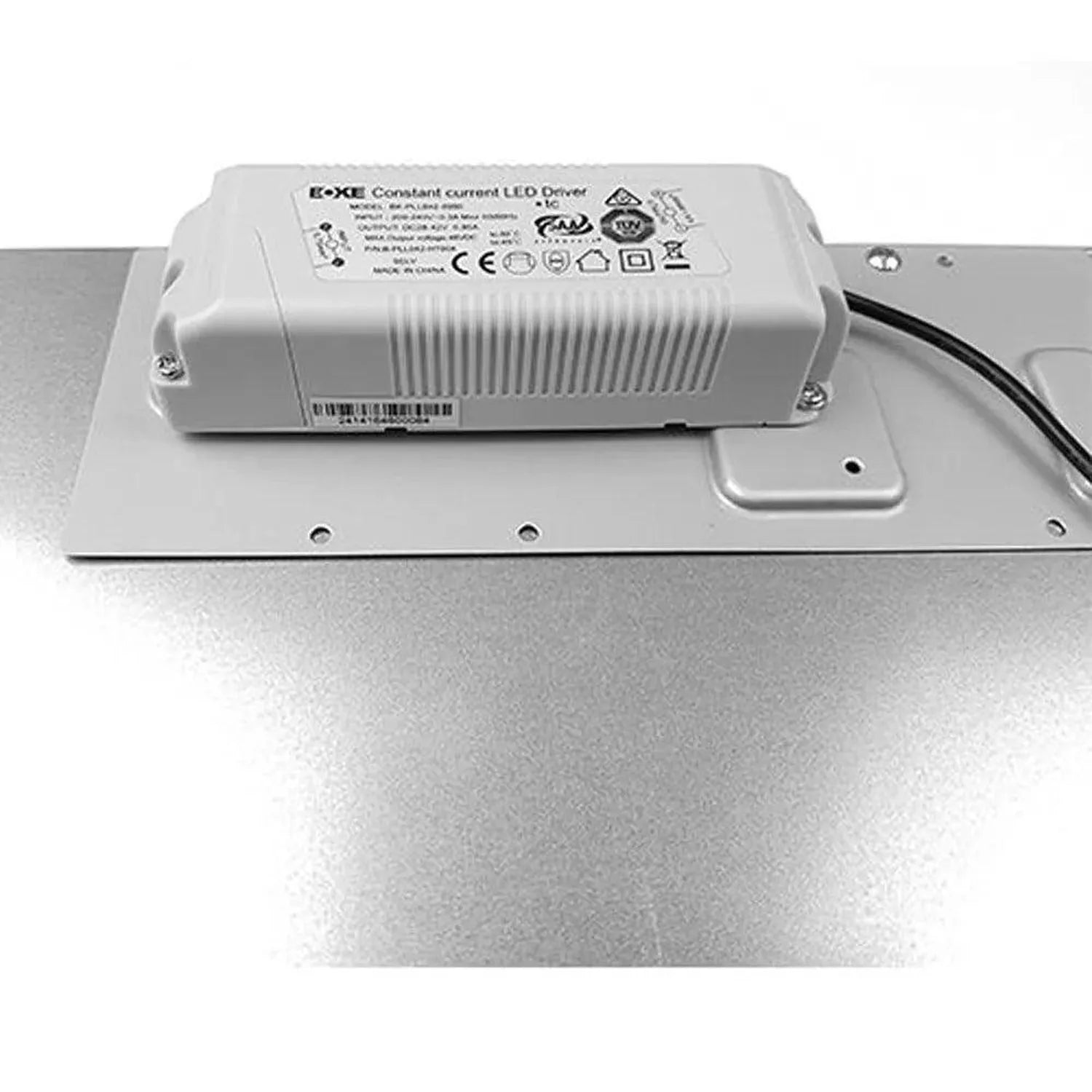

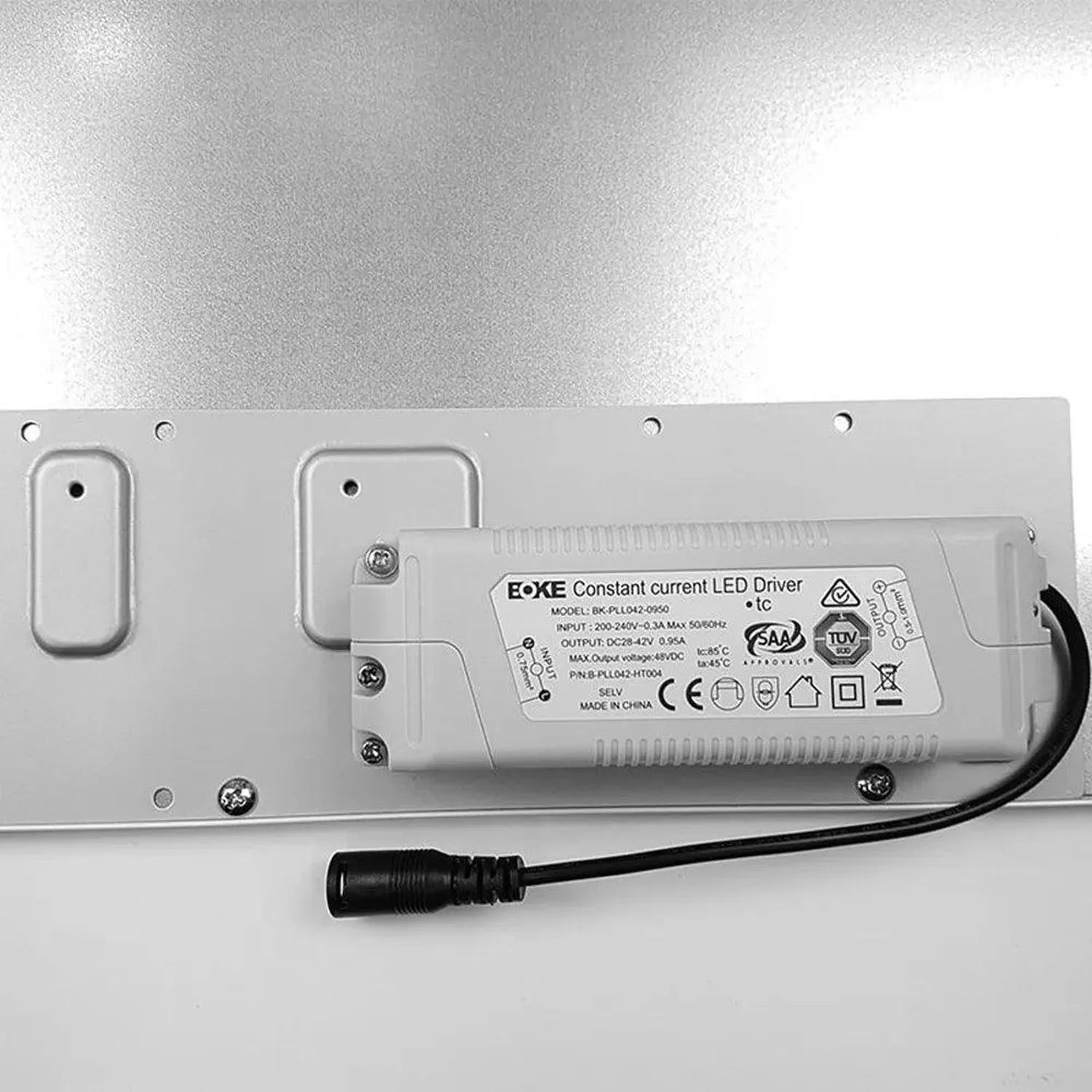

• Driver, TUV, UL certified, mains input 100-240VAC
• Fire-rated diffuser, Tpa-rated material that meets building regulations and British Standards for emergency lighting
• Ingress protection, IP40 rated aluminium housing

Mounting options

One product, three mounting methods. It can drop straight into a t-bar suspended ceiling grid, or be fitted to a concrete, wooden or plasterboard ceiling using a surface mount aluminium frame in white finish. A third option uses suspension metallic ropes with an adjustable height up to a maximum suspension length of 1.2 metres.

Dimming options

A dimmable version is available across 1-10V, AC triac and DALI protocols. An emergency conversion pack can be added to give 3-hour autonomy in the event of a power failure.

Applications

Suited to commercial and educational spaces where a slim recessed ceiling light is wanted in place of fluorescent tube fittings, including offices, factories, supermarkets, schools and universities.
