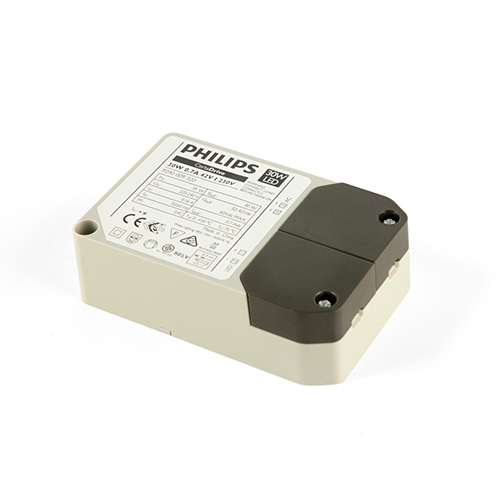

LED PANEL WITH PHILIPS DRIVER 40W 1200x300

Ref: LDN-PL0312-A

£29.90

Price inc VAT

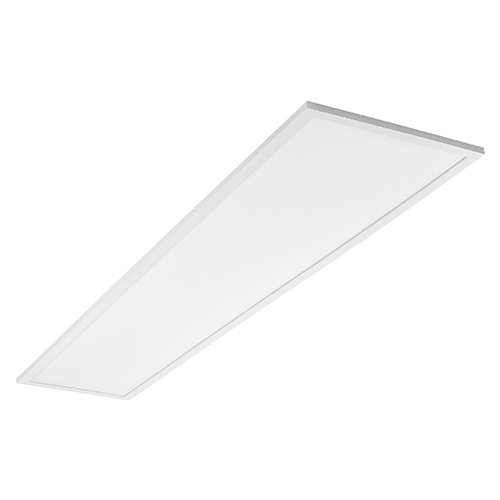

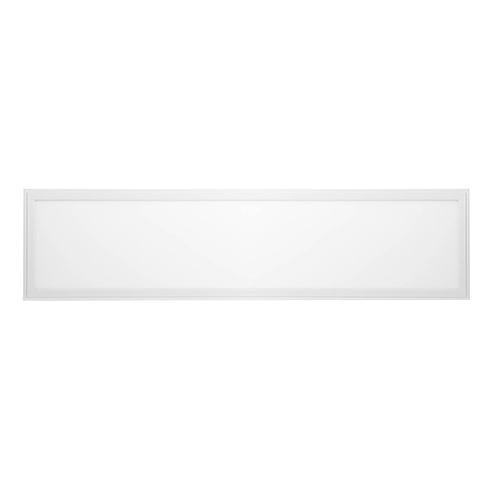

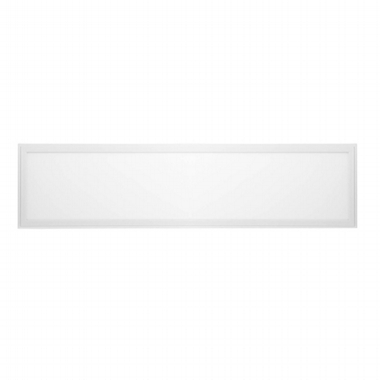

LED Panel Light, With Dimmable Options, Suspended, Recessed Or Surface Mount.

Amount
Bulk Savings £££
# Items Our Price Savings
6 Items £29.00 Save 3%
12 Items £28.11 Save 6%
24 Items £27.51 Save 8%
Specification
Downloads
Specification

Electrical Specifications

Type LDN-PL0312A-WW      LDN-PL0312A-NW    LDN-PL0312A-CW
Energy Used                                          40W
Rated Life                                    50,000 Hours
Input Voltage                                    100-240V AC
Power Factor (PF)                      0.95 @120V AC, 0.94@240V AC
CCT(color)           3000K         4000K         5700K
Luminous Flux           3960lm         4180lm         4600lm
Luminous Efficacy          90lm/W         95lm/W        105lm/W
CRI (Typ.)              80             80            80
Beam Angle                                        120°
Dimension                              295 x 1195 x 13mm
IP Rating                                       IP20
Operation Temperature                                -20°C ~ +40°C
Net. Weight                               4.1kgs (with driver)
Package                                  4 PCS / Carton






Downloads

Technical Manual

LED Panel Light Installation Guide

Wiring & Installation Procedure for Ceiling Panels

Download

Emergency Pack - LED Panels

Emergency Pack - LED Panels

Ledison Emergency pack with Ni-CD battery

Download

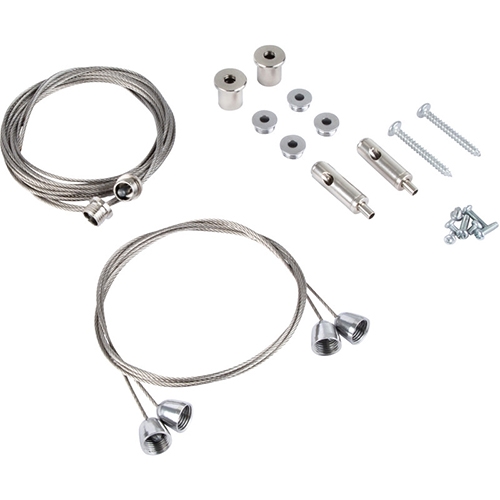

Suspension Cables Installation

Suspension Cables Installation

Step by step guide on installing suspension cables for LED Panels

Download

*
