Victron VE.Can to CAN-bus BMS Type B Cable 1.8m | ASS030720118

This Victron VE.Can to CAN-bus BMS Type B Cable connects a Victron VE.Can port to a compatible CAN-bus BMS using the Type B pinout. It is built for installers linking third-party battery management systems into a Victron setup where a Type B CAN-bus interface is called for.

Key features

• Length, 1.8 m, enough reach for most panel and cabinet layouts.
• Pinout, Type B CAN-bus, matched to BMS units using this interface standard.
• Direct connection, links a Victron VE.Can port to a CAN-bus BMS with no extra adapters.
• Weight, 75 g.
• Part number, ASS030720118, for correct ordering against a specific system build.

Product overview

Victron Energy makes two CAN-bus BMS cable types to suit different BMS manufacturers. Type A and Type B differ in their RJ45 pinout assignments, and fitting the wrong type will stop the BMS talking to the Victron system. Check which pinout your BMS manufacturer requires before ordering. This listing covers the Type B variant only.

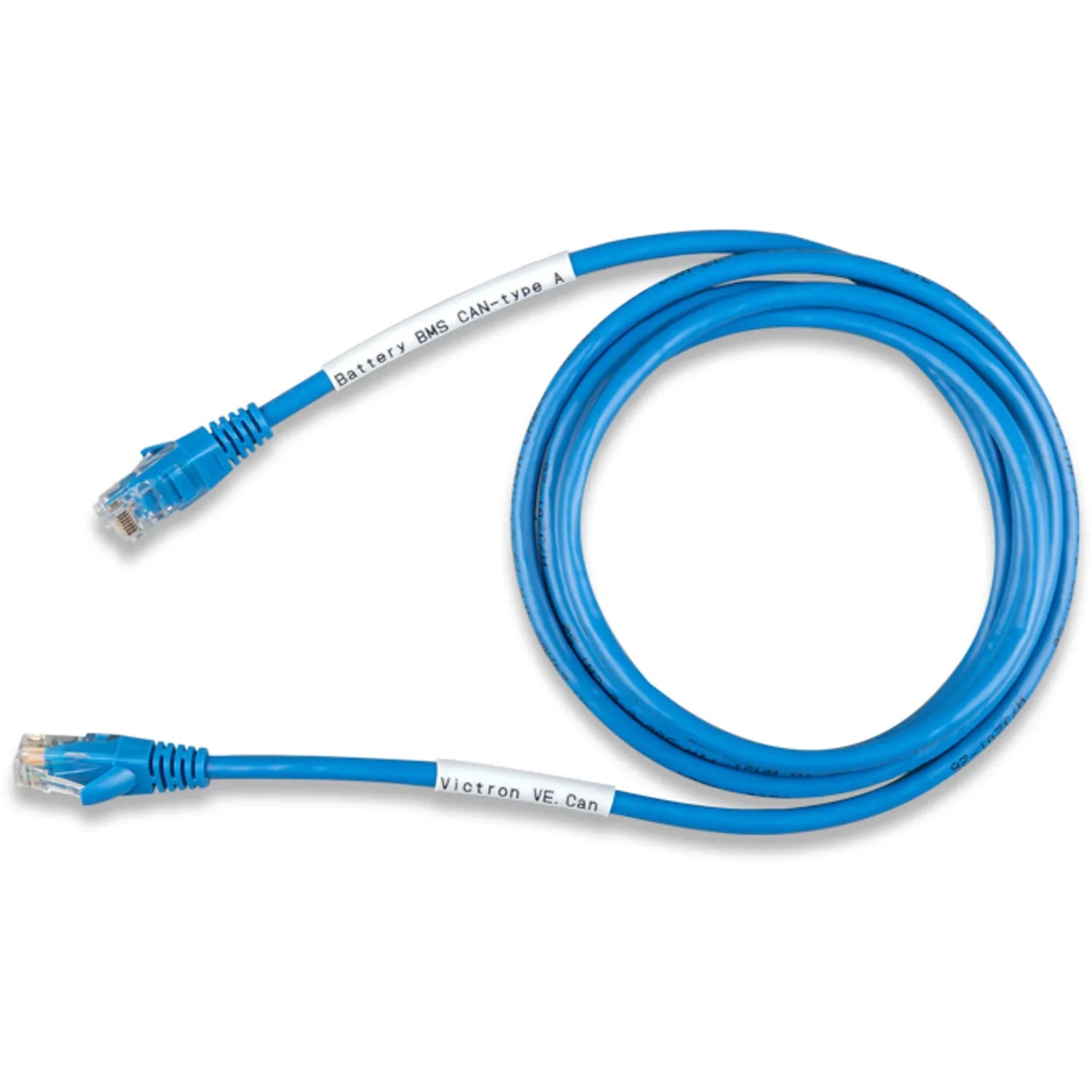

The cable terminates in RJ45 connectors and carries CAN-bus communication between the VE.Can interface on Victron devices, such as the MultiPlus-II, Quattro, or a compatible GX device, and the battery BMS. Working BMS communication lets the inverter/charger read charge and discharge limits, state of charge, and protection signals straight from the battery.

Applications

• Connecting a Type B CAN-bus BMS to a Victron MultiPlus-II or Quattro via VE.Can.
• Integrating third-party lithium battery systems with Victron GX devices in off-grid and hybrid installations.
• Replacing a lost or damaged Type B BMS cable in an existing Victron system.
• New builds needing verified Victron-supplied cabling for BMS communication.

What's in the box

• 1 x VE.Can to CAN-bus BMS Type B Cable, 1.8 m

Installation notes

Confirm your BMS uses the Type B CAN-bus pinout before fitting. A Type B cable connected to a Type A BMS will not establish communication and may cause system faults. Fit this cable as part of a complete Victron system set up by an installer familiar with VE.Can network requirements and the specific BMS being used.
