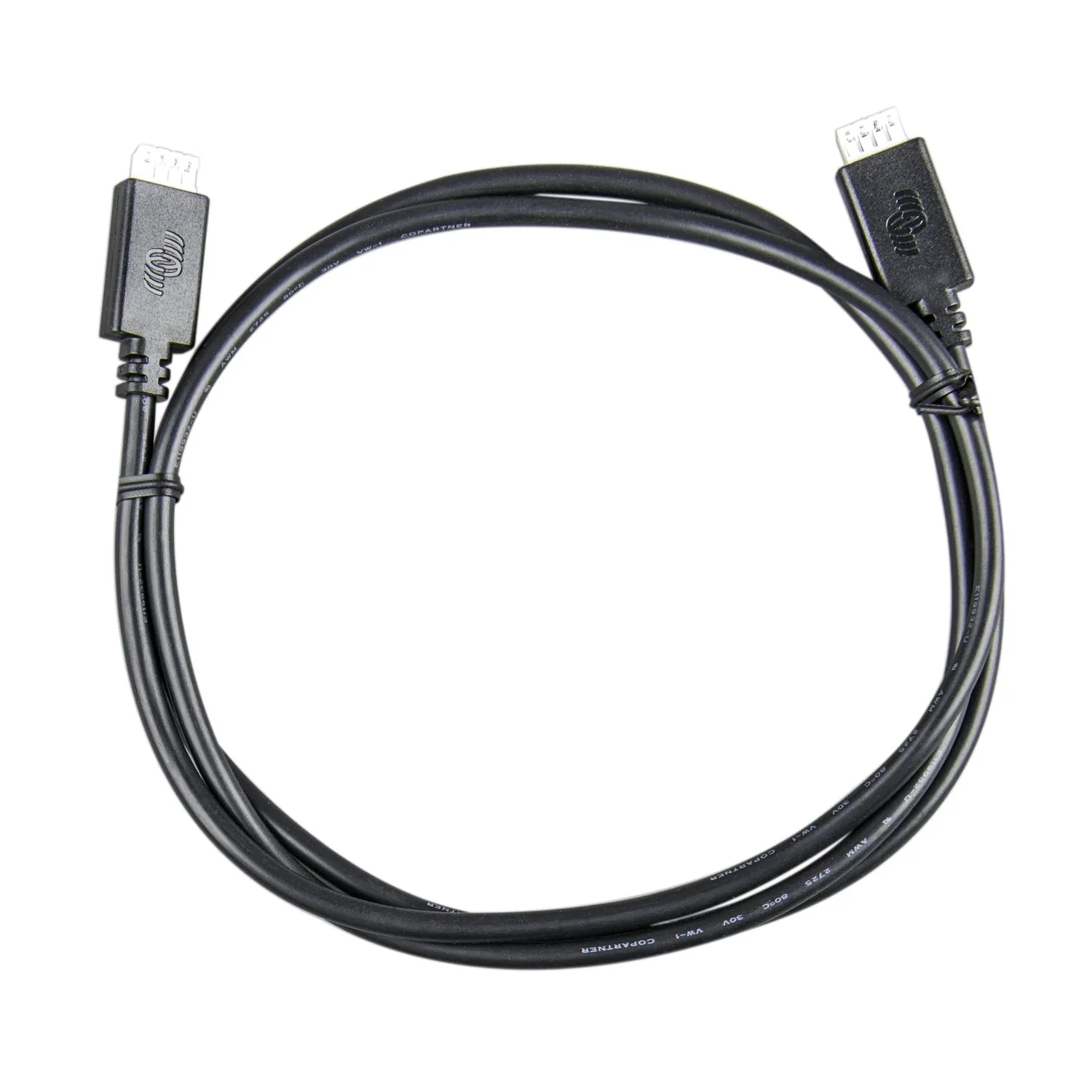

Victron VE.Direct Cable 5m | ASS030530250

The Victron VE.Direct Cable (5m) connects VE.Direct-compatible devices to each other or to a monitoring interface such as the Color Control GX, Cerbo GX, or a PC via a VE.Direct to USB adapter. Installers use it to pass data between Victron components across longer cable runs within a system enclosure or installation.

Victron ve direct cable key features

• Length, 5 metres, for installations where components are not close together.
• Protocol, uses the VE.Direct proprietary serial communication protocol for data transfer between Victron devices.
• Compatibility, works with MPPT solar charge controllers, BMV battery monitors, Phoenix inverters, and SmartSolar chargers.
• Connectors, terminated with VE.Direct connectors at both ends, ready to use without modification.
• Weight, 0.185 kg.

Product overview

VE.Direct is Victron's point-to-point serial communication interface. It carries data and, on some devices, a small supply voltage, transmitting real-time operating data such as state of charge, voltage, current, and fault codes between devices. It is the standard wiring method for connecting BMV monitors, MPPT controllers, and Phoenix inverters to a GX device or a laptop running VictronConnect.

This 5m length is the longest standard VE.Direct cable in the Victron range, suited to installations where the charge controller, battery monitor, or inverter sits at a distance from the GX device or monitoring panel. The right length avoids coiling excess cable and removes the need for custom fabrication.

Applications

• Connecting an MPPT solar charge controller to a Cerbo GX or Color Control GX where components are mounted apart.
• Linking a BMV battery monitor to a GX device for system-wide state-of-charge monitoring.
• Connecting a Phoenix inverter to a monitoring or control interface via VE.Direct.
• Data logging and configuration via a VE.Direct to USB adapter connected to a laptop or Raspberry Pi running Venus OS.
• Off-grid, marine, and vehicle installations where panel-mounted GX devices sit away from battery or charge controller compartments.

What's in the box

• 1 x Victron VE.Direct Cable, 5m

Installation notes

Power down both devices before connecting or disconnecting VE.Direct cables; the port is not designed for hot-swapping under load. Route cables away from high-current DC wiring to avoid interference. Each VE.Direct port supports one connection at a time, so multiple devices connecting to a single GX unit each need their own port or a dedicated USB adapter.
