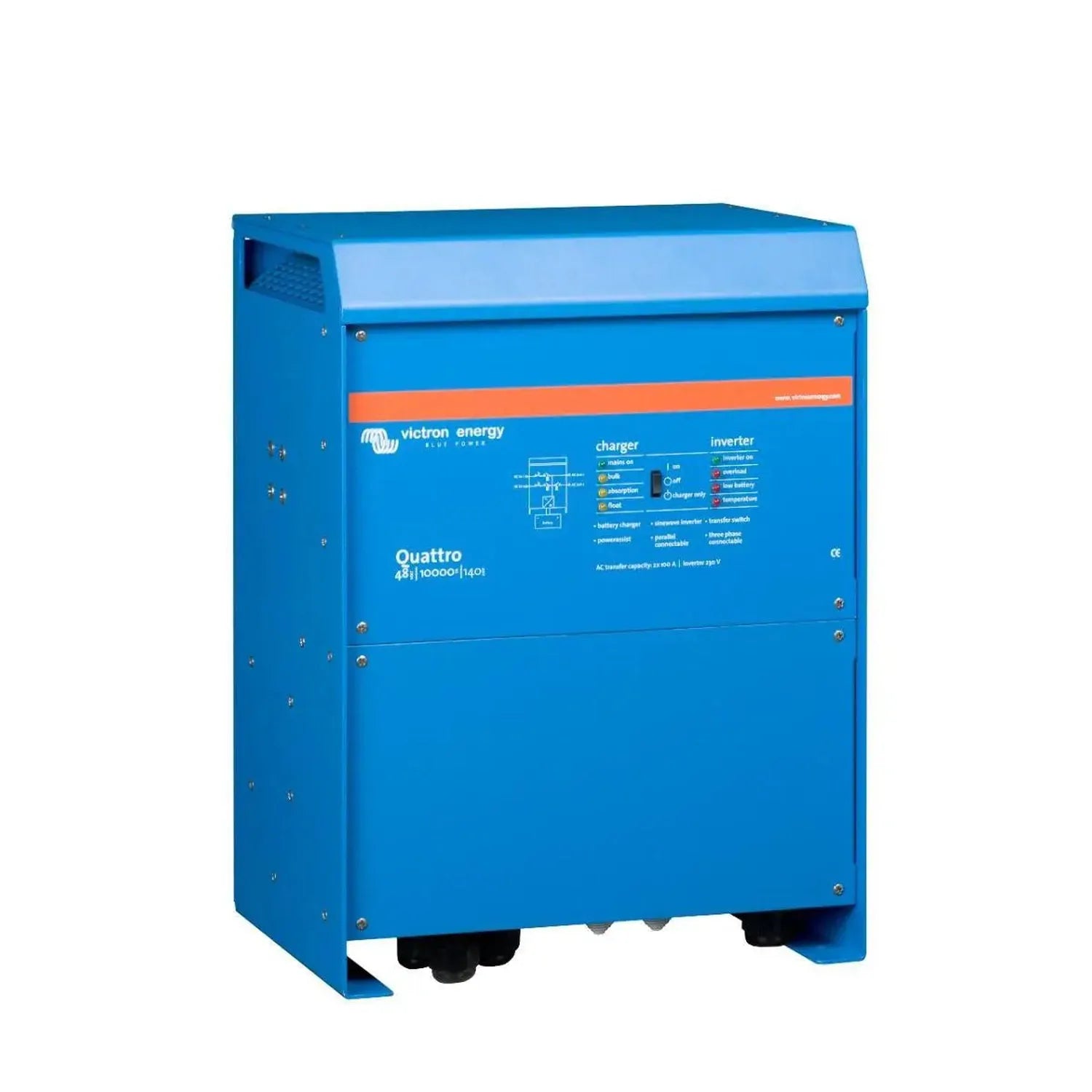

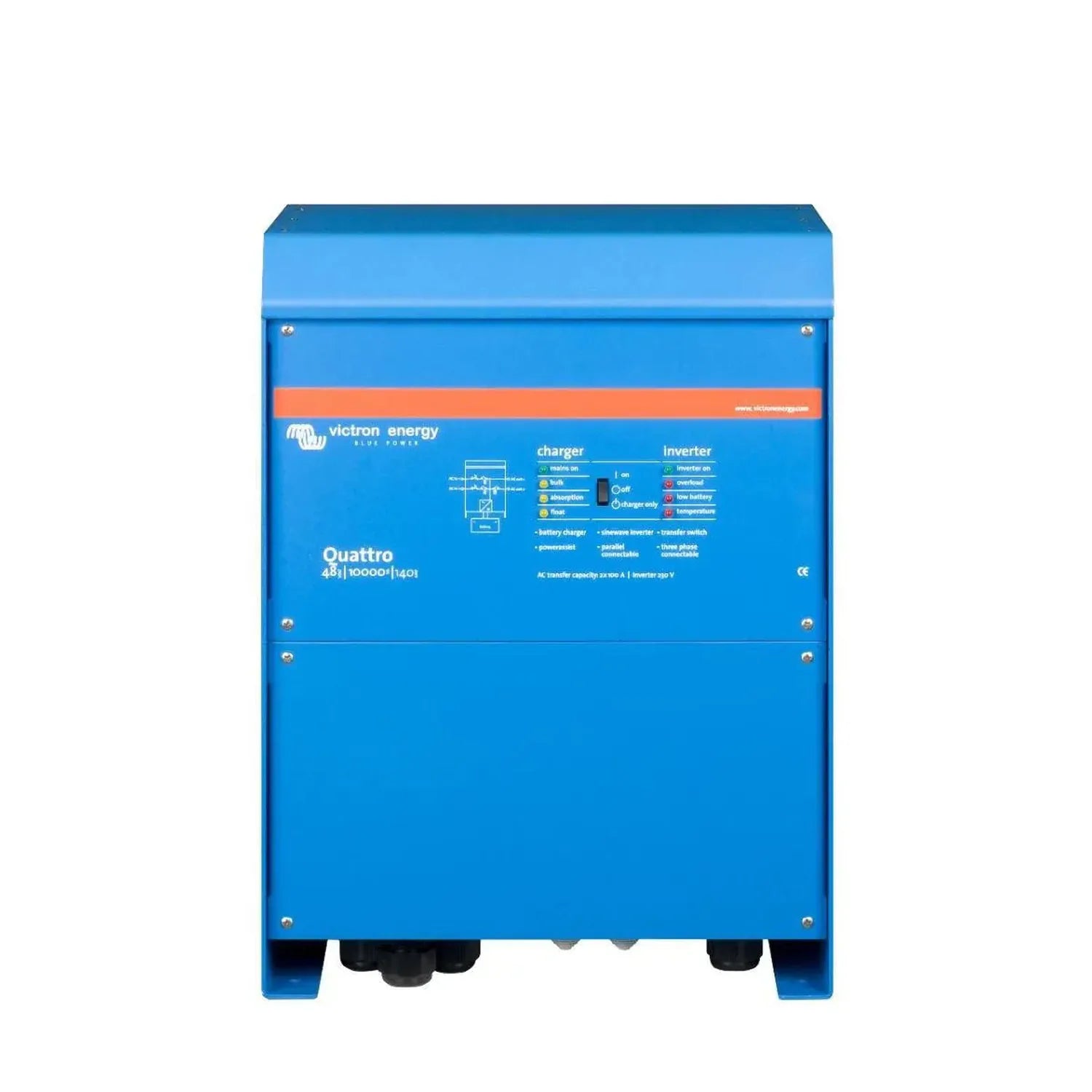

Victron Quattro 48/10000/140-100/100 Inverter Charger 230V | QUA481030010

The Victron Quattro 48/10000/140-100/100 is a 10kVA inverter charger built for demanding off-grid, backup and hybrid solar installations. It runs from a 48V DC input, delivers 140A of battery charging, and accepts two independent AC inputs so both mains power and a generator can be connected to one unit.

Key features

• Inverter output, 10,000VA (10kVA) continuous at 230V AC single phase
• Dual AC inputs, automatic transfer switching between mains and generator
• Battery charger, 140A output for 48V battery banks with adaptive charging algorithm
• Dual AC outputs, AC-Out-1 stays live in inverter mode; AC-Out-2 disconnects on battery to shed non-essential loads
• VE.Bus communication, supports parallel operation and three-phase configuration using three units
• PowerAssist / PowerControl, draws extra current from the battery when AC input demand exceeds the source limit, protecting a generator from overload

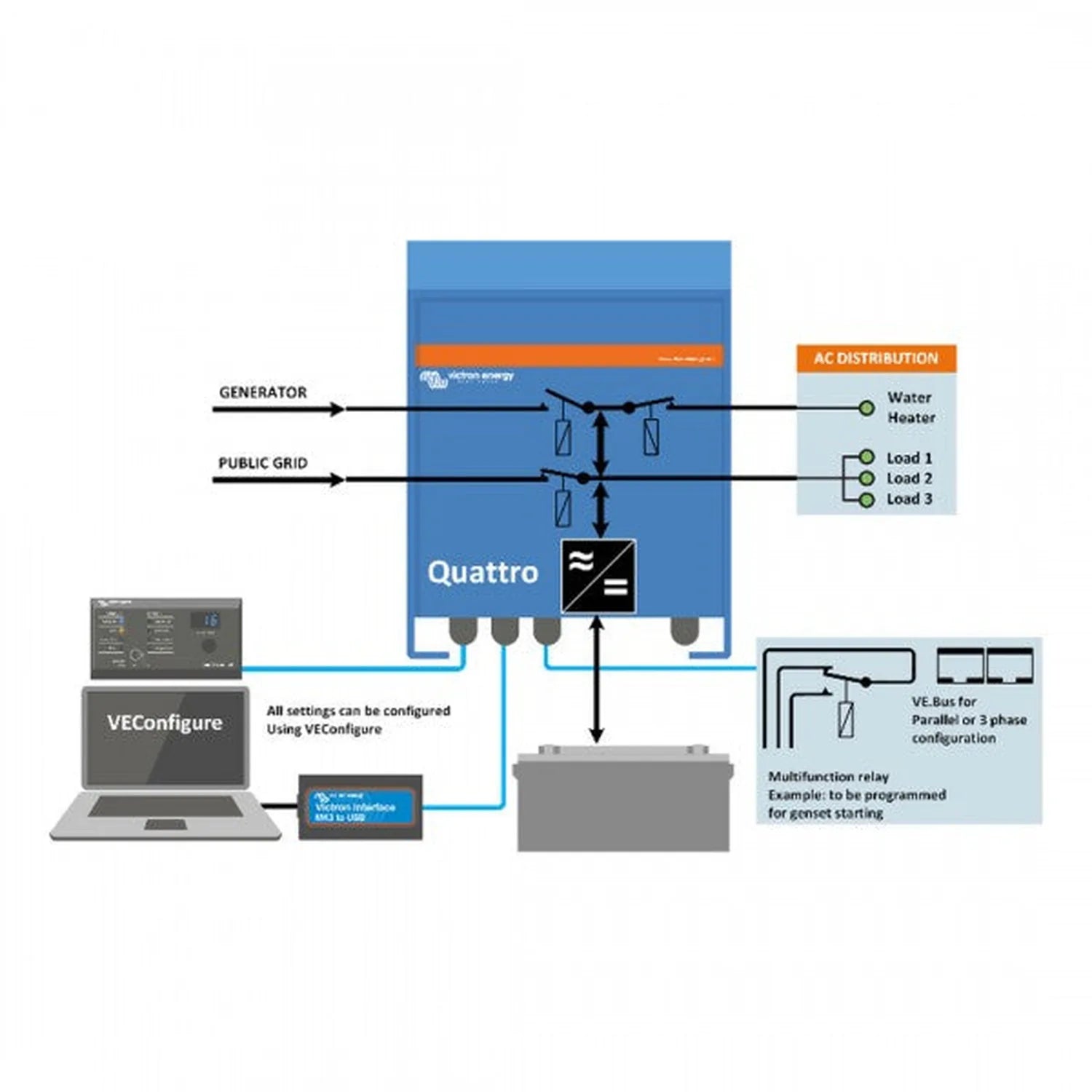

System integration

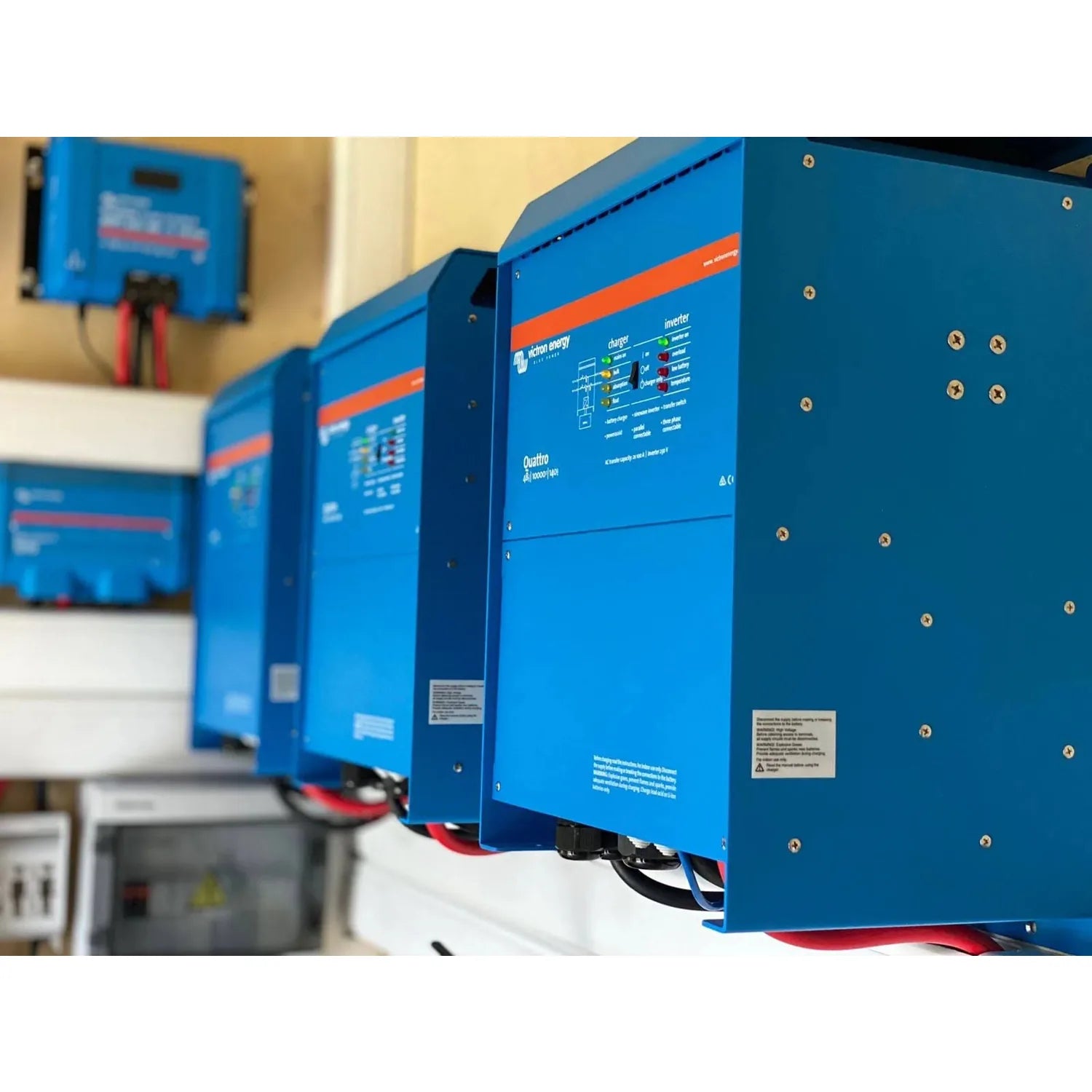

Multiple Quattro units link over VE.Bus for higher current output or a three-phase setup built from three units. PowerAssist means a smaller generator can be used without risk of tripping under peak load, since the shortfall is drawn from the battery rather than the AC source. The unit is compatible with Victron GX devices for monitoring and control through the VRM portal.

Applications

• Large off-grid residential and commercial installations with 48V battery banks
• Generator-backed systems needing automatic transfer between two AC sources
• Backup power sites where AC-Out-2 load shedding extends battery runtime
• Three-phase systems built from three Quattro units via VE.Bus
• Marine and vehicle installations needing 230V AC output from a 48V DC supply

Technical specifications

What's in the box

• Victron Quattro 48/10000/140-100/100 230V inverter charger unit
