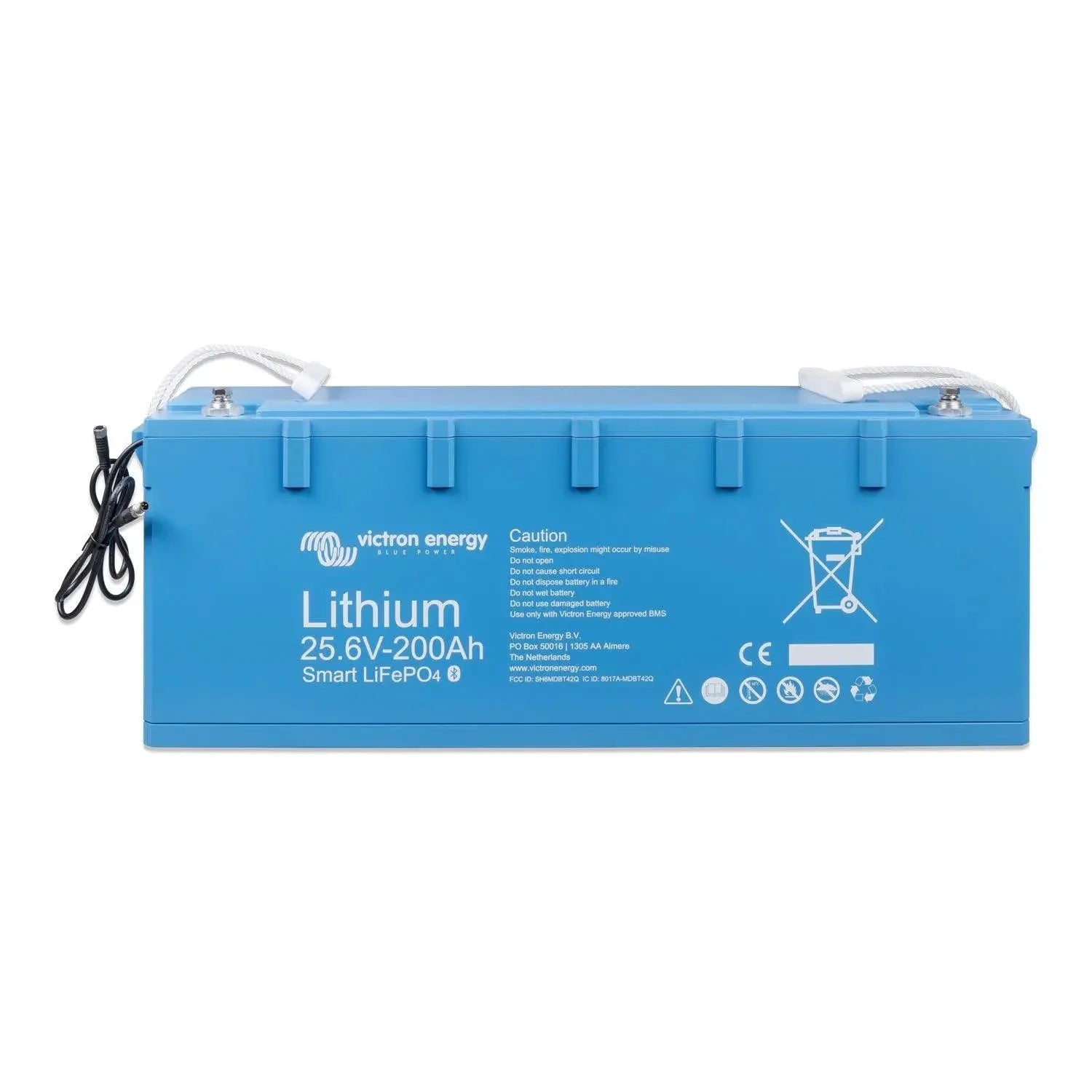

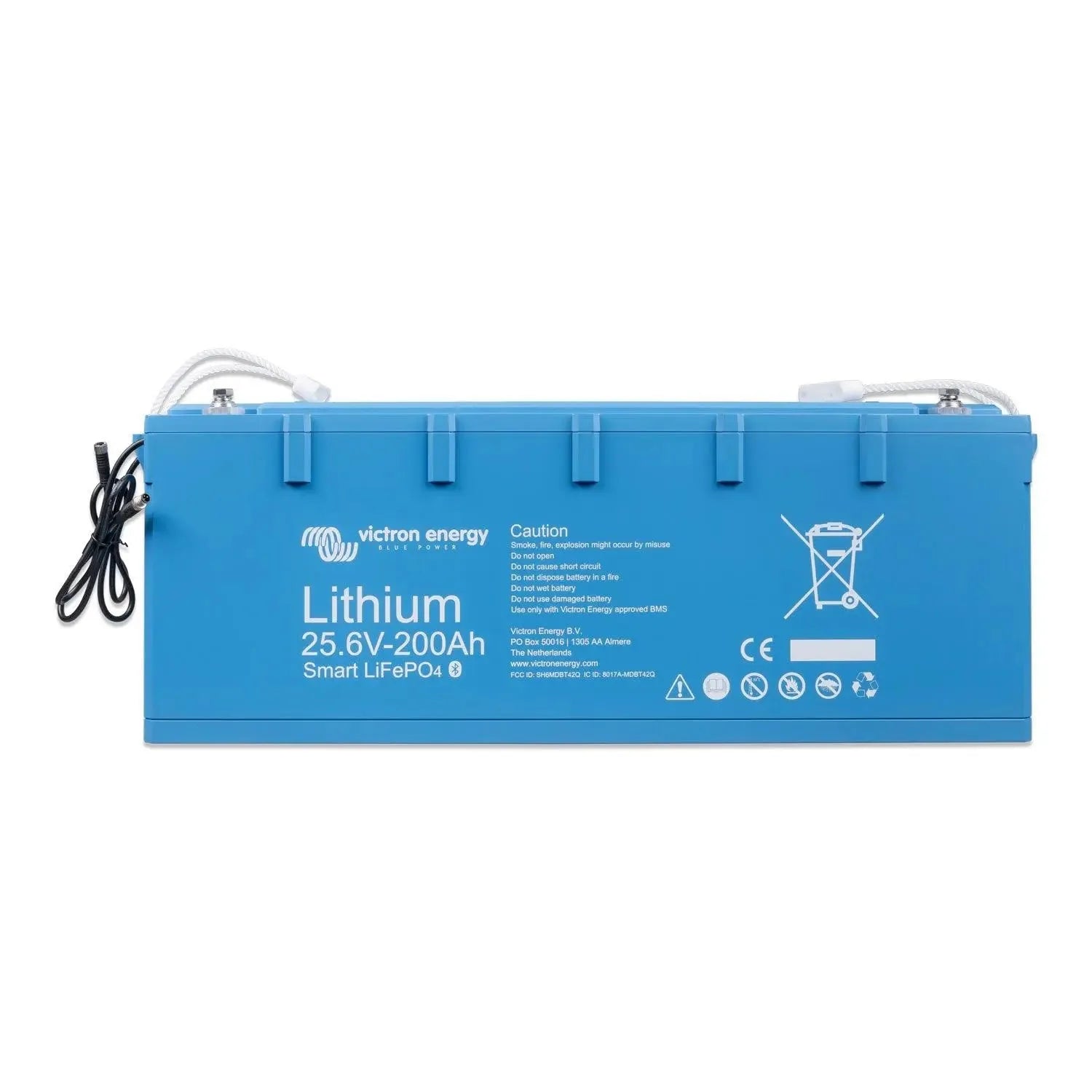

Victron LiFePO4 Battery 25.6V 200Ah Smart | BAT524120610

The Victron LiFePO4 battery rated at 25.6V and 200Ah brings 5.12kWh of usable energy to a single case, with Bluetooth built in for direct monitoring through the VictronConnect app. It is aimed at installers building 24V banks for off-grid, marine or mobile systems, where cycle life and remote visibility of the pack matter.

Victron LiFePO4 battery features

• Chemistry, 25.6V nominal lithium iron phosphate (LiFePO4).
• Capacity, 200Ah, giving 5.12kWh per unit.
• Monitoring, integrated Bluetooth with the VictronConnect app for state of charge, voltage, current and temperature.
• Protection, built-in BMS with cell balancing plus over-voltage, under-voltage, over-current and over-temperature protection.
• Networking, VE.Smart compatible, sharing data with Victron MPPT charge controllers and MultiPlus or Quattro inverter/chargers.
• Weight, 37.5kg.

Bank configurations

Units can be connected in parallel to add capacity at 24V, or paired in series to build a 51.2V bank for 48V systems. Series wiring calls for careful attention to balancing, and Victron's published guidance on maximum parallel and series counts should be checked before sizing a bank.

Applications

• Off-grid solar storage paired with a Victron MultiPlus or Quattro at 24V.
• Marine house banks where thermal stability and lower weight than lead-acid are wanted.
• Motorhome and campervan leisure battery installations needing deep-cycle performance with app monitoring.
• Vehicle-based power systems where space and weight rule out AGM.
• Parallel banks for cabins, lodges or remote telecoms sites.
• 48V builds using two units in series with compatible Victron 48V gear.
