All Victron Batteries

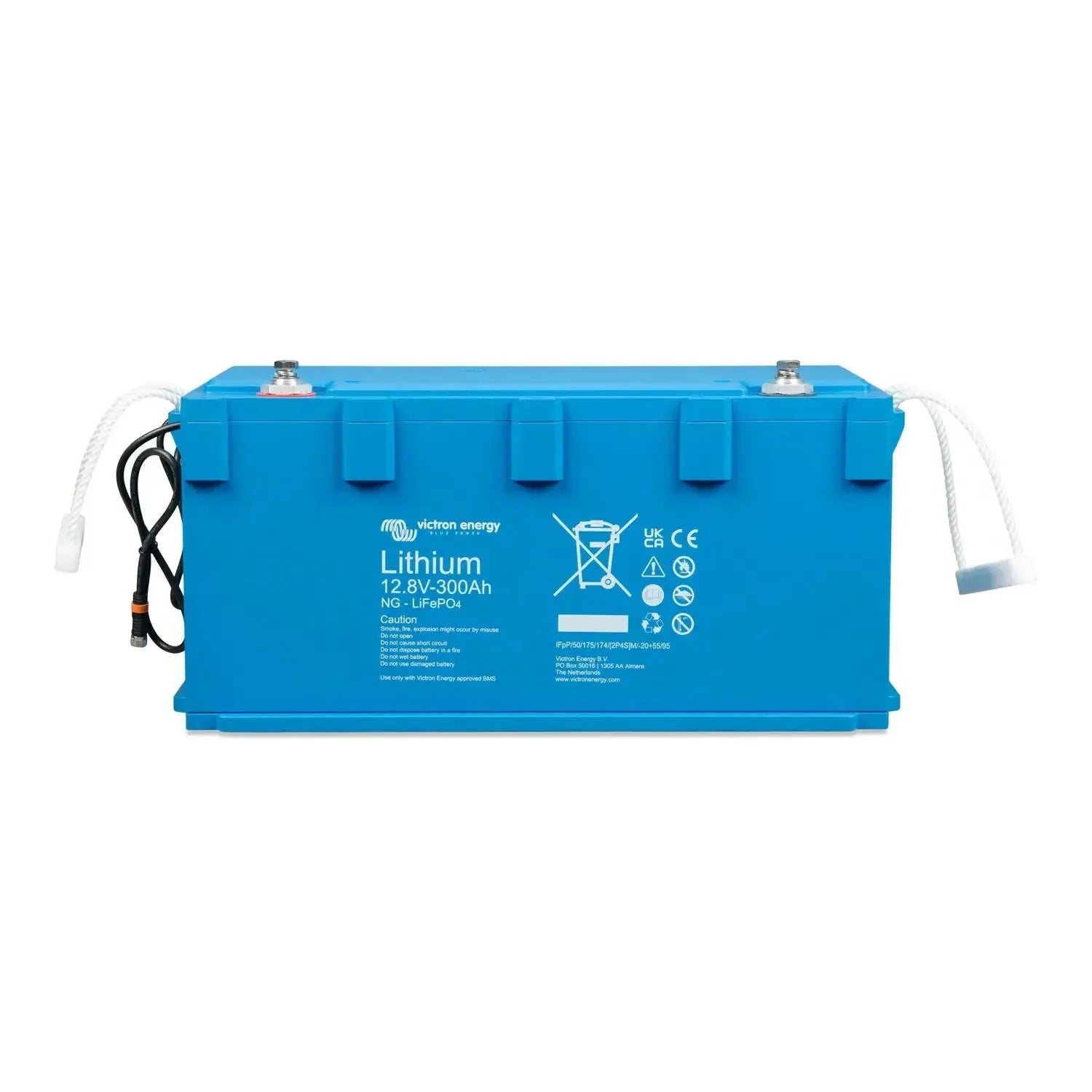

Victron Energy Lithium 12.8V 300Ah NG LiFePO4 battery, bright blue rectangular case with white handles and black power cable.

Victron LiFePO4 Battery 12.8V 300Ah NG | BAT512130620

£1,154.98 £1,279.94
Skip to product information
Victron Energy Lithium 12.8V 300Ah NG LiFePO4 battery, bright blue rectangular case with white handles and black power cable.
Victron LiFePO4 Battery 12.8V 300Ah NG | BAT512130620

Victron LiFePO4 Battery 12.8V 300Ah NG | BAT512130620

Vendor
Victron Energy
SKU
BAT512130620
Availability
In stock
Weight
29.0 kg

Was£1,279.94£1,066.62Save £124.96Save £104.14

£1,154.98inc VAT £962.48exc VAT

Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

The Victron LiFePO4 Battery 12.8V 300Ah NG (BAT512130620) is a lithium iron phosphate battery built for off-grid, marine and mobile power systems needing a high-capacity 12V bank. It delivers 300Ah of capacity at 12.8V nominal, totalling 3.84kWh of energy storage.

Victron LiFePO4 battery features

  • Chemistry, lithium iron phosphate (LiFePO4), a stable cell technology with no thermal runaway risk associated with other lithium chemistries.
  • Voltage, 12.8V nominal, a direct replacement or upgrade for 12V lead-acid battery positions.
  • Capacity, 300Ah, giving 3.84kWh of total energy storage.
  • Series, NG (New Generation) with integrated battery management system (BMS) functionality.
  • Weight, 28kg.
  • Ecosystem, works with Victron charge controllers and inverter/chargers, including VE.Bus and Venus OS monitoring.

Why LiFePO4

LiFePO4 cells hold a flatter discharge curve than lead-acid, so usable voltage stays consistent until the battery is nearly depleted. That matters for inverters and loads sensitive to voltage drop. The integrated BMS in this NG series battery protects against overcharge, over-discharge, over-temperature and short circuit conditions, and communicates state-of-charge to compatible Victron equipment without extra external BMS hardware in many setups.

Batteries can be connected in series or parallel to build 24V or 48V banks, or to add capacity, following Victron's configuration guidelines.

Applications

  • Off-grid solar systems needing a high-capacity 12V or series-connected bank.
  • Marine and narrowboat house banks replacing lead-acid.
  • Motorhomes, expedition vehicles and other mobile power systems.
  • Backup power where long cycle life and low maintenance matter.
  • Victron systems built around MultiPlus, Quattro or SmartSolar equipment.

Installation notes

Fit by a qualified electrician or accredited installer familiar with lithium systems. Chargers and controllers must use lithium-specific charge profiles, not lead-acid settings. Follow Victron's published guidelines when wiring multiple batteries in series for BMS coordination.

What's in the box

  • 1 x Victron LiFePO4 Battery 12.8V 300Ah NG (BAT512130620)
Technical Specifications 26 rows Show
Voltage & capacity
ModelLFP 12.8 V/100 AhLFP 12.8 V/150 AhLFP 12.8 V/300 Ah
Voltage (nominal)12.8 V
Capacity @ 25 °C100 Ah150 Ah300 Ah
Energy @ 25 °C1280 Wh1920 Wh3840 Wh
Capacity loss<1% per 100 cycles
Energy loss<1% per 100 cycles
Round-trip efficiency92%
Cycle life (≥80% of nominal capacity)
Cycles at 80% DoD2500 cycles
Cycles at 70% DoD3000 cycles
Cycles at 50% DoD5000 cycles
Discharge
Continuous discharge current100 A (1C)150 A (1C)300 A (1C)
Pulse discharge current (10s)200 A (2C)300 A (2C)600 A (2C)
End-of-discharge voltage11.2 V
Internal resistance2 mΩ
Charge
Charge voltageBetween 14 V and 14.2 V
Float voltage13.5 V
Continuous charge current100 A (1C)150 A (1C)300 A (1C)
Pulse charge current (10s)200 A (2C)225 A (1.5C)450 A (1.5C)
General
BMS optionsLynx Smart BMS NG 500 A / 1000 A (M10 busbars)
Cell measurementsCell voltages and temperatures, battery current
BMS interfaceMale + female cable with M8 circular connector
BluetoothIn the BMS
Maximum batteries per BMS50 (384 kWh per BMS)
Firmware updatesAutomatically updated by BMS
RepairableYes (cover can be removed with screws)
Operating conditions
Operating temperatureDischarge: -20 °C to +50 °C | Charge: +5 °C to +50 °C

Manufacturer datasheet. Figures as published by the manufacturer.
