Victron PCBA for Shunt BMV 602S/700/702/712 | SPR00053

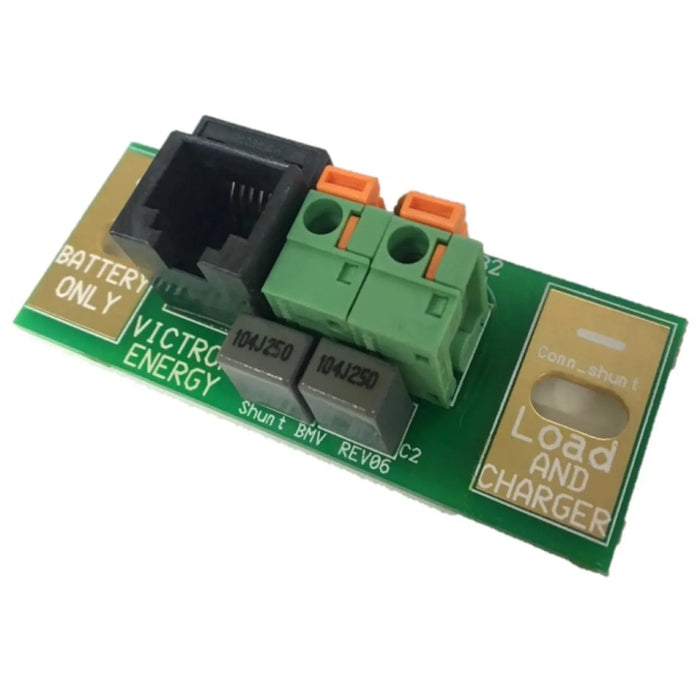

This is the OEM replacement printed circuit board assembly (PCBA) for the shunt unit fitted inside the Victron BMV 602S, BMV 700, BMV 702 and BMV 712 battery monitors. It is a direct spare part for repairing a faulty shunt board rather than replacing the whole monitor.

Key features

• Compatibility, fits the shunt unit on BMV 602S, BMV 700, BMV 702 and BMV 712 models.
• Component type, printed circuit board assembly (PCBA), the board that handles signal processing between the shunt resistor and the display head unit.
• Weight, 0.012 kg.
• SKU, SPR00053.
• GTIN, 8719076031710.

Applications

Fitted when a shunt unit has failed due to an electrical fault, overvoltage event or moisture ingress. It is a common part for solar installers and service engineers holding spares for Victron BMV monitor maintenance, and for workshop repair of returned shunt units. The board matches the original specification, so no changes to the shunt housing or wiring harness are needed.

What's in the box

• 1 x PCBA for BMV 602S / 700 / 702 / 712 shunt unit

Installation notes

Fitting should be carried out by someone familiar with Victron BMV hardware. The shunt sits in the battery's negative circuit, so isolate the battery safely before starting any repair. Check the model number on your existing BMV display or shunt housing before ordering, since this board is specific to the four models listed above.
