All LED Panel Lights

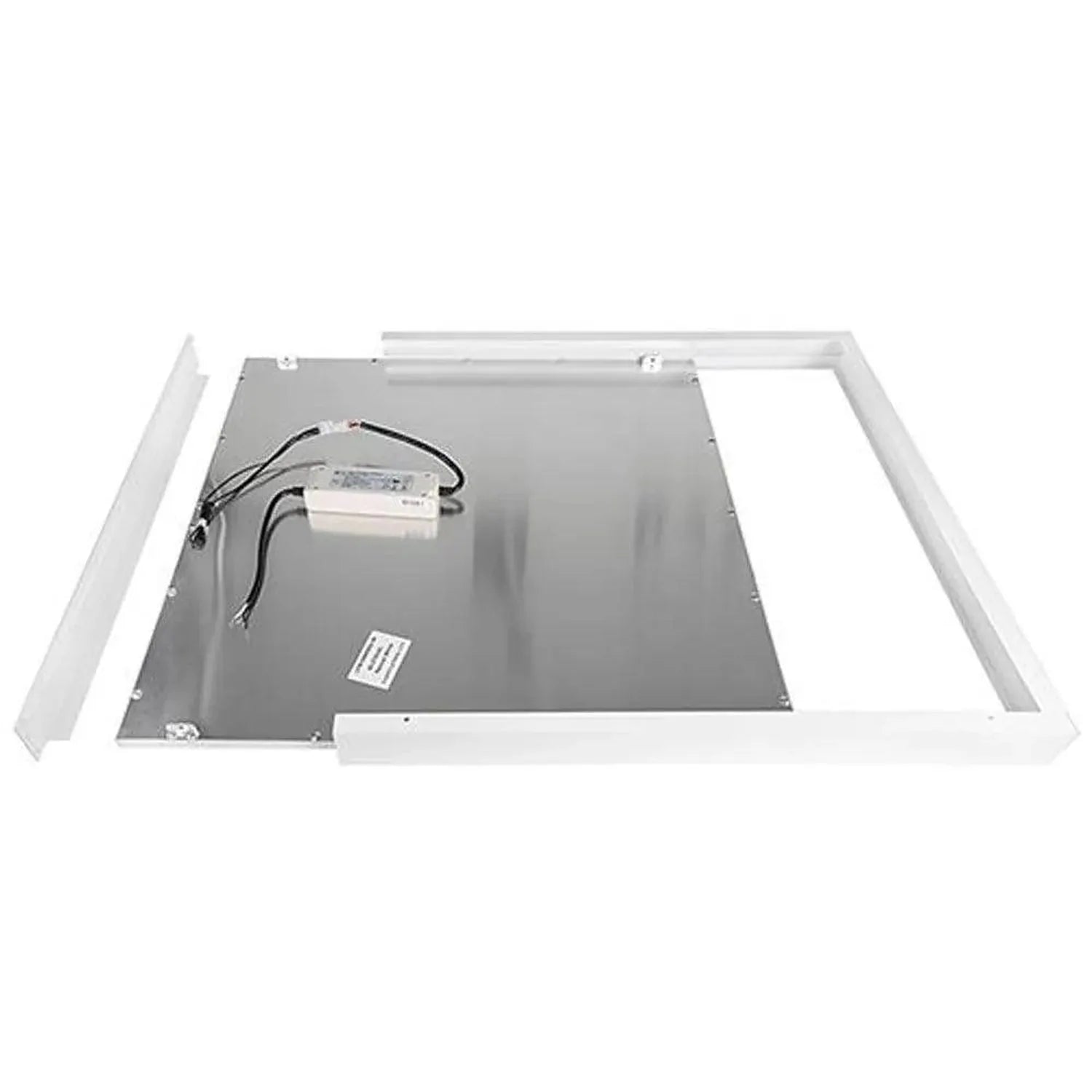

Disassembled aluminum frame kit showing white border frame, gray metal panel backing, and internal wiring with driver compone

Surface Mount Aluminium Frame Kit 1200x600 | Ledison

£25.25
Skip to product information
Disassembled aluminum frame kit showing white border frame, gray metal panel backing, and internal wiring with driver compone
Surface Mount Aluminium Frame Kit 1200x600 | Ledison

Surface Mount Aluminium Frame Kit 1200x600 | Ledison

Vendor
Ledison
SKU
102122
Availability
In stock
Weight
1.0 kg

£25.25inc VAT £21.04exc VAT

Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

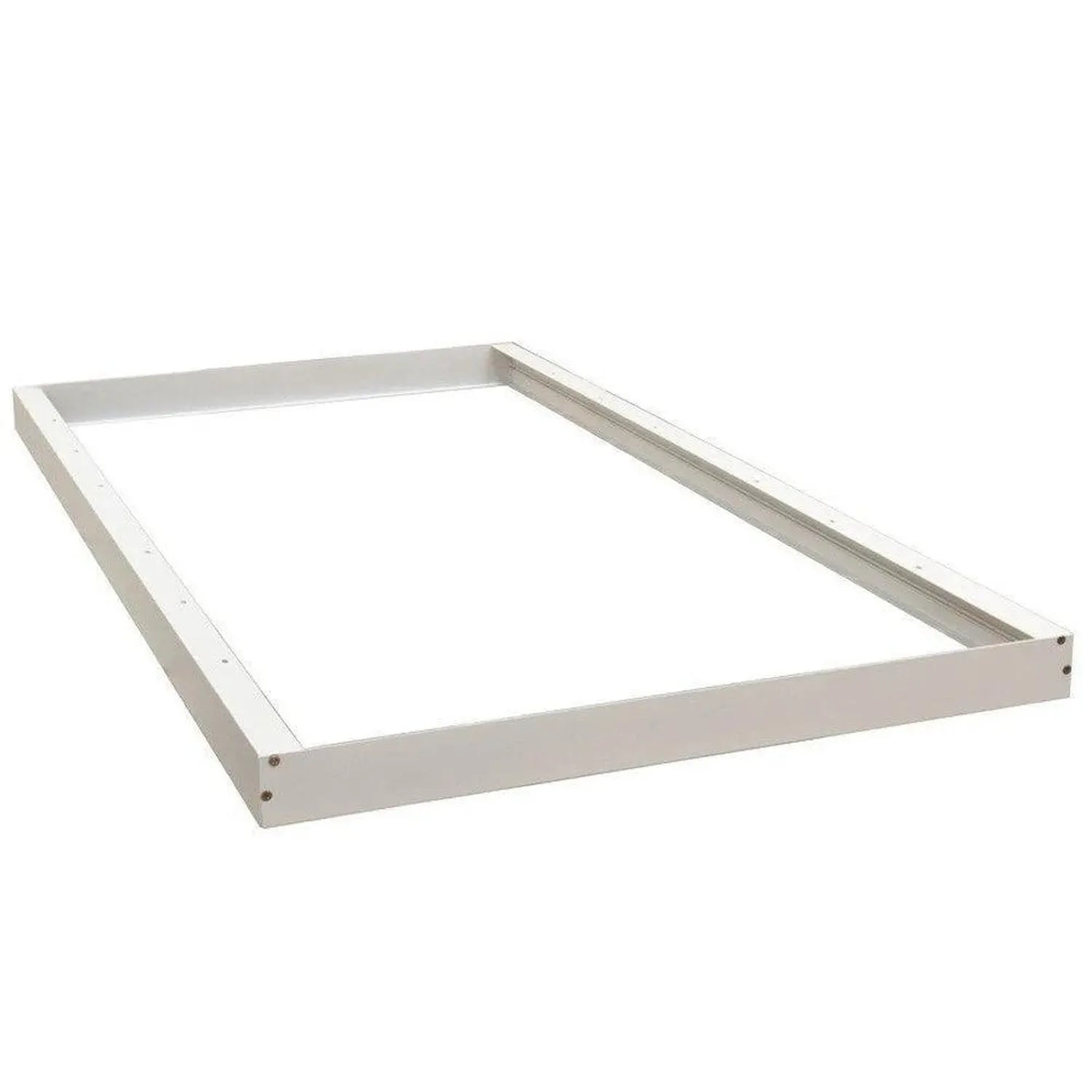

This surface mount kit lets you fit an LED ceiling panel onto any flat surface without recessing it into the ceiling. Finished in white aluminium, the frame is designed for the 1200x600 panel size and gives a clean, low-profile mount where a recessed cut-out is not possible.

Key features

  • Finish, white aluminium frame
  • Material, aluminium construction
  • Fitting type, surface mount, no ceiling cut-out required
  • Compatibility, collocated with the matching PL panel series

Applications

Used where a ceiling panel needs to sit on the surface rather than be recessed, such as suspended ceilings without a false ceiling void, concrete soffits, or refurbishments where cutting into the ceiling is not practical. The kit pairs with the corresponding LED panel to complete the fitting.

Installation

The frame mounts directly to the ceiling surface, with the panel then dropped into or clipped onto the frame, giving a straightforward fit without additional recessing work.

Technical Specifications 9 rows Show
ModelPL0303PL0312PL0606
Part No.27-PL03030127-PL03120127-PL060601
Overall Size299 x 303 x 50mm1199 x 303 x 50mm599 x 603 x 50mm
Pairs WithPL0303 SeriesPL0312 SeriesPL0606 Series
Frame MaterialAluminum
Weight0.6kg / set1.5kg / set1.0kg / set
Carton Quantity16 set / carton10 set / carton16 set / carton
No.ModelPanel SizeFrame SizeABCD
1PL0303295 x 295299 x 303299+1.0303+1.01450
2PL0312295 x 11951199 x 3031199+1.0303+1.01450
3PL0606595 x 595599 x 603599+1.0603+1.01450

Manufacturer datasheet. Figures as published by the manufacturer.
