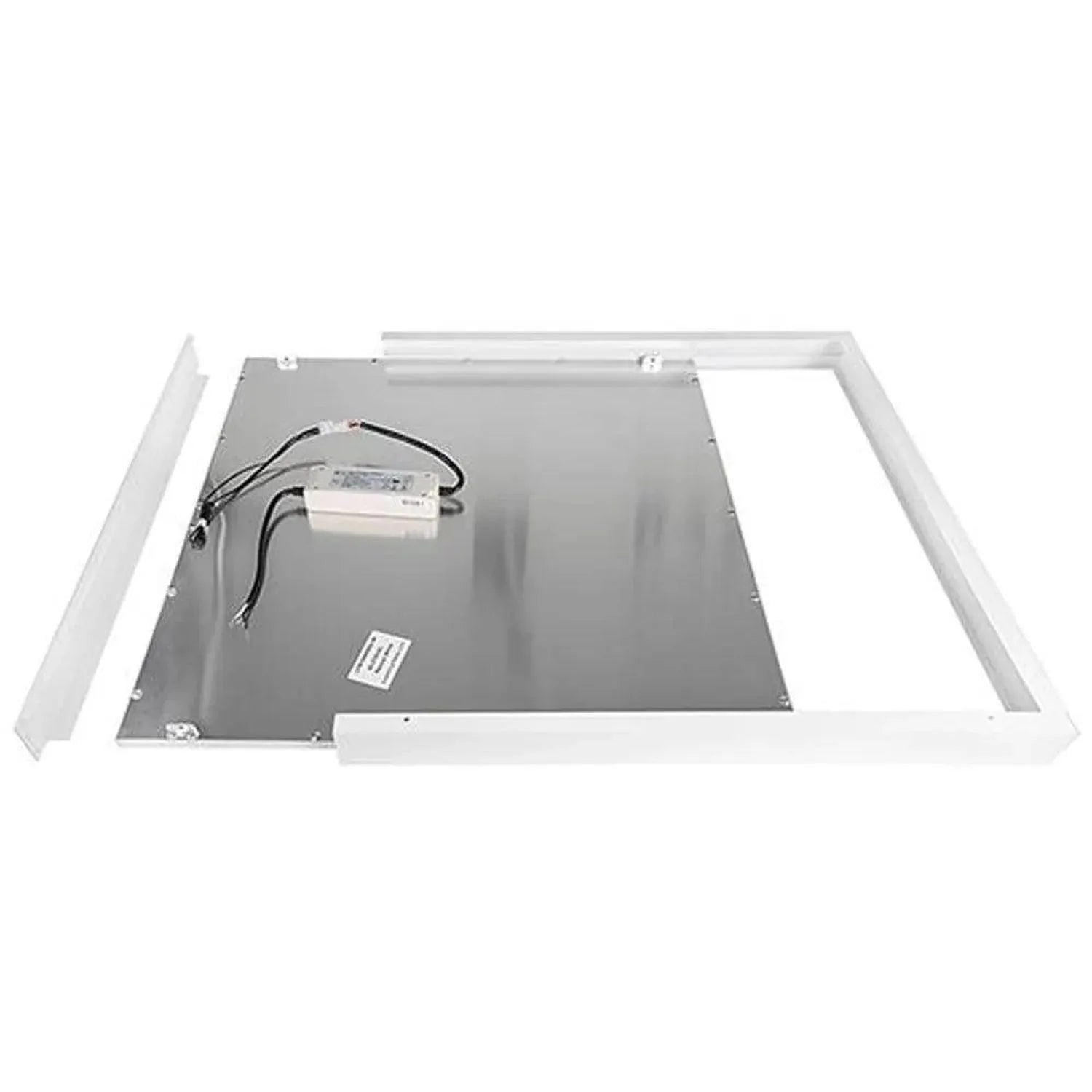

Underside view of aluminum surface mount frame showing gray backing plate with wired driver component and white border frame

Surface Mount Aluminium Frame 1200x300 for LED Panel Lights | Ledison

£25.25
Skip to product information
Underside view of aluminum surface mount frame showing gray backing plate with wired driver component and white border frame
Surface Mount Aluminium Frame 1200x300 for LED Panel Lights | Ledison

Surface Mount Aluminium Frame 1200x300 for LED Panel Lights | Ledison

Vendor
Ledison
SKU
102121
Availability
In stock
Weight
1.0 kg

£25.25inc VAT £21.04exc VAT

Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

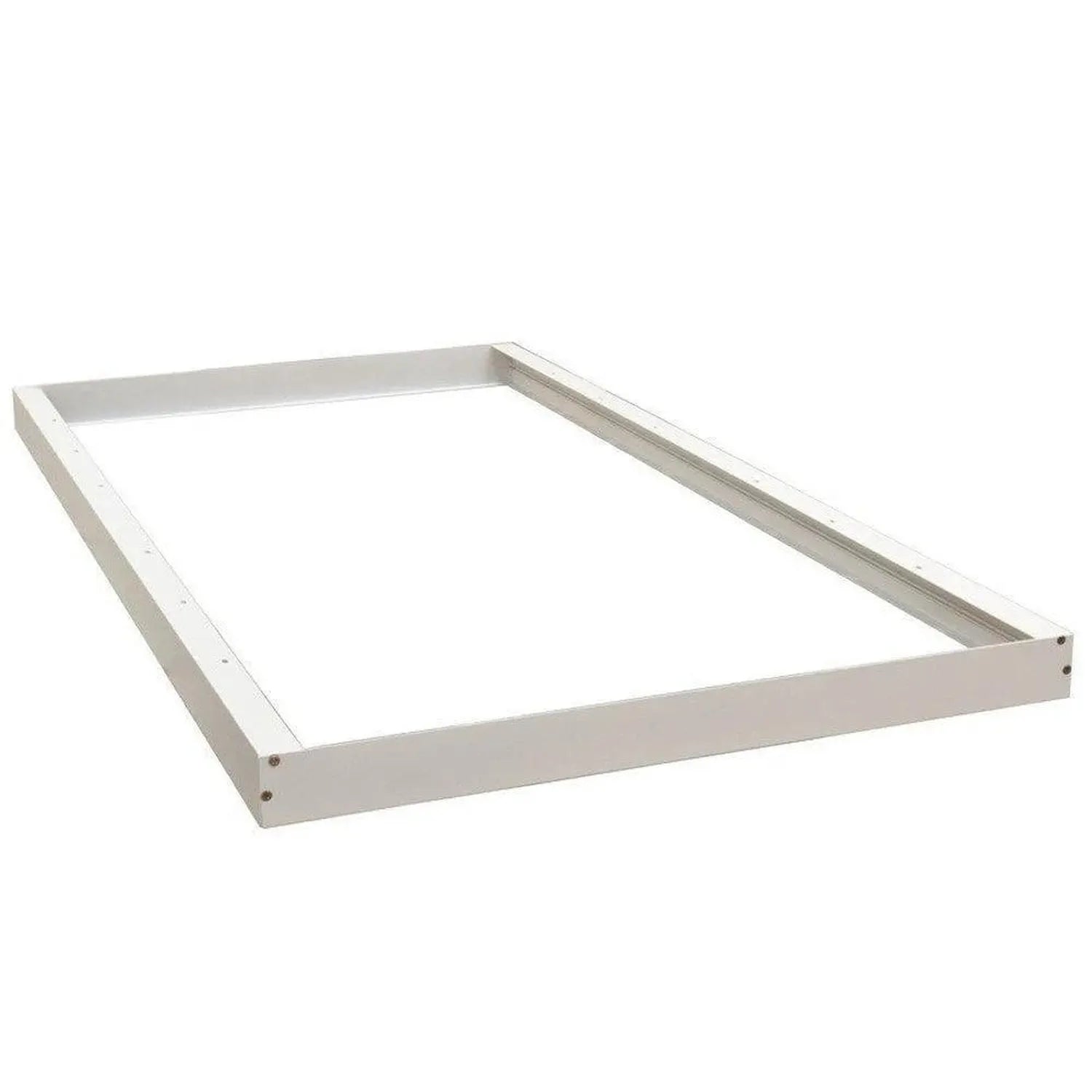

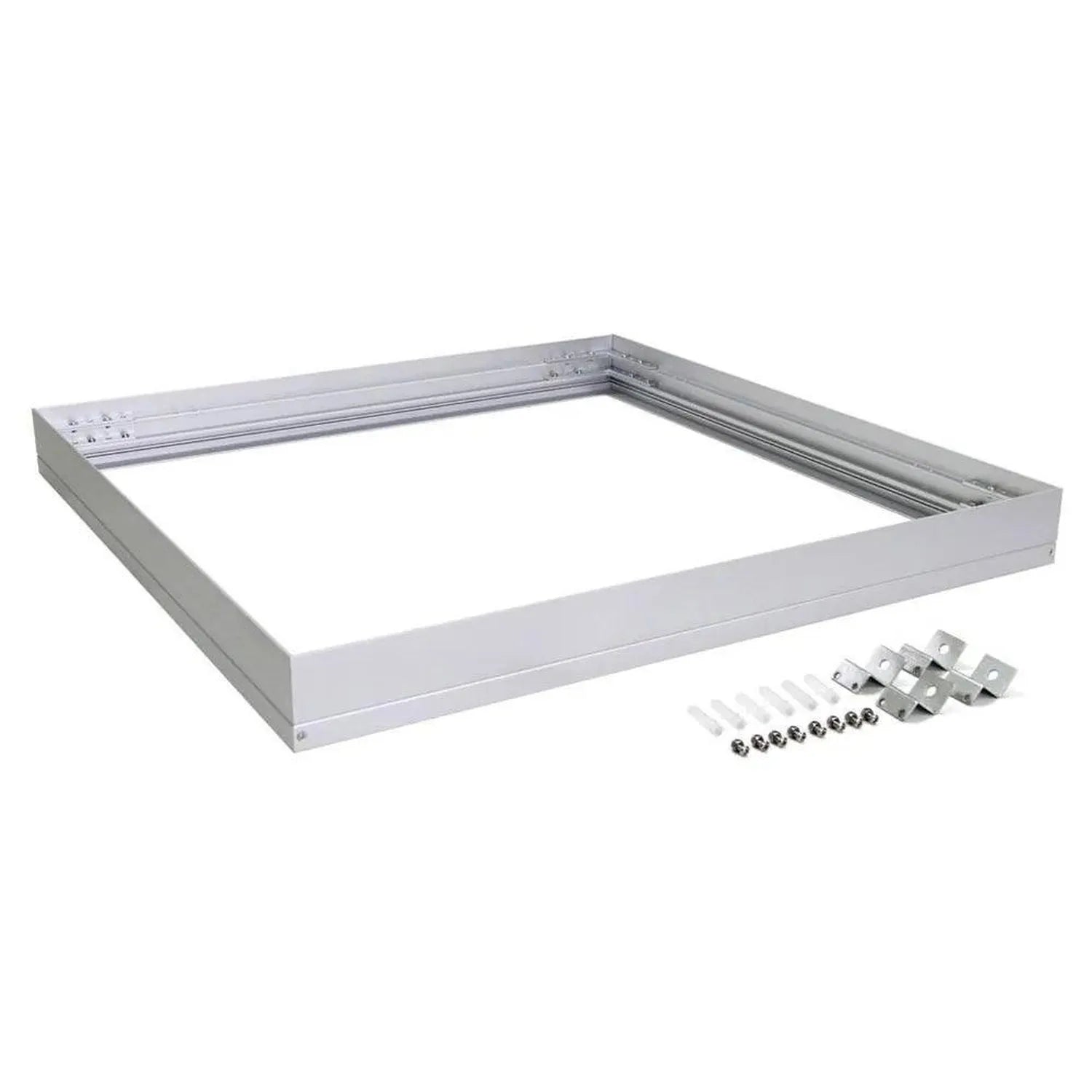

This surface mount frame lets an LED panel light sit flush against a ceiling or wall instead of recessing into a void. It is finished in white aluminium and comes as a fitting kit, so no cutting or plastering is needed where there is no cavity to recess into.

Key features for LED panel light installation

  • Material, aluminium frame construction.
  • Finish, white aluminium finish.
  • Sizes, supplied in PL0303, PL0312 and PL0606 formats, including the 1200x300 size shown here.
  • Fitting, kit-based frame for surface mounting rather than recessed fitting.

Applications

Suited to ceilings and walls where a panel needs to sit on the surface rather than recess into the structure. This covers suspended ceilings without enough depth for a recessed cutout, and solid ceilings where cutting an aperture is not practical.

What's in the box

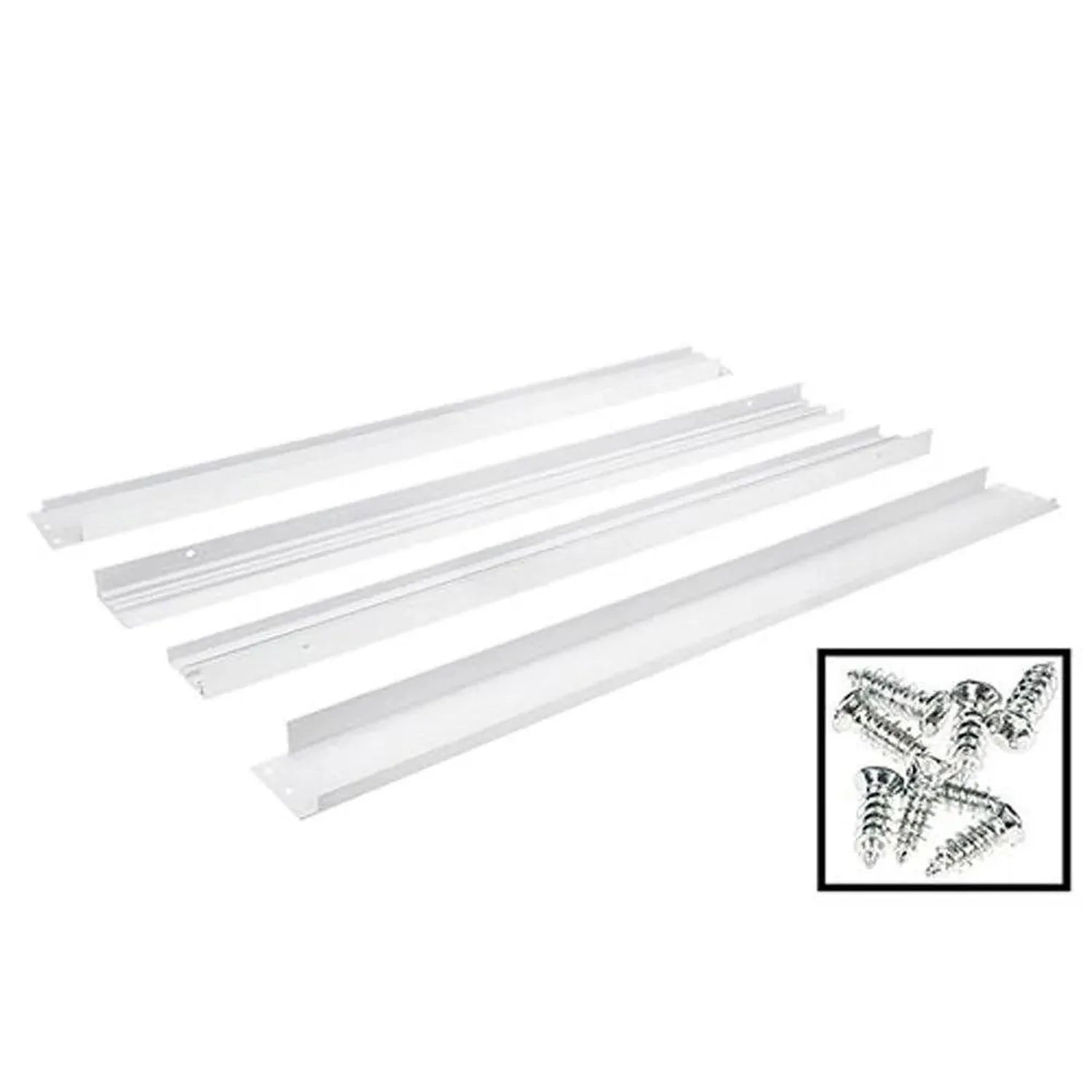

  • Surface mount frame components sized for the corresponding panel model.
Technical Specifications 9 rows Show
DetailPL0303PL0312PL0606
Part Number27-PL03030127-PL03120127-PL060601
Overall Size299 x 303 x 50mm1199 x 303 x 50mm599 x 603 x 50mm
Compatible Panel SeriesPL0303 SeriesPL0312 SeriesPL0606 Series
Frame MaterialAluminum
Weight per Set0.6kg / set1.5kg / set1.0kg / set
Carton Quantity16 set / carton10 set / carton16 set / carton
Item No.ModelPanel Cutout SizeFrame Outer SizeABCD
1PL0303295 x 295299 x 303299+1.0303+1.01450
2PL0312295 x 11951199 x 3031199+1.0303+1.01450
3PL0606595 x 595599 x 603599+1.0603+1.01450

Manufacturer datasheet. Figures as published by the manufacturer.
