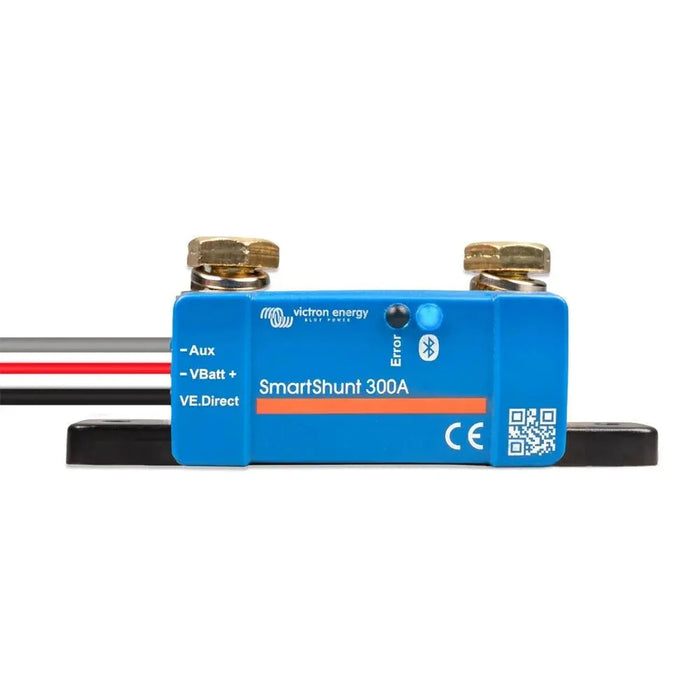

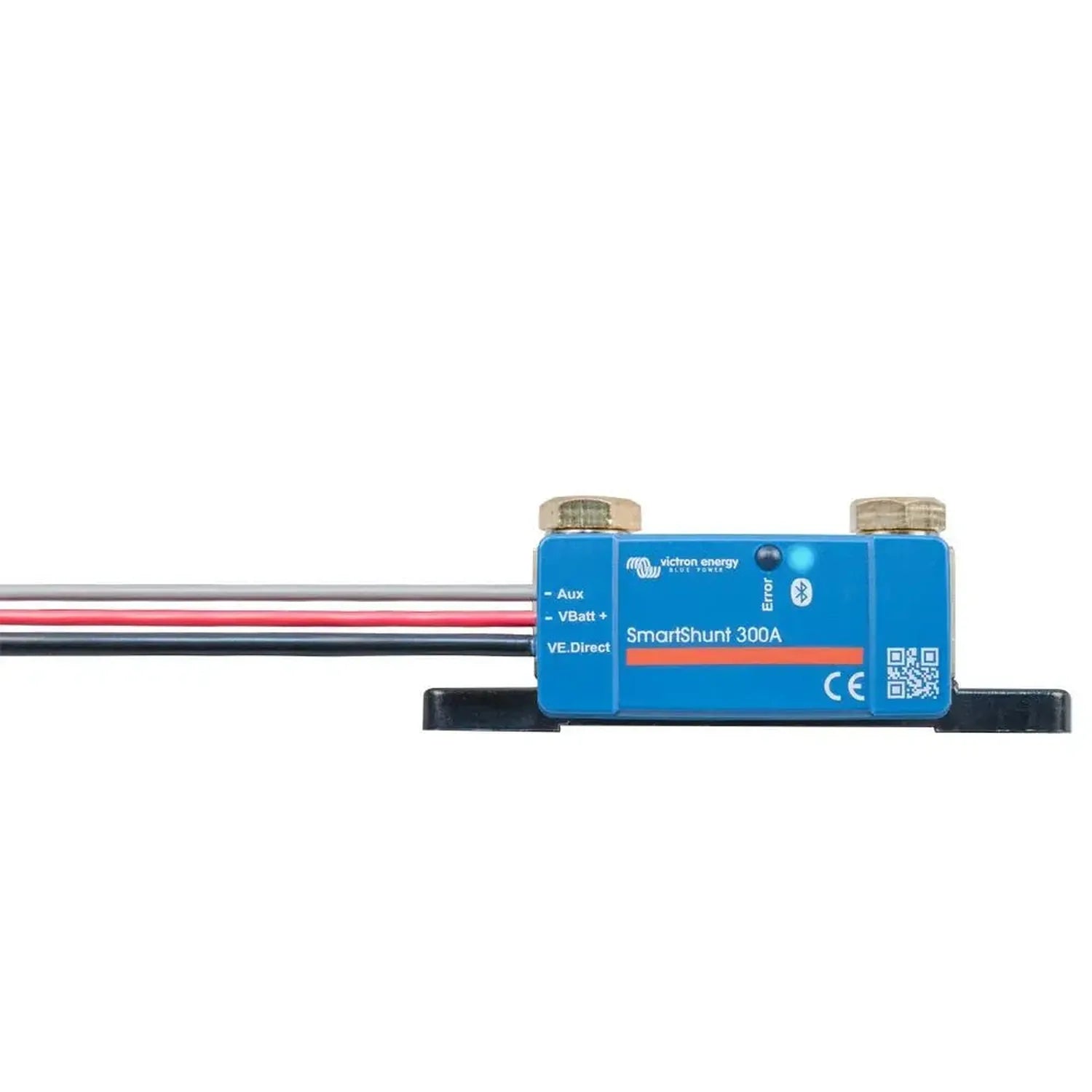

Victron Energy SmartShunt 300A battery monitor with blue casing, brass terminals, and attached wires for auxiliary, battery p

Victron SmartShunt 300A IP65 Battery Monitor | SHU065130050

£57.57 £61.41
Skip to product information
Victron Energy SmartShunt 300A battery monitor with blue casing, brass terminals, and attached wires for auxiliary, battery p
Victron SmartShunt 300A IP65 Battery Monitor | SHU065130050

Victron SmartShunt 300A IP65 Battery Monitor | SHU065130050

Vendor
Victron Energy
SKU
SHU065130050
Availability
In stock
Weight
0.44 kg

Was£61.41£51.18Save £3.84Save £3.20

£57.57inc VAT £47.98exc VAT

Secure checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Talk to our sales team

Product Description

The Victron SmartShunt 300A IP65 is a battery monitor that tracks current, voltage, state of charge, consumed amp-hours and time-to-go, sending all readings over Bluetooth to the VictronConnect app. There is no screen on the unit itself, which keeps it compact and lets it sit closer to the battery bank than a monitor with a fixed display.

Victron SmartShunt 300A features

  • Current rating, 300A continuous, suited to 12V, 24V and 48V systems.
  • Protection, IP65 enclosure, rated against dust ingress and low-pressure water jets.
  • Connectivity, built-in Bluetooth, no separate dongle, pairs with VictronConnect on iOS and Android.
  • Monitoring, state of charge, voltage, current, consumed amp-hours, instantaneous power and time-to-go from one device.
  • Compatibility, works with lead-acid (AGM, gel, flooded) and lithium (LiFePO4) batteries.
  • Weight, 0.31 kg, with the shunt built into the unit so no separate shunt box is needed.

Where it fits

Because there's no display to read, the sealed IP65 body is happy in spots a standard monitor wouldn't tolerate: engine bays, bilges, outdoor enclosures, agricultural vehicles. It suits off-grid solar banks, marine installs, campervan and motorhome systems, and auxiliary power on HGVs or construction plant.

System integration

Bluetooth pairing lets the SmartShunt feed a Victron GX device (Cerbo GX, Venus GX and similar), putting battery data into the VRM portal alongside the rest of a monitored system.

Installation notes

Fit the SmartShunt in the negative line between the battery bank and every load and charge source, with only the battery negative wired directly to the shunt. Wiring it any other way gives inaccurate readings. Installation should be done by someone experienced with DC battery systems, and an MCS-accredited installer is recommended for off-grid solar work. Fuse the positive cable as the battery manufacturer specifies.

What's in the box

  • 1x Victron SmartShunt 300A IP65 unit
Technical Specifications 27 rows Show
SmartShunt IP65 300A
Supply voltage6.5 - 70 VDC
Current draw< 1 mA
Auxiliary battery input range6.5 - 70 VDC
Battery capacity1 - 9999 Ah
Operating temperature-40 to +50°C (-40 to 120°F)
Second battery, temperature or midpoint measurementYes
Temperature measurement range-20 to +50°C
VE.Direct portYes
Resolution and accuracy
Current resolution± 0.01 A
Voltage resolution± 0.01 V
Amp hours resolution± 0.1 Ah
State of charge resolution (0 – 100 %)± 0.1 %
Time to go resolution± 1 min
Temperature accuracy (optional sensor)± 1°C/°F (0 – 50°C or 30 – 120°F)
Current measurement accuracy± 0.4 %
OffsetLess than 10 mA
Voltage measurement accuracy± 0.3 %
Installation and dimensions
Dimensions (h x w x d)44 x 120 x 38 mm
Shunt connection boltsM8
Protection ratingIP65
Standards
SafetyEN 60335-1
Emission / immunityEN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
AutomotiveEN 50498
Cables
Included cablesTwo 1.5 m cables with 1 A fuse, for ‘+’ connection and starter battery or midpoint connection
VE.Direct cable1.5 m cable with VE.Direct socket. VE.Direct cable is needed to connect a GX device (not included)
Stored trends
Logged dataBattery voltage, Current, State of Charge %, Aux input (Battery temperature, or midpoint deviation, or starter battery voltage)
Trend data storage period46 days

Manufacturer datasheet. Figures as published by the manufacturer.
