5.6kW Off-Grid Solar Kit 15kWh Battery Storage | Voltacon

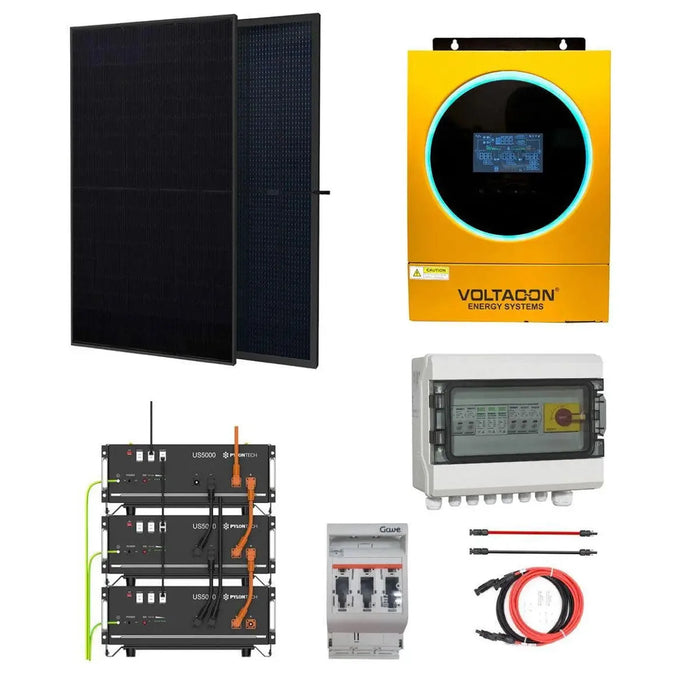

This 5.6kW off-grid solar kit from Voltacon is built around a Conversol MKS IV 5.6kW inverter-charger, three Pylontech US5000 lithium batteries giving 15kWh of usable storage, and eight 425W full black monocrystalline panels. It is designed and assembled in the UK and arrives palletised with a wiring diagram and technical support.

Key features of this off-grid solar kit

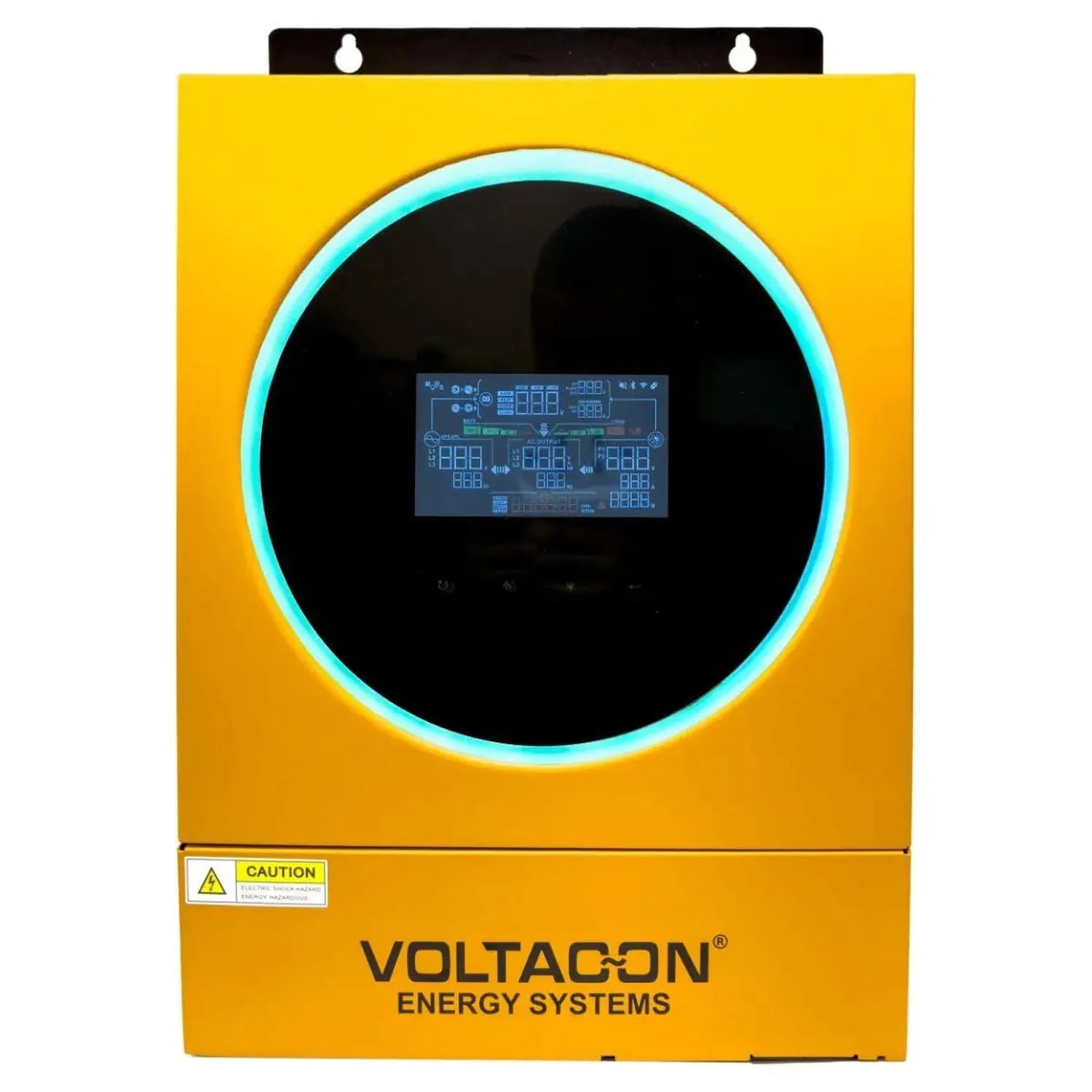

• Inverter-charger, Conversol MKS IV 5.6kW single-MPPT, 48V
• Battery storage, 3x Pylontech US5000 48V 5.12kWh batteries, 15kWh total

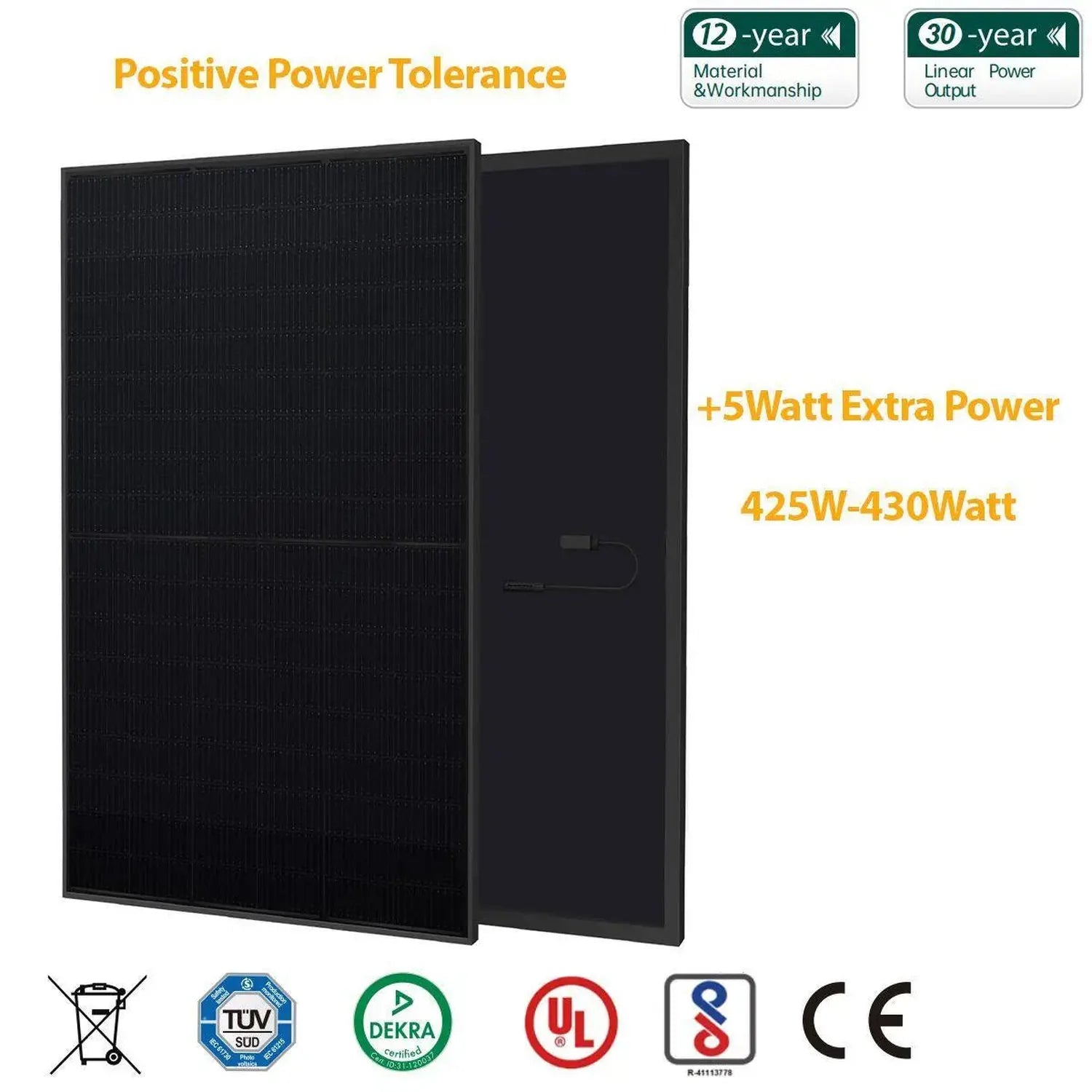

• Solar panels, 8x 425W full black half cut monocrystalline (3,400W total PV)
• Expandable, up to 6,000W PV input, additional batteries can be added
• Monitoring, Solar Assistant kit (Orange Pi) with communication cables
• Backup switching, motorised 63A changeover switch for grid or generator

Product overview

The MKS IV inverter charges the Pylontech battery bank directly from the panels through its single MPPT input, and further panels can be added up to the 6kW PV limit without changing the inverter. The three US5000 batteries communicate with the inverter through a BMS cable, managing charge and discharge automatically.

The motorised changeover switch moves the system between off-grid solar supply and a grid or generator source when battery charge drops below the configured threshold, so supply continues without manual switching. A Victron Lynx Distributor handles DC bus distribution with integrated fusing for the battery cables and inverter DC inputs.

Mounting is via an adjustable triangle bracket for flat surface or ground installation. Contact Voltacon before ordering if a different mounting arrangement is needed.

What's in the box

• 1x Conversol MKS IV 5.6kW inverter-charger
• 3x Pylontech US5000 48V 5.12kWh lithium batteries with wall mounting brackets
• 8x 425W full black half cut monocrystalline solar panels with mounting structure
• 1x Solar Assistant monitoring kit (Orange Pi) with communication cables
• 1x Victron Lynx Distributor
• 1x Motorised changeover switch 63A
• 2x 100A Mersen fuse disconnectors

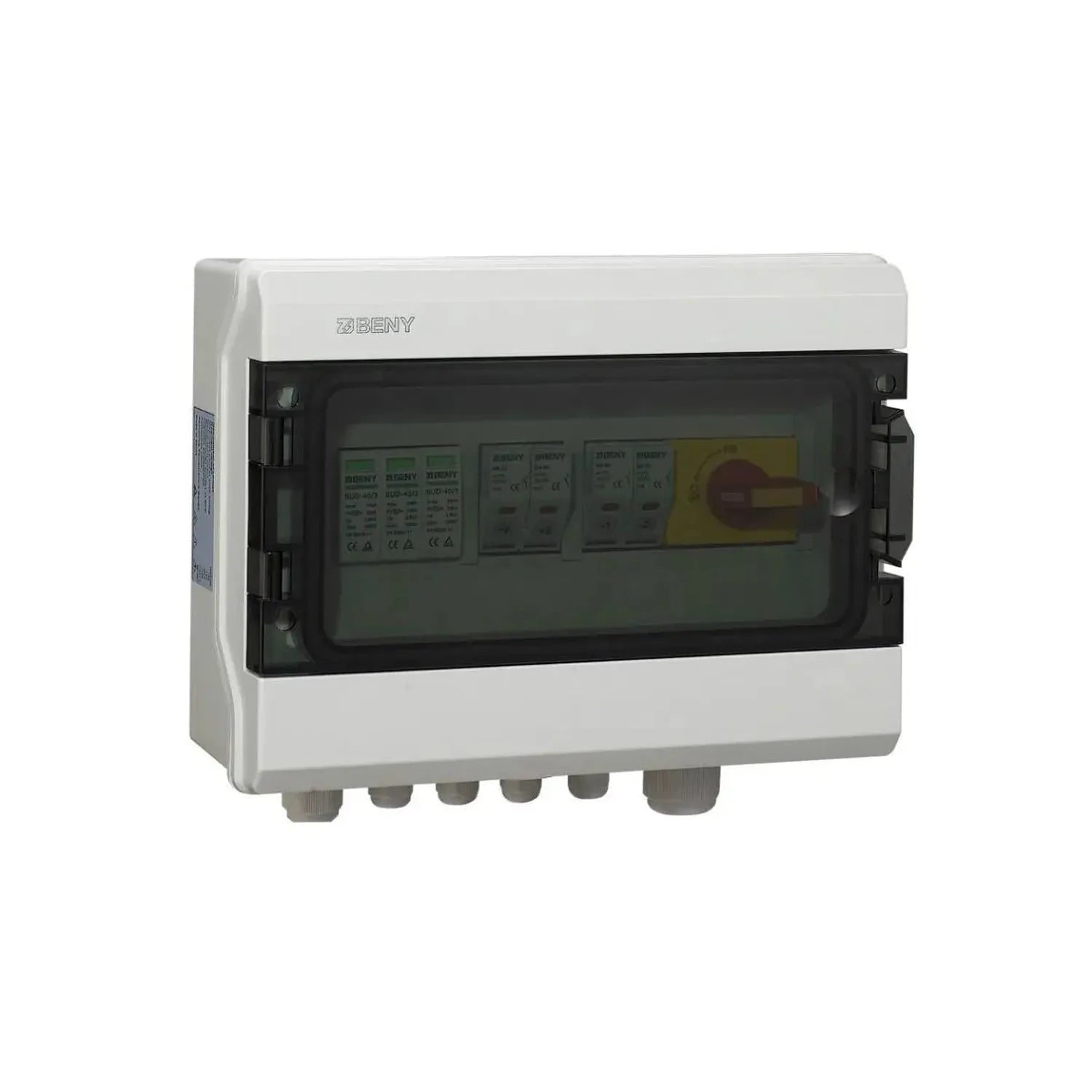

• 1x Solar PV combiner box with DC isolator, 20A fuses and surge protection
• 1x 25A AC isolator
• 25m red and 25m black 6mm solar cable
• Wiring diagram and installation instructions

Applications

Suited to domestic off-grid solar power systems, grid or generator backup for homes and small businesses, and remote properties without a reliable grid connection.

Installation and safety notes

This kit must be installed by a qualified electrician. Battery connections, DC fusing, AC output wiring, BMS communication and earthing must comply with IET Wiring Regulations and the manufacturers' installation guidelines. Do not attempt DIY installation of the inverter or battery systems.
