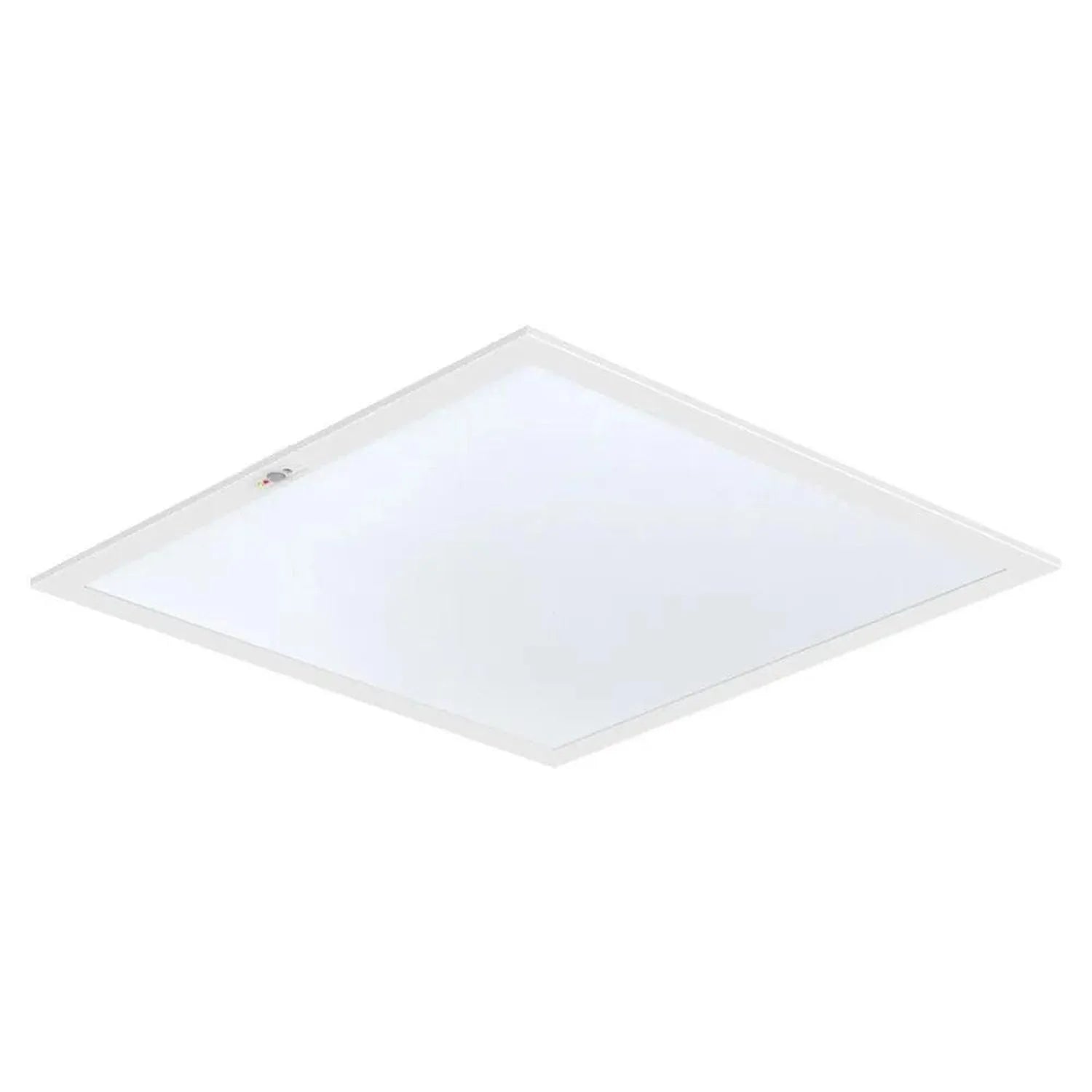

White square LED ceiling panel light fixture shown at an angle against a white background.

Smart LED Panel 600x600 40W PIR and Daylight Sensor 2700K-6500K | Ledison

No
£76.64
Skip to product information
White square LED ceiling panel light fixture shown at an angle against a white background.

Smart LED Panel 600x600 40W PIR and Daylight Sensor 2700K-6500K | Ledison

Vendor
Ledison
SKU
102069
Availability
In stock
Weight
1.562 kg

£76.64inc VAT £63.87exc VAT

Delivery from £7.99 to mainland UK 3 to 5 working days. Or collect free from Coventry.All delivery costs

Secure checkout
Payment methods
  • American Express
  • Apple Pay
  • Bancontact
  • Bizum
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • MB WAY
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa

Product Description

This 40W smart LED panel 600x600 is made for offices, schools, shops and hospitals. Each panel joins a Bluetooth mesh network, so a whole room or floor of panels can be run together from the Tuya (Smart Life) app on your phone. Output is 3300-4000LM.

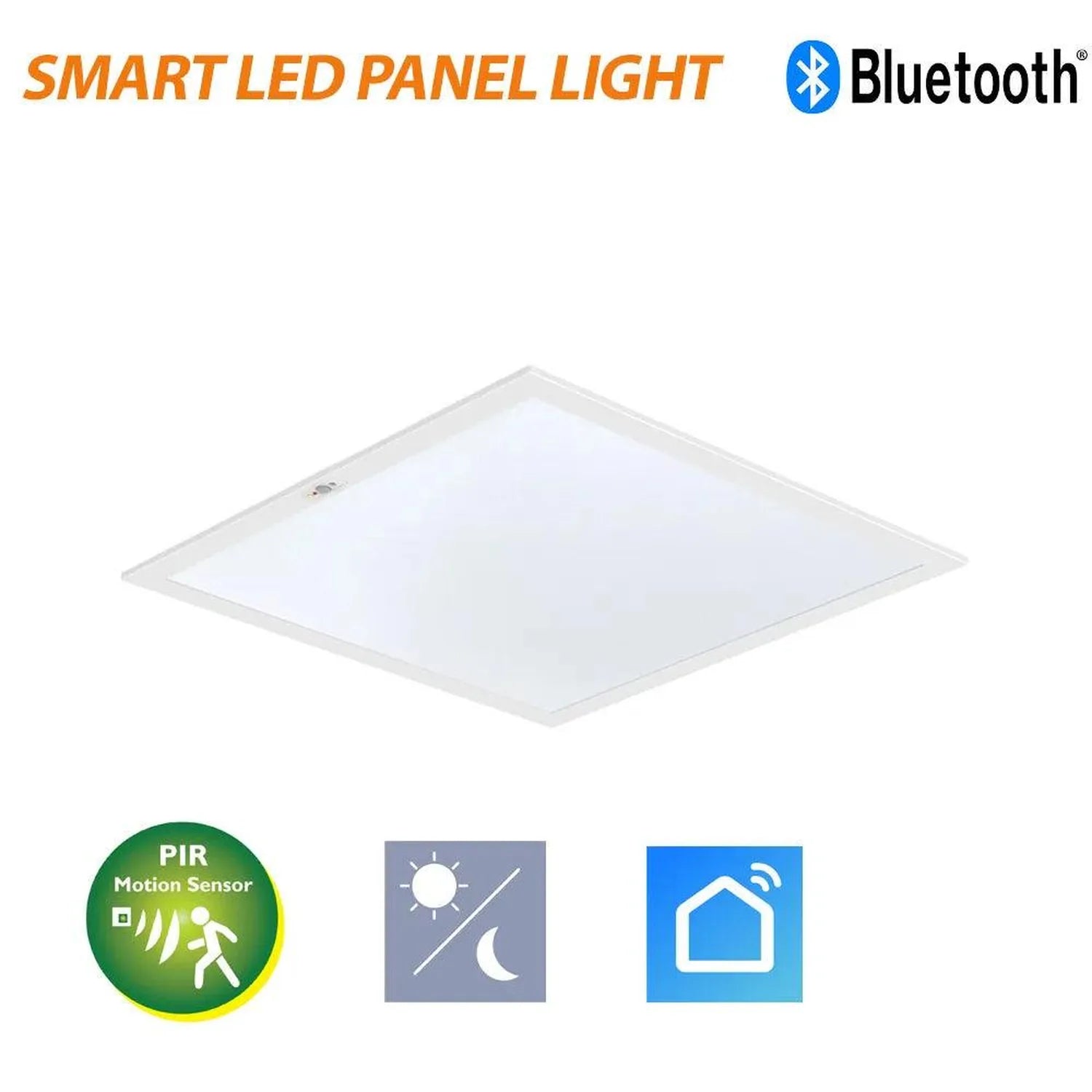

Smart LED panel 600x600 with PIR and daylight sensing

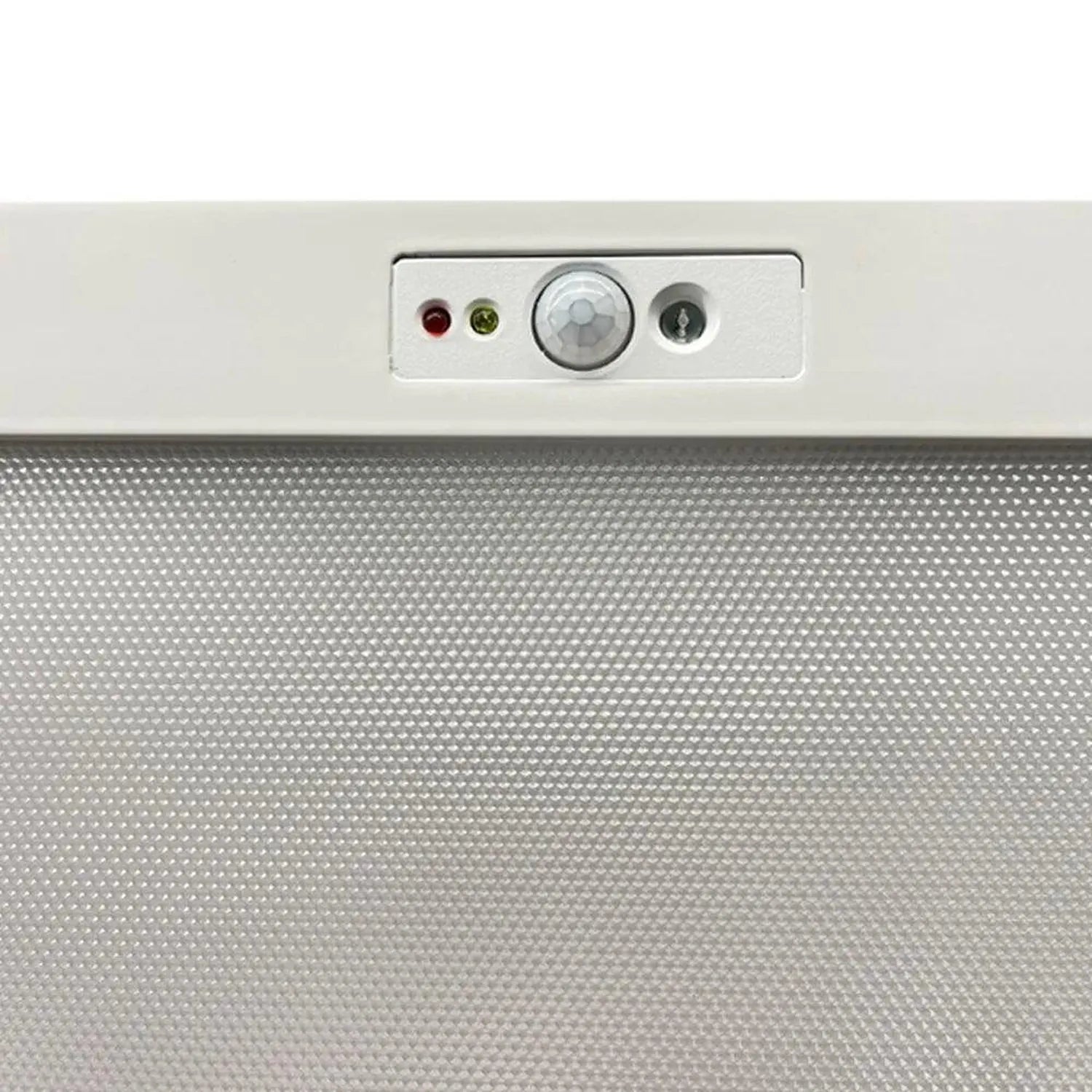

A PIR sensor turns the light on when someone comes in. After they leave, it dims the panel and then switches it off once the hold time has passed. There is also a daylight sensor. When enough daylight reaches the room, it turns the light down or keeps it off.

Key features

  • Power and output: 40W, 3300-4000LM

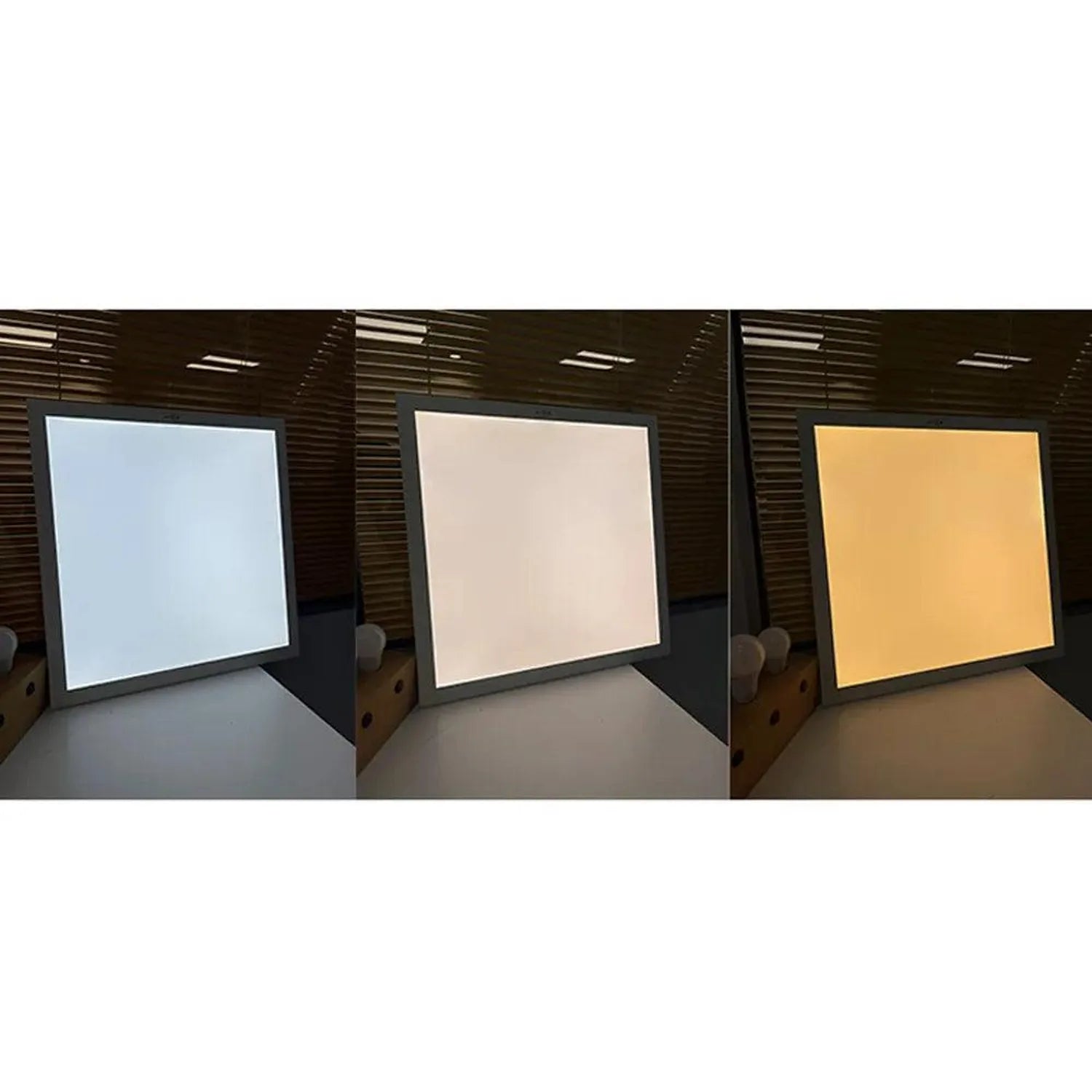

  • Colour temperature: adjustable from 2700K to 6500K in the app
  • Light quality: CRI ≥80, UGR<19, beam angle 90°
  • Flicker: 5%, IEEE1789 no risk
  • Size: 595 x 595 x 8.5mm
  • Ratings and driver: IP20, Class II, separate (built-out) LED driver, lifetime 40,000h

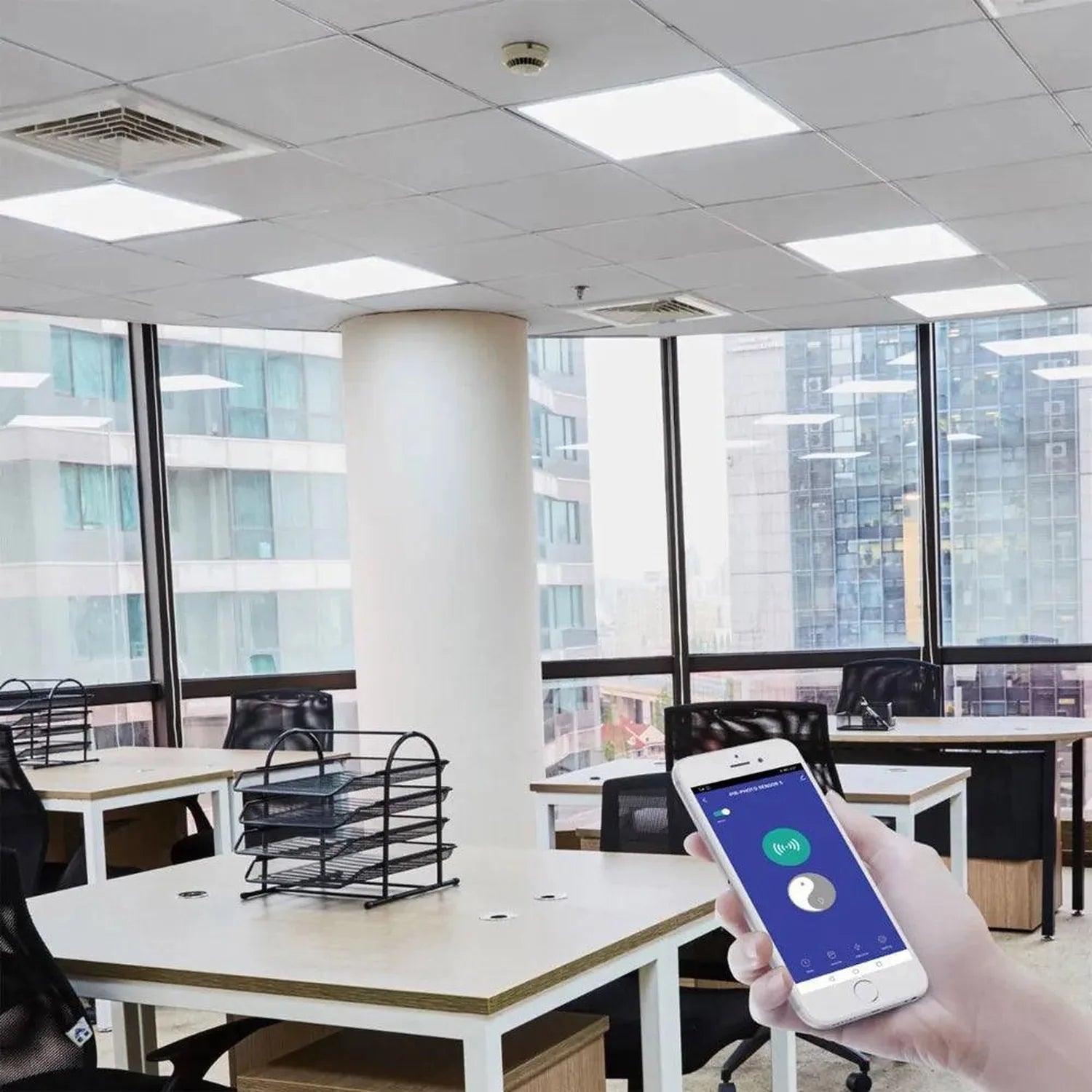

Control from the Tuya app

The app covers day-to-day switching as well as sensor set-up:

  • Remote on and off, plus brightness adjustment
  • Colour temperature from 2700K to 6500K
  • Lighting scenes and programmable schedules
  • Sensor on and off, daylight lux level, hold time, PIR sensitivity and distance
  • Recording of electricity consumption

Bluetooth gateway

Schedules and consumption recording need a Bluetooth gateway. Everything else in the list works without one.

Installation

Fit it recessed into a ceiling grid, surface mounted or hung as a pendant. Each method needs the right accessories.

Technical Specifications 26 rows Show
Power40W
Rated input voltageAC200-240V
VoltageAC180-265V
Light source4014 SMD

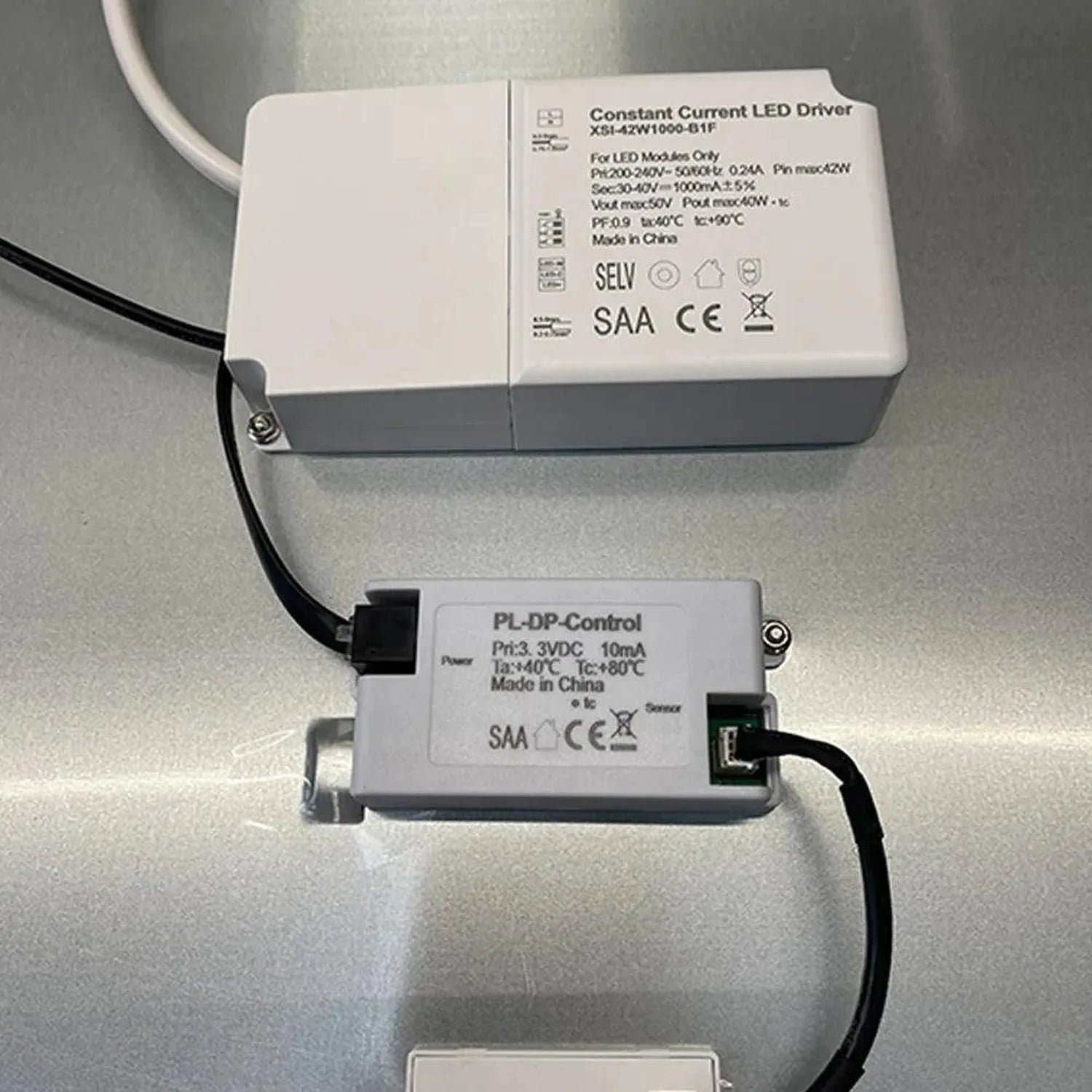

LED driverBuilt-out
Colour temperatureCCT: 2700K-6500K
Luminous flux3300-4000LM
Colour rendering index≥80
Beam angle90°
UGR<19
DimmingSignal Control
SensorYES
Electrical classClassII
IP ratingIP20
FinishWhite RAL 9016
HousingAluminum (Frame)+PMMA(LGP)
Dimensions595*595*8.5
Lifetime40,000h
Glow wire test650℃
Operating temperature-10℃~40℃
Storage temperature-20℃~50℃
Power factor0.9
Driver efficiency≥86%
THD<20%
Flickering index5%; IEEE1789 NO RISK
InstallationSurface mount/ Pendant/ Recessed

Manufacturer datasheet. Figures as published by the manufacturer.
